Results (918)
Not discontinued
In stock
RoHS compliant
Datasheet
New
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Assembly Type | Rated voltage AC | Rated voltage DC | Switching current | Switching capacity (VA) | contacts | Contact material | Coil resistance | Dimension: Length | Dimension: Width | Dimension: Height | Protection class RT | Operating Temperature Min. | Operating Temperature Max. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
151 | Manufacturers Part No. G5Q-14 DC12(G5Q14-12) Omron Signal relay G5Q THT SPDT 10A 12VDC 360Ohm 20,3mmx10,3mmx15,5mm RTIII | Customer Part No. Customer Project No. | 1.020 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Signal relay | Omron | THT | 12.0 V DC | 10.0 A | SPDT | Ag alloy | 360.0 Ohm | 20.3 mm | 10.3 mm | 15.5 mm | RTIII | -40.0 °C | 105.0 °C | ||||||||
152 | Manufacturers Part No. FTR-C1CB005G(FTR-C1CB005G) FCL Components Power relay FTR-C1 THT DPDT 2A 5VDC 179Ohm 15,2mmx7,7mmx9,4mm RTIII | Customer Part No. Customer Project No. | 990 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Power relay | FCL Components | THT | 5.0 V DC | 2.0 A | 62.5 VA | DPDT | AgPd/Au | 179.0 Ohm | 15.2 mm | 7.7 mm | 9.4 mm | RTIII | -40.0 °C | 85.0 °C | |||||||
153 | Manufacturers Part No. FTR-C1CA012G(FTR-C1CA012G) FCL Components Power relay FTR-C1 THT DPDT 2A 12VDC 514Ohm 15,2mmx7,7mmx9,4mm RTIII | Customer Part No. Customer Project No. | 760 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Power relay | FCL Components | THT | 12.0 V DC | 2.0 A | 62.5 VA | DPDT | AgPd/Au | 514.0 Ohm | 15.2 mm | 7.7 mm | 9.4 mm | RTIII | -40.0 °C | 85.0 °C | |||||||
154 | Manufacturers Part No. FTR-C1GA005G-B05(FTR-C1GA005G-B05) FCL Components Power relay FTR-C1 SMD DPDT 2A 5VDC 89,3Ohm 15,2mmx7,7mmx9,7mm RTIII | Customer Part No. Customer Project No. | 1.460 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Power relay | FCL Components | SMD | 5.0 V DC | 2.0 A | 62.5 VA | DPDT | AgPd/Au | 89.3 Ohm | 15.2 mm | 7.7 mm | 9.7 mm | RTIII | -40.0 °C | 85.0 °C | |||||||
155 | Manufacturers Part No. AZ921-1AB-24DEA(AZ921-1AB-24DEA) Zettler Power relay AZ921 THT SPST-NO 5A 24VDC 3.200Ohm 20,3mmx5,3mmx12,8mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 18 Weeks Available on order | (at least 1000 or mul. of 1000) | Power relay | Zettler | THT | 24.0 V DC | 5.0 A | 1250.0 VA | SPST-NO | AgNi/Au | 3200.0 Ohm | 20.3 mm | 5.3 mm | 12.8 mm | -40.0 °C | 85.0 °C | ||||||||
156 | Manufacturers Part No. AZ921-1AE-12DEF(AZ921-1AE-12DEF) Zettler Power relay AZ921 THT SPST-NO 5A 12VDC 1.200Ohm 20,3mmx5,3mmx12,8mm | Customer Part No. Customer Project No. | 940 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 10 or mul. of 10) | Power relay | Zettler | THT | 12.0 V DC | 5.0 A | 1250.0 VA | SPST-NO | AgSnO2 | 1200.0 Ohm | 20.3 mm | 5.3 mm | 12.8 mm | -40.0 °C | 85.0 °C | ||||||||
157 | Manufacturers Part No. AZ6991-1A-12DA(AZ6991-1A-12DA) Zettler Power relay AZ6991 THT SPST-NO 8A 12VDC 848Ohm 28mmx5mmx15mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 18 Weeks Available on order | (at least 2000 or mul. of 2000) | Power relay | Zettler | THT | 12.0 V DC | 8.0 A | 2216.0 VA | SPST-NO | AgSnO2/Au | 848.0 Ohm | 28.0 mm | 5.0 mm | 15.0 mm | -40.0 °C | 85.0 °C | ||||||||
158 | Manufacturers Part No. AZ6991-1A-5DA(AZ6991-1A-5DA) Zettler Power relay AZ6991 THT SPST-NO 8A 5VDC 147Ohm 28mmx5mmx15mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 18 Weeks Available on order | (at least 2000 or mul. of 2000) | Power relay | Zettler | THT | 5.0 V DC | 8.0 A | 2216.0 VA | SPST-NO | AgSnO2/Au | 147.0 Ohm | 28.0 mm | 5.0 mm | 15.0 mm | -40.0 °C | 85.0 °C | ||||||||
159 | Manufacturers Part No. RM699BV-3011-85-1012(RM699BV3011-851012) RELPOL Power relay RM699B THT SPST 10A 12VDC 848Ohm 28mmx5mmx15mm RTIII | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 32 Weeks Available (from stock) | (at least 5 or mul. of 5) | Power relay | RELPOL | THT | 12.0 V DC | 10.0 A | 1500.0 VA | SPST | AgSnO2 | 848.0 Ohm | 28.0 mm | 5.0 mm | 15.0 mm | RTIII | -40.0 °C | 85.0 °C | |||||||
160 | Manufacturers Part No. RM699BV-3011-85-1024(RM699BV3011-851024) RELPOL Power relay RM699B THT SPST 10A 24VDC 3.390Ohm 28mmx5mmx15mm RTIII | Customer Part No. Customer Project No. | 2.565 Pcs. Planned Delivery Time Ø 32 Weeks Available (from stock) | (at least 5 or mul. of 5) | Power relay | RELPOL | THT | 24.0 V DC | 10.0 A | 1500.0 VA | SPST | AgSnO2 | 3390.0 Ohm | 28.0 mm | 5.0 mm | 15.0 mm | RTIII | -40.0 °C | 85.0 °C | |||||||

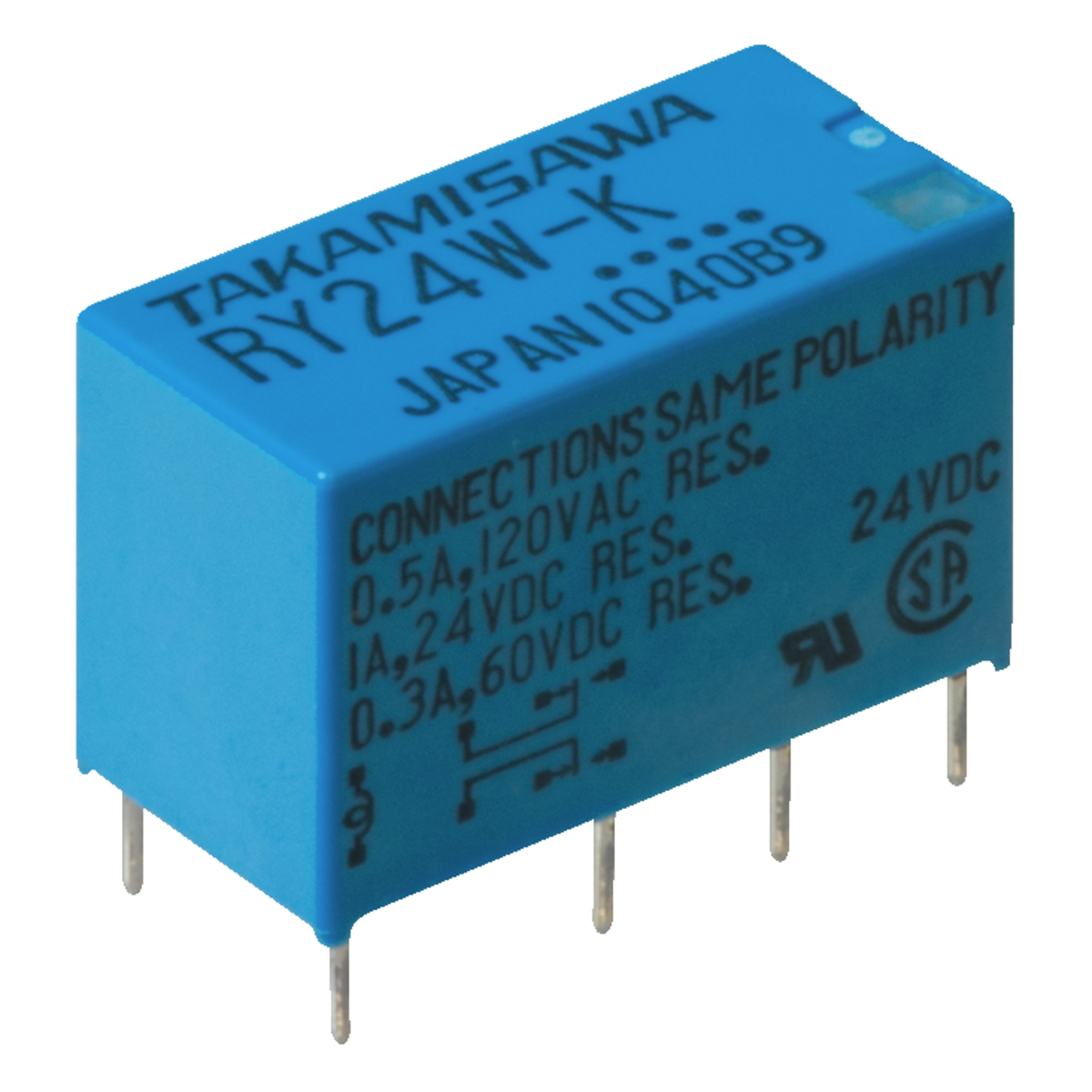

161 | Manufacturers Part No. RY-24W-K(RY24WK) FCL Components Signal relay RY THT DPDT 1A 24VDC 2.880Ohm 20,2mmx9,8mmx12,5mm RTIII | Customer Part No. Customer Project No. | 570 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Signal relay | FCL Components | THT | 24.0 V DC | 1.0 A | 60.0 VA | DPDT | AgPd/Au | 2880.0 Ohm | 20.2 mm | 9.8 mm | 12.5 mm | RTIII | -30.0 °C | 90.0 °C | |||||||
162 | Manufacturers Part No. RY-5W-K(RY5WK) FCL Components Signal relay RY THT DPDT 1A 5VDC 165Ohm 20,2mmx9,8mmx12,5mm RTIII | Customer Part No. Customer Project No. | 250 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Signal relay | FCL Components | THT | 5.0 V DC | 1.0 A | 60.0 VA | DPDT | AgPd/Au | 165.0 Ohm | 20.2 mm | 9.8 mm | 12.5 mm | RTIII | -30.0 °C | 90.0 °C | |||||||
163 | Manufacturers Part No. AZ850-5(AZ850-5) Zettler Signal relay DIP DIL AZ850 THT DPDT 1A 5VDC 178Ohm 14mmx9mmx5mm | Customer Part No. Customer Project No. | 855 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 5 or mul. of 5) | Signal relay DIP DIL | Zettler | THT | 5.0 V DC | 1.0 A | 62.5 VA | DPDT | AgPd/Au | 178.0 Ohm | 14.0 mm | 9.0 mm | 5.0 mm | -40.0 °C | 85.0 °C | ||||||||
164 | Manufacturers Part No. AZ850P2-24(AZ850P2-24) Zettler Signal relay DIP DIL AZ850 THT DPDT 1A 24VDC 3.840Ohm 14mmx9mmx5mm | Customer Part No. Customer Project No. | 400 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 5 or mul. of 5) | Signal relay DIP DIL | Zettler | THT | 24.0 V DC | 1.0 A | 62.5 VA | DPDT | AgPd/Au | 3840.0 Ohm | 14.0 mm | 9.0 mm | 5.0 mm | -40.0 °C | 85.0 °C | ||||||||
165 | Manufacturers Part No. AZ851-24(AZ851-24) Zettler Signal relay AZ851 SMD DPDT 1A 24VDC 2.880Ohm 14,2mmx9,3mmx6,2mm | Customer Part No. Customer Project No. | 310 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 5 or mul. of 5) | Signal relay | Zettler | SMD | 24.0 V DC | 1.0 A | 62.5 VA | DPDT | AgPd/Au | 2880.0 Ohm | 14.2 mm | 9.3 mm | 6.2 mm | -40.0 °C | 85.0 °C | ||||||||
166 | Manufacturers Part No. G6K-2F-Y DC12(G6K2FY-12) Omron Signal relay G6K SMD DPDT 1A 12VDC 1.315Ohm 10mmx6,5mmx5,2mm | Customer Part No. Customer Project No. | 520 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 10 or mul. of 10) | Signal relay | Omron | SMD | 12.0 V DC | 1.0 A | DPDT | Ag/Au | 1315.0 Ohm | 10.0 mm | 6.5 mm | 5.2 mm | -40.0 °C | 70.0 °C | |||||||||
167 | Manufacturers Part No. G6K-2F DC24(G6K2F-24) Omron Signal relay G6K SMD DPDT 1A 24VDC 5.220Ohm 10mmx6,5mmx5,2mm | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Signal relay | Omron | SMD | 24.0 V DC | 1.0 A | DPDT | Ag/Au | 5220.0 Ohm | 10.0 mm | 6.5 mm | 5.2 mm | -40.0 °C | 70.0 °C | |||||||||
168 | Manufacturers Part No. G6K-2F-Y DC5(G6K2FY-5) Omron Signal relay G6K SMD DPDT 1A 5VDC 237Ohm 10mmx6,5mmx5,2mm TOP | Customer Part No. Customer Project No. | 1.770 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 10 or mul. of 10) | Signal relay | Omron | SMD | 5.0 V DC | 1.0 A | DPDT | Ag/Au | 237.0 Ohm | 10.0 mm | 6.5 mm | 5.2 mm | -40.0 °C | 70.0 °C | |||||||||

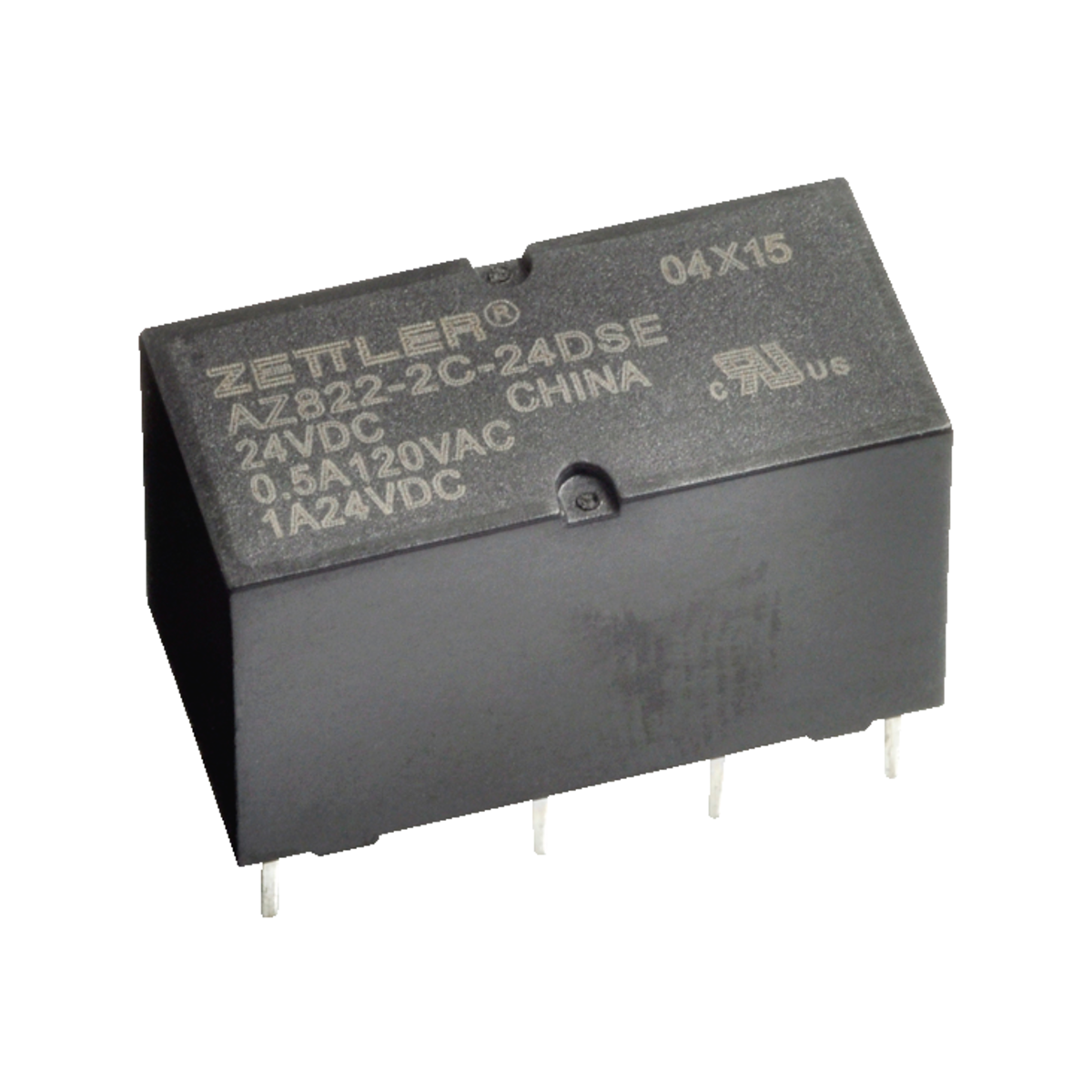

169 | Manufacturers Part No. AZ822-2C-6DSE(AZ822-2C-6DSE) Zettler Signal relay DIP DIL AZ822 THT DPDT 2A 6VDC 240Ohm 20mmx9,8mmx12mm | Customer Part No. Customer Project No. | 389 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 10 or mul. of 10) | Signal relay DIP DIL | Zettler | THT | 6.0 V DC | 2.0 A | 125.0 VA | DPDT | AgPd/Au | 240.0 Ohm | 20.0 mm | 9.8 mm | 12.0 mm | -55.0 °C | 90.0 °C | ||||||||
170 | Manufacturers Part No. 1-1393788-1(V23079A1003B301) TE Connectivity Signal relay P2 V23079 THT DPDT 2A 12VDC 1.029Ohm 14,5mmx7,2mmx9,8mm RTIII | Customer Part No. Customer Project No. | 225 Pcs. Available (from stock) | (at least 25 or mul. of 25) | Signal relay | TE Connectivity | THT | 12.0 V DC | 2.0 A | 62.5 VA | DPDT | AgNi/Au | 1029.0 Ohm | 14.5 mm | 7.2 mm | 9.8 mm | RTIII | -40.0 °C | 85.0 °C | |||||||
171 | Manufacturers Part No. 1-1393788-6(V23079A1005B301) TE Connectivity Signal relay P2 V23079 THT DPDT 2A 24VDC 4.114Ohm 14,5mmx7,2mmx9,8mm RTIII | Customer Part No. Customer Project No. | 2.950 Pcs. Available (from stock) | (at least 25 or mul. of 25) | Signal relay | TE Connectivity | THT | 24.0 V DC | 2.0 A | 62.5 VA | DPDT | AgNi/Au | 4114.0 Ohm | 14.5 mm | 7.2 mm | 9.8 mm | RTIII | -40.0 °C | 85.0 °C | |||||||
172 | Manufacturers Part No. 3-1393788-7(V23079B1205B301) TE Connectivity Signal relay P2 V23079 THT DPDT 2A 24VDC 4.114Ohm 14,5mmx7,2mmx9,8mm RTIII | Customer Part No. Customer Project No. | 500 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 25 or mul. of 25) | Signal relay | TE Connectivity | THT | 24.0 V DC | 2.0 A | 62.5 VA | DPDT | AgNi/Au | 4114.0 Ohm | 14.5 mm | 7.2 mm | 9.8 mm | RTIII | -40.0 °C | 85.0 °C | |||||||
173 | Manufacturers Part No. 5-1393788-8(V23079D1005B301) TE Connectivity Signal relay P2 V23079 SMD DPDT 2A 24VDC 4.114Ohm 14,5mmx7,2mmx10,4mm RTIII | Customer Part No. Customer Project No. | 350 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 25 or mul. of 25) | Signal relay | TE Connectivity | SMD | 24.0 V DC | 2.0 A | 62.5 VA | DPDT | AgNi/Au | 4114.0 Ohm | 14.5 mm | 7.2 mm | 10.4 mm | RTIII | -40.0 °C | 85.0 °C | |||||||
174 | Manufacturers Part No. AZ8521S-24TR(AZ8521S-24TR) Zettler Signal relay AZ8521 SMD DPDT 2A 24VDC 2.880Ohm 10mmx6,5mmx5,65mm | Customer Part No. Customer Project No. | 3.550 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 10 or mul. of 10) | Signal relay | Zettler | SMD | 24.0 V DC | 2.0 A | 62.5 VA | DPDT | AgNi/Au | 2880.0 Ohm | 10.0 mm | 6.5 mm | 5.65 mm | -40.0 °C | 85.0 °C | ||||||||
175 | Manufacturers Part No. AZ8521PS-5TR(AZ8521PS-5TR) Zettler Signal relay AZ8521 SMD DPDT 2A 5VDC 250Ohm 10mmx6,5mmx5,65mm | Customer Part No. Customer Project No. | 3.600 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 10 or mul. of 10) | Signal relay | Zettler | SMD | 5.0 V DC | 2.0 A | 62.5 VA | DPDT | AgNi/Au | 250.0 Ohm | 10.0 mm | 6.5 mm | 5.65 mm | -40.0 °C | 85.0 °C |
