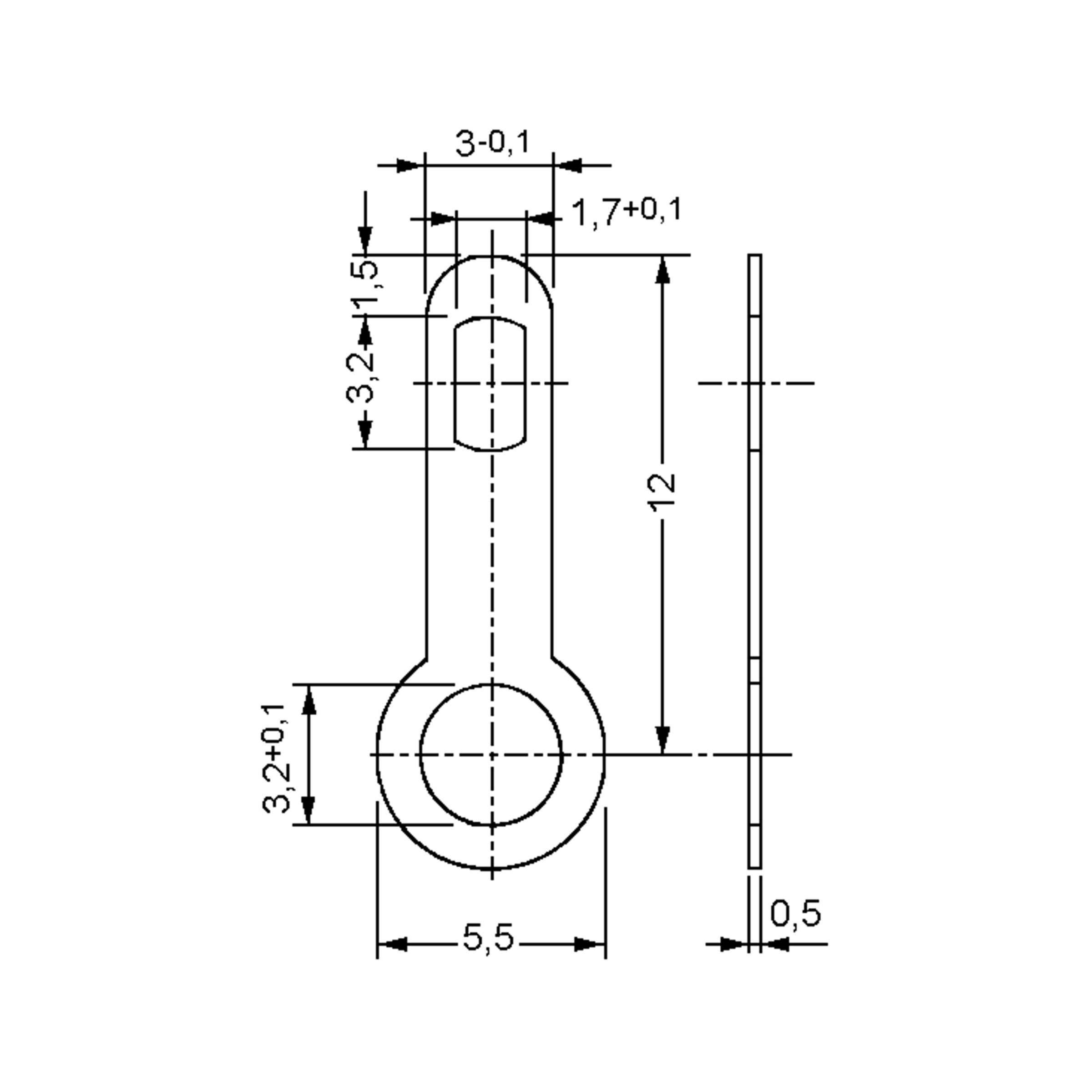

60-2803-11/0031
Osterrath Solder lug 60 1 Pole straight vernickelt 3mm
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
175.000 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1000 or multiple of 1000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- 60
- Type
- Solder lug
- Number of poles
- 1
- Features
- made of brass, nickel-plated surface, tin-plated
- for fastening with M3, M4 screws- Dimension: Length
- 12 mm
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 12 mm
- Insert width
- 3 mm
Mechanical Features
- Contact Material Input
- Nickel-plated
- Contact Surface Input
- vernickelt
