Filter articles
Type
Type
Manufacturer
Manufacturer
Series
Series
Assembly Type
Assembly Type
Manufacturer Package
Manufacturer Package
Lighting Colour
Lighting Colour
Luminous Intensity Max.
Luminous Intensity Max.
Viewing Angle
Viewing Angle
(Uf) Forward Voltage
(Uf) Forward Voltage
(If) Forward Current
(If) Forward Current
Peak Emission Wavelength
Peak Emission Wavelength
Dominant Wavelength Max.
Dominant Wavelength Max.
(Pd) Power Dissipation
(Pd) Power Dissipation
(Ur) Reverse Voltage
(Ur) Reverse Voltage
Lens Colour
Lens Colour
Lens Tranparency
Lens Tranparency
Lens Shape
Lens Shape
Packaging
Packaging
Operating Temperature, min. (TA)
Operating Temperature, min. (TA)
Operating Temperature, max. (TA)
Operating Temperature, max. (TA)
Qualification
Qualification
Results (286)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Assembly Type | Manufacturer Package | Lighting Colour | Luminous Intensity Max. | Viewing Angle | (Uf) Forward Voltage | (If) Forward Current | Peak Emission Wavelength | Dominant Wavelength Max. | (Pd) Power Dissipation | (Ur) Reverse Voltage | Lens Colour | Lens Tranparency | Lens Shape | Packaging | Operating Temperature, min. (TA) | Operating Temperature, max. (TA) | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

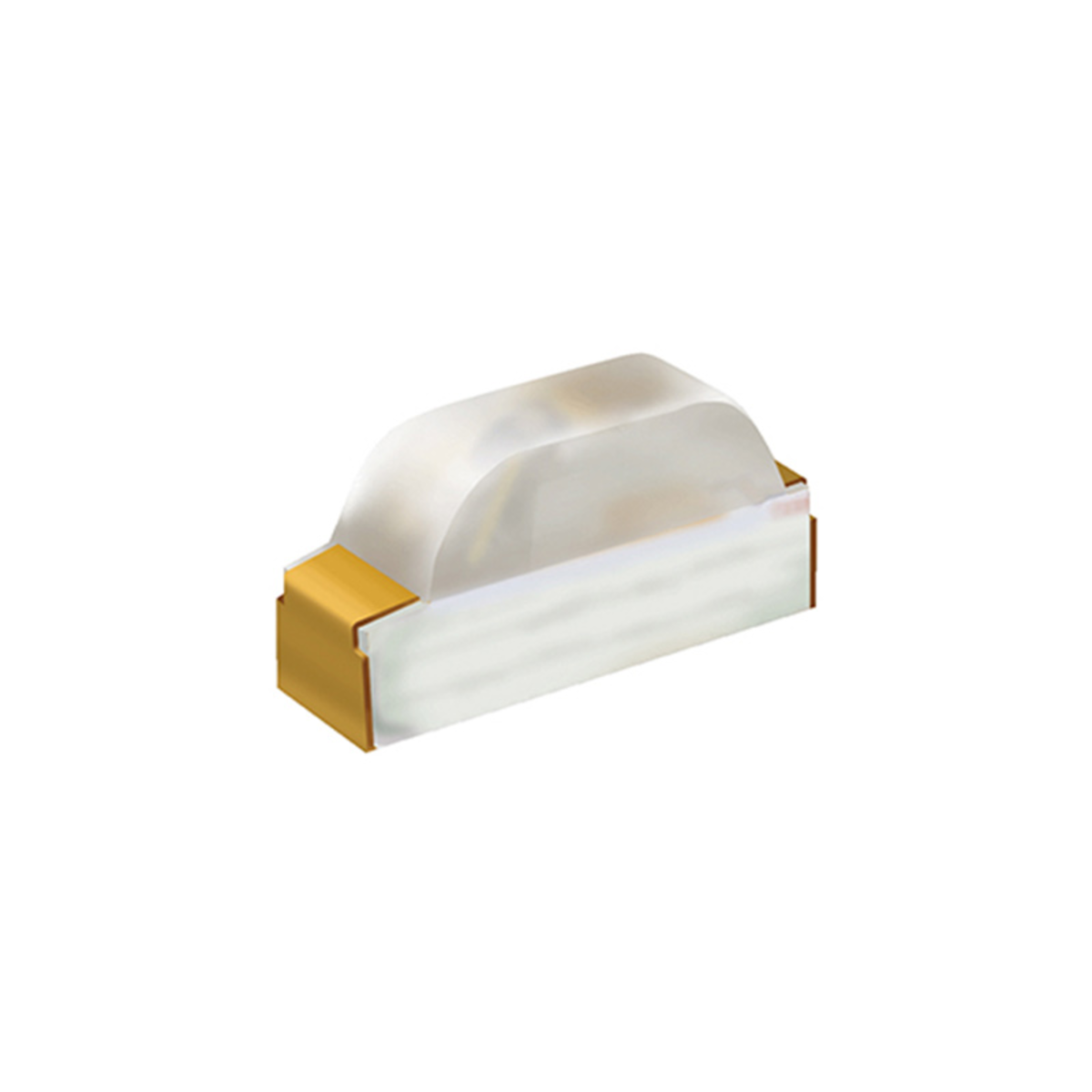

226 |  | Manufacturers Part No. 12-215/BHC-AP1Q2/3C(EL12-215/BHC-AP1Q2) Everlight SMD/SMT LED blue clear Dome 45mcd 130° 3,3V | Customer Part No. Customer Project No. | 2.700 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | blue | 45.0 mcd | 130.0 ° | 3.3 V | 20.0 mA | 468.0 nm | 464.5 nm | 95.0 mW | 5.0 V | colorless | clear | Dome | Reel | -40.0 °C | 85.0 °C | |||||||
227 | | Manufacturers Part No. 12-215SURC/S530-A2/T(EL12-215SURC/S53) Everlight SMD/SMT LED red clear Dome 38mcd 130° 2,0V 1206 | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | 1206 | red | 38.0 mcd | 130.0 ° | 2.0 V | 20.0 mA | 632.0 nm | 624.0 nm | 60.0 mW | 5.0 V | colorless | clear | Dome | Reel | -40.0 °C | 85.0 °C | ||||||
228 | | Manufacturers Part No. 12-215UYC/S530-A2/TR(EL12-215UYC/S53) Everlight SMD/SMT LED yellow clear Dome 39mcd 130° 2,0V | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | yellow | 39.0 mcd | 130.0 ° | 2.0 V | 20.0 mA | 591.0 nm | 589.0 nm | 60.0 mW | 5.0 V | colorless | clear | Dome | Reel | -40.0 °C | 85.0 °C | |||||||
229 | | Manufacturers Part No. 11-21/BHC-AQ2S2/3T(11-21/BHCAQ2S2/3T) Everlight SMD/SMT LED blue clear Dome 90mcd 60° 3,3V 1206 | Customer Part No. Customer Project No. | 1.200 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | 1206 | blue | 90.0 mcd | 60.0 ° | 3.3 V | 20.0 mA | 468.0 nm | 464.5 nm | 75.0 mW | 5.0 V | colorless | clear | Dome | Reel | -40.0 °C | 85.0 °C | ||||||

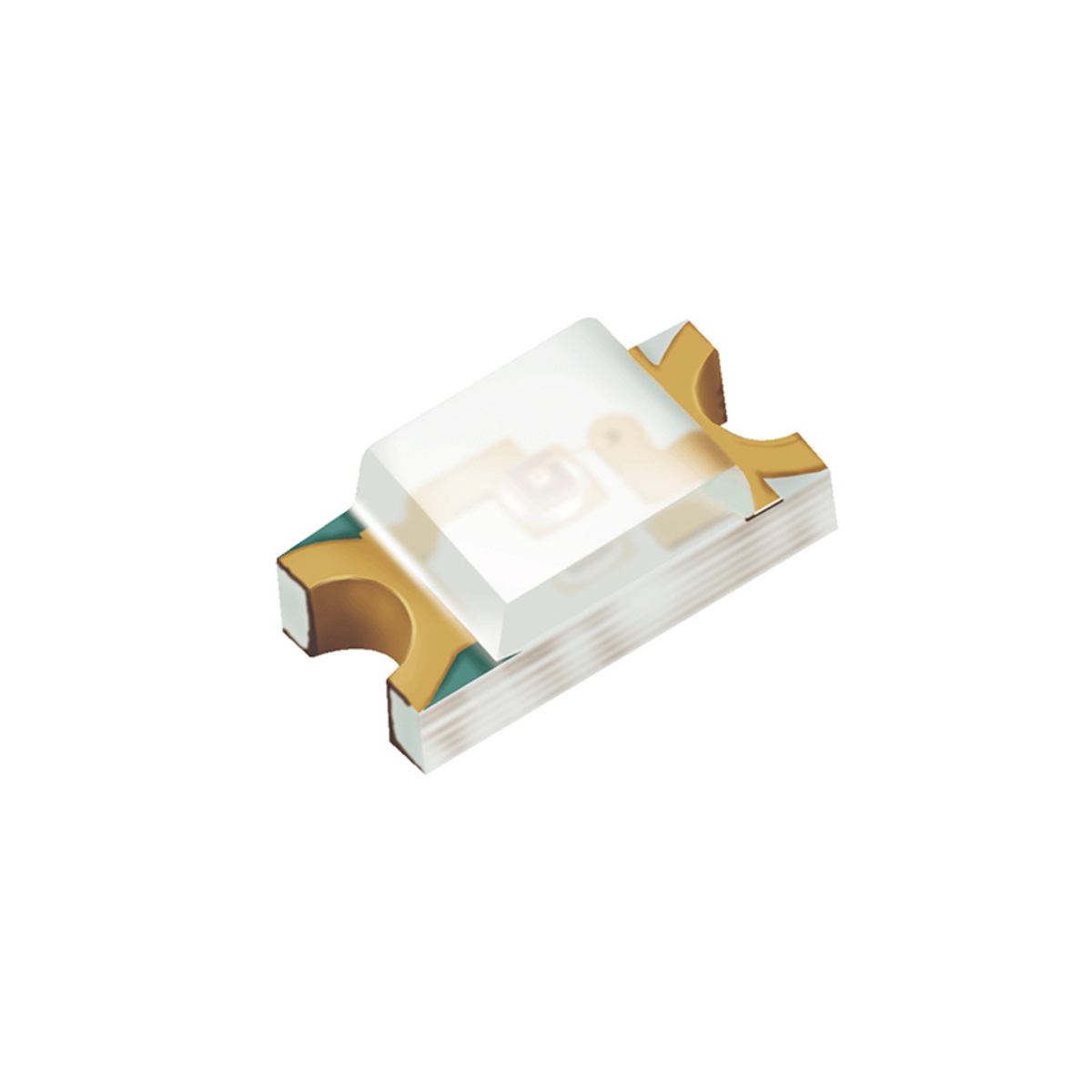

230 | | Manufacturers Part No. 15-21/R6C-AP1Q2L/3T(15-21/R6CAP1Q2L/3T) Everlight SMD/SMT LED red clear rectangular 112mcd 130° 2V 1206 | Customer Part No. Customer Project No. | 13.000 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | 1206 | red | 112.0 mcd | 130.0 ° | 2.0 V | 20.0 mA | 632.0 nm | 617.5 nm | 60.0 mW | 5.0 V | colorless | clear | rectangular | Reel | -40.0 °C | 85.0 °C | ||||||
231 | | Manufacturers Part No. 19-213/R6C-AP1Q2B/5T(19-213R6CAP1Q2B/5T) Everlight SMD/SMT LED red rectangular 72mcd 120° 2,05V 0603 | Customer Part No. Customer Project No. | 26.300 Pcs. Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | 0603 | red | 72.0 mcd | 120.0 ° | 2.05 V | 20.0 mA | 60.0 mW | 5.0 V | rectangular | Reel | -40.0 °C | 85.0 °C | ||||||||||

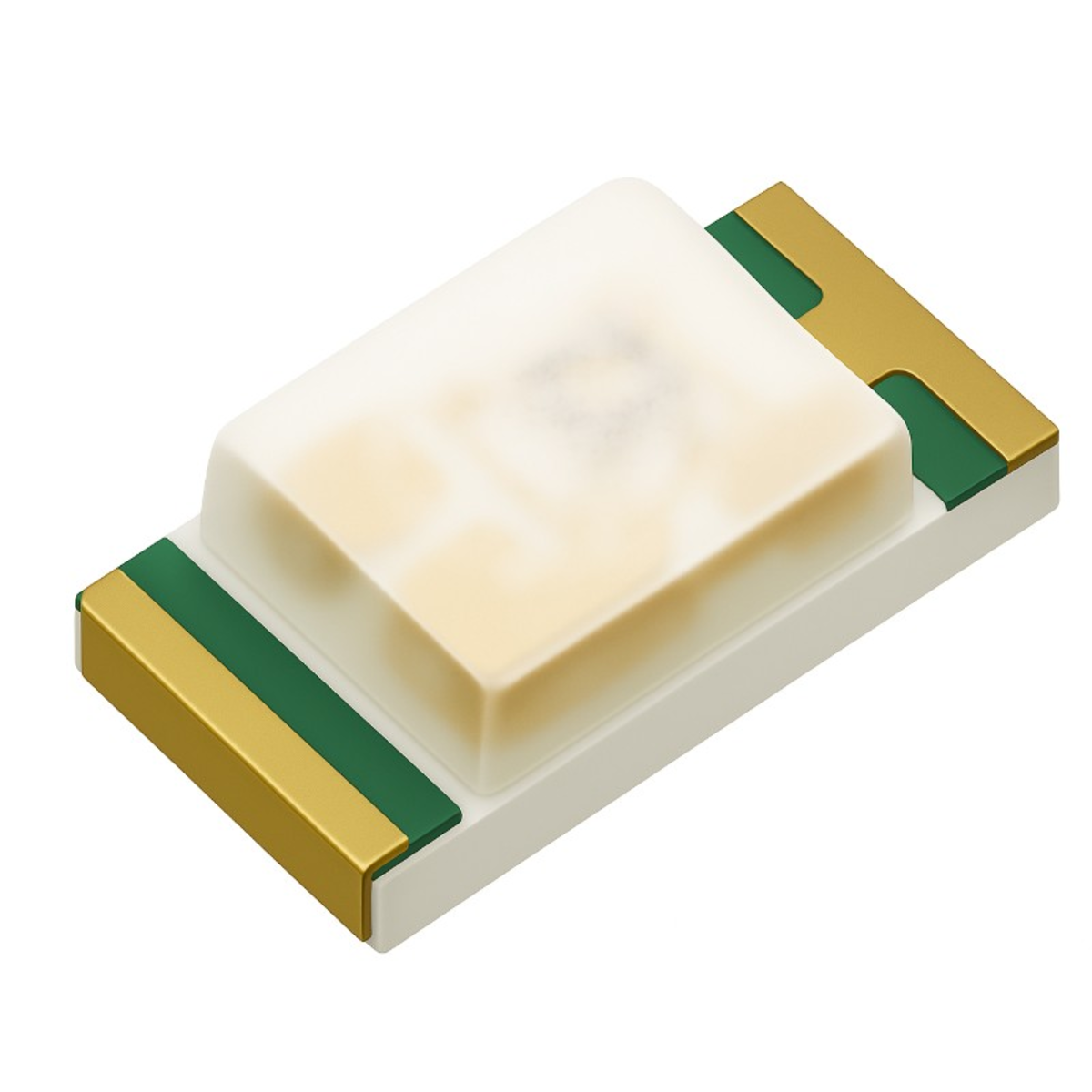

232 | | Manufacturers Part No. 19-217/Y5C-AP1Q2/6T(19-217/Y5CAP1Q2/6T) Everlight SMD/SMT LED yellow clear rectangular 112mcd 120° 2,0V 0603 | Customer Part No. Customer Project No. | 11.800 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | 0603 | yellow | 112.0 mcd | 120.0 ° | 2.0 V | 20.0 mA | 591.0 nm | 585.5 nm | 60.0 mW | 5.0 V | colorless | clear | rectangular | Reel | -40.0 °C | 85.0 °C | ||||||
233 | | Manufacturers Part No. 19-213/BHC-AP1Q2/5T(19-213/BHCAP1Q2/5T) Everlight SMD/SMT LED blue clear rectangular 112mcd 120° 3,2V 0603 | Customer Part No. Customer Project No. | 4.700 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | 0603 | blue | 112.0 mcd | 120.0 ° | 3.2 V | 20.0 mA | 468.0 nm | 464.5 nm | 95.0 mW | 5.0 V | colorless | clear | rectangular | Reel | -40.0 °C | 85.0 °C | ||||||
234 | | Manufacturers Part No. 19-213/S3C-AN2P2B/5T(19-213S3CAN2P2B/5T) Everlight SMD/SMT LED orange clear rectangular 72mcd 120° 2V 0603 | Customer Part No. Customer Project No. | 5.100 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | 0603 | orange | 72.0 mcd | 120.0 ° | 2.0 V | 20.0 mA | 621.0 nm | 605.5 nm | 60.0 mW | 5.0 V | colorless | clear | rectangular | Reel | -40.0 °C | 85.0 °C | ||||||
235 | | Manufacturers Part No. LVT64G-DBFA-25-N424-20-R33-Z(LVT64G-DBFA-25) Osram SMD/SMT LED green diffuse Dome 8.180mcd 30° 2,70V PLCC-2 | Customer Part No. Customer Project No. | 300 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Osram | SMD/SMT | PLCC-2 | green | 8180.0 mcd | 30.0 ° | 2.7 V | 20.0 mA | 504.0 nm | 505.0 nm | 5.0 V | diffuse | Dome | Reel | -40.0 °C | 100.0 °C | ||||||||
236 | | Manufacturers Part No. 95-21UYC/S530-A2/TR7(EL95-21UYC/S537) Everlight SMD/SMT LED yellow clear Dome 529mcd 25° 2,0V | Customer Part No. Customer Project No. | 2.250 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | yellow | 529.0 mcd | 25.0 ° | 2.0 V | 20.0 mA | 591.0 nm | 589.0 nm | 60.0 mW | 5.0 V | colorless | clear | Dome | Reel | -40.0 °C | 85.0 °C | |||||||

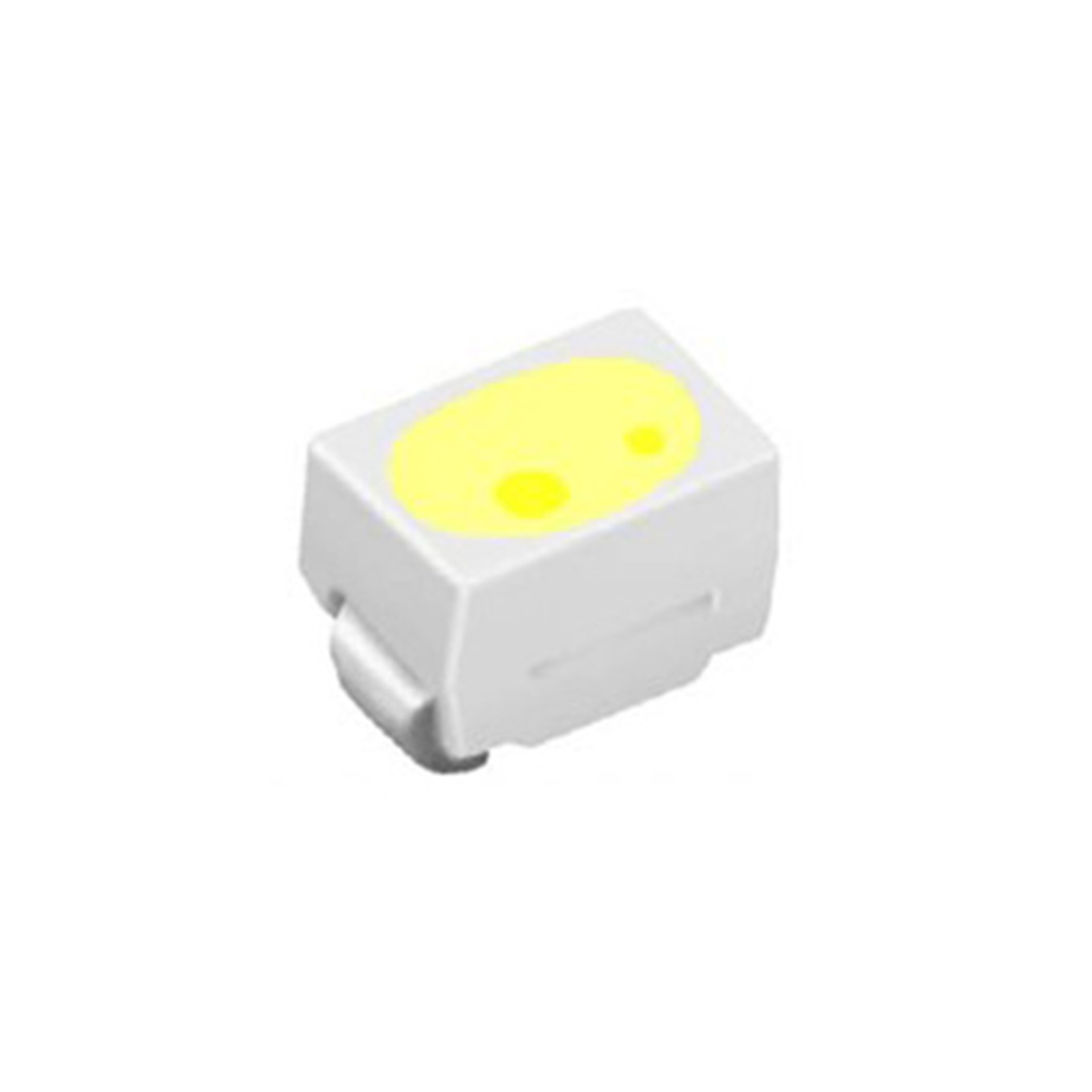

237 | | Manufacturers Part No. 65-21/G6C-AN2Q1/3T(EL65-21/G6C-AN) Everlight SMD/SMT LED green clear 90mcd 120° 2,05V | Customer Part No. Customer Project No. | 7.100 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | green | 90.0 mcd | 120.0 ° | 2.05 V | 20.0 mA | 575.0 nm | 569.5 nm | 60.0 mW | 12.0 V | colorless | clear | Reel | -40.0 °C | 100.0 °C | ||||||||
238 | | Manufacturers Part No. 95-21SURC/S530-A2/T7(EL95-21SURC/S537) Everlight SMD/SMT LED red clear Dome 482mcd 25° 2,0V | Customer Part No. Customer Project No. | 900 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | red | 482.0 mcd | 25.0 ° | 2.0 V | 20.0 mA | 632.0 nm | 624.0 nm | 60.0 mW | 5.0 V | colorless | clear | Dome | Reel | -40.0 °C | 85.0 °C | |||||||

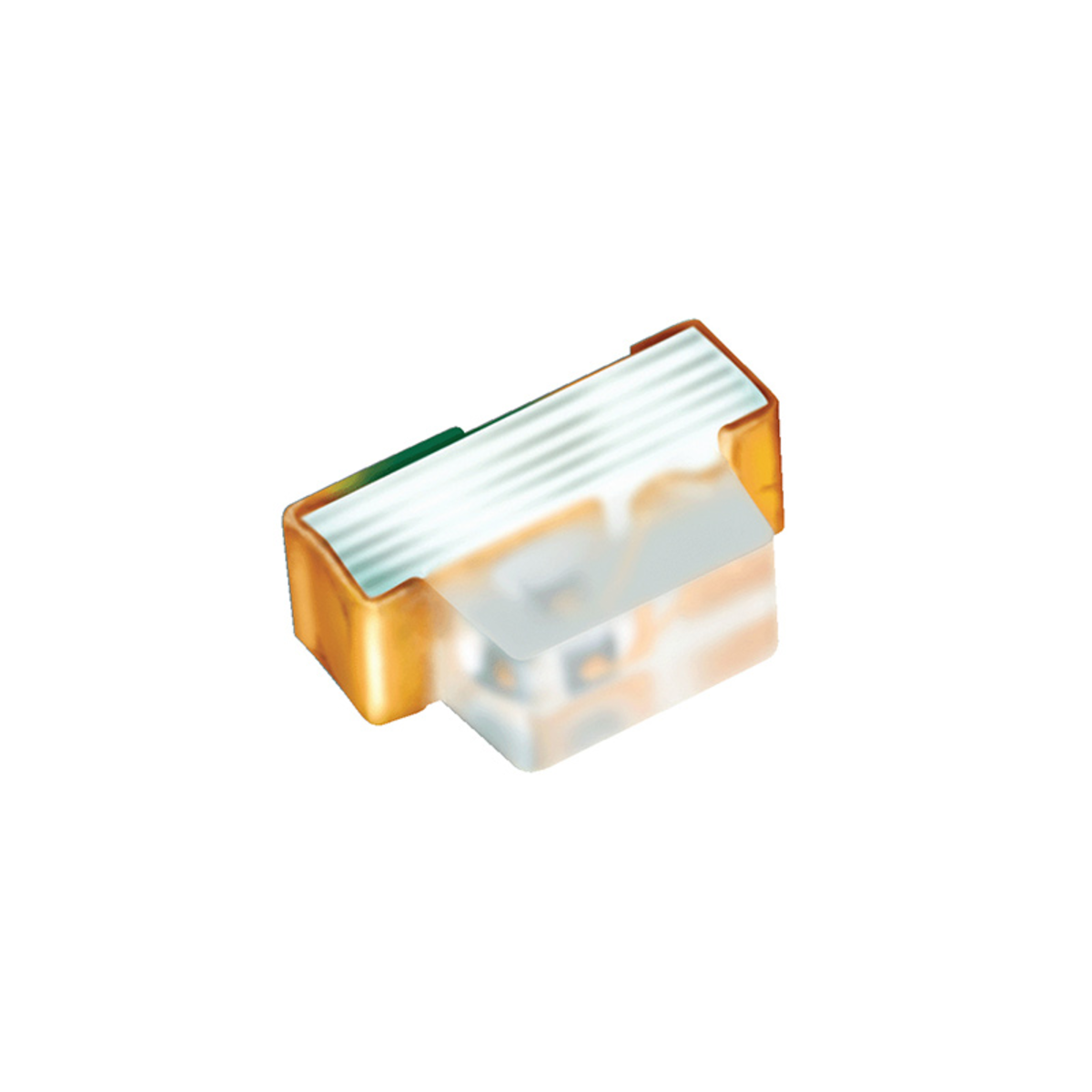

239 | | Manufacturers Part No. 27-21/BHC-AN1P2/3C(EL27-21/BHC-AN) Everlight SMD/SMT LED blue clear rectangular 72mcd 130° 3,3V 704 | Customer Part No. Customer Project No. | 6.375 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 25 or mul. of 25) | LED | Everlight | SMD/SMT | 704 | blue | 72.0 mcd | 130.0 ° | 3.3 V | 20.0 mA | 468.0 nm | 464.5 nm | 95.0 mW | 5.0 V | colorless | clear | rectangular | Reel | -40.0 °C | 85.0 °C | ||||||
240 | | Manufacturers Part No. LTST-S270KGKT(LTST-S270KGKT) Lite-On SMD/SMT LED green clear rectangular 71mcd 130° 2V | Customer Part No. Customer Project No. | 15.500 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | SMD/SMT | green | 71.0 mcd | 130.0 ° | 2.0 V | 20.0 mA | 574.0 nm | 571.0 nm | 75.0 mW | 5.0 V | colorless | clear | rectangular | Reel | -30.0 °C | 85.0 °C | |||||||
241 | | Manufacturers Part No. 27-21SYGC/S530-E1/TR(EL27-21SYGC/S53) Everlight SMD/SMT LED green clear rectangular 15mcd 130° 2,0V 704 | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | 704 | green | 15.0 mcd | 130.0 ° | 2.0 V | 20.0 mA | 575.0 nm | 573.0 nm | 60.0 mW | 5.0 V | colorless | clear | rectangular | Reel | -40.0 °C | 85.0 °C | ||||||
242 | | Manufacturers Part No. 27-21SURC/S530-A2/TR(EL27-21SURC/S53) Everlight SMD/SMT LED red clear rectangular 24mcd 130° 2,0V 704 | Customer Part No. Customer Project No. | 1.500 Pcs. Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | 704 | red | 24.0 mcd | 130.0 ° | 2.0 V | 20.0 mA | 632.0 nm | 624.0 nm | 5.0 V | colorless | clear | rectangular | Reel | -40.0 °C | 85.0 °C | |||||||
243 | | Manufacturers Part No. 95-21SURC/S530-A2/TR10(EL95-21SURC/S531) Everlight SMD/SMT LED red clear Dome 482mcd 25° 2,0V | Customer Part No. Customer Project No. | 4.200 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | red | 482.0 mcd | 25.0 ° | 2.0 V | 20.0 mA | 632.0 nm | 624.0 nm | 60.0 mW | 5.0 V | colorless | clear | Dome | Reel | -40.0 °C | 85.0 °C | |||||||

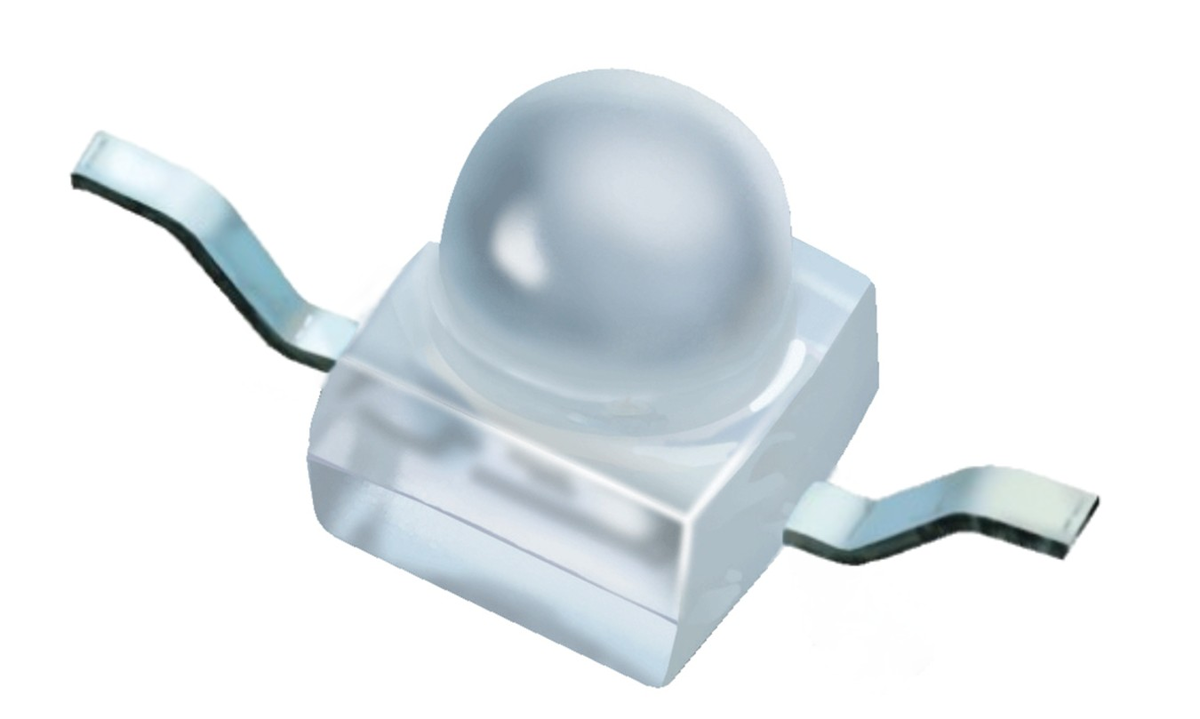

244 | | Manufacturers Part No. 95-21UYC/S530-A2/TR10(EL95-21UYC/S531) Everlight SMD/SMT LED yellow clear Dome 529mcd 25° 2,0V | Customer Part No. Customer Project No. | 13.100 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | yellow | 529.0 mcd | 25.0 ° | 2.0 V | 20.0 mA | 591.0 nm | 589.0 nm | 60.0 mW | 5.0 V | colorless | clear | Dome | Reel | -40.0 °C | 85.0 °C | |||||||
245 | | Manufacturers Part No. 65-21/R7C-AP2Q2B/3T(EL65-21/R7C-AP) Everlight SMD/SMT LED red clear 112mcd 120° 2,05V | Customer Part No. Customer Project No. | 2.400 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | red | 112.0 mcd | 120.0 ° | 2.05 V | 20.0 mA | 639.0 nm | 625.5 nm | 60.0 mW | 5.0 V | colorless | clear | Reel | -40.0 °C | 100.0 °C | ||||||||
246 | | Manufacturers Part No. LTST-S270KRKT(LTST-S270KRKT) Lite-On SMD/SMT LED red clear rectangular 54mcd 130° 2V | Customer Part No. Customer Project No. | 28.600 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | SMD/SMT | red | 54.0 mcd | 130.0 ° | 2.0 V | 20.0 mA | 639.0 nm | 631.0 nm | 75.0 mW | 5.0 V | colorless | clear | rectangular | Reel | -30.0 °C | 85.0 °C | |||||||
247 | | Manufacturers Part No. 15-21/Y2C-AN1P2/3T(15-21/Y2C-AN1P2/3T) Everlight SMD/SMT LED yellow clear rectangular 72mcd 130° 2,0V 1206 | Customer Part No. Customer Project No. | 16.300 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | 1206 | yellow | 72.0 mcd | 130.0 ° | 2.0 V | 20.0 mA | 591.0 nm | 585.5 nm | 60.0 mW | 5.0 V | colorless | clear | rectangular | Reel | -40.0 °C | 85.0 °C | ||||||
248 | | Manufacturers Part No. 95-21SURC/S530-A2/T9(EL95-21SURC/S539) Everlight SMD/SMT LED red clear Dome 482mcd 25° 2,0V | Customer Part No. Customer Project No. | 1.000 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | red | 482.0 mcd | 25.0 ° | 2.0 V | 20.0 mA | 632.0 nm | 624.0 nm | 60.0 mW | 5.0 V | colorless | clear | Dome | Reel | -40.0 °C | 85.0 °C | |||||||
249 | | Manufacturers Part No. LTST-S270KSKT(LTST-S270KSKT) Lite-On SMD/SMT LED yellow clear rectangular 80mcd 130° 2V | Customer Part No. Customer Project No. | 8.400 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | SMD/SMT | yellow | 80.0 mcd | 130.0 ° | 2.0 V | 20.0 mA | 588.0 nm | 587.0 nm | 75.0 mW | 5.0 V | colorless | clear | rectangular | Reel | -30.0 °C | 85.0 °C | |||||||
250 | | Manufacturers Part No. 65-21/Y2C-AR1S1B/3T(EL65-21/Y2C-AR) Everlight SMD/SMT LED yellow clear 285mcd 120° 2,05V | Customer Part No. Customer Project No. | 3.400 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | yellow | 285.0 mcd | 120.0 ° | 2.05 V | 20.0 mA | 591.0 nm | 585.5 nm | 60.0 mW | 5.0 V | colorless | clear | Reel | -40.0 °C | 85.0 °C |
