Results (308)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Assembly Type | Manufacturer Package | Lighting Colour | Luminous Intensity Max. | Viewing Angle | (Uf) Forward Voltage | (If) Forward Current | Peak Emission Wavelength | Dominant Wavelength Max. | (Pd) Power Dissipation | (Ur) Reverse Voltage | Lens Colour | Lens Tranparency | Lens Shape | Packaging | Operating Temperature, min. (TA) | Operating Temperature, max. (TA) | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
276 |  | Manufacturers Part No. 15-21/G6C-FM1N2B/3T(15-21/G6CFM1N2B/3T) Everlight SMD/SMT LED yellow, green clear rectangular 45mcd 130° 2,05V 1206 | Customer Part No. Customer Project No. | 10.300 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | 1206 | yellow, green | 45.0 mcd | 130.0 ° | 2.05 V | 20.0 mA | 575.0 nm | 574.5 nm | 60.0 mW | 5.0 V | colorless | clear | rectangular | -40.0 °C | 85.0 °C | |||||||
277 | | Customer Part No. Customer Project No. | 4.800 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | THT | 5mm | red | 5.6 mcd | 50.0 ° | 2.1 V | 20.0 mA | 697.0 nm | 657.0 nm | 40.0 mW | 5.0 V | red | diffuse | round | Boxed | -55.0 °C | 100.0 °C | |||||||
278 | | Manufacturers Part No. LTST-C281KGKT(LTST-C281KGKT) Lite-On SMD/SMT LED green clear rectangular 35mcd 130° 2V | Customer Part No. Customer Project No. | 4.300 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | SMD/SMT | green | 35.0 mcd | 130.0 ° | 2.0 V | 20.0 mA | 574.0 nm | 571.0 nm | 75.0 mW | 5.0 V | colorless | clear | rectangular | Reel | -30.0 °C | 85.0 °C | |||||||

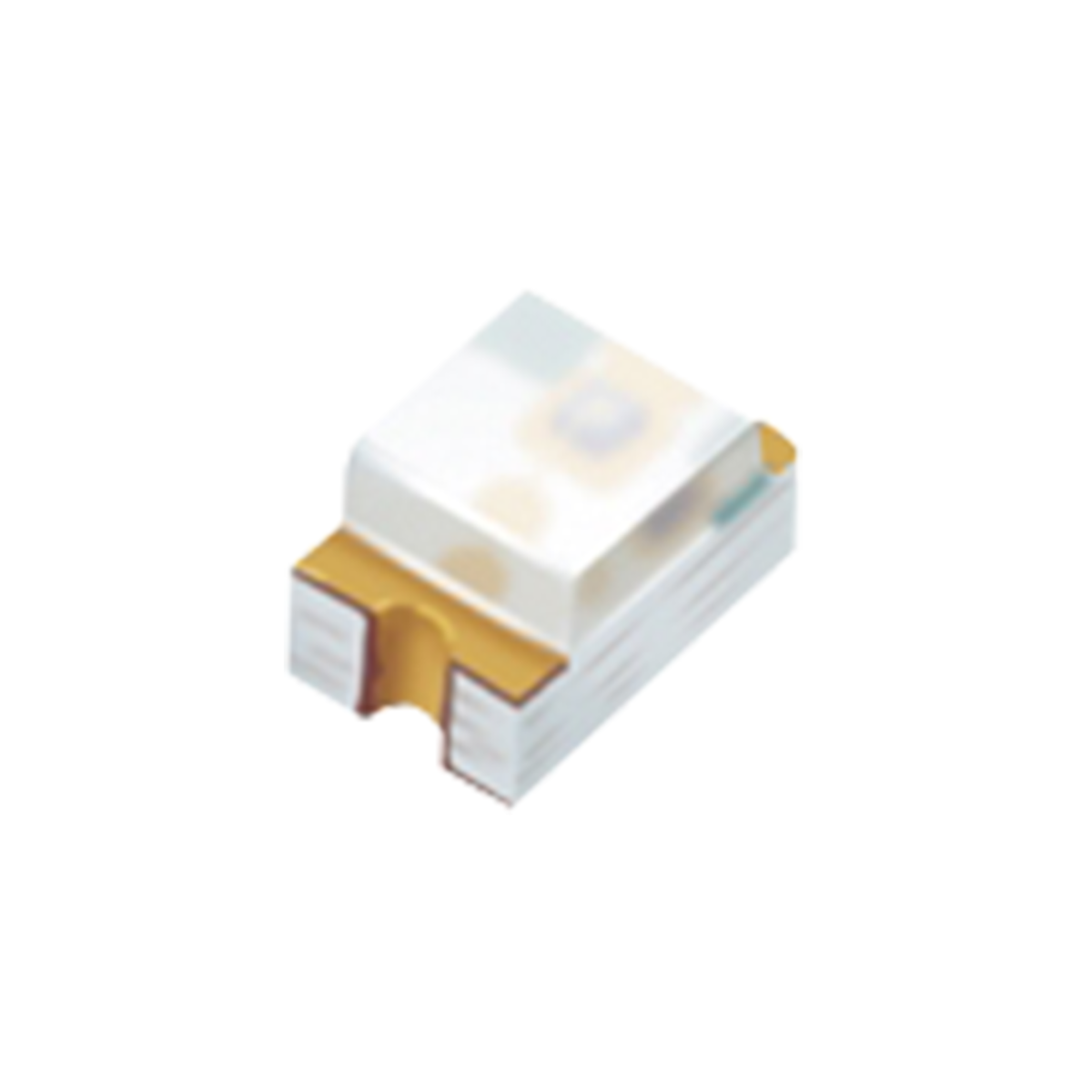

279 | | Manufacturers Part No. 17-21/S2C-AP1Q2B/4T(17-21/S2CAP1Q2B/4T) Everlight SMD/SMT LED orange clear rectangular 112mcd 140° 2,05V 0805 | Customer Part No. Customer Project No. | 2.500 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | 0805 | orange | 112.0 mcd | 140.0 ° | 2.05 V | 20.0 mA | 611.0 nm | 612.5 nm | 60.0 mW | 5.0 V | colorless | clear | rectangular | -40.0 °C | 85.0 °C | |||||||
280 | | Manufacturers Part No. 17-21UYC/S530-A2/4T(17-21UYCS530-A2/4T) Everlight SMD/SMT LED yellow clear rectangular 36mcd 140° 2,0V 0805 | Customer Part No. Customer Project No. | 19.600 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | 0805 | yellow | 36.0 mcd | 140.0 ° | 2.0 V | 20.0 mA | 591.0 nm | 589.0 nm | 60.0 mW | 5.0 V | colorless | clear | rectangular | -40.0 °C | 85.0 °C | |||||||
281 | | Manufacturers Part No. 17-21/BHC-AP1Q2/4T(17-21BHCAP1Q2/4T) Everlight SMD/SMT LED Blue clear rectangular 112mcd 140° 3,3V 0805 | Customer Part No. Customer Project No. | 12.800 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | 0805 | Blue | 112.0 mcd | 140.0 ° | 3.3 V | 20.0 mA | 468.0 nm | 476.5 nm | 75.0 mW | 5.0 V | colorless | clear | rectangular | -40.0 °C | 85.0 °C | |||||||
282 | | Manufacturers Part No. 17-21/R6C-AP1Q2L/4T(17-21/R6CAP1Q2L/4T) Everlight SMD/SMT LED red clear rectangular 112mcd 140° 2,925V 0805 | Customer Part No. Customer Project No. | 41.700 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | 0805 | red | 112.0 mcd | 140.0 ° | 2.925 V | 20.0 mA | 632.0 nm | 633.5 nm | 60.0 mW | 5.0 V | colorless | clear | rectangular | -40.0 °C | 85.0 °C | |||||||
283 | | Manufacturers Part No. 17-21SYGC/S530-E2/4T(17-21SYGCS530E2/4T) Everlight SMD/SMT LED yellow, green clear rectangular 23mcd 140° 2,0V 0805 | Customer Part No. Customer Project No. | 74.100 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | 0805 | yellow, green | 23.0 mcd | 140.0 ° | 2.0 V | 20.0 mA | 575.0 nm | 573.0 nm | 60.0 mW | 5.0 V | colorless | clear | rectangular | -40.0 °C | 85.0 °C | |||||||
284 | | Manufacturers Part No. LTST-B680VSKT(LTST-B680VSKT) Lite-On SMD/SMT LED yellow clear round 1.800mcd 120° 2,1V | Customer Part No. Customer Project No. | 15.100 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | SMD/SMT | yellow | 1800.0 mcd | 120.0 ° | 2.1 V | 20.0 mA | 591.0 nm | 594.0 nm | 120.0 mW | 5.0 V | colorless | clear | round | Reel | -40.0 °C | 100.0 °C | |||||||

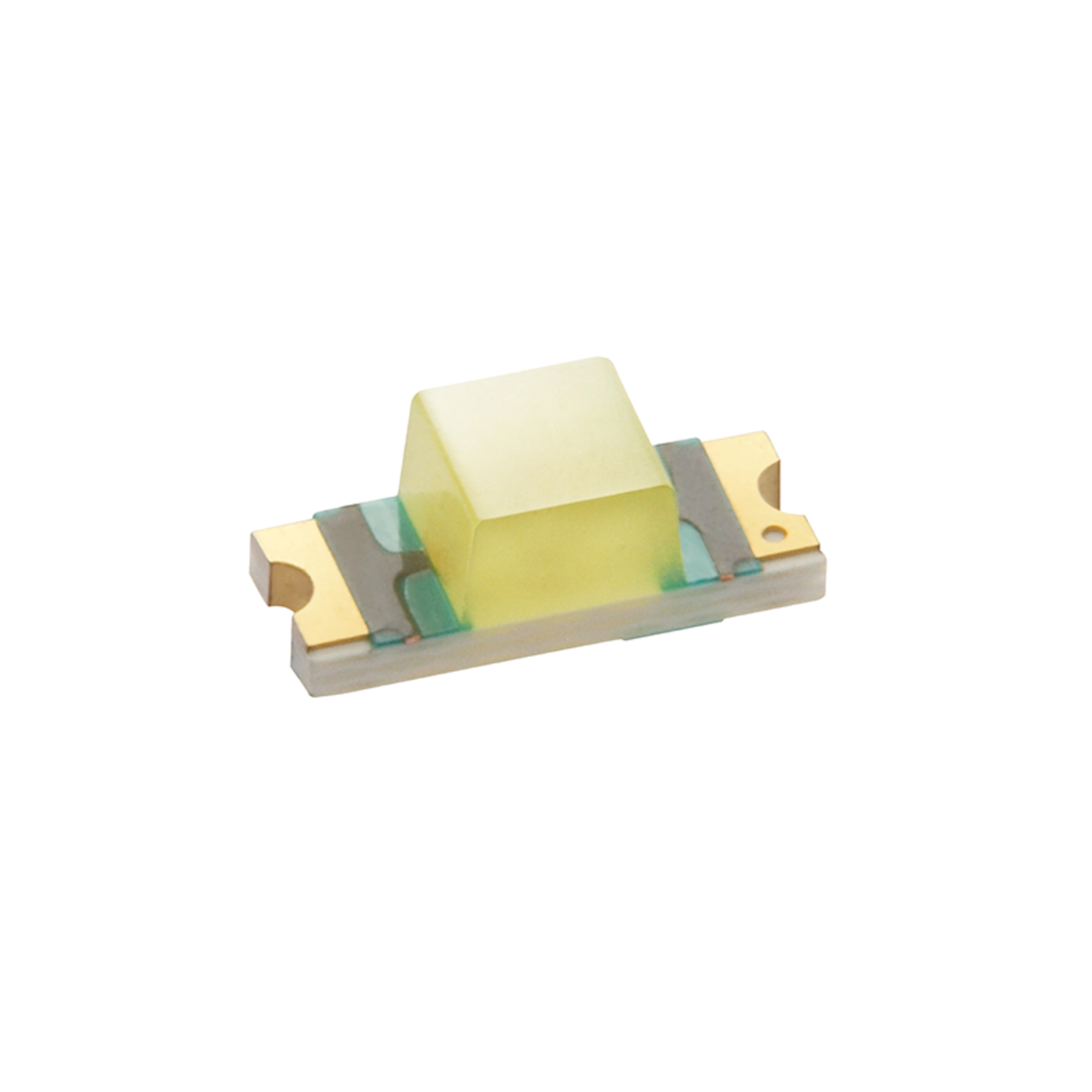

285 | | Manufacturers Part No. 23-21SYGCS530-E23A(23-21SYGCS530-E23A) Everlight SMD/SMT LED yellow clear rectangular 22mcd 130° 2V | Customer Part No. Customer Project No. | 2.700 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | yellow | 22.0 mcd | 130.0 ° | 2.0 V | 25.0 mA | 575.0 nm | 573.0 nm | 60.0 mW | 5.0 V | colorless | clear | rectangular | -40.0 °C | 85.0 °C | ||||||||
286 | EOL 10.04.2025 | Customer Part No. Customer Project No. | 1.480 Pcs. Article discontinued | (at least 10 or mul. of 10) | LED | MIC | THT | 5mm | Blue | 1000.0 mcd | 15.0 ° | 3.5 V | 20.0 mA | 460.0 nm | 80.0 mW | 5.0 V | colorless | clear | Dome | Boxed | -25.0 °C | 80.0 °C | ||||||||
287 | EOL 10.04.2025 | Customer Part No. Customer Project No. | 530 Pcs. Article discontinued | (at least 10 or mul. of 10) | LED | MIC | THT | 5mm | Blue | 2500.0 mcd | 15.0 ° | 3.5 V | 20.0 mA | 465.0 nm | 80.0 mW | 5.0 V | colorless | clear | Dome | Boxed | -20.0 °C | 80.0 °C | ||||||||
288 | EOL 10.04.2025 | Customer Part No. Customer Project No. | 150 Pcs. Article discontinued | (at least 10 or mul. of 10) | LED | MIC | THT | 5mm | white | 2000.0 mcd | 15.0 ° | 3.5 V | 20.0 mA | 110.0 mW | 5.0 V | colorless | clear | Dome | Boxed | -20.0 °C | 80.0 °C | |||||||||
289 | EOL 10.04.2025 | Customer Part No. Customer Project No. | 170 Pcs. Article discontinued | (at least 10 or mul. of 10) | LED | MIC | THT | 5mm | white | 2000.0 mcd | 20.0 ° | 3.5 V | 20.0 mA | 110.0 mW | 5.0 V | colorless | clear | Dome | Boxed | -20.0 °C | 80.0 °C | |||||||||
290 | EOL 10.04.2025 | Customer Part No. Customer Project No. | 450 Pcs. Article discontinued | (at least 50 or mul. of 50) | LED | MIC | THT | 3mm | white | 1200.0 mcd | 15.0 ° | 3.5 V | 20.0 mA | 120.0 mW | 5.0 V | colorless | clear | Dome | Boxed | -20.0 °C | 80.0 °C | |||||||||
291 | LTB 10.11.2026 | Manufacturers Part No. 1003SURD/S530-A3(EL1003SURD/S53) Everlight THT LED red diffuse rectangular 50mcd 110° 2,0V 3,68x6,22mm | Customer Part No. Customer Project No. | 1.800 Pcs. Planned Delivery Time Ø 14 Weeks Cancelled by manufacturer without replacement | (at least 100 or mul. of 100) | LED | Everlight | THT | 3,68x6,22mm | red | 50.0 mcd | 110.0 ° | 2.0 V | 20.0 mA | 632.0 nm | 624.0 nm | 60.0 mW | 5.0 V | red | diffuse | rectangular | Boxed | -40.0 °C | 85.0 °C | ||||||

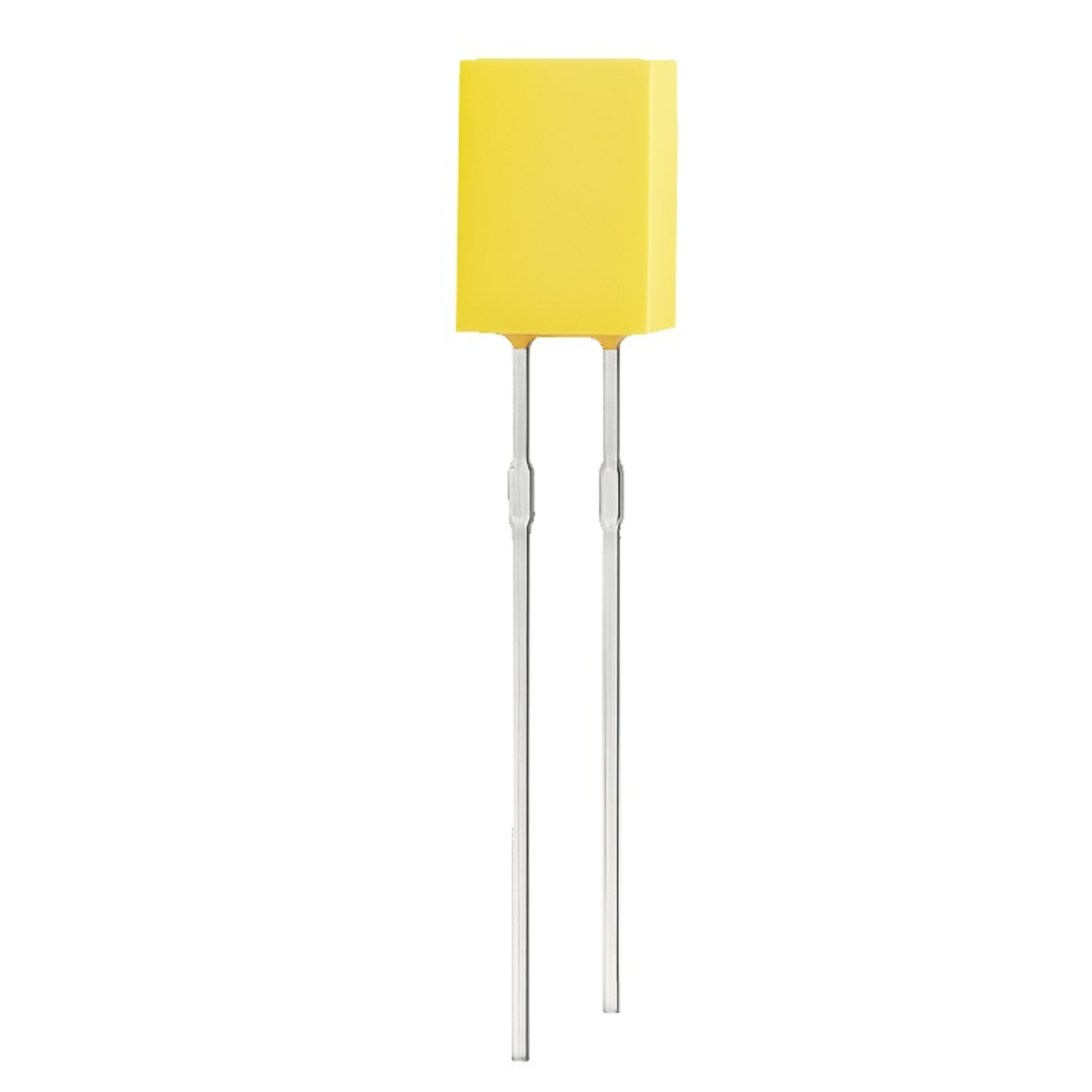

292 | EOL 24.07.2025 | Manufacturers Part No. 573UYD/S530-A3(EL573UYD/S53) Everlight THT LED yellow diffuse rectangular 16mcd 180° 2,0V 2,4x7,1mm | Customer Part No. Customer Project No. | 3.900 Pcs. Cancelled by manufacturer without replacement | (at least 100 or mul. of 100) | LED | Everlight | THT | 2,4x7,1mm | yellow | 16.0 mcd | 180.0 ° | 2.0 V | 20.0 mA | 591.0 nm | 589.0 nm | 60.0 mW | 5.0 V | yellow | diffuse | rectangular | Boxed | -40.0 °C | 85.0 °C | ||||||
293 | LTB 10.11.2026 | Manufacturers Part No. 103SURD/S530-A3(EL103SURD/S53) Everlight THT LED red diffuse round 40mcd 130° 2,0V | Customer Part No. Customer Project No. | 6.500 Pcs. Planned Delivery Time Ø 14 Weeks Cancelled by manufacturer without replacement | (at least 100 or mul. of 100) | LED | Everlight | THT | red | 40.0 mcd | 130.0 ° | 2.0 V | 20.0 mA | 632.0 nm | 624.0 nm | 60.0 mW | 5.0 V | red | diffuse | round | Boxed | -40.0 °C | 85.0 °C | |||||||
294 | LTB 10.11.2026 | Manufacturers Part No. 103UYD/S530-A3(EL103UYD/S53) Everlight THT LED yellow diffuse round 50mcd 130° 2,0V | Customer Part No. Customer Project No. | 12.000 Pcs. Planned Delivery Time Ø 14 Weeks Cancelled by manufacturer without replacement | (at least 100 or mul. of 100) | LED | Everlight | THT | yellow | 50.0 mcd | 130.0 ° | 2.0 V | 20.0 mA | 591.0 nm | 589.0 nm | 60.0 mW | 5.0 V | yellow | diffuse | round | Boxed | -40.0 °C | 85.0 °C | |||||||
295 | EOL 01.02.2025 | Customer Part No. Customer Project No. | No longer available | (at least 100 or mul. of 100) | LED | Osram | SMD/SMT | PLCC | red | 1120.0 mcd | 120.0 ° | 2.05 V | 20.0 mA | 645.0 nm | -40.0 °C | 100.0 °C | ||||||||||||||
296 | EOL 01.02.2025 | Manufacturers Part No. LYT67F-U1AA-36-1(LYT67F-U1AA-36) Osram SMD/SMT LED yellow clear round 1.400mcd 120° 2,2V PLCC-2 | Customer Part No. Customer Project No. | No longer available | (at least 100 or mul. of 100) | LED | Osram | SMD/SMT | PLCC-2 | yellow | 1400.0 mcd | 120.0 ° | 2.2 V | 20.0 mA | 597.0 nm | 590.0 nm | 12.0 V | clear | round | Reel | -40.0 °C | 100.0 °C | ||||||||
297 | EOL 01.08.2023 | Manufacturers Part No. 15-21/S3C-AN2Q1/2T(EL15-21/S3C-AN) Everlight SMD/SMT LED orange clear rectangular 90mcd 130° 2,0V 1206 | Customer Part No. Customer Project No. | 3.200 Pcs. Cancelled by manufacturer with replacement | (at least 100 or mul. of 100) | LED | Everlight | SMD/SMT | 1206 | orange | 90.0 mcd | 130.0 ° | 2.0 V | 20.0 mA | 621.0 nm | 605.5 nm | 60.0 mW | 5.0 V | colorless | clear | rectangular | Reel | -40.0 °C | 85.0 °C | ||||||
298 | EOL 10.04.2025 | Customer Part No. Customer Project No. | 660 Pcs. Article discontinued | (at least 10 or mul. of 10) | LED | MIC | THT | 5mm | white | 4000.0 mcd | 15.0 ° | 3.5 V | 20.0 mA | 110.0 mW | 5.0 V | colorless | clear | Dome | Boxed | -20.0 °C | 80.0 °C | |||||||||
299 | LTB 10.11.2026 | Manufacturers Part No. 1003UYD/S530-A3(EL1003UYD/S53) Everlight THT LED yellow diffuse rectangular 50mcd 110° 2,0V 3,68x6,22mm | Customer Part No. Customer Project No. | 1.000 Pcs. Planned Delivery Time Ø 14 Weeks Cancelled by manufacturer without replacement | (at least 100 or mul. of 100) | LED | Everlight | THT | 3,68x6,22mm | yellow | 50.0 mcd | 110.0 ° | 2.0 V | 20.0 mA | 591.0 nm | 589.0 nm | 60.0 mW | 5.0 V | yellow | diffuse | rectangular | Boxed | -40.0 °C | 85.0 °C | ||||||
300 | LTB 10.11.2026 | Manufacturers Part No. 103SYGD/S530-E2(EL103SYGD/S53) Everlight THT LED yellow, green diffuse round 12,5mcd 130° 2,0V | Customer Part No. Customer Project No. | 4.400 Pcs. Planned Delivery Time Ø 14 Weeks Cancelled by manufacturer without replacement | (at least 100 or mul. of 100) | LED | Everlight | THT | yellow, green | 12.5 mcd | 130.0 ° | 2.0 V | 20.0 mA | 575.0 nm | 573.0 nm | 60.0 mW | 5.0 V | green | diffuse | round | Boxed | -40.0 °C | 85.0 °C |
