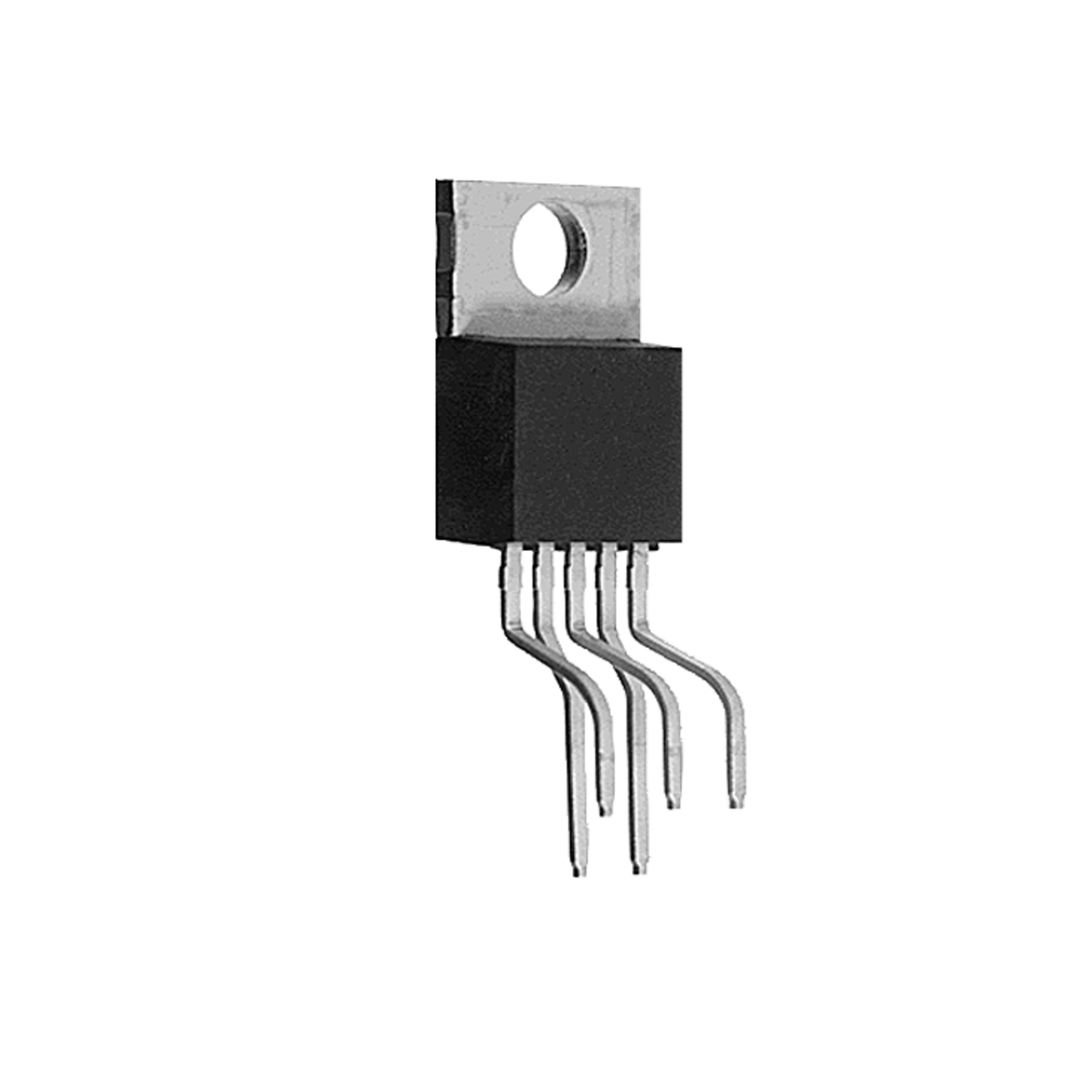

LM2596TVADJG
Onsemi Step-Down Switching Regulator 3.000 mA 40 V TO-220
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
580 Pcs. in stock
Planned delivery time
Ø 13 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Step-Down Switching Regulator
- Supply Voltage Min.
- 4.5 V
- Supply Voltage Max.
- 40 V
- Output Voltage Min./Fixed
- 1.23 V
- Output Voltage Max.
- 37 V
- Output current
- 3.000 mA
3.000 mA - Number of Channels
- 1
- Type
- Buck
- Switching frequency
- 150 kHz
- Manufacturer Package
- TO-220
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
Electrical properties
- Number of Channels
- 1
- Type
- Buck
- Supply Voltage Min.
- 4.5 V
- Output Current 1
- 3,000 mA
- Supply Voltage Max.
- 40 V
- Output current
- 3.000 mA
- 3.000 mA
- Switching frequency
- 150 kHz
- Output Voltage Min./Fixed
- 1.23 V
- Output Voltage Max.
- 37 V
- Output Type
- adjustable
