GQ12B-10JOA

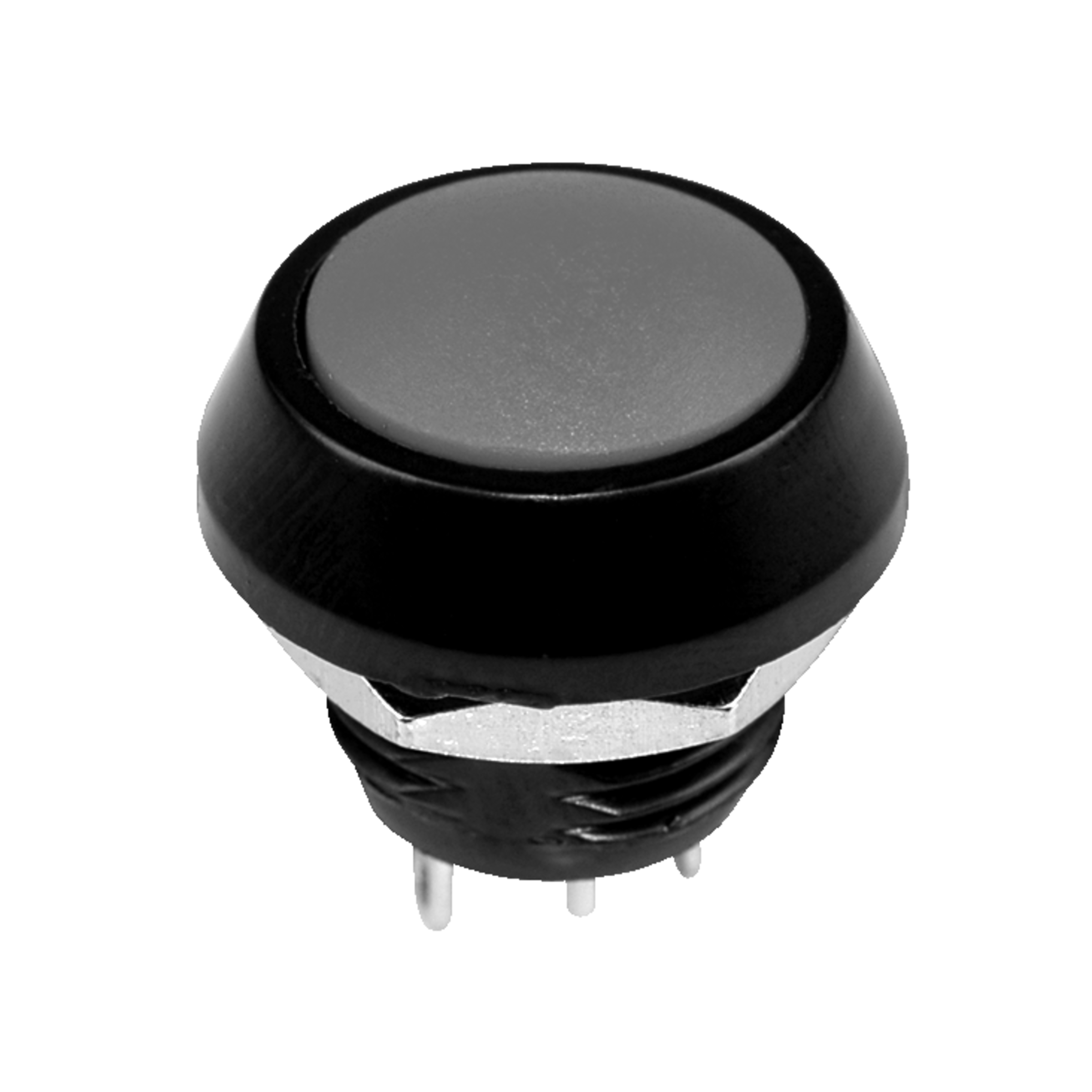

Onpow Pushbutton GQ12 1x0-(E) Soldering eye black 36VDC 2A 5,5N unlit
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
73 Pcs. in stock
Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Pushbutton
- Series
- GQ12
- Body colour
- black
- contacts
- 1xNO
- Type of actuator
- Push button
- Function
- 1x0-(E)
- Actuator colour
- orange
- Number of poles
- 1
- illumination
- unlit
- Switching current, max.
- 2 A
- Panel cut out
- Ø12mm
- Actuating force, max.
- 5,5 N
- Operating temperature range, min.
- -20 °C
- Operating temperature range, max.
- 55 °C
- Protection class
- IP65
- RoHS-Conform
Specifications
Open all

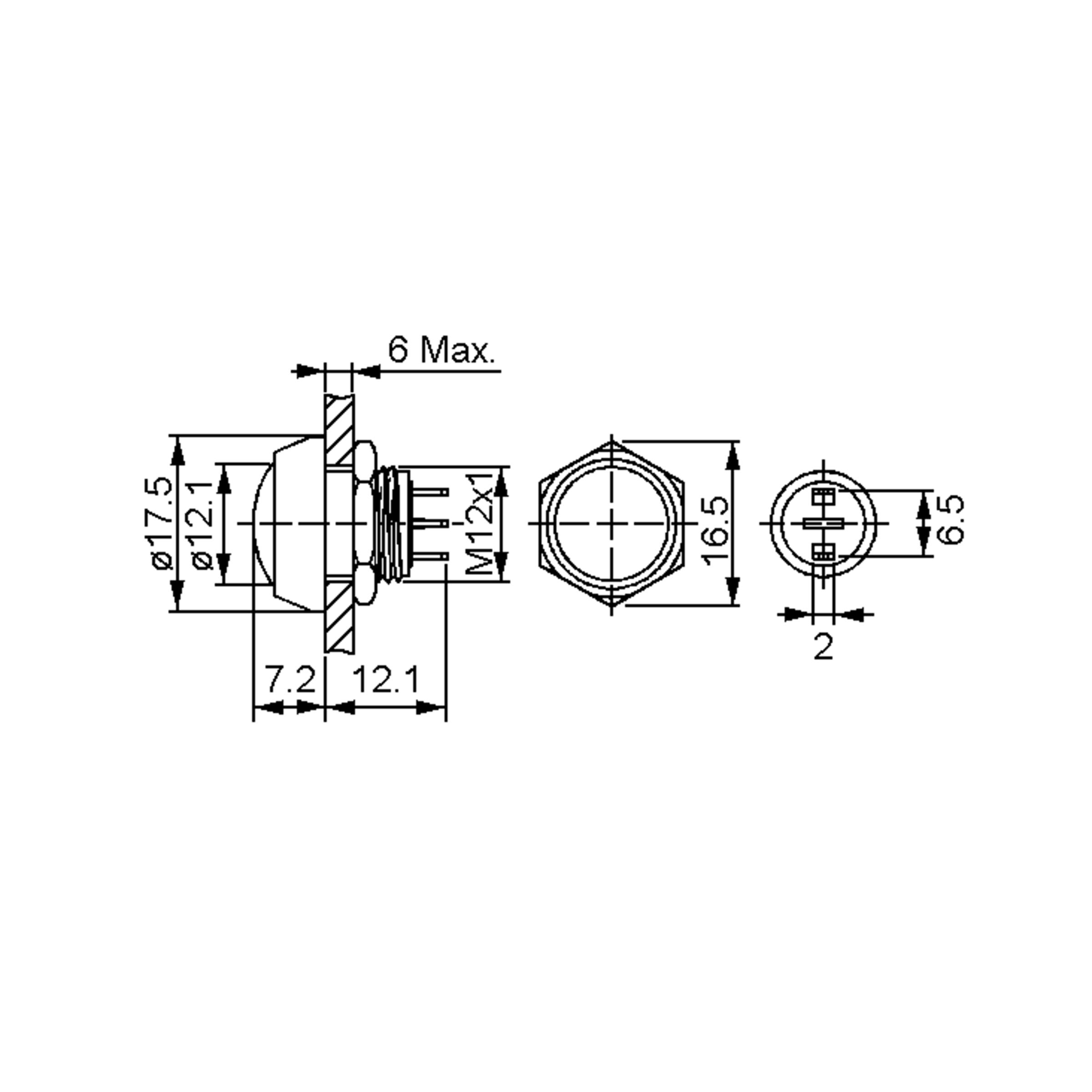

Dimensions and weights
- Panel cut out
- Ø12mm
Operating conditions
- Operating temperature range, min.
- -20 °C
- Operating temperature range, max.
- 55 °C
Technical features
- Switching voltage
- 36 V DC
- Mechanical service life
- 10^5 Betätigungen
- Service life, electrical
- 2 x 10^5 Betätigungen
- Switching current, max.
- 2 A
- Contact resistance
- 50 mOhm
- Insulation resistance, min.
- 1,000 MOhm
- Material: Body
- Zinc aluminum
- Material: Actuator
- PBT
- Material: Terminals
- Stainless steel
Mechanical properties
- Connection
- Soldering eye
- Actuating force, max.
- 5,5 N
- Number of poles
- 1
Safety/Certifications
- Protection class
- IP65
