G9KD-1A DC12

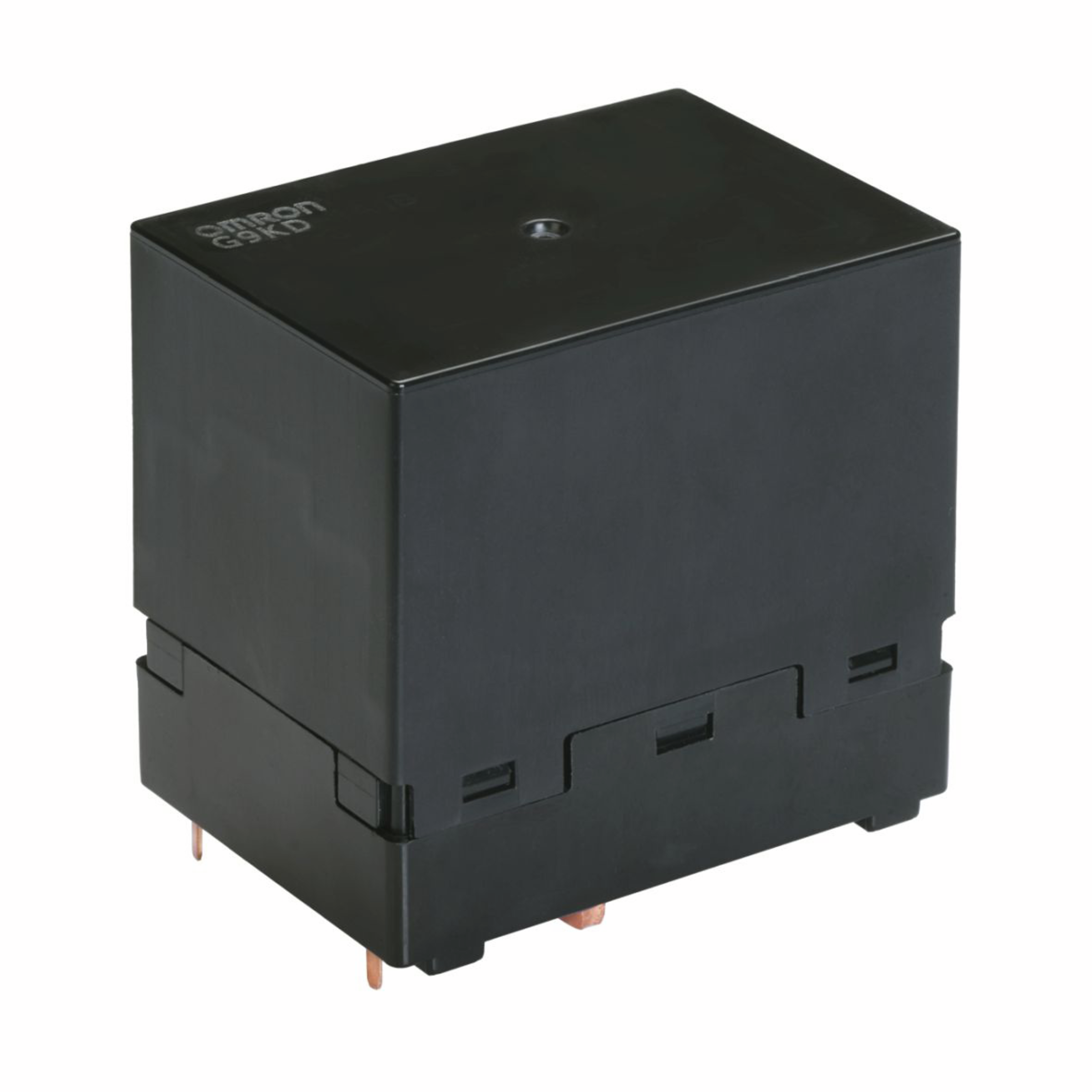

Omron PC relay G9KD THT SPST-NO 150A 12VDC 28,8Ohm 60,5mmx43,5mmx56,5mm RTII

G9KD-1ADC12G9KD-1ADC12G9KD-1ADC12G9KD-1ADC12
NEW
Manufacturer Part No.
G9KD-1A DC12
Schukat Part No.
G9KD-1ADC12
Manufacturer
Omron
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 12 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 12 or multiple of 12)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
• Here you will find suitable relay sockets and accessories.
Series
G9KD
contacts
SPST-NO
Contact: Switching Current (min/typ/max)
150 A
Coil: Nominal Voltage DC
12 V DC
Coil resistance
28.8 Ohm
Protection class RT
RTII
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Omron
Type
  • PC relay
Series
  • G9KD
Product group
  • E6475

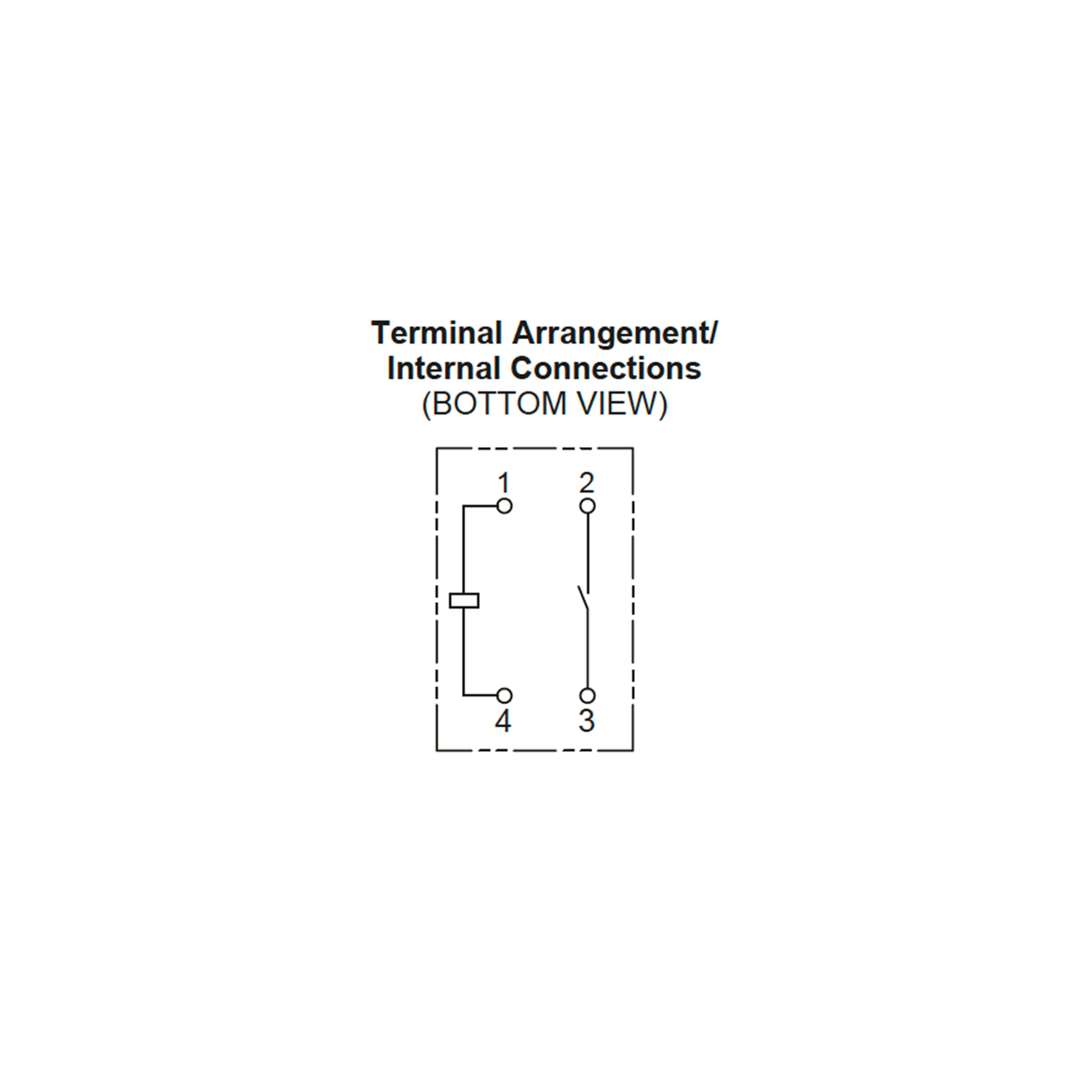

contacts
  • SPST-NO
Contact material
  • Ag alloy

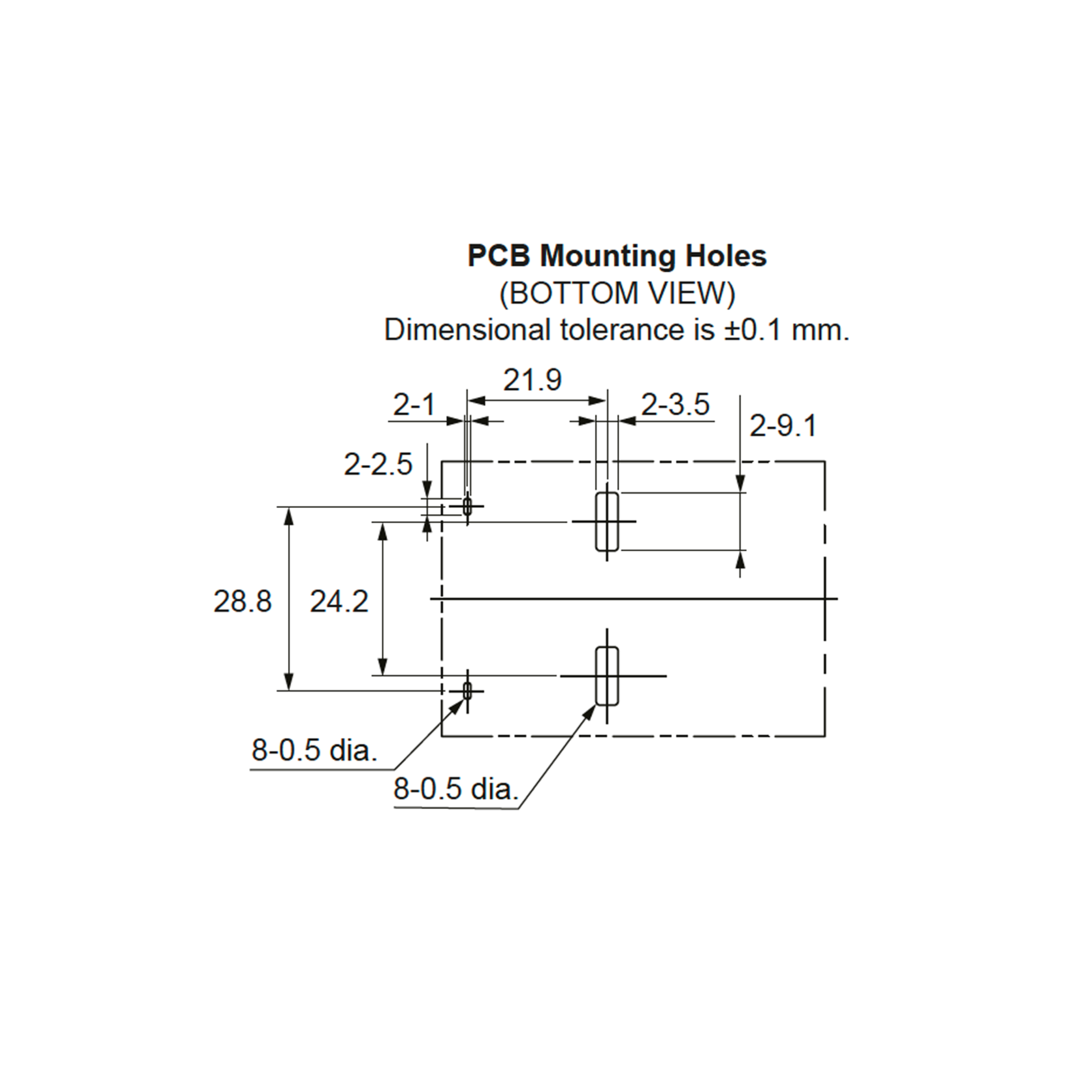

Assembly Type
  • THT
Application

  • • Energy storage systems
    • Various charging systems: V2X (V2H, V2B, etc.)
    • Electric vehicle charging station

Features

  • • High-performance relay, max. switching voltage 1,500V DC
    • Rated current (continuous current): 150A (at 70°C)
    • Max. breaking current: 100A (at 85°C)
    • High dielectric strength of 12kV (between coil and contact)
    • Contact gap: at least 6.0mm
    • Low initial contact resistance ≤ 4mΩ

Notice

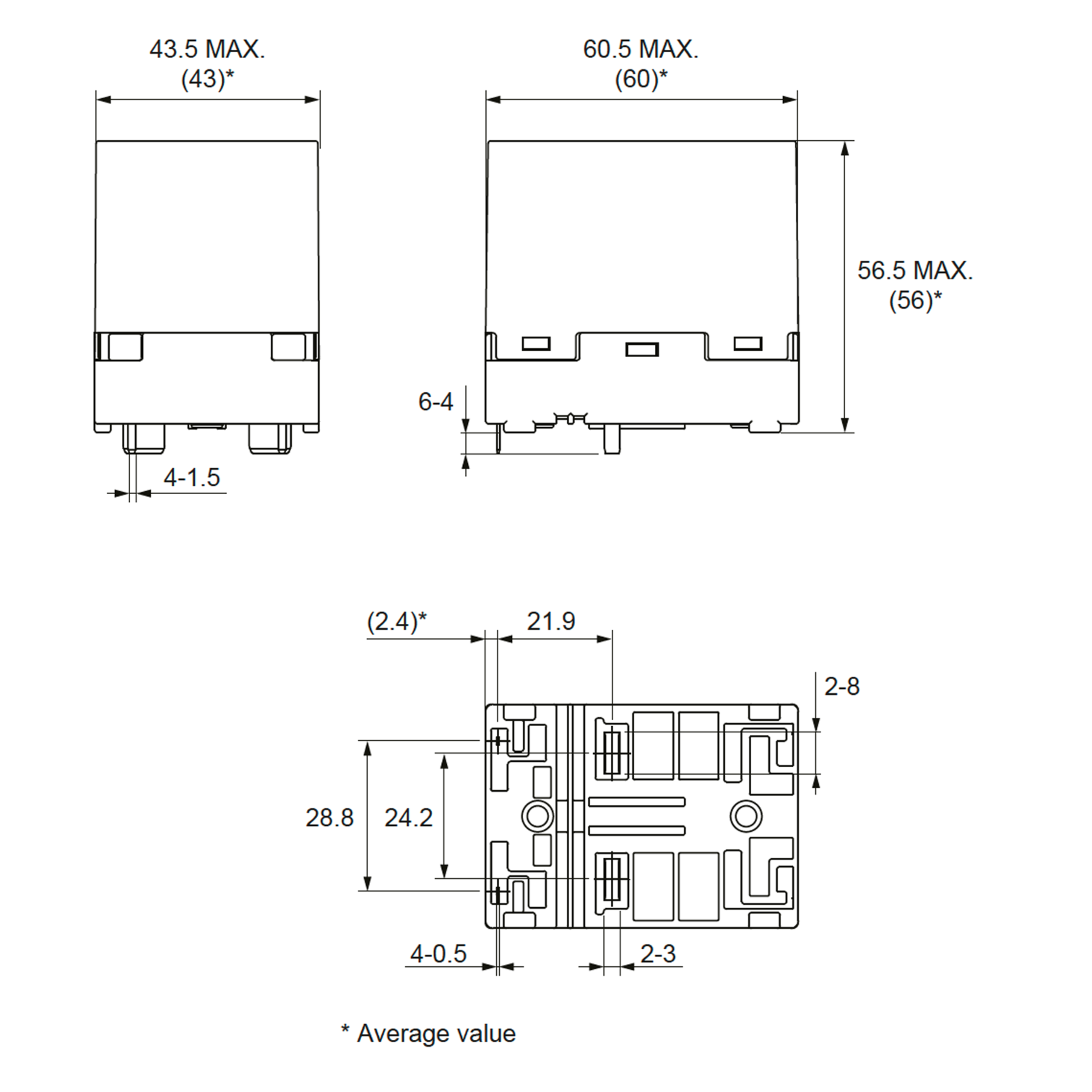

Dimensions and Weights

Dimension: Length
  • 60.5 mm
Dimension: Width
  • 43.5 mm
Dimension: Height
  • 56.5 mm
Weight
  • 265 g

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 85 °C

Technical Features

Contact design
  • Double break
Contact: Switching Current (min/typ/max)
  • 150 A
Contact: Switching Voltage, max. DC
  • 1,500 V DC
Contact: Continuous Current
  • 100 A
Contact: Voltage Resistance
  • 12 kV
Contact resistance
  • 4 mOhm
Creepage distance
  • 6 mm
Coil resistance
  • 28.8 Ohm
Inductor power
  • 5,000 mW
Coil: Rated Current [mA]
  • 417 mA
Coil: Nominal Voltage DC
  • 12 V DC
Coil: Operating Voltage, max.
  • 13.2 V
Coil: Pick-up voltage
  • 9 V
Coil: Drop-out Voltage
  • 0.6 V
Test voltage contact/contact
  • 2,000 V AC
Test voltage coil/contact
  • 5,500 V AC
Response time
  • 50 ms
Drop-out time
  • 30 ms
Mechanical service life
  • 500.000 operations
Service life, electrical
  • see data sheet
Insulation resistance
  • 1.000 MOhm
Vibration resistance
  • 1,0 mm DA
Impact resistance, functional
  • 25 m/s²

Safety/Certifications

Approvals
  • CQC
  • MOT
  • cRUus
Standards
  • IEC61810-1
Protection class RT
  • RTII
