G9KC-4A1BDC12

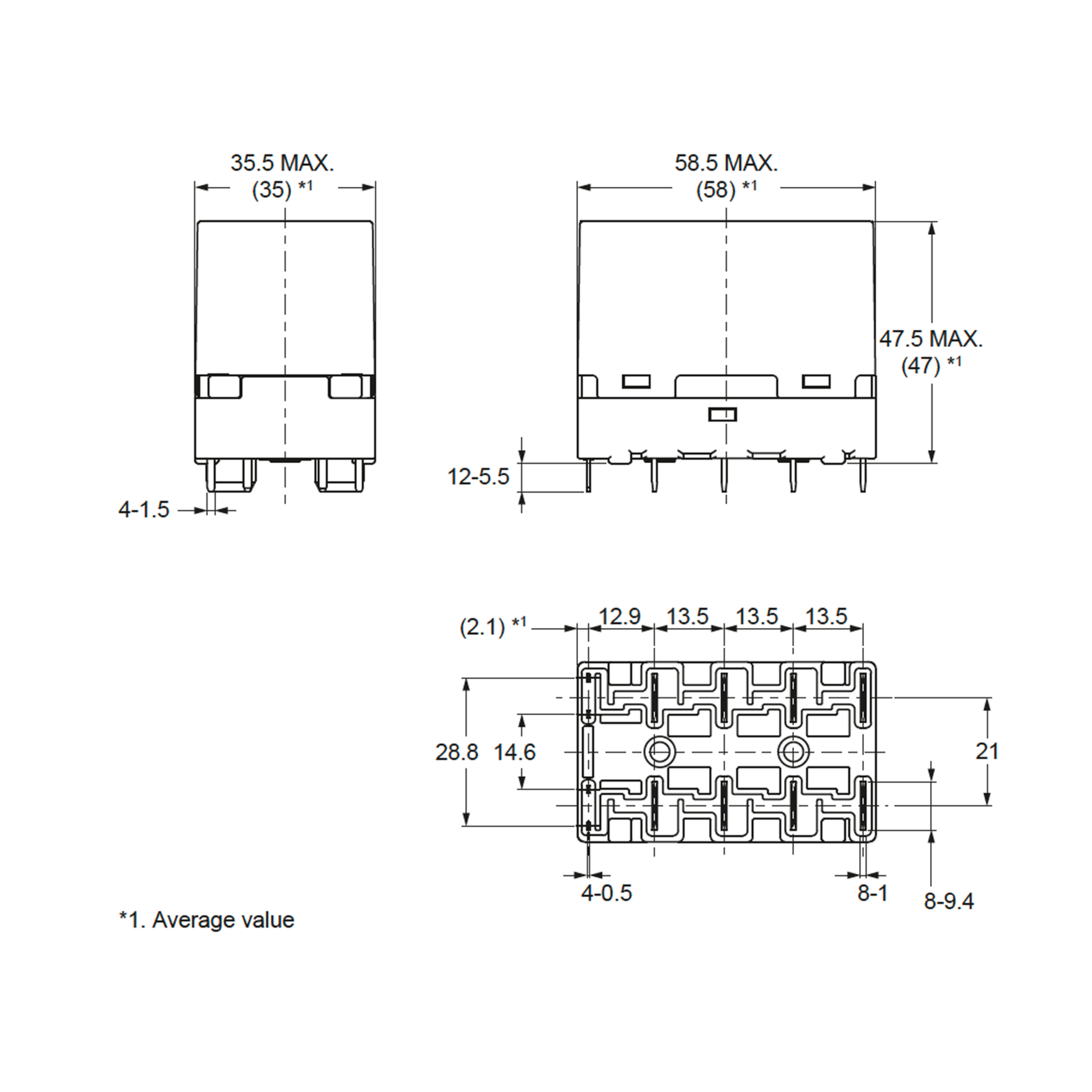

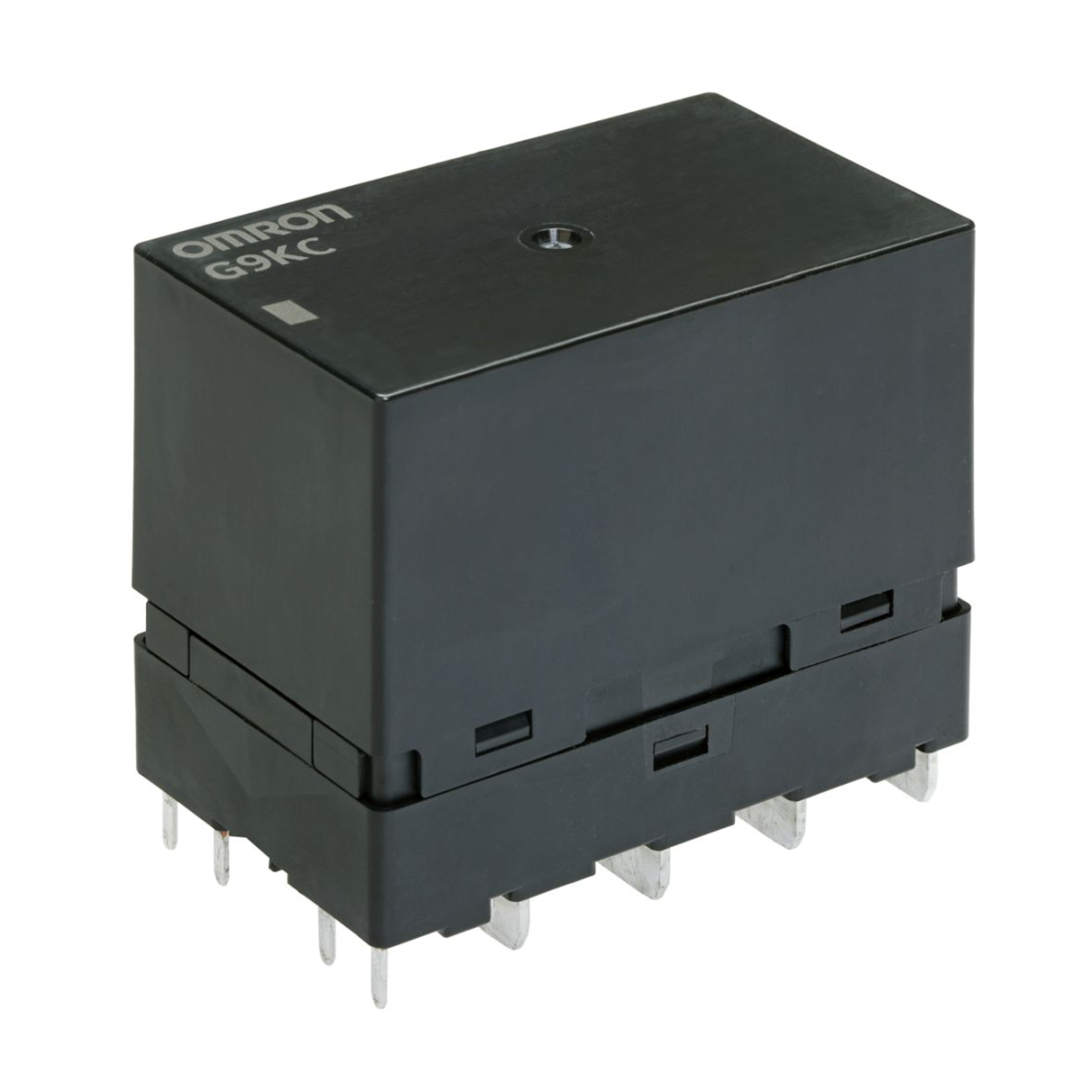

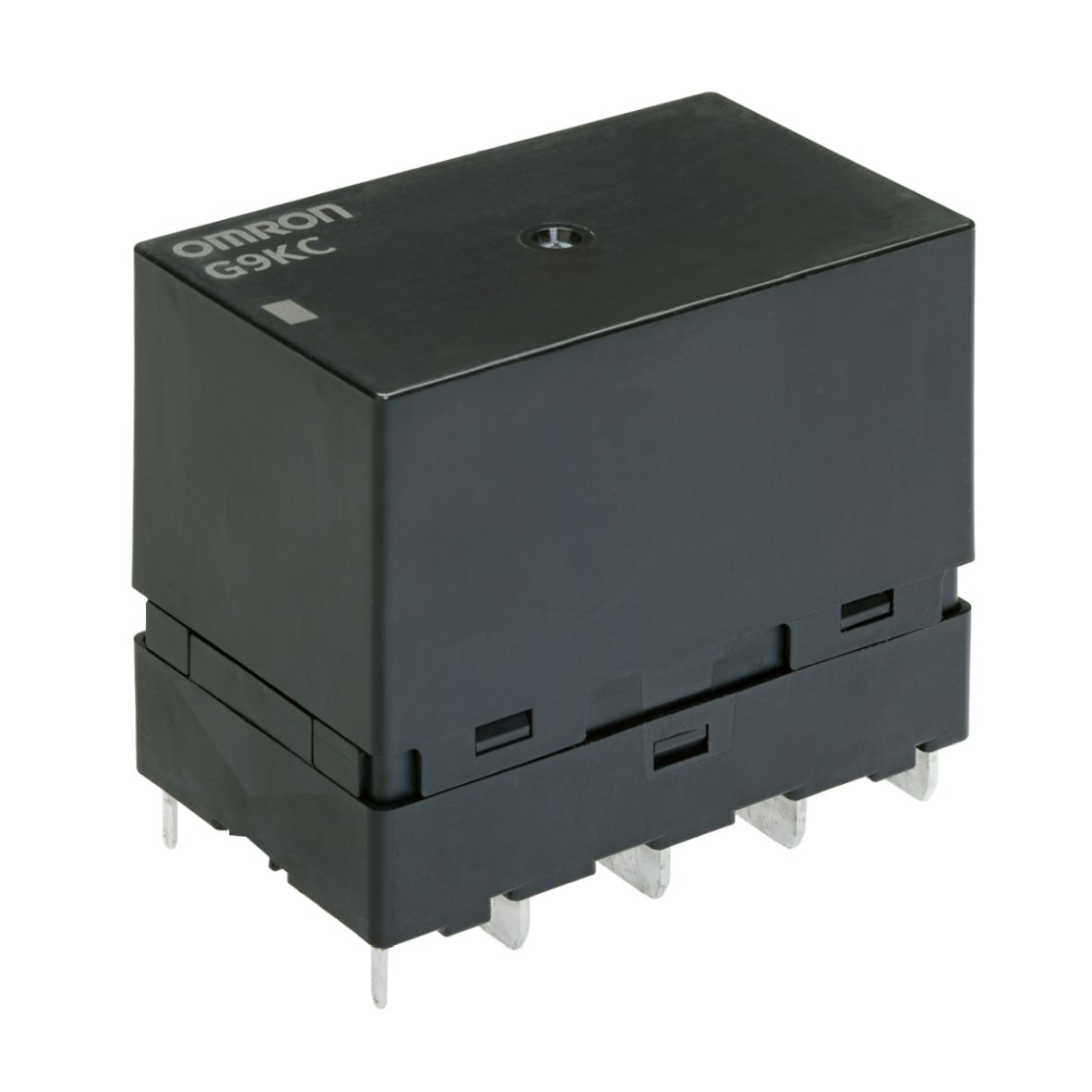

Omron PC relay G9KC THT 4PST-NO/SPST-NC 40A 12VDC 28,8Ohm 58,5mmx35,5mmx47,5mm RTII
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
15 Pcs. in stock
Planned delivery time
Ø 30 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 15 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- G9KC
- contacts
- 4PST-NO/SPST-NC
- Contact: Switching Current (min/typ/max)
- 40 A
- Coil: Nominal Voltage DC
- 12 V DC
- Coil resistance
- 28.8 Ohm
- Protection class RT
- RTII
- RoHS-Conform
