G7L-2A-P-PV DC24

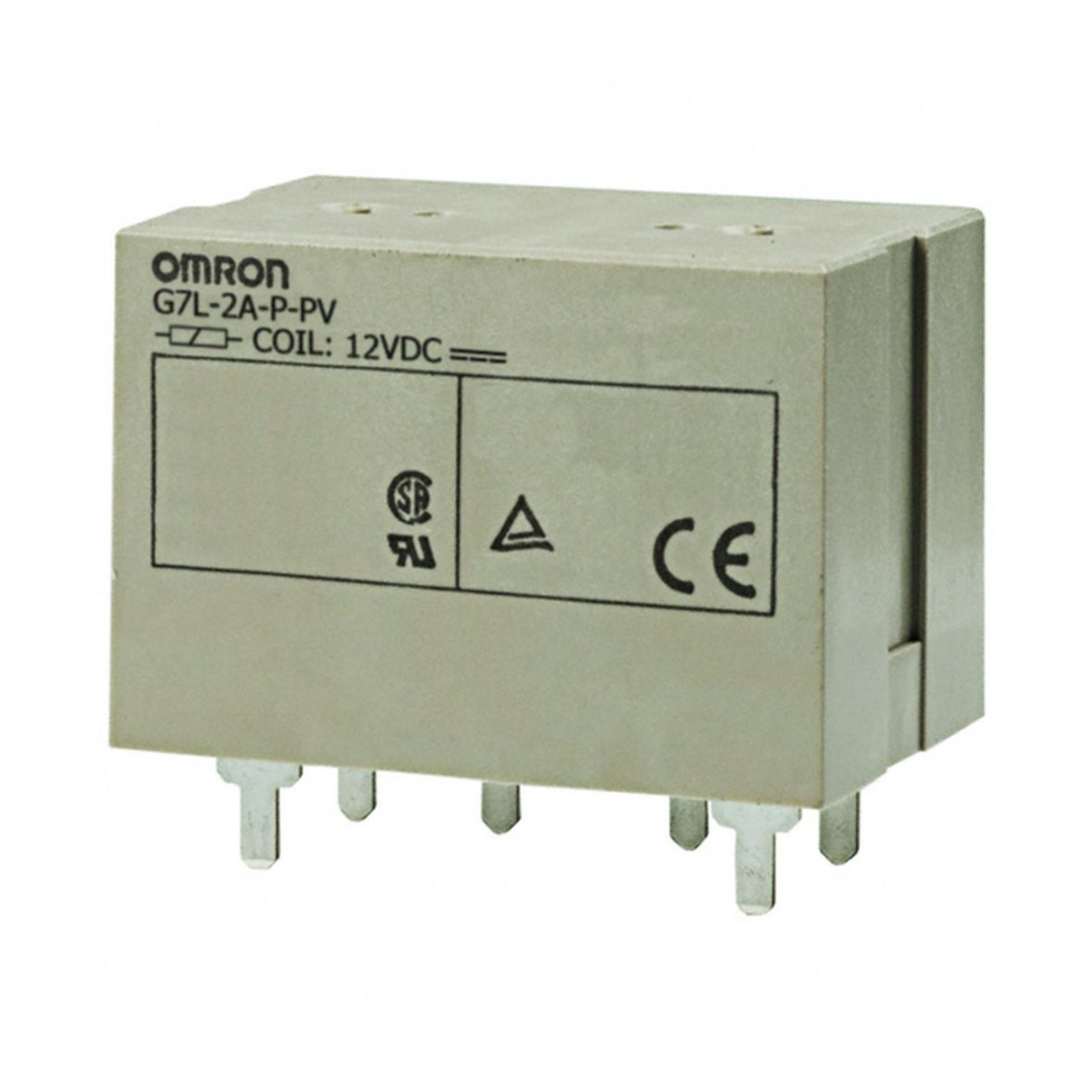

Omron PC relay G7L-PV THT DPST-NO 30A 24VDC 250Ohm 52,5mmx35,5mmx41mm

G7L-2A-P-PVDC24G7L-2A-P-PVDC24G7L-2A-P-PVDC24G7L-2A-P-PVDC24
NEW
Manufacturer Part No.
G7L-2A-P-PV DC24
Schukat Part No.
G7L-2A-P-PVDC24
Manufacturer
Omron
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 28 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
• Here you will find suitable relay sockets and accessories.
Series
G7L-PV
contacts
DPST-NO
Contact: Switching Current (min/typ/max)
30 A
Coil: Nominal Voltage DC
24 V DC
Coil resistance
250 Ohm
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Omron
Type
  • PC relay
Series
  • G7L-PV
Product group
  • E6422
contacts
  • DPST-NO
Contact material
  • Ag alloy
Assembly Type
  • THT
Application

  • Ideal for inverters in photovoltaic power systems.

Features

  • • High switching capacity with contact rating of 30A at 280VAC (AC7a class).
    • Power consumption reduced by lowering voltage applied to coil after rated voltage is applied (low power consumption of approx. 320mW when voltage applied to coil is reduced to 37.5%.).
    • Ambient operating temperature of up to 85°C
    • Contact gap of 3.0 mm for safety
    • UL and VDE class F certification for coil insulation

Application note
  • • The G7L-PV is a Power Relay that is suitable for grid connection switching applications for inverters in photovoltaic power systems. Do not use the G7L-PV to switch minute loads, such as signals. • Not suitable for automatic soldering. Always solder the terminals by hand. • The G7L-PV is not sealed. Do not clean the G7L-PV with water or cleaning agents.
Notice

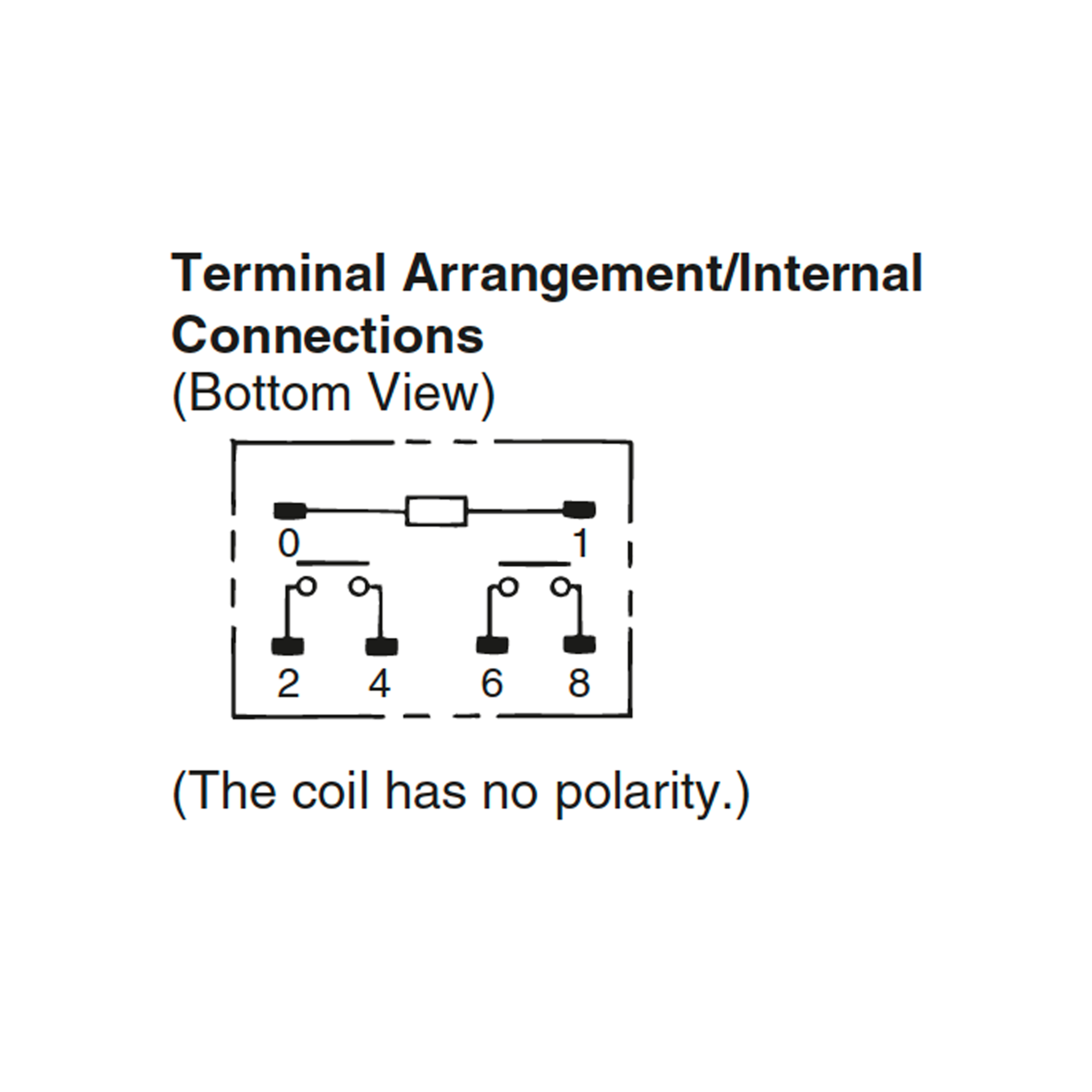

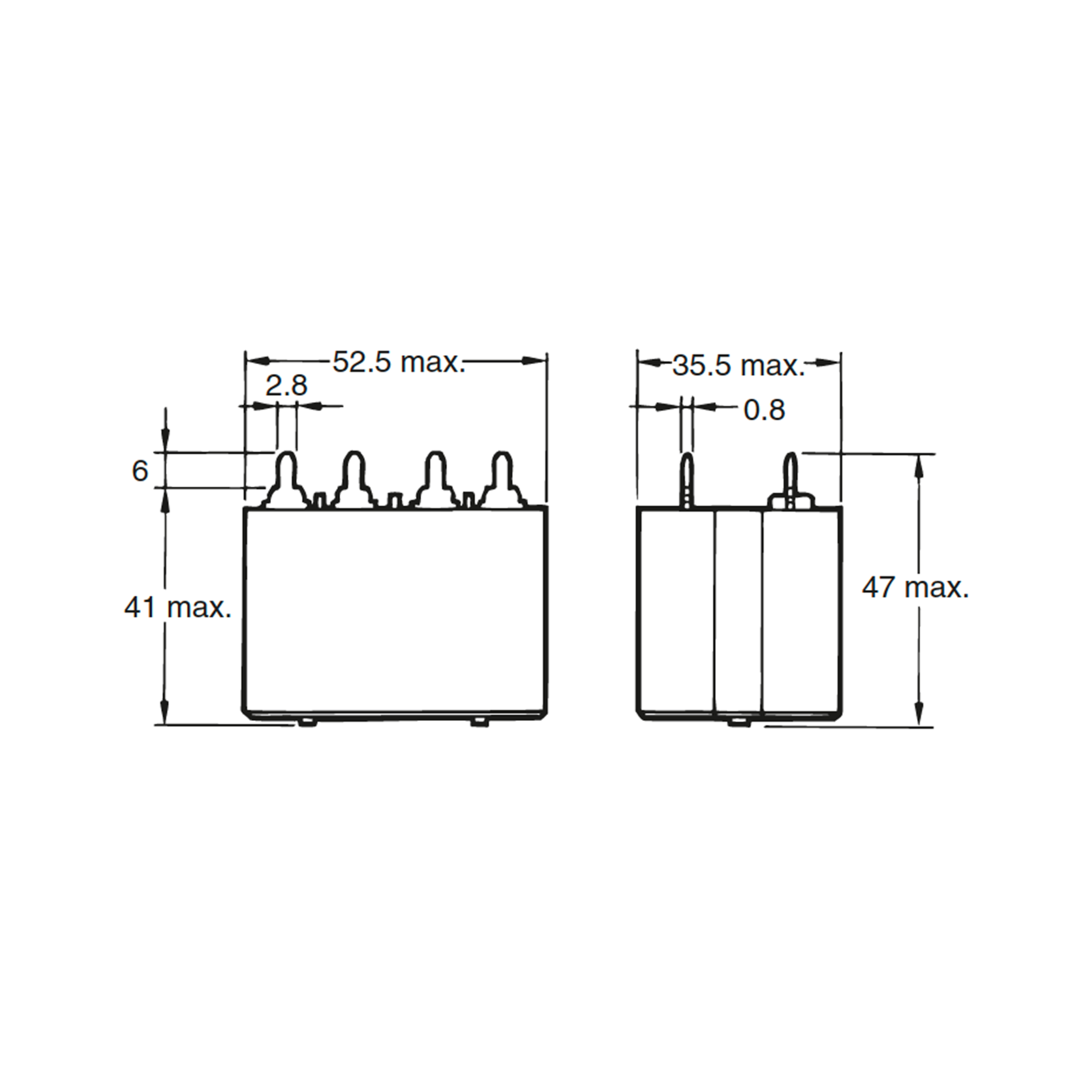

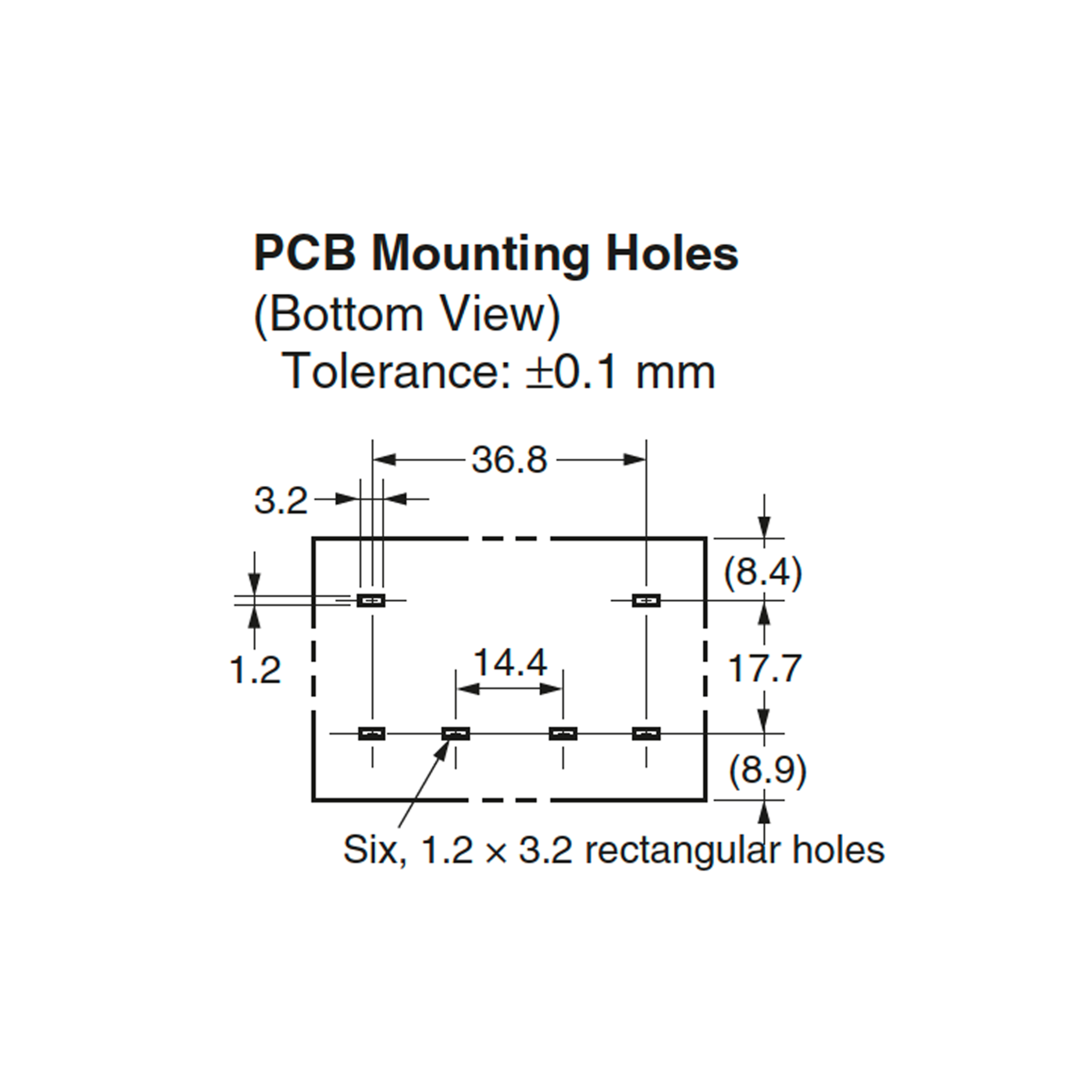

Dimensions and Weights

Dimension: Length
  • 52.5 mm
Dimension: Width
  • 35.5 mm
Dimension: Height
  • 41 mm
Weight
  • 100 g

Operating conditions

Operating Temperature Min.
  • -25 °C
Operating Temperature Max.
  • 85 °C

Technical Features

Contact: Switching Current (min/typ/max)
  • 30 A
Contact: Switching Voltage, max. AC
  • 280 V AC
Contact: Continuous Current
  • 30 A
Contact: Voltage Resistance
  • 10 kV
Contact resistance
  • 100 mOhm
Creepage distance
  • 3 mm
Coil design
  • monostable
Coil resistance
  • 250 Ohm
Inductor power
  • 2,300 mW
Coil: Rated Current [mA]
  • 95.8 mA
Coil: Nominal Voltage DC
  • 24 V DC
Coil: Operating Voltage, min.
  • 18 V
Coil: Operating Voltage, max.
  • 26.4 V
Coil: Drop-out Voltage
  • 2.4 V
Test voltage contact/contact
  • 2,000 V AC
Test voltage coil/contact
  • 4,000 V AC
Response time
  • 30 ms
Drop-out time
  • 30 ms
Insulation resistance
  • 1.000 MOhm
Vibration resistance
  • 1,5 mm DA
Impact resistance, functional
  • 100 m/s²

Safety/Certifications

Approvals
  • UL
  • VDE
