G6RN-1A7-E-ASI-CF-HA DC12

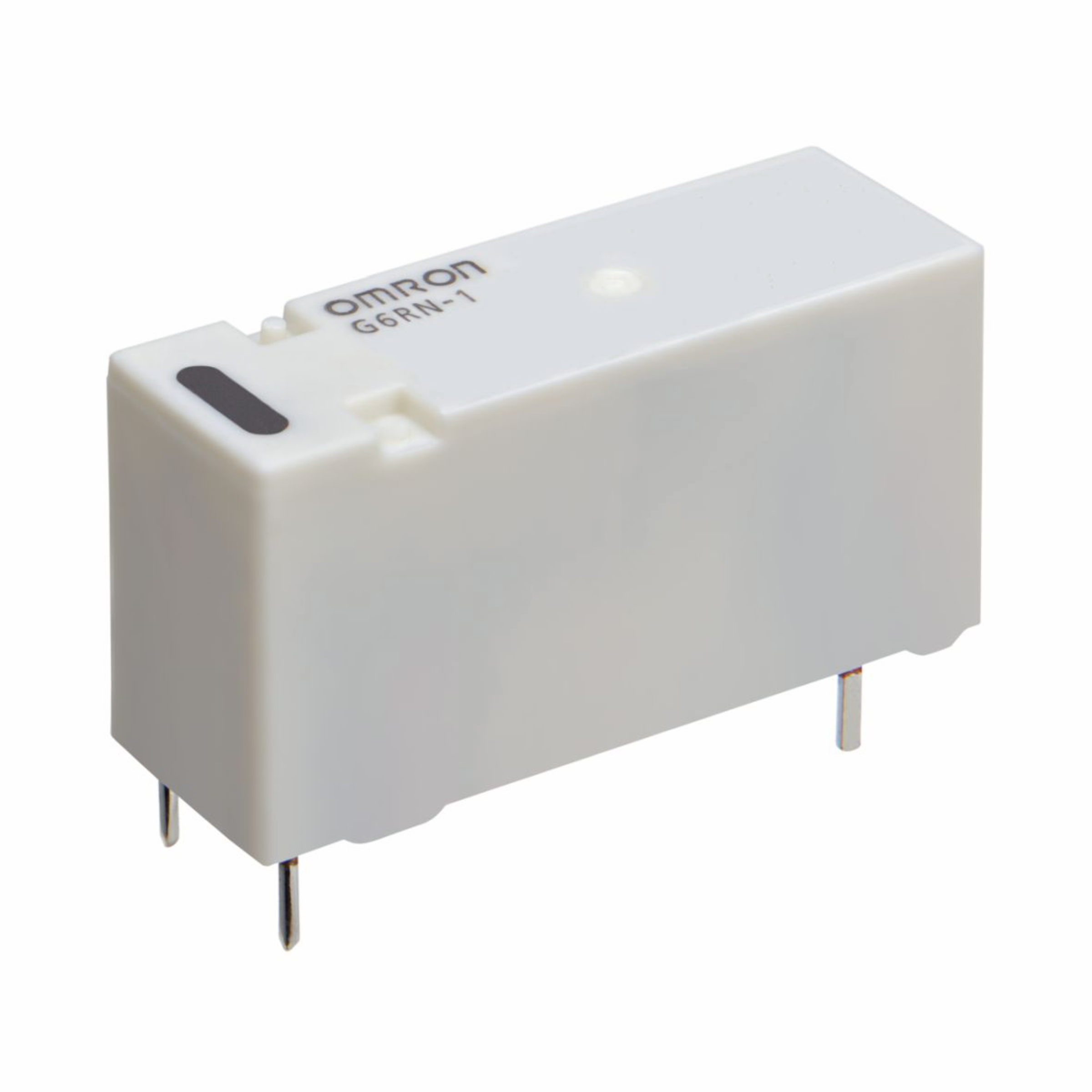

Omron PC relay G6RN THT SPST-NO 10A 12VDC 655Ohm 28,5mmx10mmx15mm

G6RN1A7EASICFHA12undefinedG6RN1A7EASICFHA12
NEW
Manufacturer Part No.
G6RN-1A7-E-ASI-CF-HA DC12
Schukat Part No.
G6RN1A7EASICFHA12
Manufacturer
Omron
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 26 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 4000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1200 or multiple of 400)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
• Here you will find suitable relay sockets and accessories.
Series
G6RN
contacts
SPST-NO
Contact: Switching Current (min/typ/max)
10 A
Coil: Nominal Voltage DC
12 V DC
Coil resistance
655 Ohm
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Omron
Type
  • PC relay
Series
  • G6RN
Product group
  • E6355
contacts
  • SPST-NO
Contact material
  • AgSnIn
Assembly Type
  • THT
Application

  • • Air conditioner/HVAC (heat pump, boiler, etc.)<br>
    • Industrial equipment (small FA controllers, inverters, servo amplifiers, temperature controllers, etc.)

Features

  • • Miniature power relay for single-pole 10A switching
    • High-capacity type
    • Low profile of 15mm (approximately 60% of the height of the Omron G2R model)
    • High sensitivity with 220mW power consumption
    • High insulation: 8mm insulation distance and 10kV surge voltage withstand between coil and contacts
    • Meets the ambient temperature requirements of 85°C
    • Degree of protection: Flux-resistant
    • Coil insulation system: Class F
    • Meets the international safety standard for resistance to ignition (IEC/EN 60335-1).
    • Conforms to IEC/EN 60079-1, clause 15.5 enclosed-break devices (Group IIA) testing passed.

Notice

Dimensions and Weights

Dimension: Length
  • 28.5 mm
Dimension: Width
  • 10 mm
Dimension: Height
  • 15 mm
Weight
  • 9 g

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 85 °C

Technical Features

Contact: Switching Current (min/typ/max)
  • 10 A
Contact: Switching Voltage, max. AC
  • 250 V AC
Contact: Switching Voltage, max. DC
  • 30 V DC
Contact: Continuous Current
  • 10 A
Contact resistance
  • 100 mOhm
Creepage distance
  • 8 mm
Coil design
  • monostable
Coil resistance
  • 655 Ohm
Inductor power
  • 220 mW
Coil: Rated Current [mA]
  • 18.3 mA
Coil: Nominal Voltage DC
  • 12 V DC
Coil: Operating Voltage, max.
  • 18 V
Coil: Pick-up voltage
  • 8.4 V
Coil: Drop-out Voltage
  • 1.2 V
Test voltage contact/contact
  • 1,000 V AC
Test voltage coil/contact
  • 6,000 V AC
Response time
  • 15 ms
Drop-out time
  • 5 ms
Insulation resistance
  • 1.000 MOhm
Vibration resistance
  • 1,5 mm DA
Impact resistance, functional
  • 100 m/s²

Safety/Certifications

Approvals
  • MOT
  • VDE
  • cRUus
Standards
  • IEC/EN 60335-1, IEC/EN 60079-1
