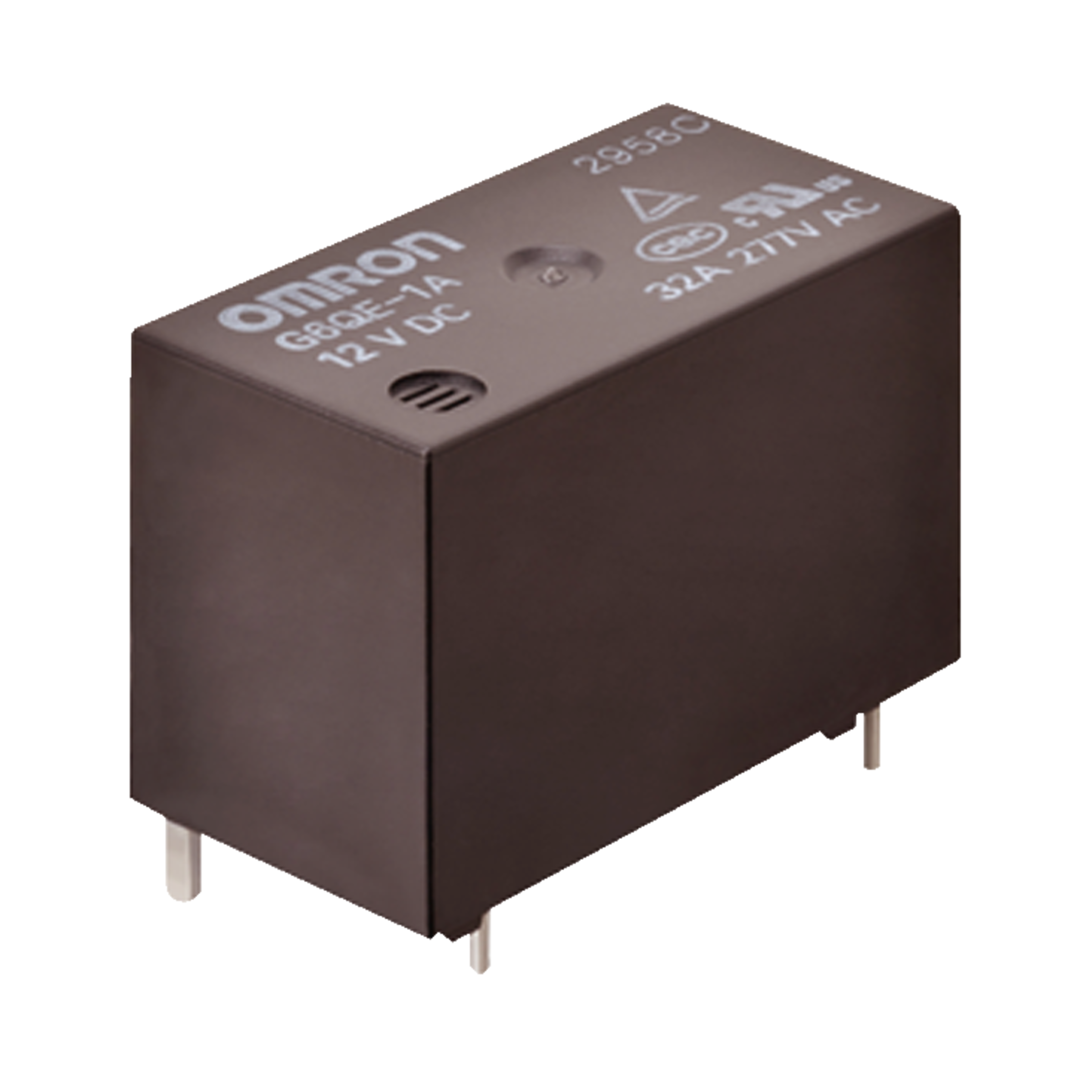

G6QE-1A-DC5
Omron Power relay G6QE THT SPST-NO 36A 5VDC 17,9Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
130 Pcs. in stock
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- G6QE
- Rated current
- 280 mA
- Rated voltage DC
- 5 V DC
- Switching current
- 36 A

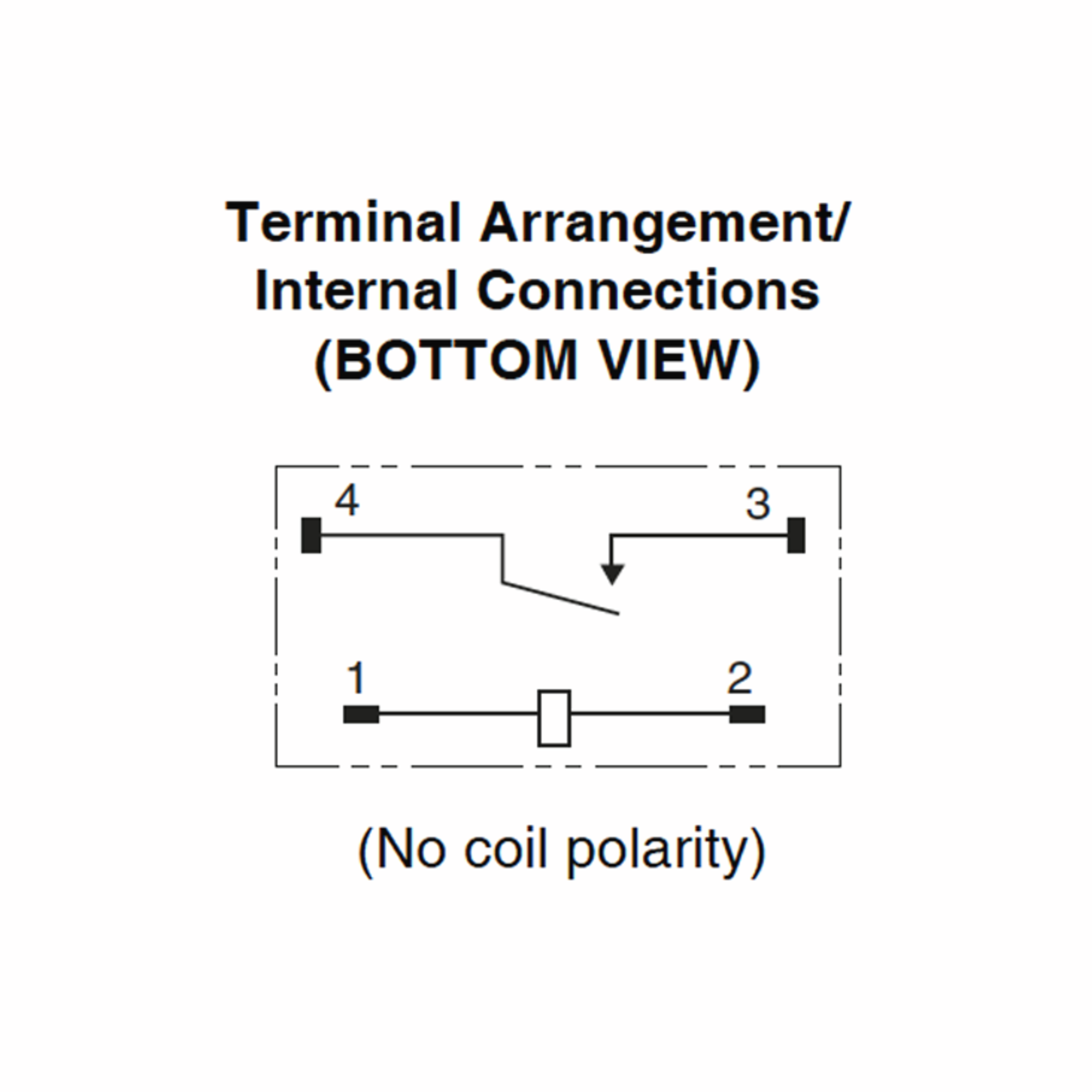

- contacts
- SPST-NO
- Coil resistance
- 17.9 Ohm
- Dimension: Length
- 30.5 mm
- Dimension: Width
- 16 mm
- Dimension: Height
- 20.5 mm
- RoHS-Conform
Specifications
Open all

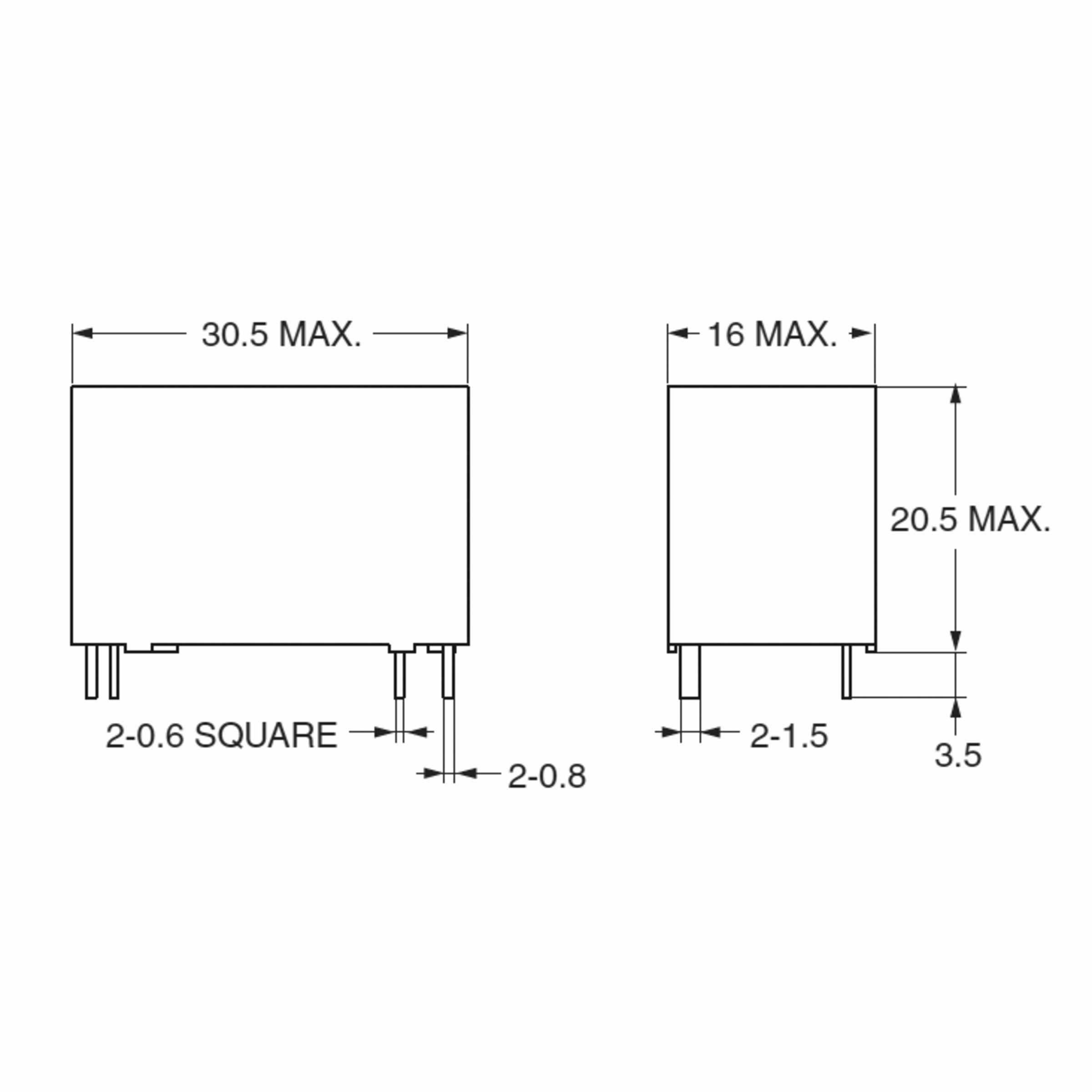

Dimensions and weights
- Dimension: Length
- 30.5 mm
- Dimension: Width
- 16 mm
- Dimension: Height
- 20.5 mm
- Weight
- 17 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 5 V DC
- Coil design
- Switching voltage, max. AC
- 277 V AC
- Response voltage
- 3.5 V
- Operating voltage, max.
- 7 V
- Test voltage contact/contact
- 2,000 V AC
- Test voltage coil/contact
- 4,500 V AC
- Creepage distance
- 6.4 mm
- Rated current
- 280 mA
- Switching current
- 36 A
- Rated power
- 1,400 mW
- Coil resistance
- 17.9 Ohm
- Contact resistance
- 100 mOhm
- Insulation resistance
- 1.000 MOhm
- Response time
- 20 ms
- Drop-out time
- 10 ms
- Vibration resistance
- 1,5 mm DA
- Impact resistance, functional
- 200 m/s²
Safety/Certifications
- Approvals
- CQC
- MOT
- cULus
