G6K-2F-Y DC5
Omron Signal relay G6K SMD DPDT 1A 5VDC 237Ohm
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.770 Pcs. in stock
Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Signal relay
- Series
- G6K
- Rated current
- 21,1 mA
- Rated voltage DC
- 5 V DC
- Switching current
- 1 A

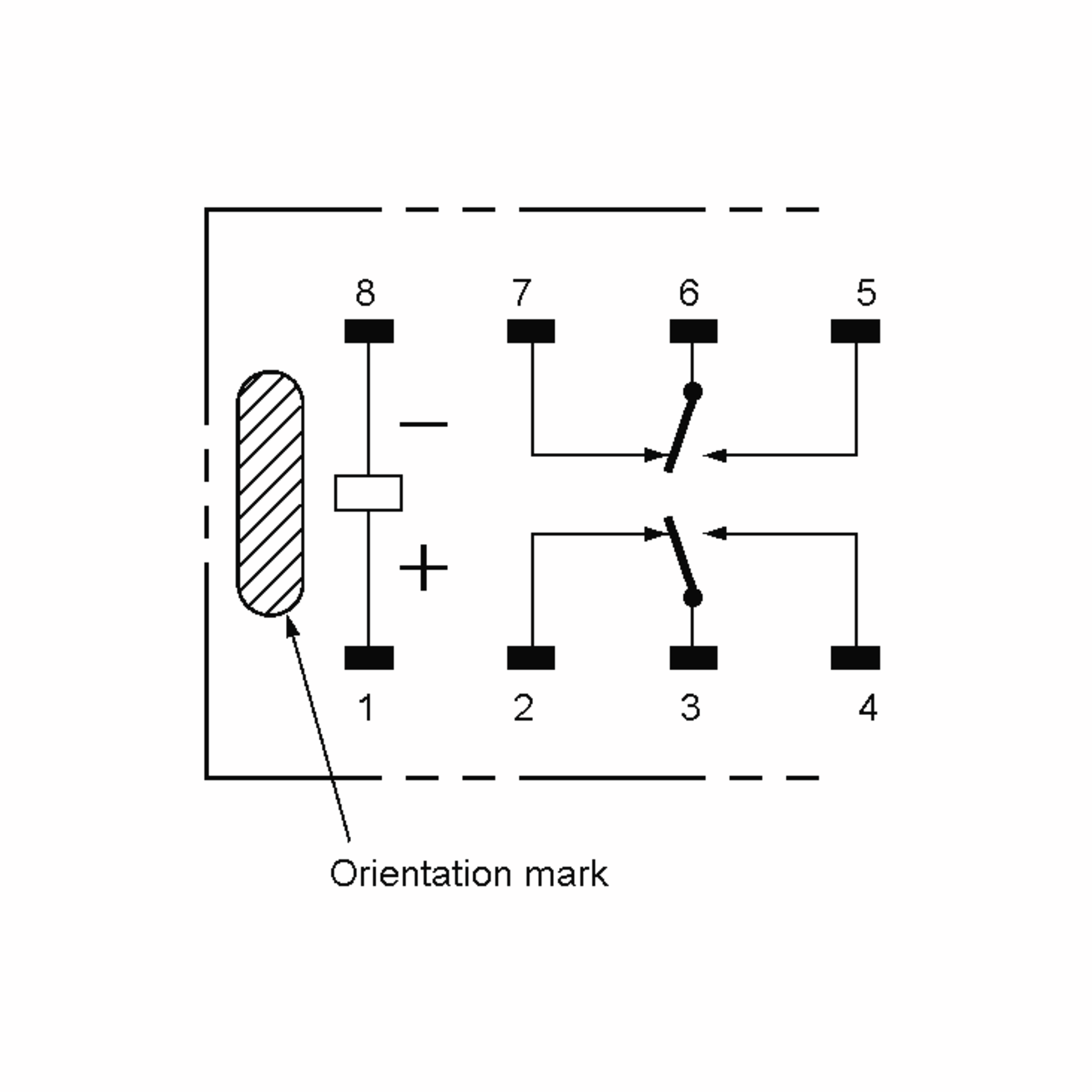

- contacts
- DPDT
- Coil resistance
- 237 Ohm
- Dimension: Length
- 10 mm
- Dimension: Width
- 6.5 mm
- Dimension: Height
- 5.2 mm
- RoHS-Conform
Specifications
Open all

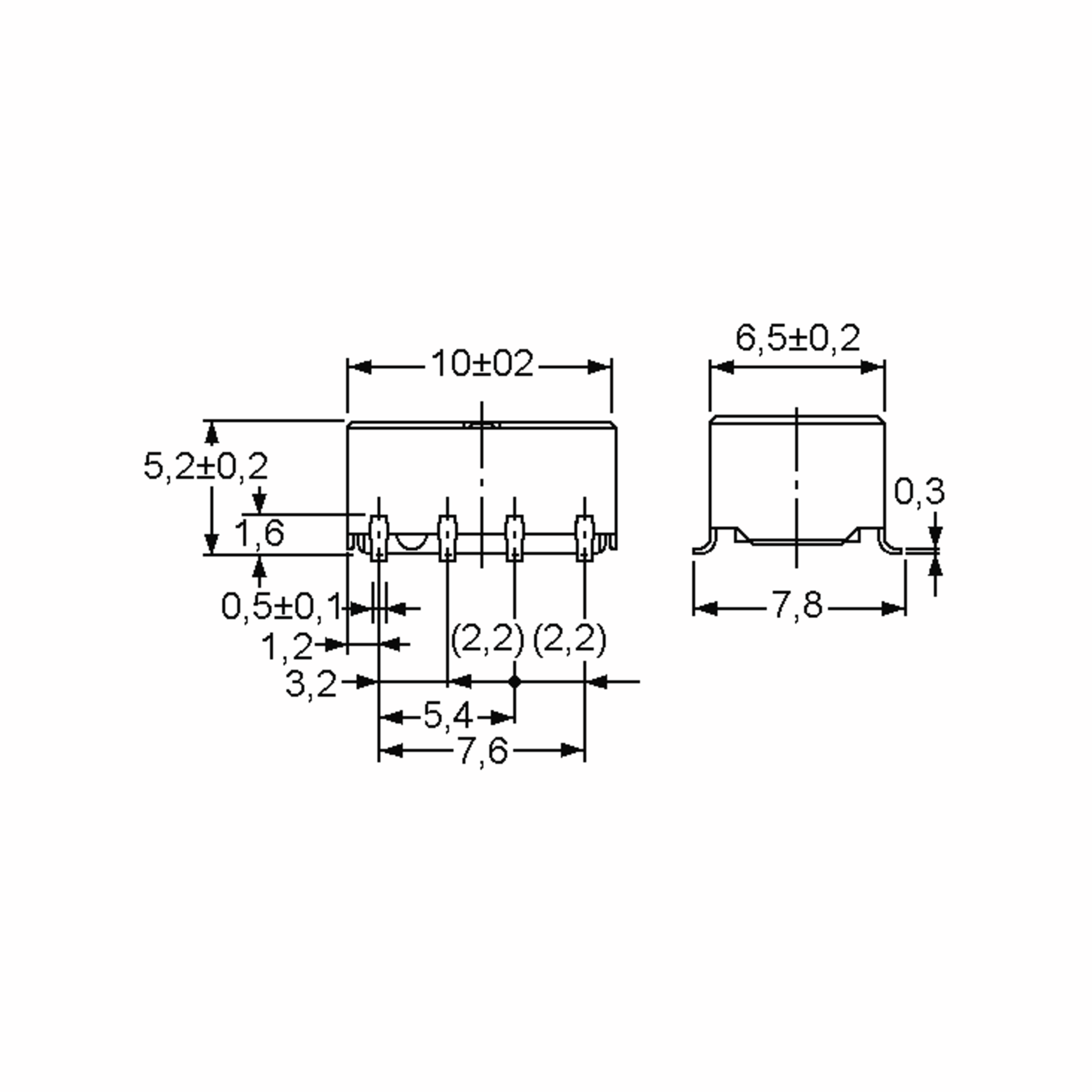

Dimensions and weights
- Dimension: Length
- 10 mm
- Dimension: Width
- 6.5 mm
- Dimension: Height
- 5.2 mm
- Weight
- 0.7 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
Technical features
- Rated voltage DC
- 5 V DC
- Coil design
- Contact design
- Switching voltage, max. AC
- 125 V AC
- Switching voltage, max. DC
- 60 V DC
- Response voltage
- 4 V
- Drop-out voltage
- 0.5 V
- Test voltage contact/contact
- 750 V AC
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 1,500 V AC
- Rated current
- 21,1 mA
- Switching current
- 1 A
- Transport Current
- 2 A
- Rated power
- 100 mW
- Coil resistance
- 237 Ohm
- Contact resistance
- 100 mOhm
- Insulation resistance
- 1.000 MOhm
- Response time
- 3 ms
- Drop-out time
- 3 ms
Safety/Certifications
- Approvals
- UL
- cCSA
- Standards
- EN 62368-1
