G6E-134P-US DC12
Omron Signal relay G6E THT SPDT 3A 12VDC 720Ohm 16mmx10mmx8mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
400 Pcs. in stock
Next Stock Receipt
Week 16/2025
500 Pcs.
500 Pcs.
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- G6E
- Type
- Signal relay
- contacts
- SPDT
- Switching current
- 3 A
- Rated current
- 16,7 mA
- Rated voltage DC
- 12 V DC
- Coil resistance
- 720 Ohm
- Dimension: Length
- 16 mm
- Dimension: Width
- 10 mm
- Dimension: Height
- 8 mm
- RoHS-Conform
Specifications
Open all

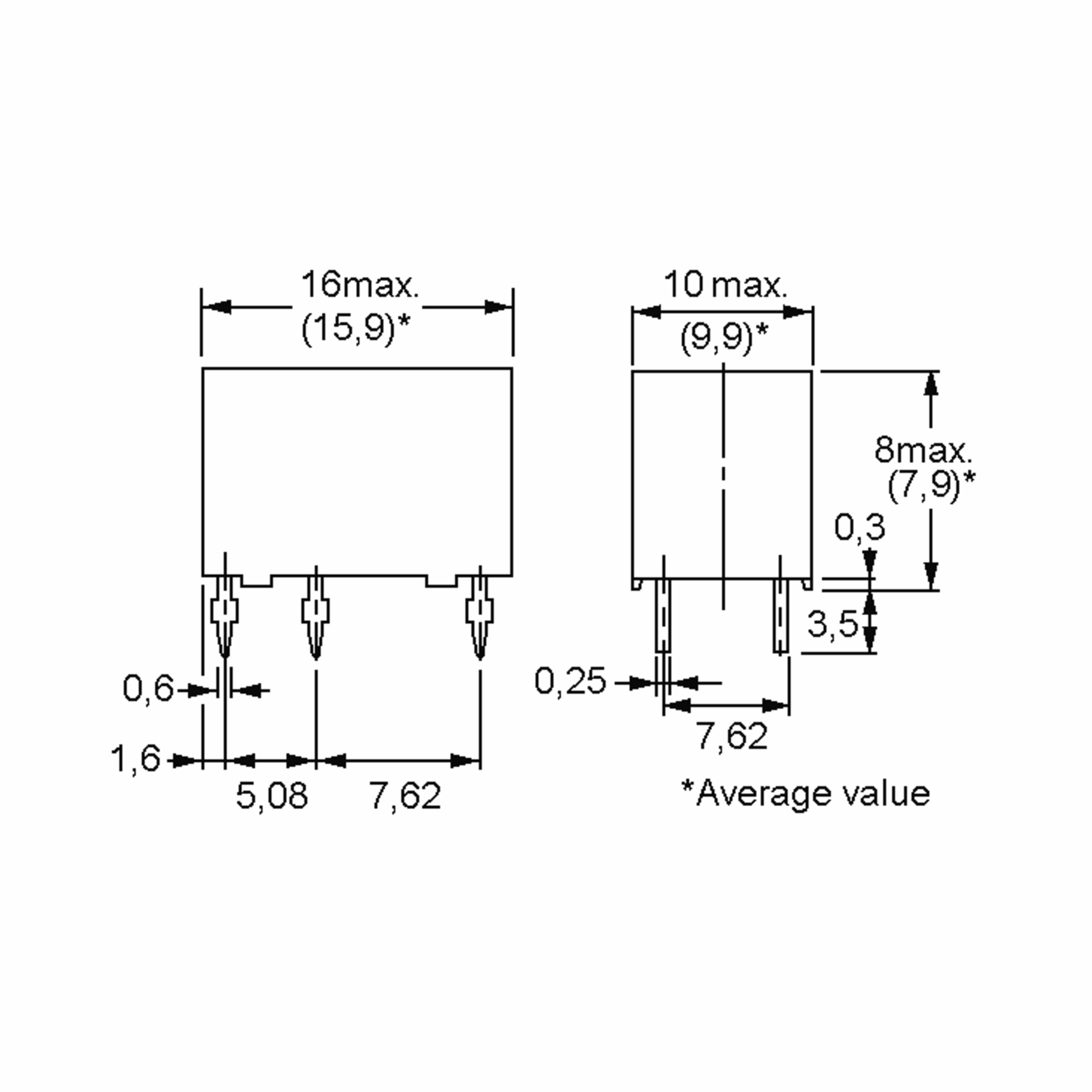

Dimensions and Weights
- Dimension: Length
- 16 mm
- Dimension: Width
- 10 mm
- Dimension: Height
- 8 mm
- Weight
- 2.7 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Rated voltage DC
- 12 V DC
- Coil design
- Contact design
- Switching voltage, max. AC
- 250 V AC
- Switching voltage, max. DC
- 220 V DC
- Response voltage
- 8.4 V
- Drop-out voltage
- 1.2 V
- Test voltage contact/contact
- 1,000 V AC
- Test voltage coil/contact
- 1,500 V AC
- Rated current
- 16,7 mA
- Switching current
- 3 A
- Transport Current
- 3 A
- Rated power
- 200 mW
- Coil resistance
- 720 Ohm
- Contact resistance
- 50 mOhm
- Insulation resistance
- 1.000 MOhm
- Response time
- 5 ms
- Drop-out time
- 5 ms
- Vibration resistance
- 3,3 mm DA
- Impact resistance, functional
- 300 m/s²
Safety/Certifications
- Approvals
- UL
- cCSA
- Standards
- FCC Part 68
