G5V-2-H1 DC5

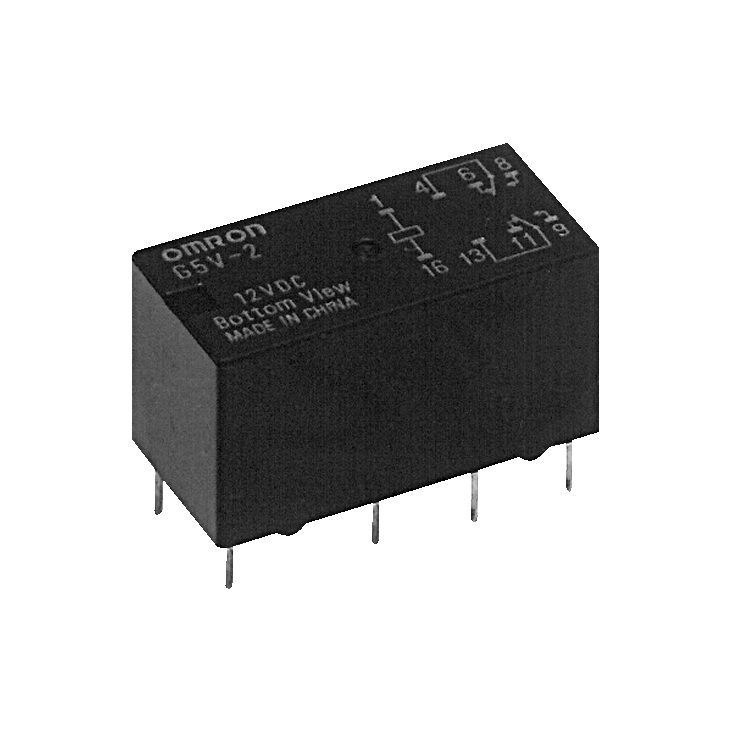

Omron Signal relay G5V-2 THT DPDT 1A 5VDC 167Ohm 20,5mmx10,1mmx11,5mm

Image similar
TOP
Manufacturer Part No.
G5V-2-H1 DC5
Schukat Part No.
G5V2-5H1
Manufacturer
Omron
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

475 Pcs. in stock

Next Stock Receipt
Week 21/2025
500 Pcs.
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Series
G5V-2
Type
Signal relay

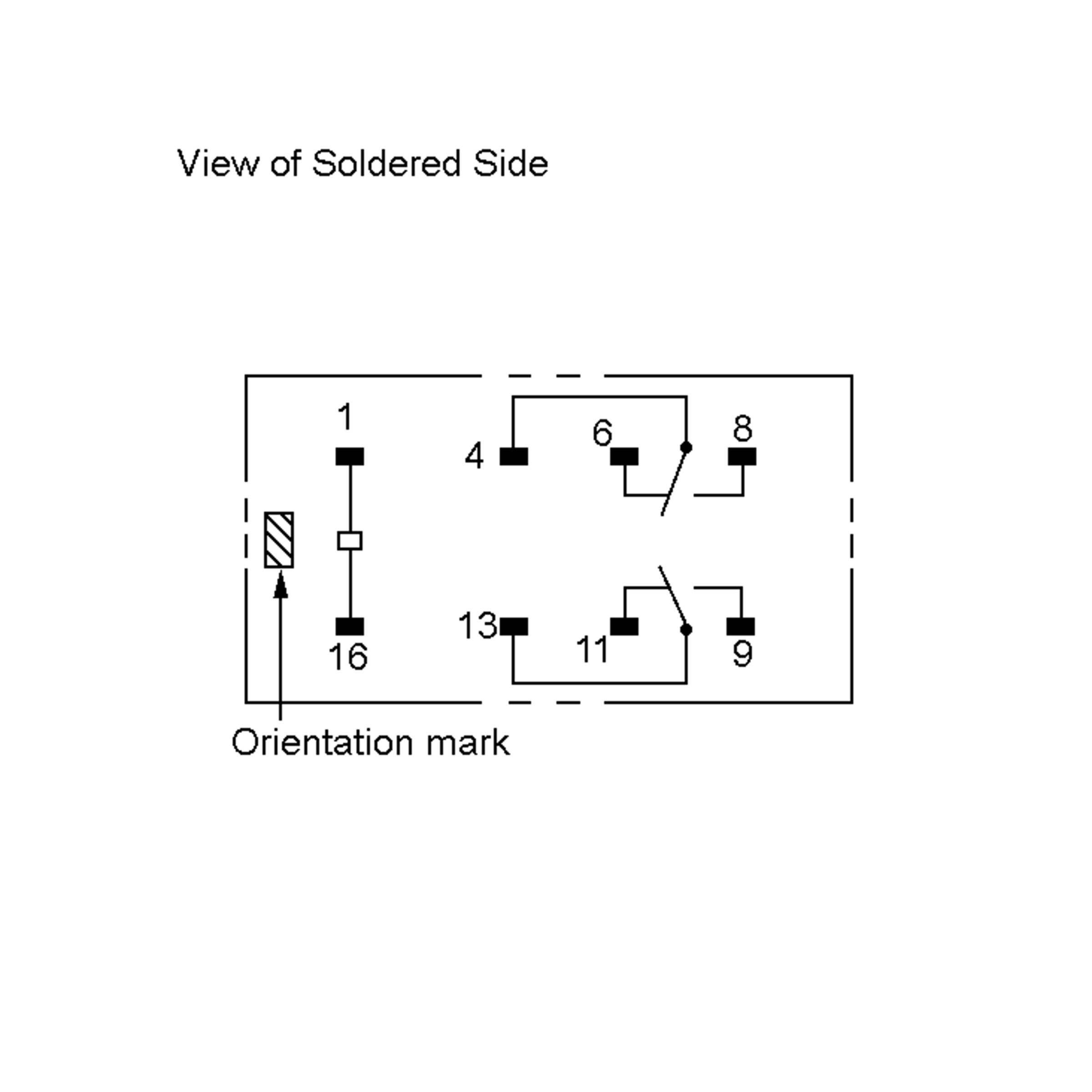

contacts
DPDT
Switching current
1 A
Rated current
30 mA
Rated voltage DC
5 V DC
Coil resistance
167 Ohm

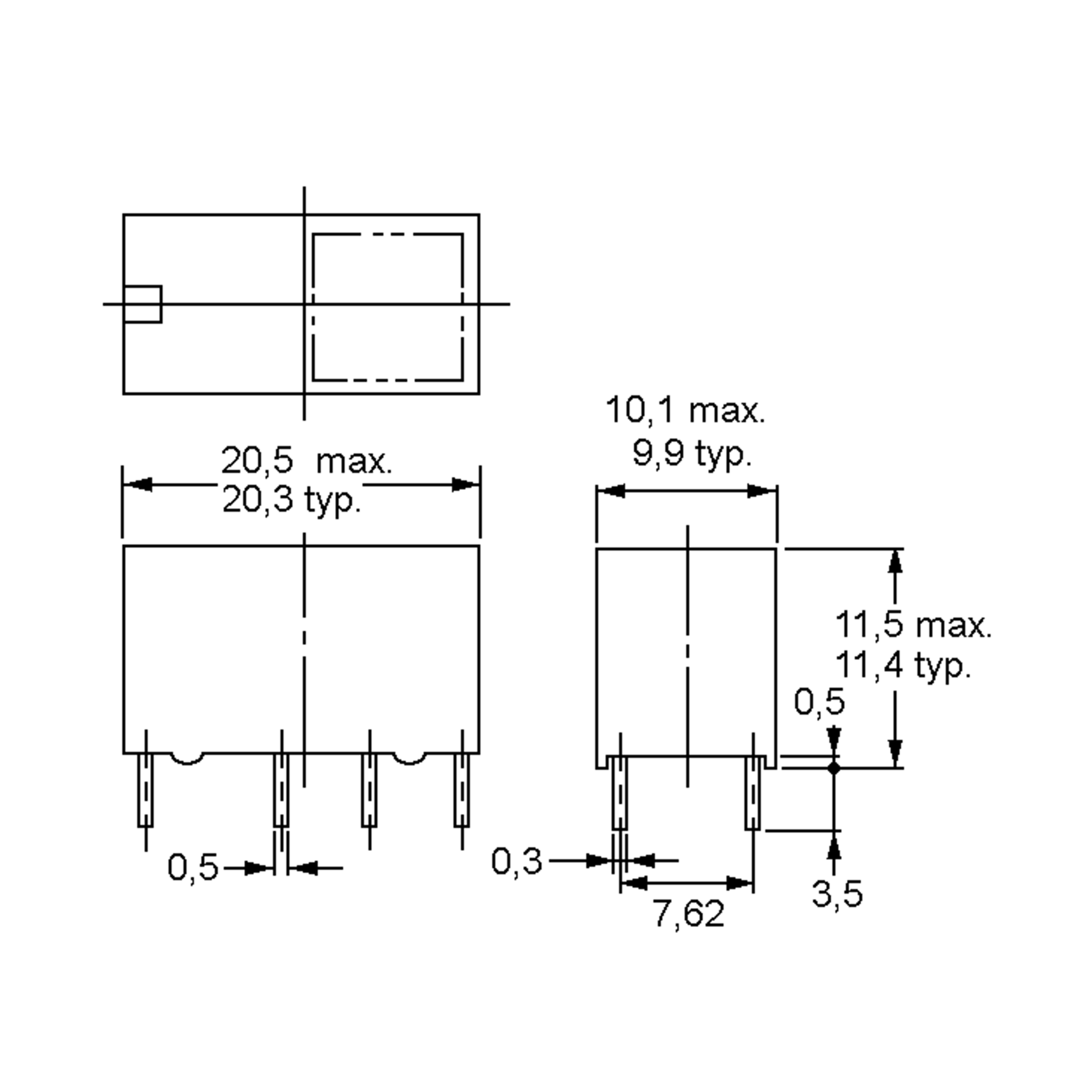

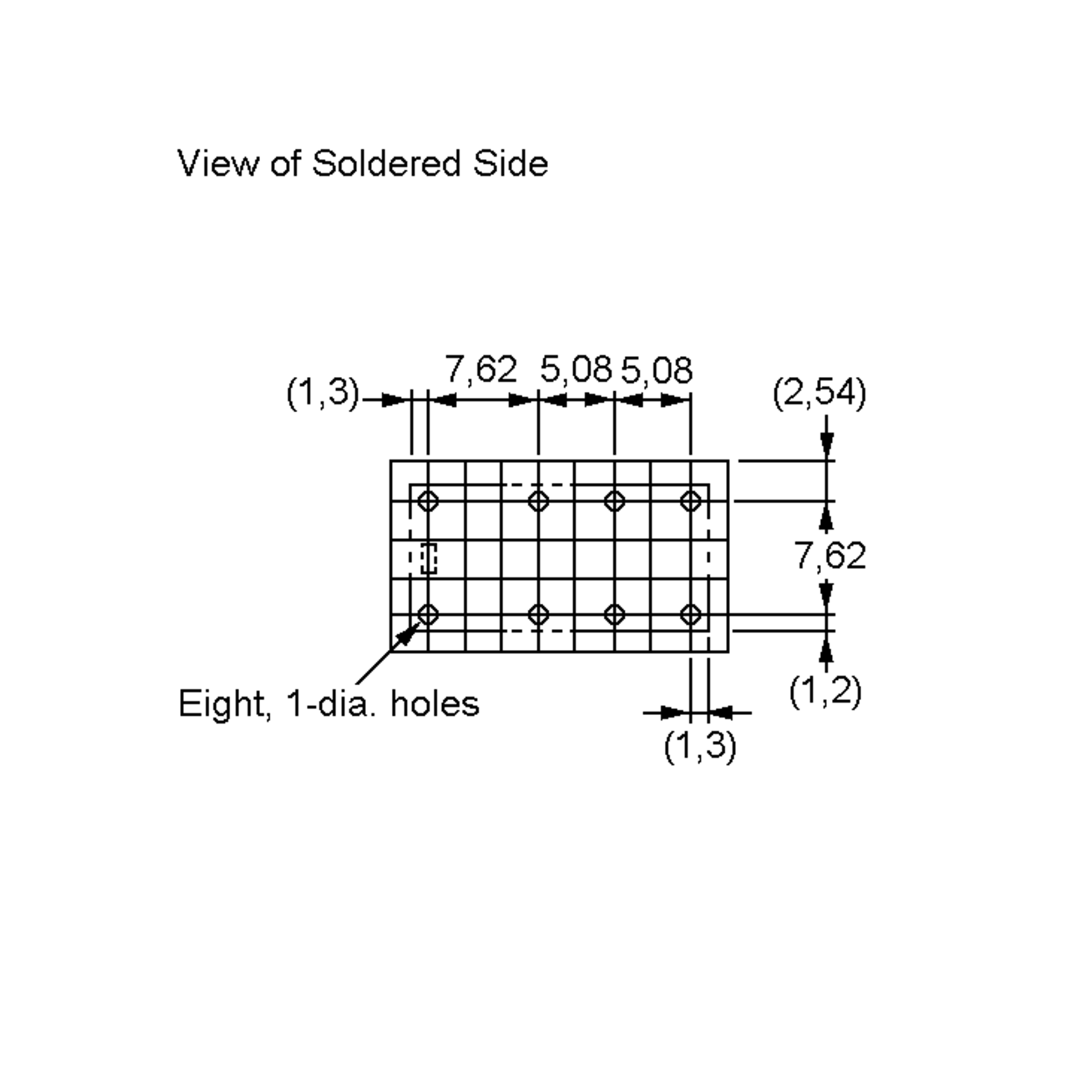

Dimension: Length
20.5 mm
Dimension: Width
10.1 mm
Dimension: Height
11.5 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Omron
Type
  • Signal relay
Series
  • G5V-2
Product group
  • E6235
contacts
  • DPDT
Contact material
  • Ag/Au
Assembly Type
  • THT
Application

  • Telecommunications and security technology

Features

  • • High sensitivity coil
    • Wash-tight design
    • Wide switching current range: 10mA...2A
    • Suitable for direct soldering into the circuit board and also for plugging into a 16-pin DIP/DIL socket.
    • Compliance with FCC regulations (part 68)

Dimensions and Weights

Dimension: Length
  • 20.5 mm
Dimension: Width
  • 10.1 mm
Dimension: Height
  • 11.5 mm
Weight
  • 5 g

Operating conditions

Operating Temperature Min.
  • -25 °C
Operating Temperature Max.
  • 70 °C

Technical Features

Rated voltage DC
  • 5 V DC
Coil design
Contact design
Switching voltage, max. AC
  • 125 V AC
Switching voltage, max. DC
  • 125 V DC
Response voltage
  • 3.75 V
Drop-out voltage
  • 0.25 V
Test voltage contact/contact
  • 500 V AC
Test voltage coil/contact
  • 1,000 V AC
Rated current
  • 30 mA
Switching current
  • 1 A
Transport Current
  • 2 A
Rated power
  • 150 mW
Switching capacity (VA)
  • 62.5 VA
Switching capacity (W)
  • 24 W
Coil resistance
  • 167 Ohm
Contact resistance
  • 100 mOhm
Insulation resistance
  • 1.000 MOhm
Response time
  • 7 ms
Drop-out time
  • 3 ms
Vibration resistance
  • 1,5 mm DA
Impact resistance, functional
  • 100 m/s²

Safety/Certifications

Approvals
  • UL
  • cCSA
Standards
  • FCC Part 68
