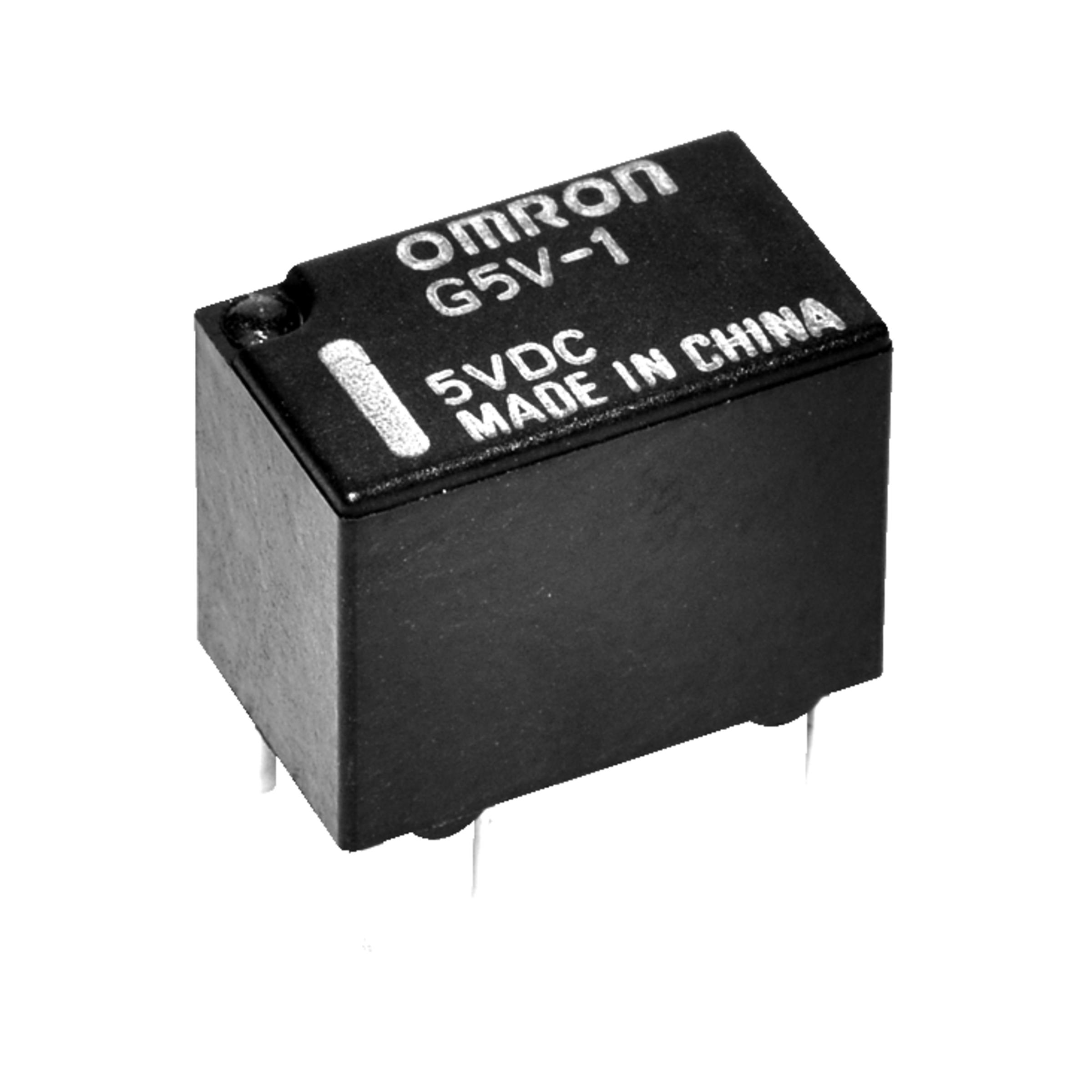

G5V-1 DC24
Omron PC relay G5V-1 THT SPDT 1A 24VDC 3.840Ohm 12,5mmx7,5mmx10mm
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
13.050 Pcs. in stock
Planned delivery time
Ø 17 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.

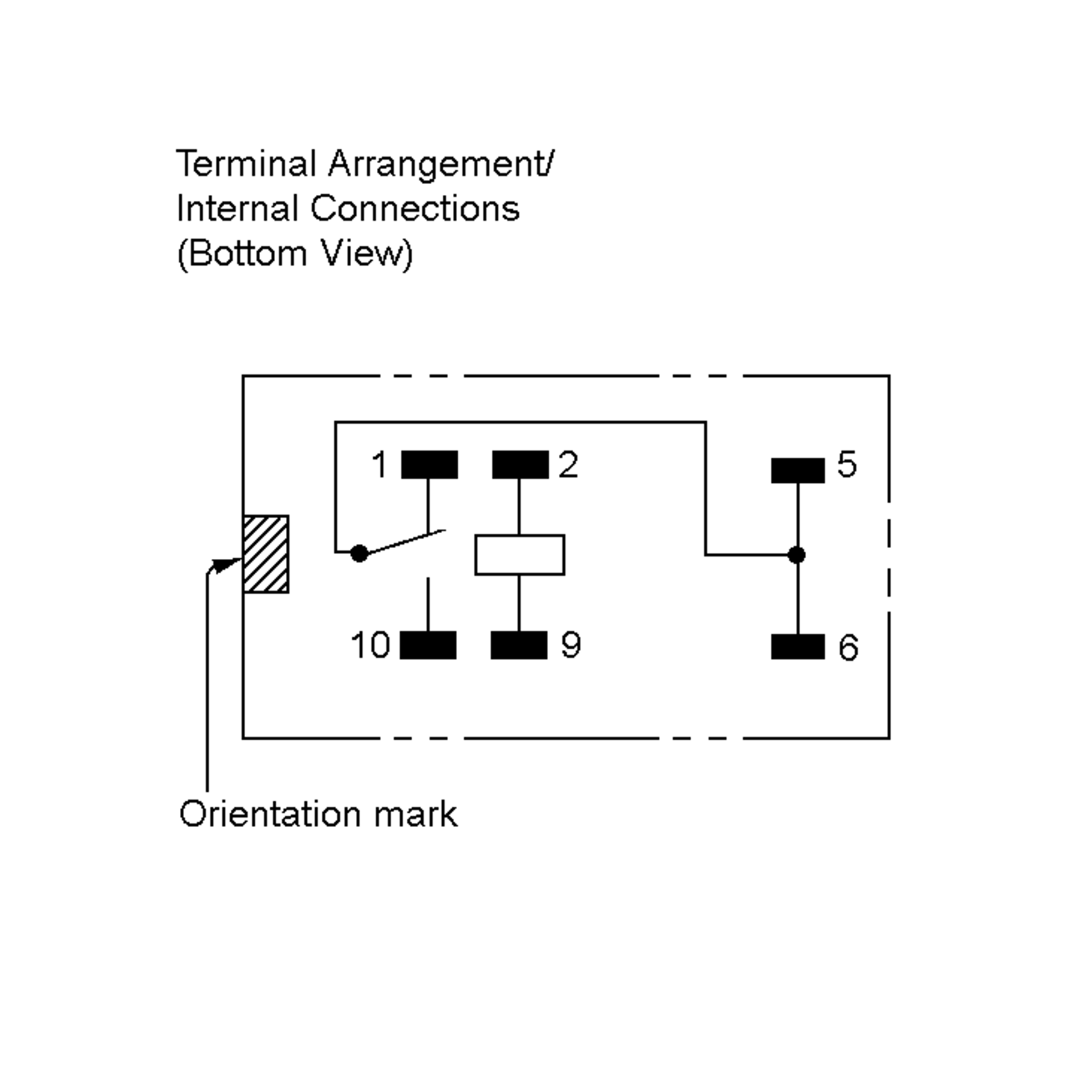

Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- G5V-1
- contacts
- SPDT
- Contact: Switching Current (min/typ/max)
- 1 A
- Coil: Nominal Voltage DC
- 24 V DC
- Coil resistance
- 3,840 Ohm
- RoHS-Conform
Specifications
Open all

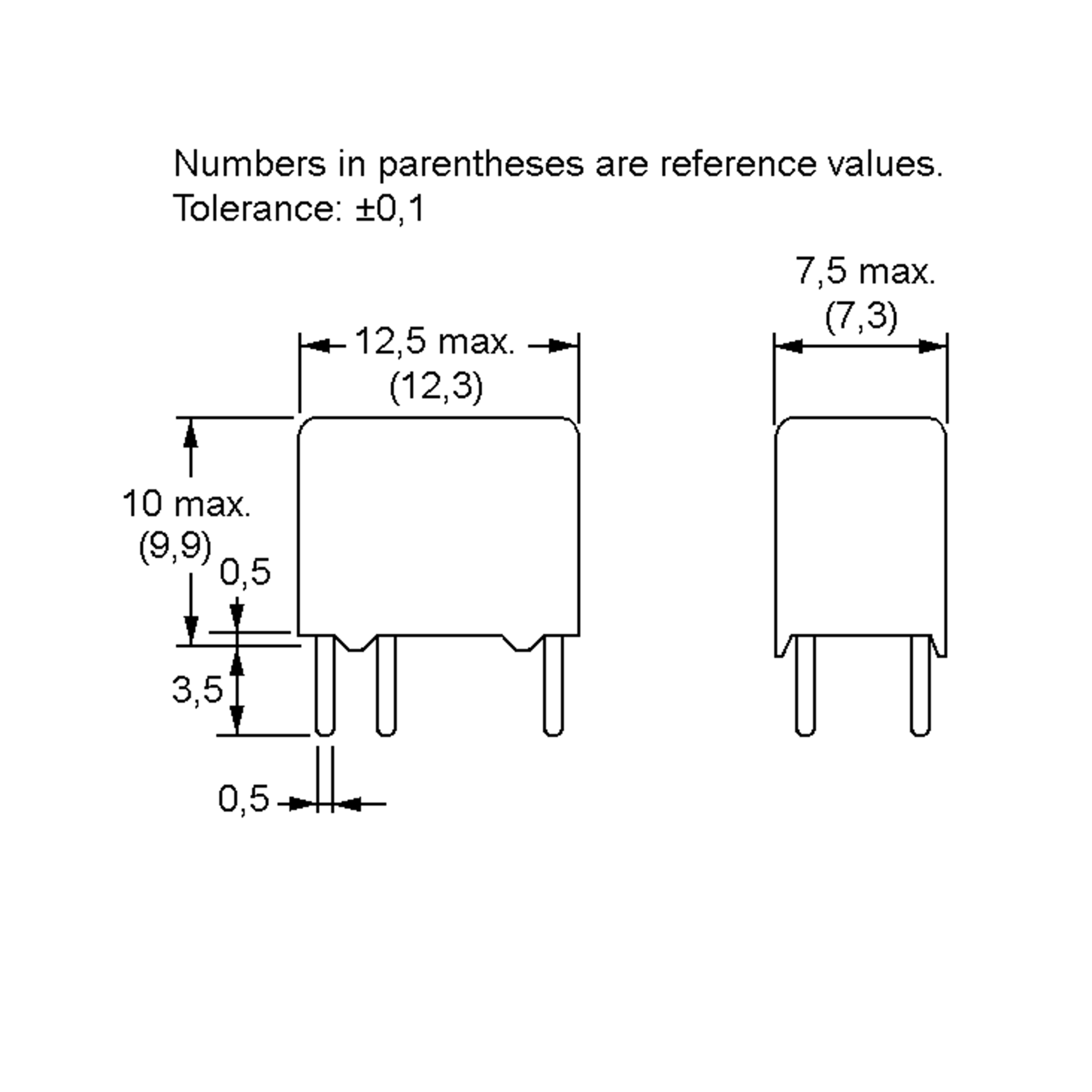

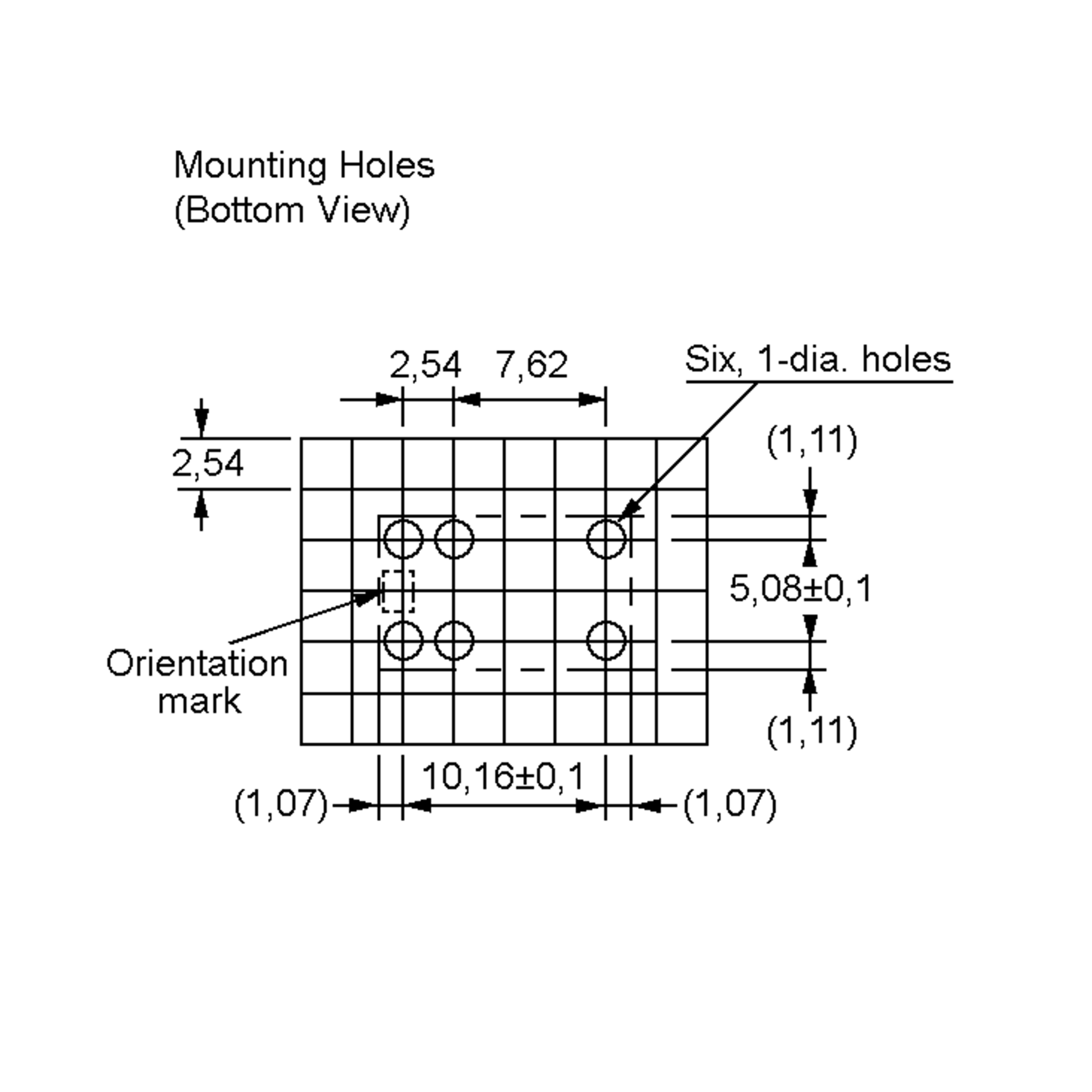

Dimensions and Weights
- Dimension: Length
- 12.5 mm
- Dimension: Width
- 7.5 mm
- Dimension: Height
- 10 mm
- Weight
- 2 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Contact design
- Single crossbar
- Contact: Switching Current (min/typ/max)
- 1 A
- Contact: Switching Voltage, max. AC
- 125 V AC
- Contact: Switching Voltage, max. DC
- 60 V DC
- Contact: Carry Current
- 2 A
- Contact: Switching Capacity (VA)
- 62.5 VA
- Contact: Switching Load (W)
- 30 W
- Contact resistance
- 100 mOhm
- Coil design
- monostable
- Coil resistance
- 3,840 Ohm
- Inductor power
- 150 mW
- Coil: Rated Current [mA]
- 6.25 mA
- Coil: Nominal Voltage DC
- 24 V DC
- Coil: Operating Voltage, min.
- 19.2 V
- Coil: Operating Voltage, max.
- 48 V
- Coil: Drop-out Voltage
- 2.4 V
- Test voltage contact/contact
- 400 V AC
- Test voltage coil/contact
- 1,000 V AC
- Response time
- 5 ms
- Drop-out time
- 5 ms
- Mechanical service life
- 5 x 10^6 operations
- Service life, electrical
- 10^5 operations
- Insulation resistance
- 1.000 MOhm
- Vibration resistance
- 3,3 mm DA
- Impact resistance, functional
- 100 m/s²
Safety/Certifications
- Approvals
- UL
- cCSA
