G5Q-1A4-EL2-HA DC24

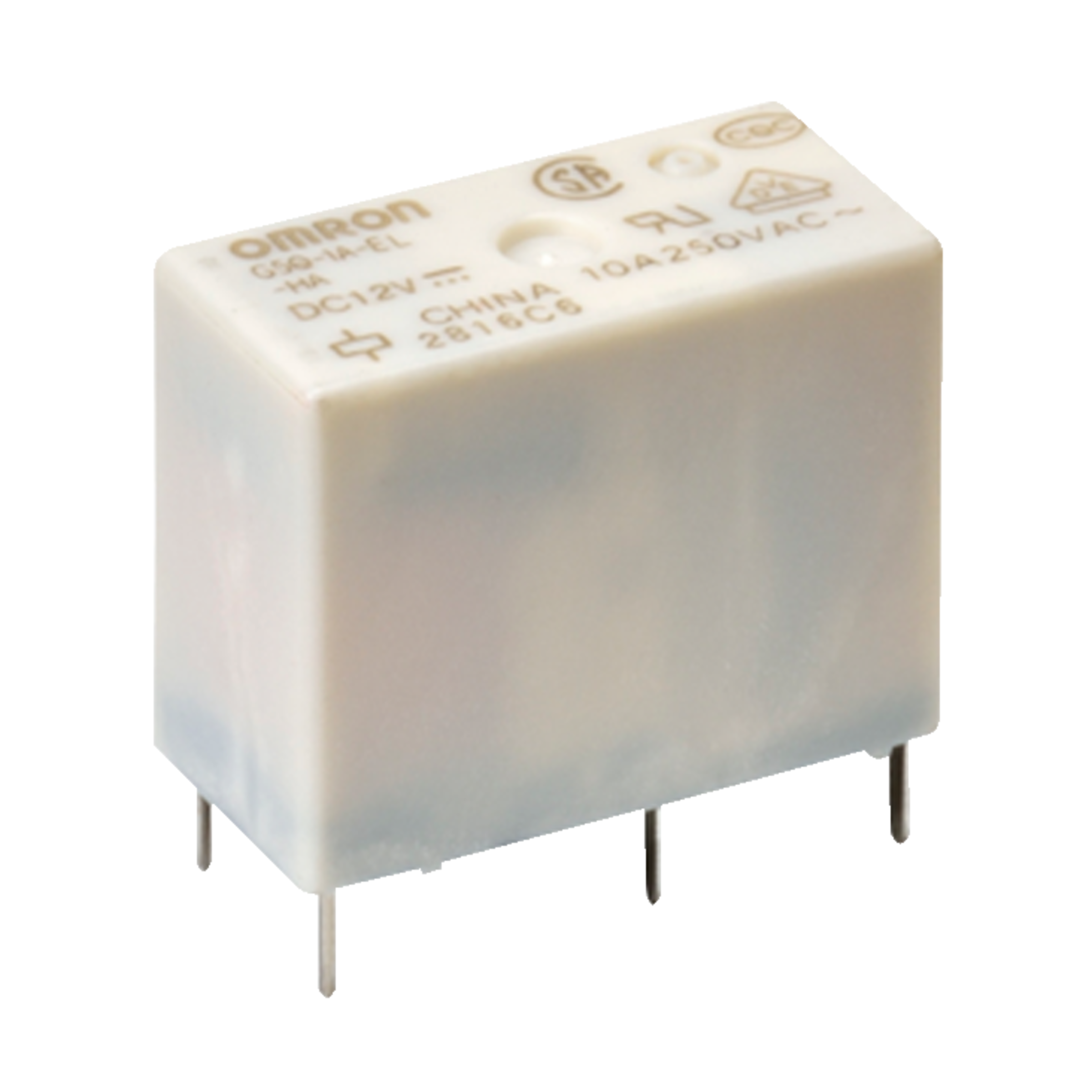

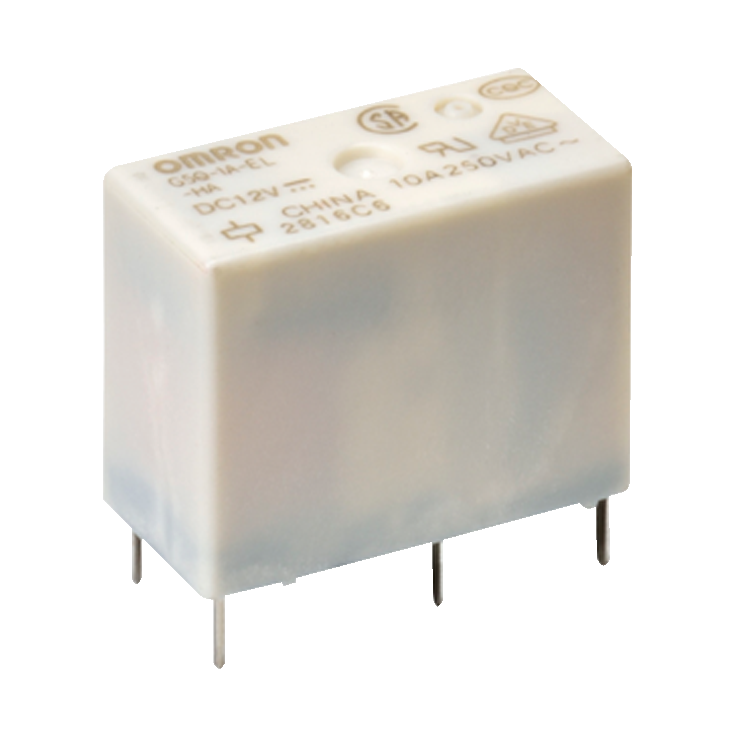

Omron PC relay G5Q-EL2 THT SPST-NO 10A 24VDC 1.440Ohm 20mmx10mmx15,5mm RTIII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
500 Pcs. in stock
Planned delivery time
Ø 30 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 20 or multiple of 20)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- G5Q-EL2
- contacts
- SPST-NO
- Contact: Switching Current (min/typ/max)
- 10 A
- Coil: Nominal Voltage DC
- 24 V DC
- Coil resistance
- 1,440 Ohm
- Protection class RT
- RTIII
- RoHS-Conform

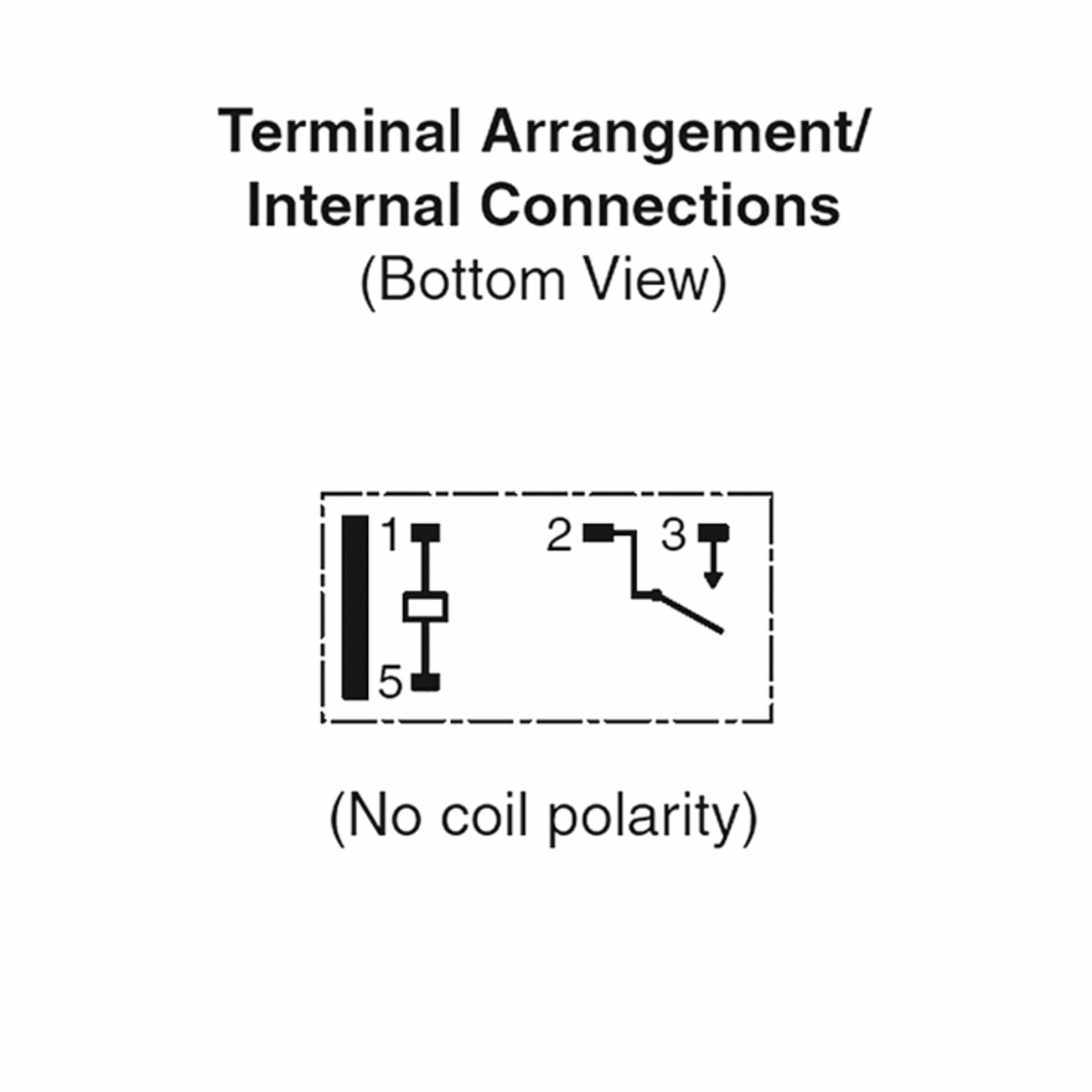

Specifications
Open all

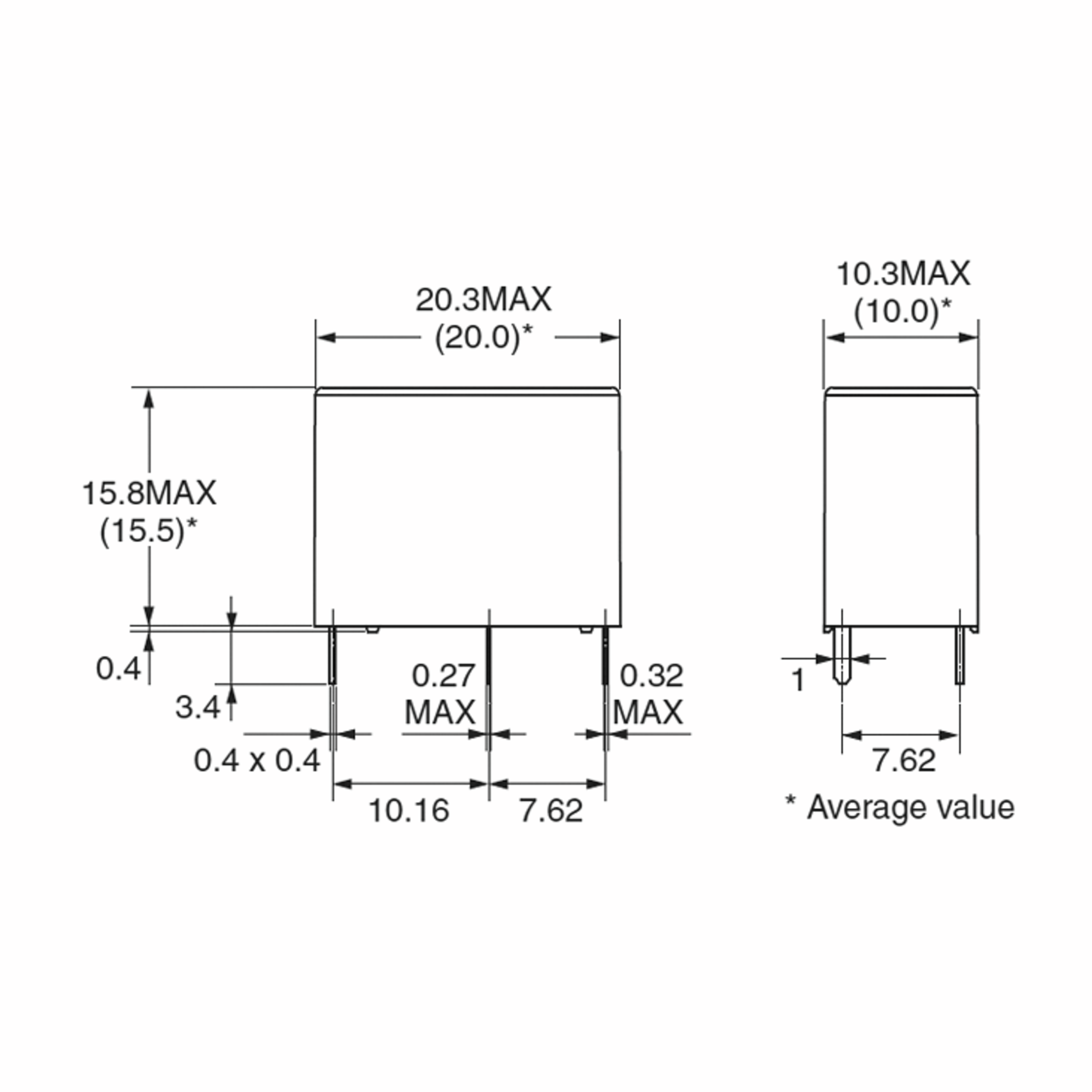

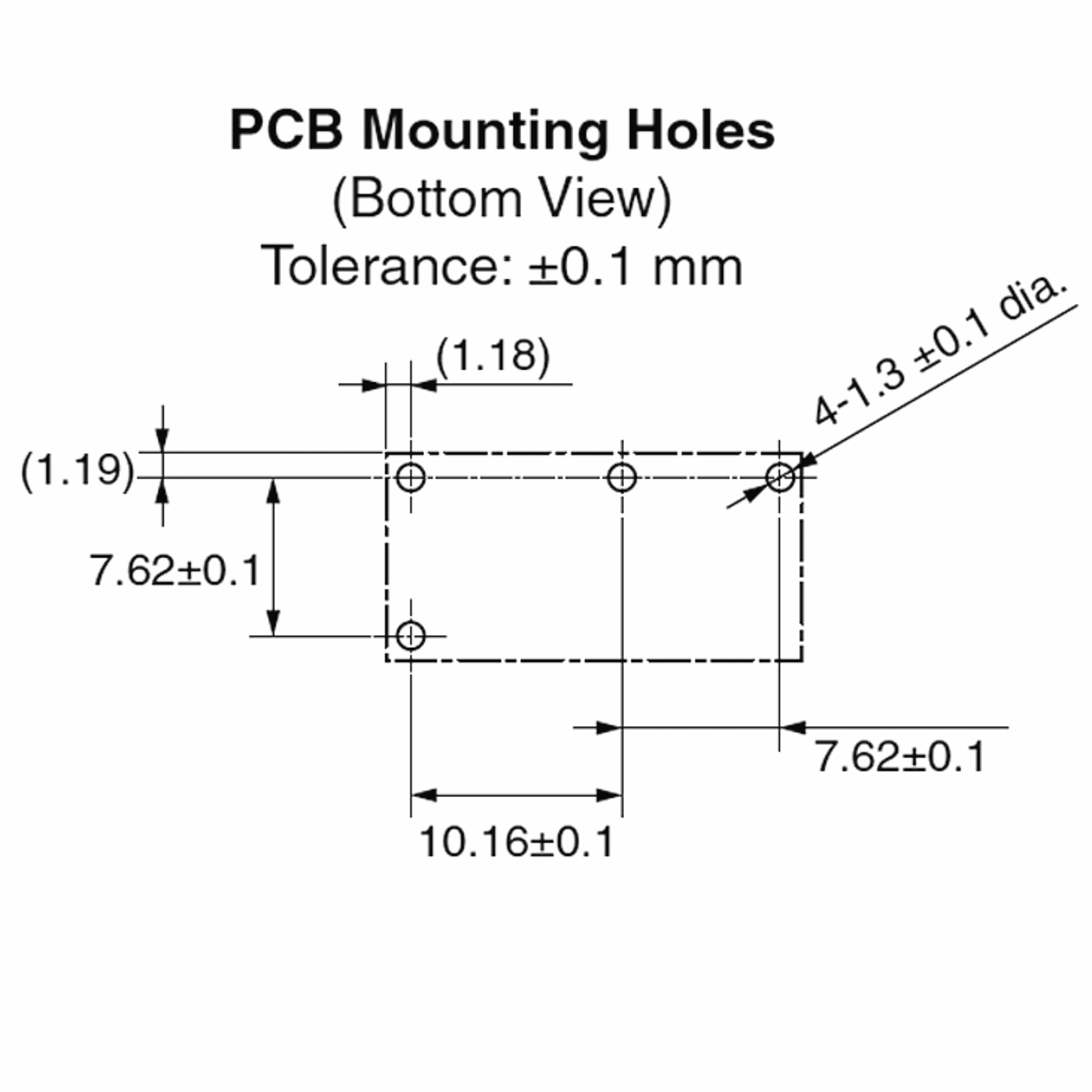

Dimensions and Weights
- Dimension: Length
- 20 mm
- Dimension: Width
- 10 mm
- Dimension: Height
- 15.5 mm
- Weight
- 6.5 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 10 A
- Contact: Switching Voltage, max. AC
- 277 V AC
- Contact: Switching Voltage, max. DC
- 30 V DC
- Contact: Switching Capacity (VA)
- 277 VA
- Contact resistance
- 100 mOhm
- Creepage distance
- 5.5 mm
- Coil design
- monostable
- Coil resistance
- 1,440 Ohm
- Inductor power
- 200 mW
- Coil: Rated Current [mA]
- 16.7 mA
- Coil: Nominal Voltage DC
- 24 V DC
- Coil: Operating Voltage, max.
- 45.6 V
- Coil: Pick-up voltage
- 20.25 V
- Coil: Drop-out Voltage
- 1.2 V
- Test voltage contact/contact
- 1,000 V AC
- Test voltage coil/contact
- 4,000 V AC
- Response time
- 10 ms
- Drop-out time
- 5 ms
- Mechanical service life
- 10 x 10^6 operations
- Service life, electrical
- see data sheet
- Insulation resistance
- 1.000 MOhm
- Vibration resistance
- 1,5 mm DA
- Impact resistance, functional
- 100 m/s²
Safety/Certifications
- Approvals
- CQC
- UL
- VDE
- cCSA
- Standards
- IEC/EN 60335-1 , UL 508 TV3
- Protection class RT
- RTIII
