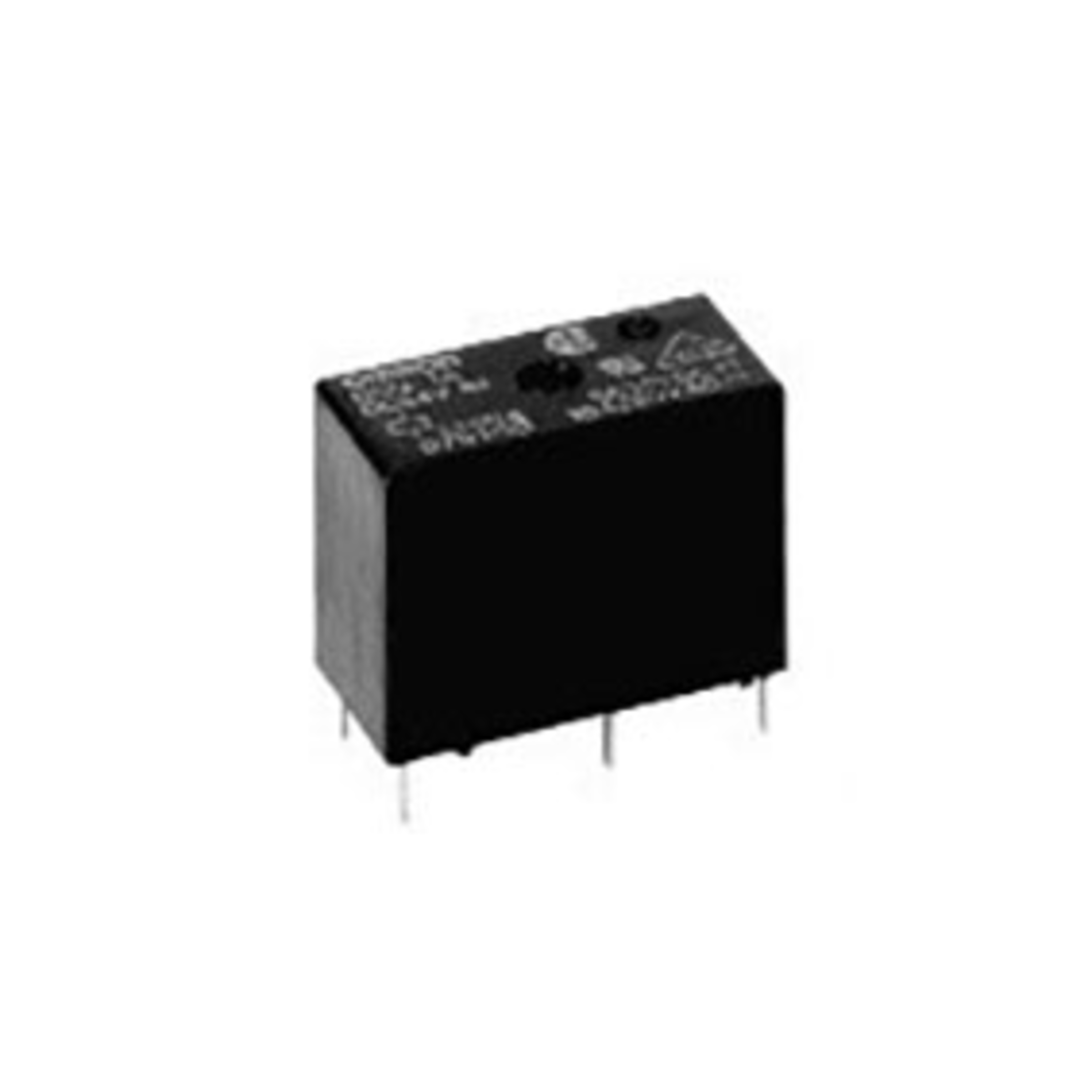

G5Q-14 DC12
Omron PC relay G5Q THT SPDT 10A 12VDC 360Ohm 20,3mmx10,3mmx15,5mm RTIII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
550 Pcs. in stock
Next Stock Receipt
Week 18/2026
500 Pcs.
500 Pcs.
Planned delivery time
Ø 26 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- G5Q
- contacts
- SPDT
- Contact: Switching Current (min/typ/max)
- 10 A
- Coil: Nominal Voltage DC
- 12 V DC
- Coil resistance
- 360 Ohm
- Protection class RT
- RTIII
- RoHS-Conform
Specifications
Open all

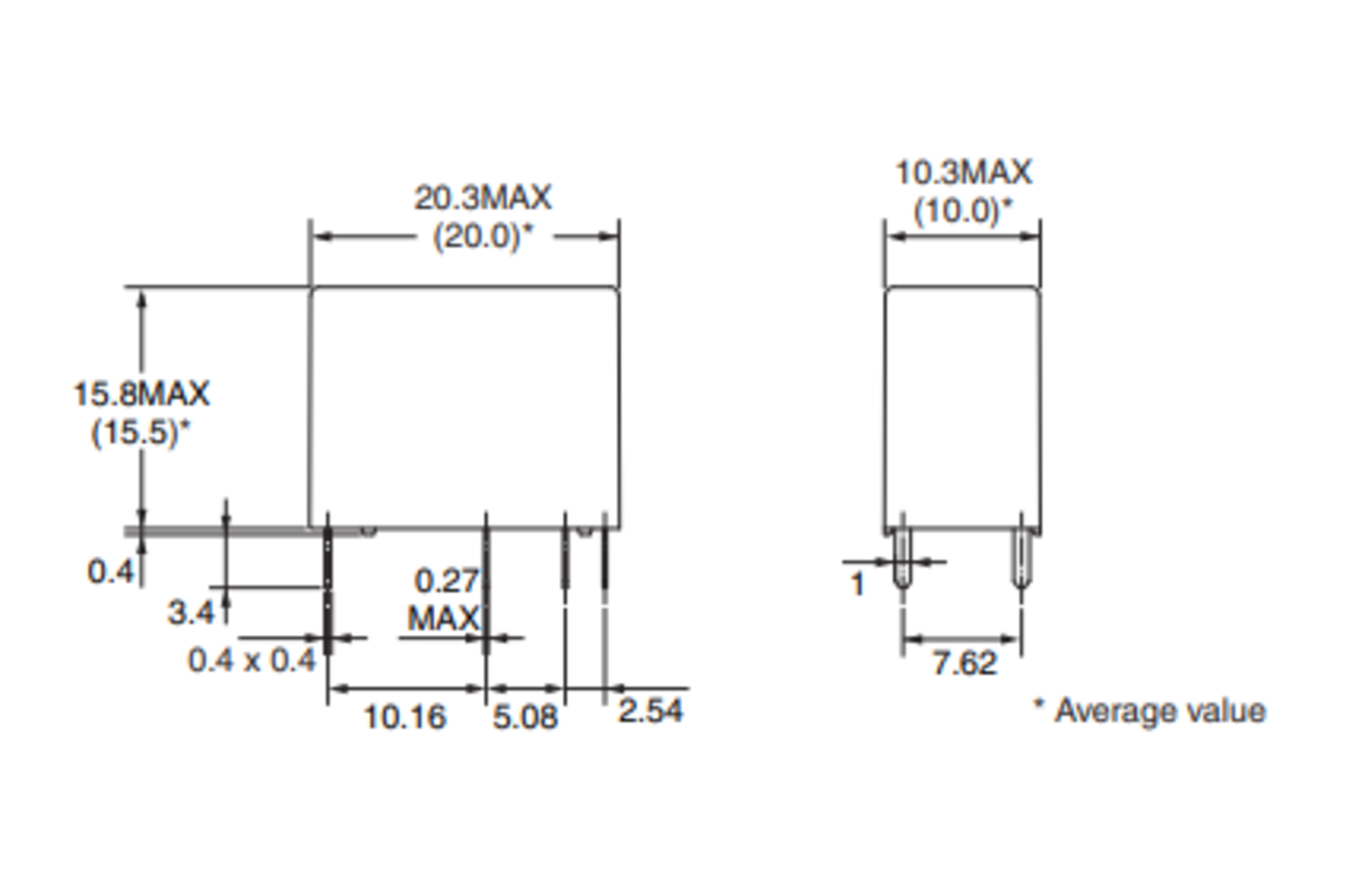

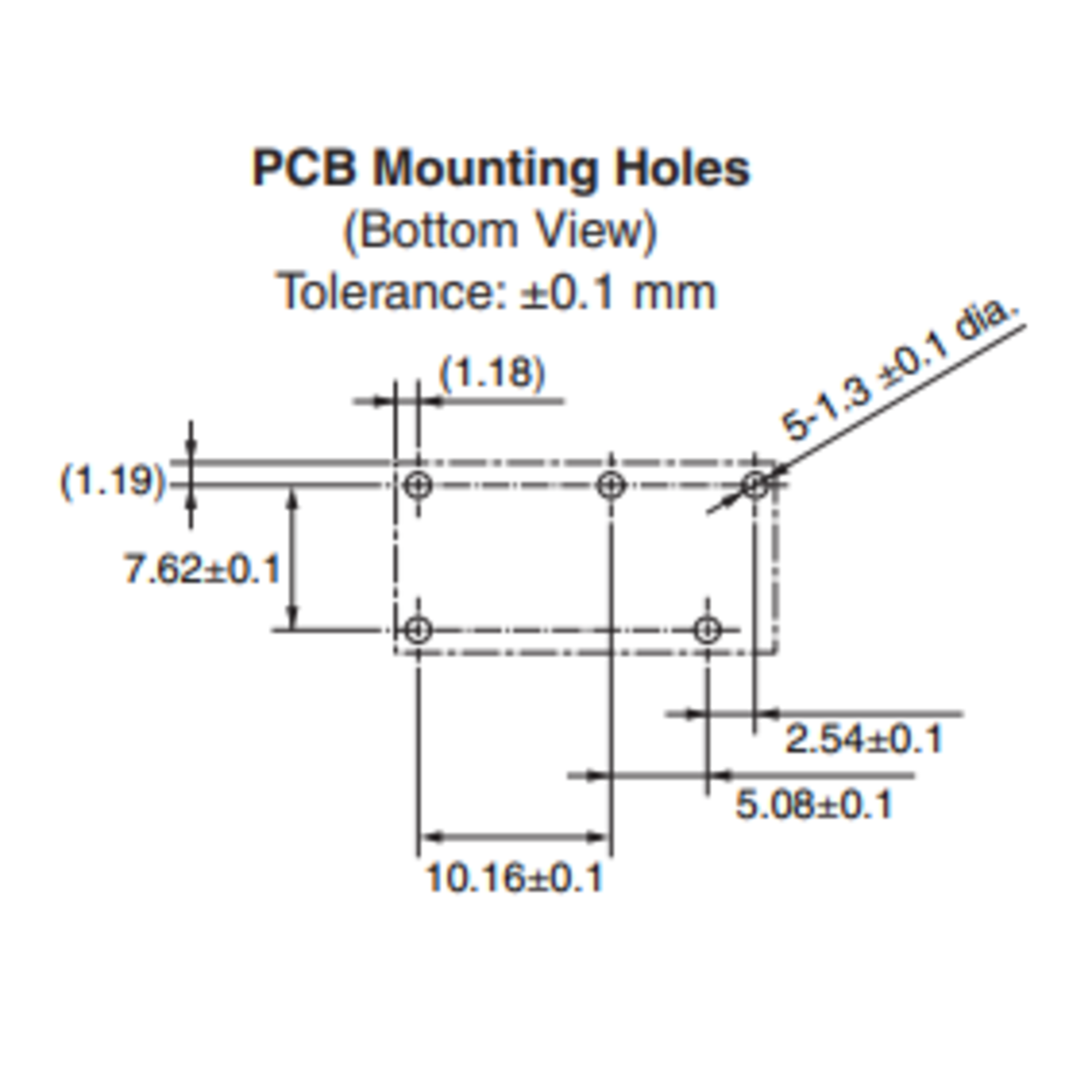

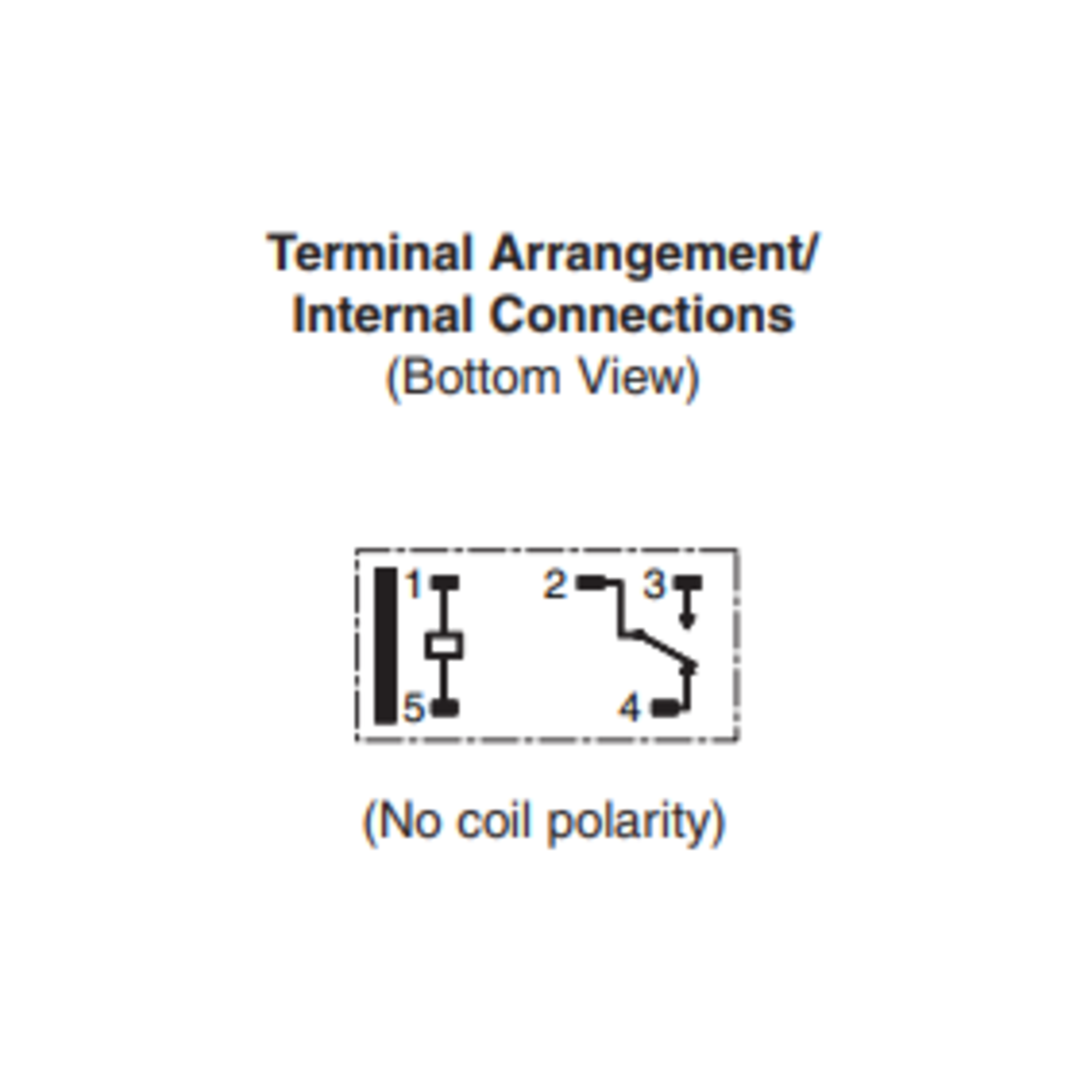

Dimensions and Weights
- Dimension: Length
- 20.3 mm
- Dimension: Width
- 10.3 mm
- Dimension: Height
- 15.5 mm
- Weight
- 6.5 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 10 A
- Contact: Switching Voltage, max. AC
- 277 V AC
- Contact: Switching Voltage, max. DC
- 30 V DC
- Contact resistance
- 100 mOhm
- Coil design
- monostable
- Coil resistance
- 360 Ohm
- Inductor power
- 400 mW
- Coil: Rated Current [mA]
- 33.3 mA
- Coil: Nominal Voltage DC
- 12 V DC
- Coil: Operating Voltage, min.
- 9 V
- Coil: Operating Voltage, max.
- 22.8 V
- Coil: Drop-out Voltage
- 0.6 V
- Test voltage contact/contact
- 1,000 V AC
- Test voltage coil/contact
- 4,000 V AC
- Response time
- 10 ms
- Drop-out time
- 5 ms
- Mechanical service life
- 10 x 10^6 operations
- Service life, electrical
- see data sheet
- Insulation resistance
- 1.000 MOhm
- Vibration resistance
- 1,5 mm DA
- Impact resistance, functional
- 100 m/s²
Safety/Certifications
- Approvals
- CQC
- UL
- VDE
- cCSA
- Protection class RT
- RTIII
