G2RG-2A-X DC12

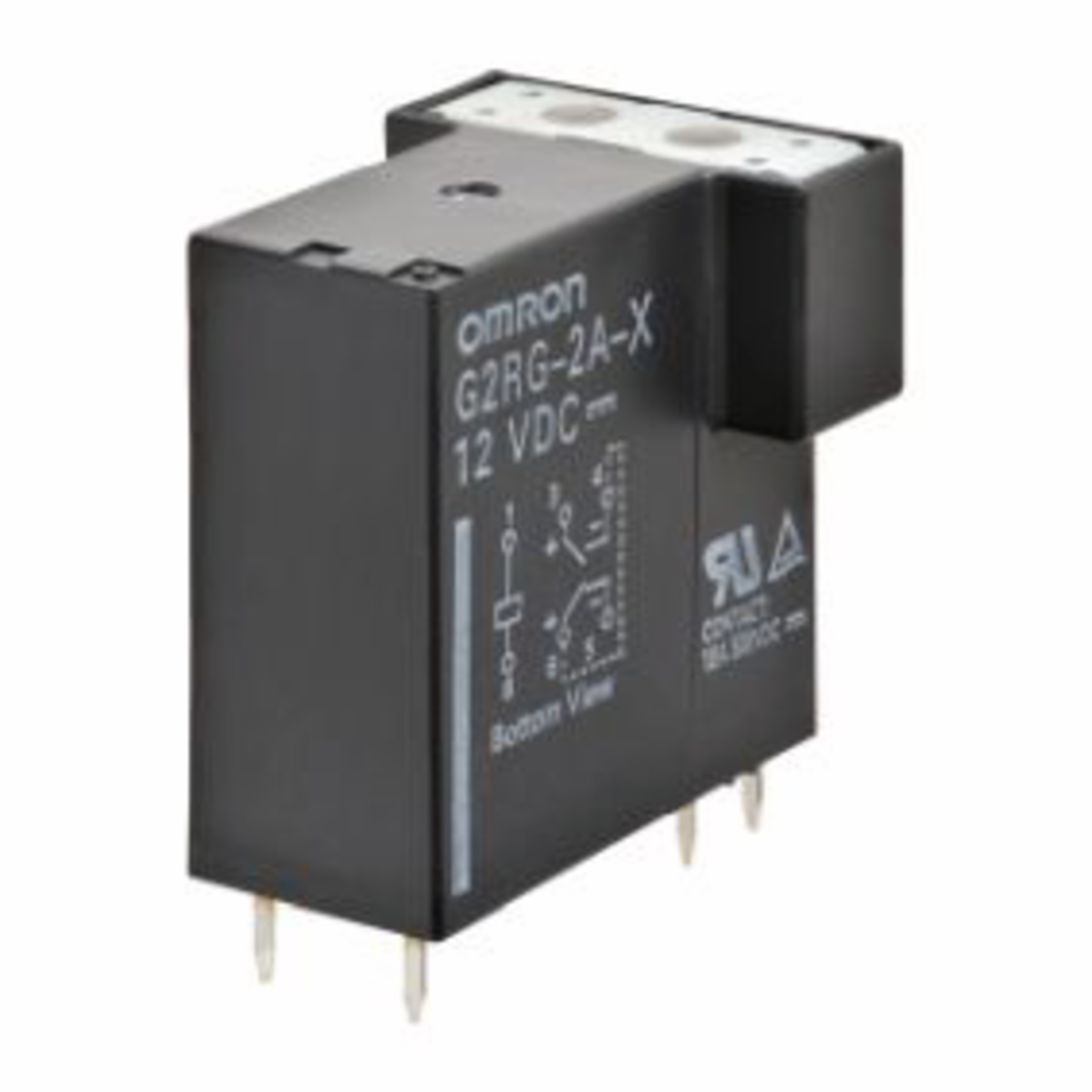

Omron PC relay G2RG-X THT DPST-NO 10A 12VDC 180Ohm 29mmx23,5mmx29,5mm RTII

G2RG-2A-XDC12G2RG-2A-XDC12G2RG-2A-XDC12G2RG-2A-XDC12
NEW
Manufacturer Part No.
G2RG-2A-X DC12
Schukat Part No.
G2RG-2A-XDC12
Manufacturer
Omron
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 26 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 600 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 600 or multiple of 600)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
• Here you will find suitable relay sockets and accessories.
Series
G2RG-X
contacts
DPST-NO
Contact: Switching Current (min/typ/max)
10 A
Coil: Nominal Voltage DC
12 V DC
Coil resistance
180 Ohm
Protection class RT
RTII
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Omron
Type
  • PC relay
Series
  • G2RG-X
Product group
  • E6423
contacts
  • DPST-NO
Contact material
  • Ag alloy
Assembly Type
  • THT
Application

  • Energy storage system

Features

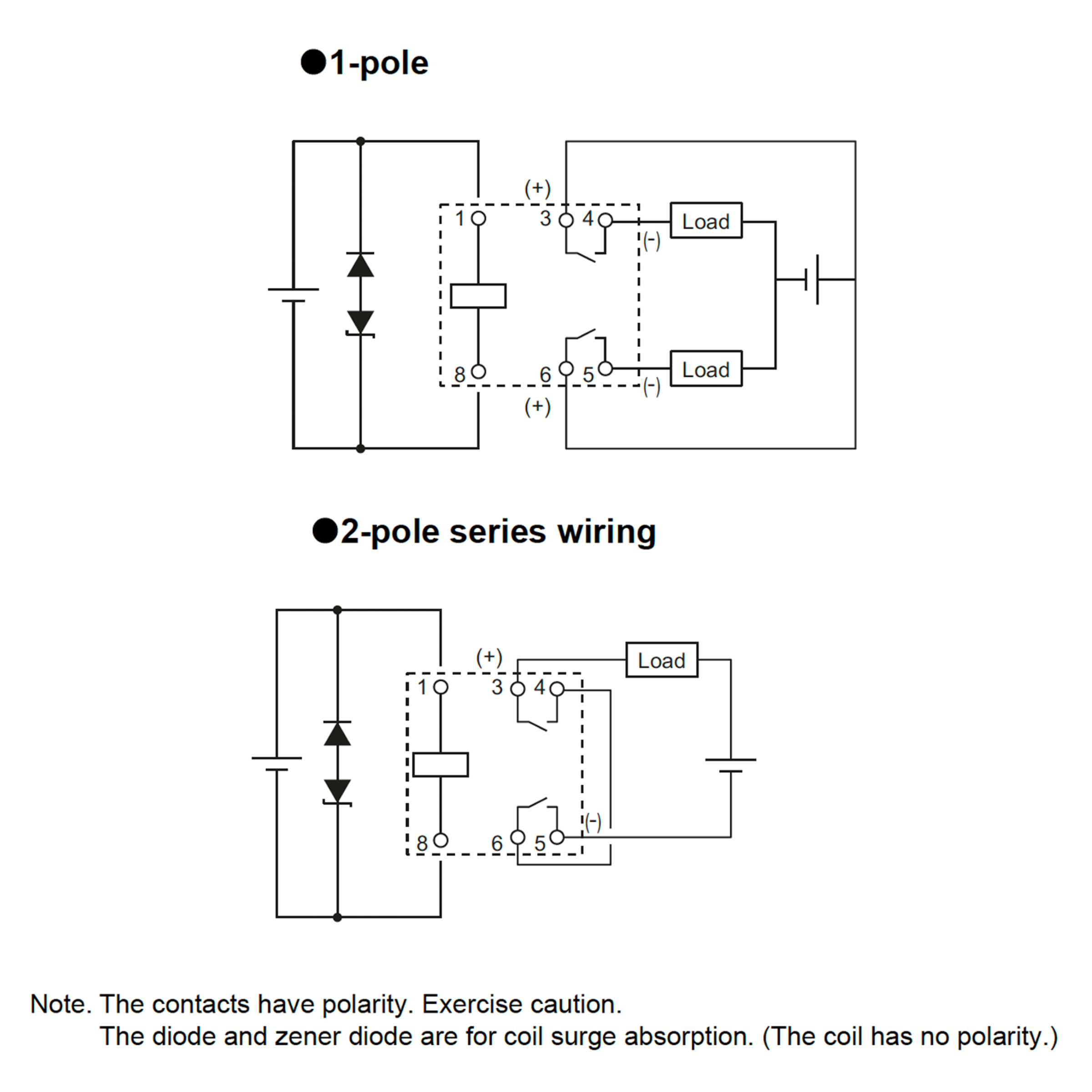

  • • Power relay with a switching capacity of 500V DC / 10A (with two-pole series connection and 3.0mm contact gap)
    • High insulation strength with an insulation clearance of more than 8mm
    • Surge voltage withstand of 10 kV between coil and contacts
    • UL and TÜV certified
    • Coil insulation system: Class F (UL1446)

Notice

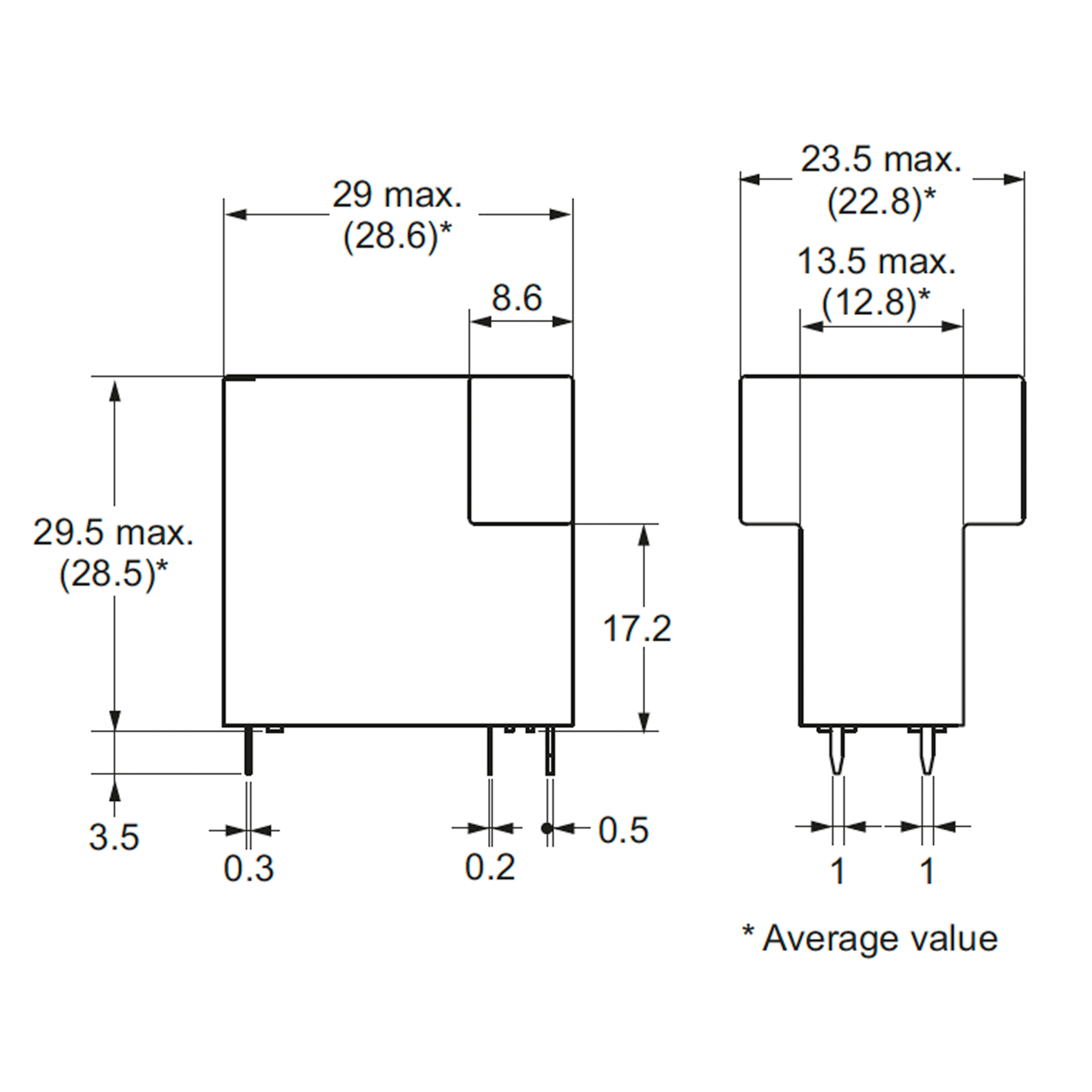

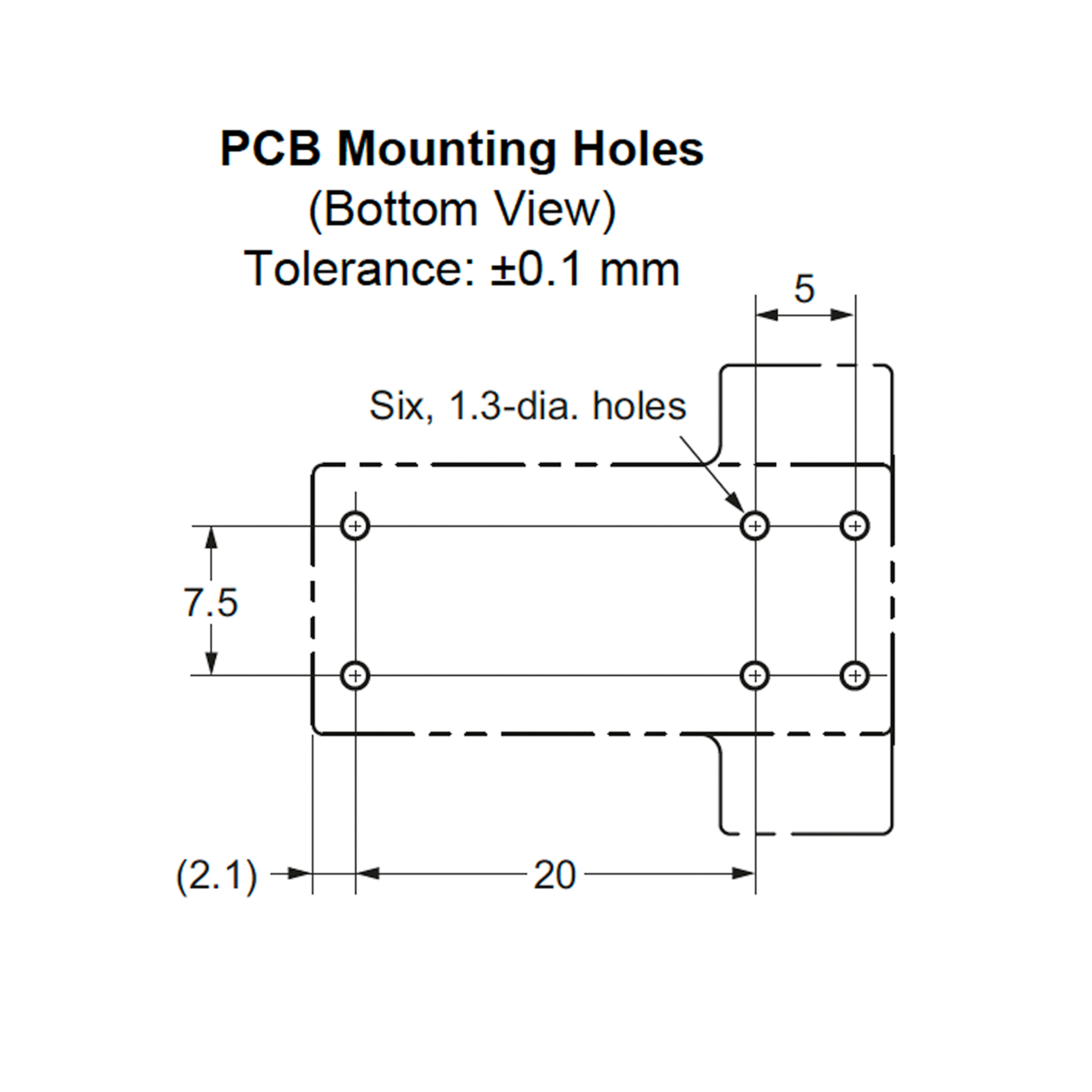

Dimensions and Weights

Dimension: Length
  • 29 mm
Dimension: Width
  • 23.5 mm
Dimension: Height
  • 29.5 mm
Weight
  • 22 g

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 85 °C

Technical Features

Contact: Switching Current (min/typ/max)
  • 10 A
Contact: Switching Voltage, max. DC
  • 500 V DC
Contact: Continuous Current
  • 8 A
Contact: Voltage Resistance
  • 10 kV
Contact resistance
  • 100 mOhm
Creepage distance
  • 3 mm
Coil design
  • monostable
Coil resistance
  • 180 Ohm
Inductor power
  • 800 mW
Coil: Rated Current [mA]
  • 66.6 mA
Coil: Nominal Voltage DC
  • 12 V DC
Coil: Operating Voltage, min.
  • 9.6 V
Coil: Operating Voltage, max.
  • 13.2 V
Coil: Drop-out Voltage
  • 1.2 V
Test voltage coil/contact
  • 5,000 V AC
Response time
  • 15 ms
Drop-out time
  • 5 ms
Mechanical service life
  • 10^6 operations
Service life, electrical
  • 10.000 operations
Insulation resistance
  • 1.000 MOhm
Vibration resistance
  • 1,5 mm DA
Impact resistance, functional
  • 200 m/s²

Safety/Certifications

Approvals
  • MOT
  • UL
Standards
  • IEC61810-1
Protection class RT
  • RTII
