G2R-2 DC12

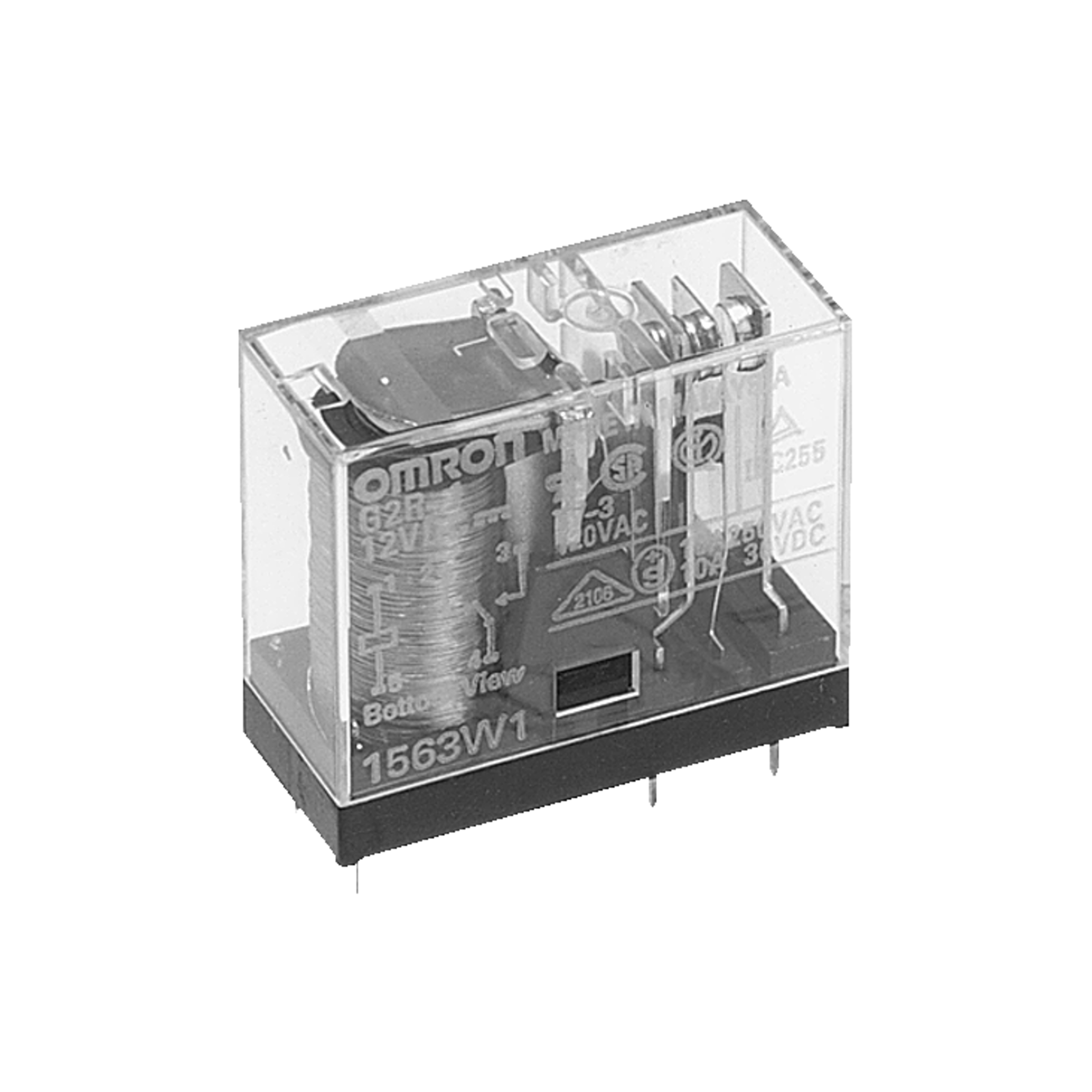

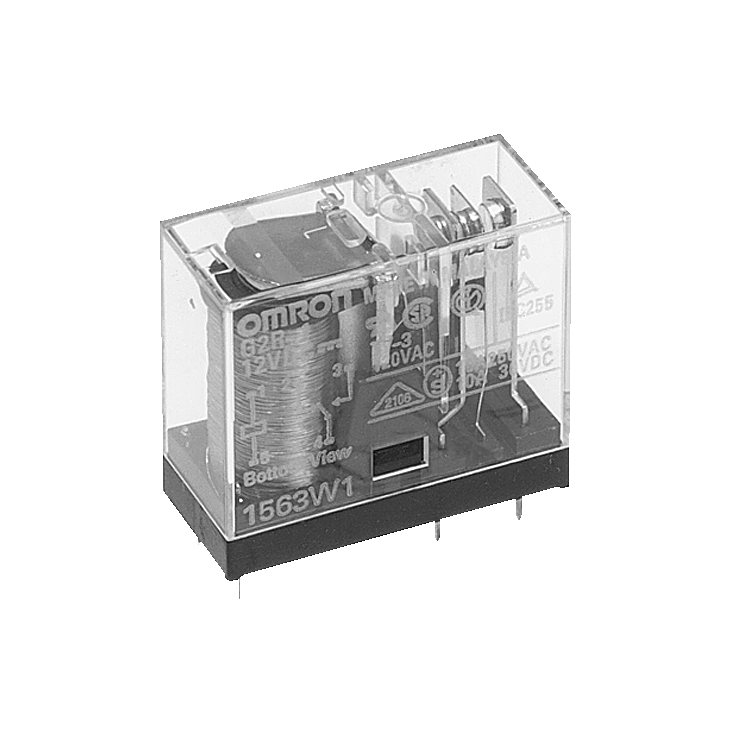

Omron Power relay G2R THT DPDT 5A 12VDC 275Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
10 Pcs.
10 Pcs.
Next Stock Receipt
Week 02/2025
130 Pcs.
130 Pcs.
Planned delivery time
Ø 30 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- G2R
- Rated current
- 43,6 mA
- Rated voltage DC
- 12 V DC
- Switching current
- 5 A
- contacts
- DPDT
- Coil resistance
- 275 Ohm
- Dimension: Length
- 29 mm
- Dimension: Width
- 13 mm
- Dimension: Height
- 25.5 mm
- RoHS-Conform
Specifications
Open all

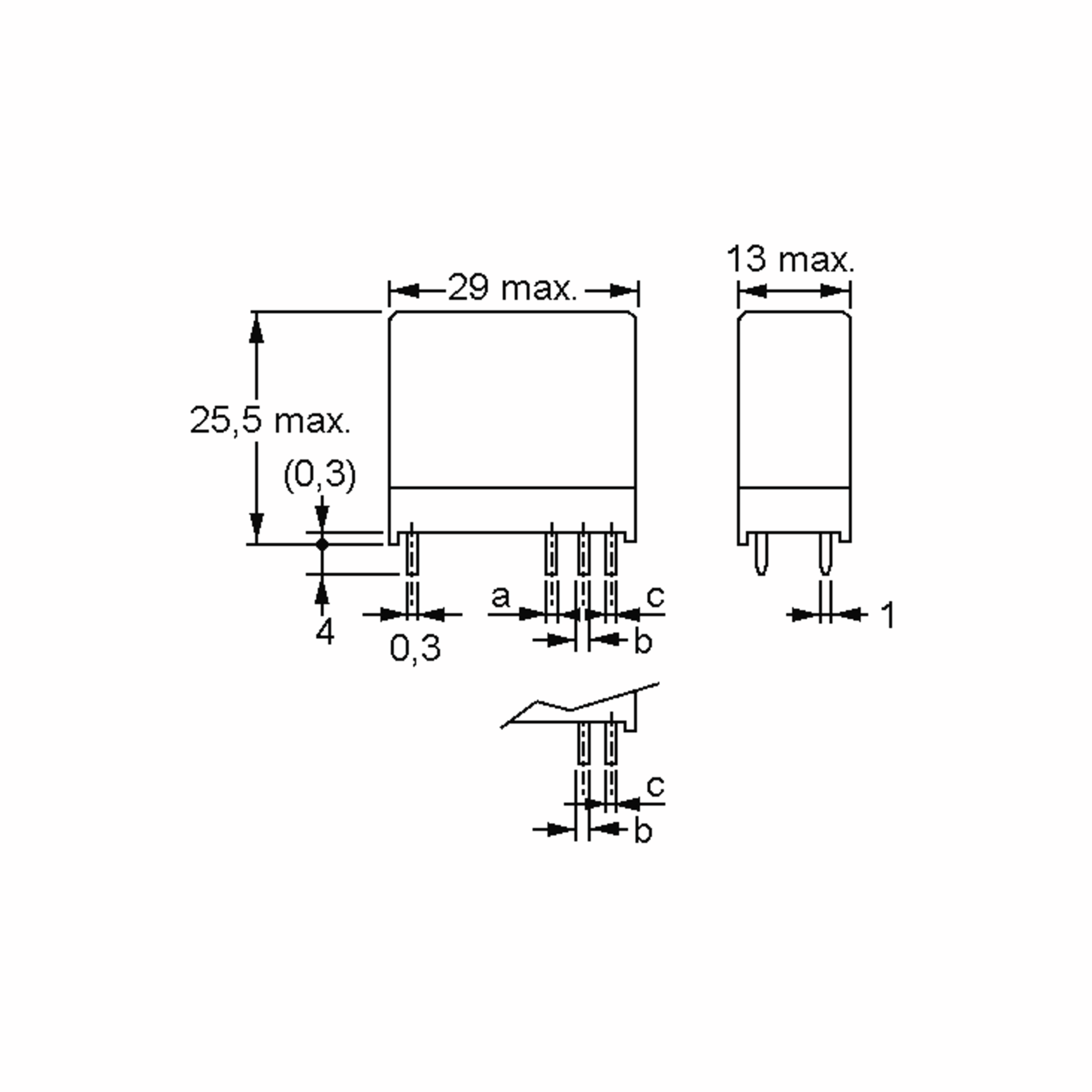

Dimensions and weights
- Dimension: Length
- 29 mm
- Dimension: Width
- 13 mm
- Dimension: Height
- 25.5 mm
- Weight
- 17 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
Technical features
- Rated voltage DC
- 12 V DC
- Coil design
- Switching voltage, max. AC
- 380 V AC
- Switching voltage, max. DC
- 125 V DC
- Response voltage
- 8.4 V
- Drop-out voltage
- 1.8 V
- Operating voltage, max.
- 20.4 V
- Test voltage contact/contact
- 1,000 V AC
- Test voltage coil/contact
- 5,000 V AC
- Creepage distance
- 8 mm
- Rated current
- 43,6 mA
- Switching current
- 5 A
- Rated power
- 530 mW
- Switching capacity (VA)
- 2,500 VA
- Coil resistance
- 275 Ohm
- Insulation resistance
- 1.000 MOhm
- Response time
- 15 ms
- Drop-out time
- 5 ms
- Vibration resistance
- 1,5 mm DA
- Impact resistance, functional
- 100 m/s²
Safety/Certifications
- Approvals
- MOT
- UL
- VDE
- cCSA
