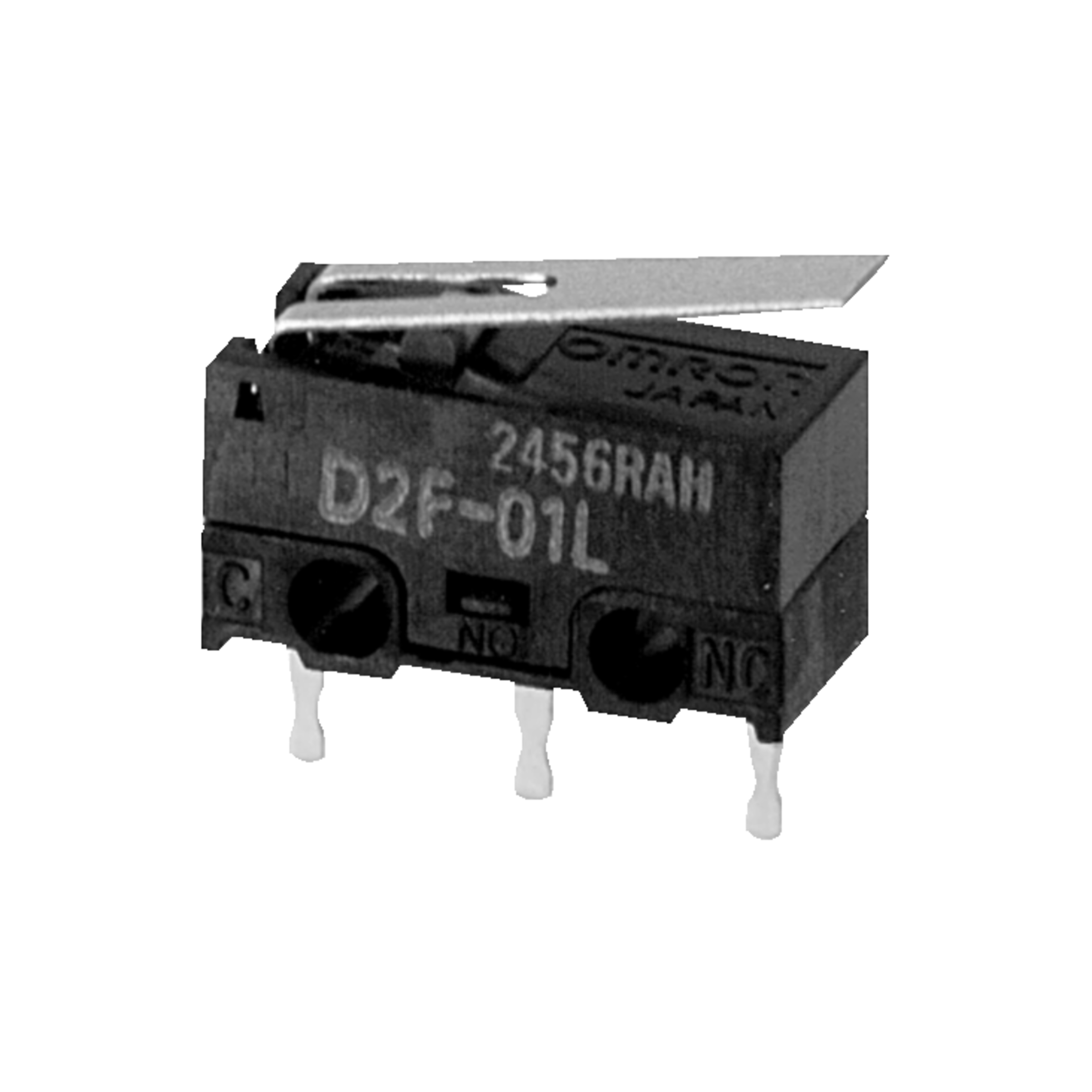

D2F-01L
Omron Micro Switches D2F 1xCO Lever RM5,08mm 30VDC 0,1A 1,47N
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
470 Pcs. in stock
Next Stock Receipt
Week 08/2025
1.000 Pcs.
1.000 Pcs.
Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Micro Switches
- Series
- D2F
- contacts
- 1xCO
- Pitch
- 5.08 mm
- Type of actuator
- Lever
- Function
- 1xCO
- Number of poles
- 1
- illumination
- unlit
- Switching current, max.
- 0.1 A
- Actuating force, max.
- 1,47 N
- Operating temperature range, min.
- -25 °C
- Operating temperature range, max.
- 85 °C
- RoHS-Conform
Specifications
Open all

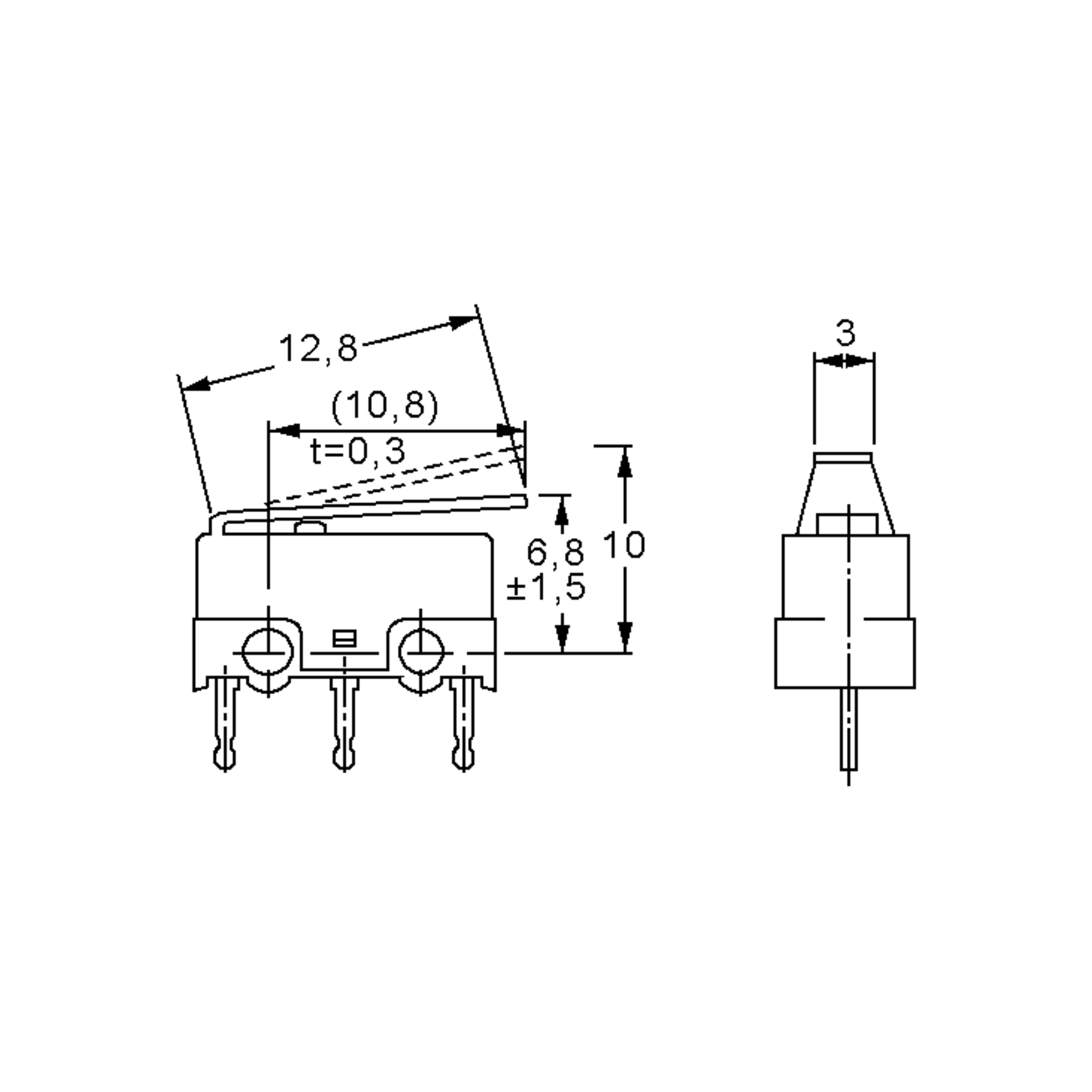

Dimensions and weights
- Pitch
- 5.08 mm
Operating conditions
- Operating temperature range, min.
- -25 °C
- Operating temperature range, max.
- 85 °C
Technical features
- Switching voltage
- 30 V DC
- Test voltage contact/earth
- 1,500 V AC, 1 min
- Mechanical service life
- 10^6 Betätigungen
- Service life, electrical
- 3 x 10^4 Betätigungen
- Switching current, max.
- 0.1 A
Mechanical properties
- Connection
- Solder pin
- Actuating force, max.
- 1,47 N
- Number of poles
- 1

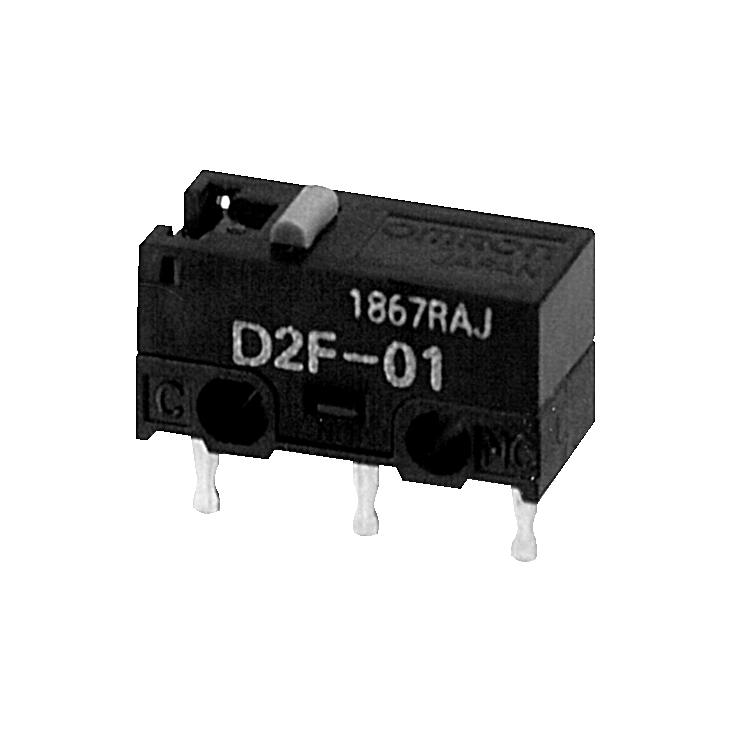

Other Products
