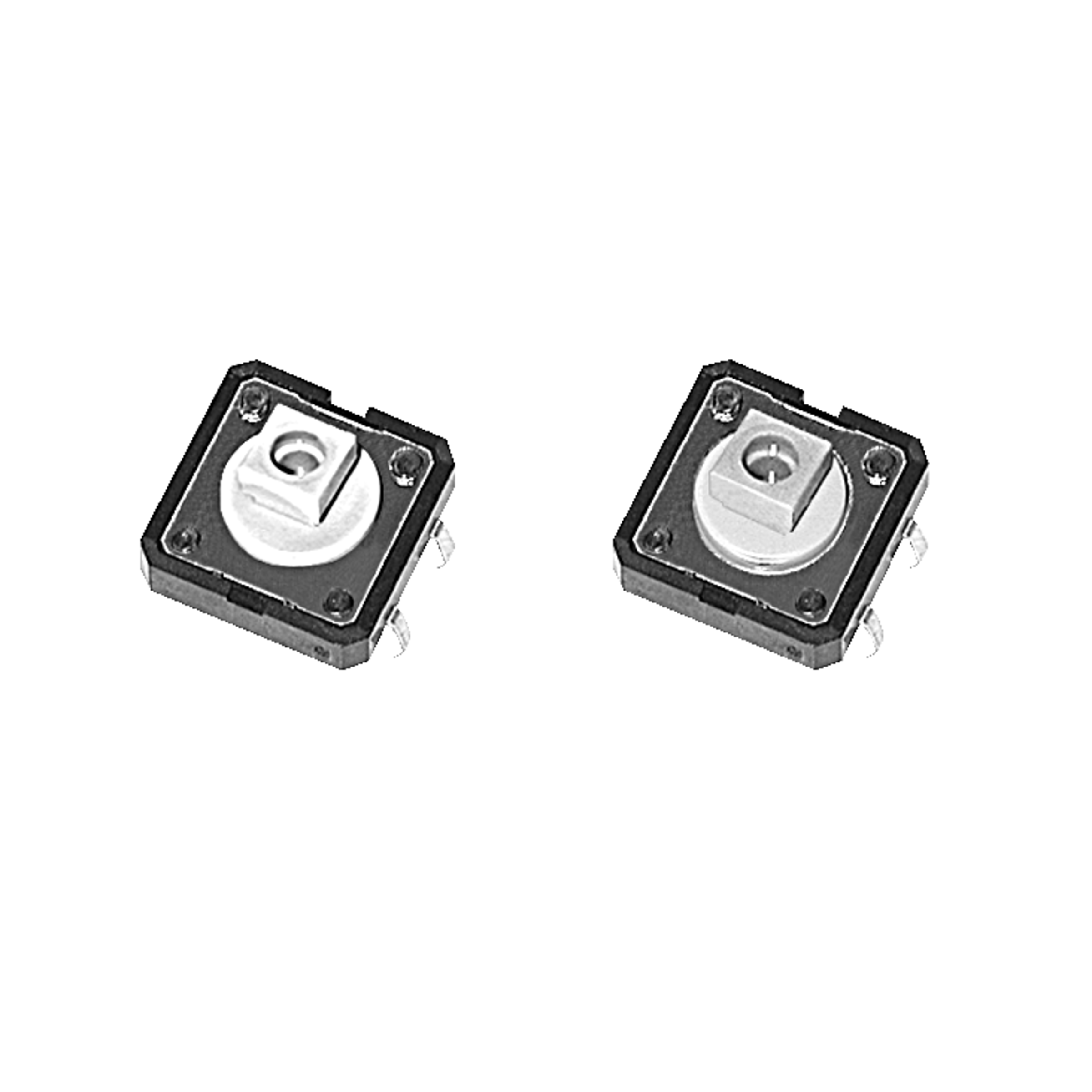

B3F-4055
Omron Switches B3F 1x0-(E) Solder pin black 2,55N 12mm 12mm 7,3mm unlit
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
4.800 Pcs. in stock
Next Stock Receipt
Week 02/2025
1.500 Pcs.
1.500 Pcs.
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Switches
- Series
- B3F
- Body colour
- black
- contacts
- 1xNO
- Type of actuator
- Push button
- Function
- 1x0-(E)
- Number of poles
- 1
- illumination
- unlit
- Actuating force, max.
- 2,55 N
- Operating temperature range, min.
- -25 °C
- Operating temperature range, max.
- 70 °C
- Soldering temperature and duration, max.
- 260°C / 5s
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 12 mm
- Dimension: Width
- 12 mm
- Dimension: Height
- 7.3 mm
Operating conditions
- Operating temperature range, min.
- -25 °C
- Operating temperature range, max.
- 70 °C
- Soldering temperature and duration, max.
- 260°C / 5s
Technical features
- Test voltage
- 500 V AC, 1min.
- Mechanical service life
- 10^6 Betätigungen
- Material: Terminals
- silver, plated
Mechanical properties
- Connection
- Solder pin
- Operating path
- 0.3 mm
- Actuating force, max.
- 2,55 N
- Number of poles
- 1
