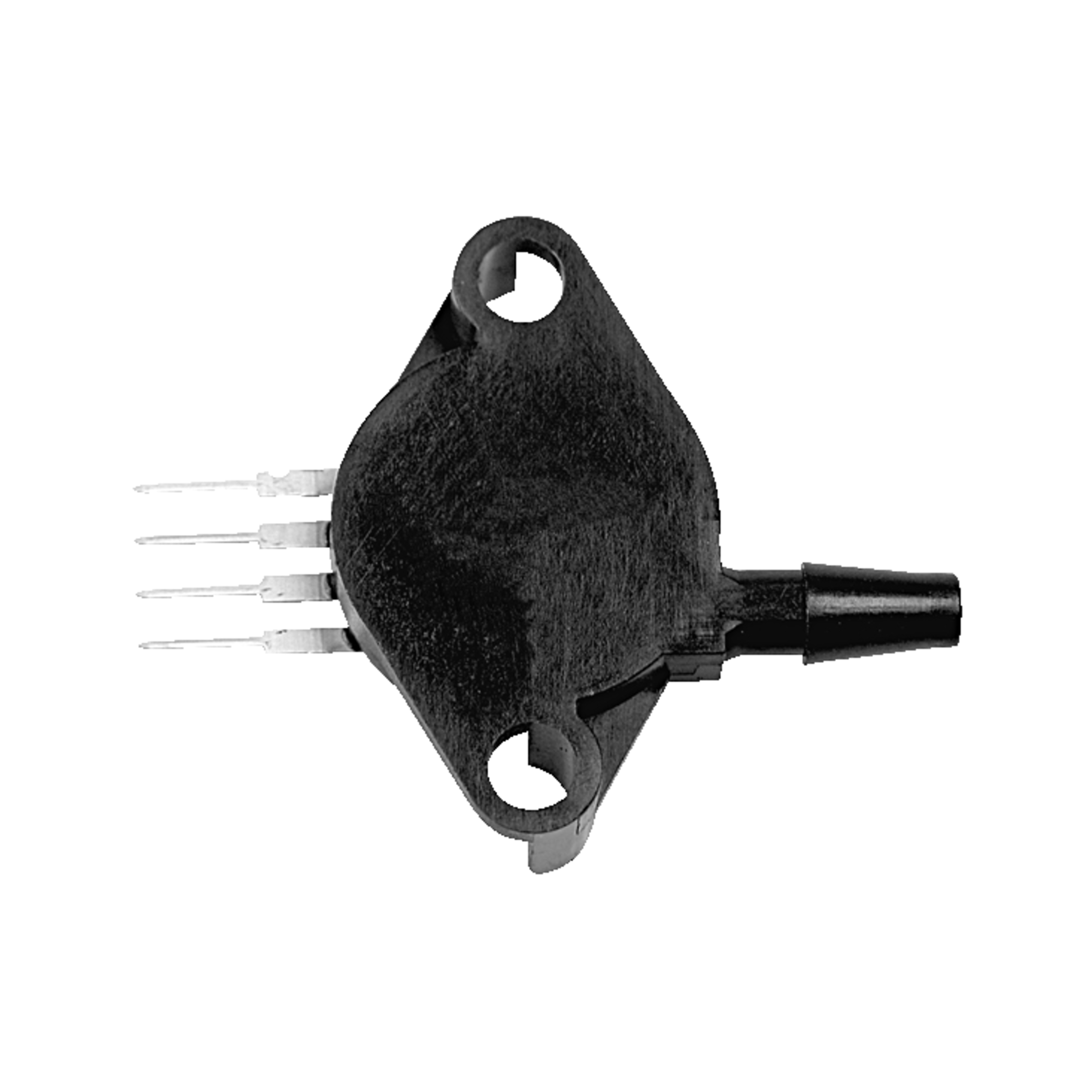

MPX2200AP
NXP Pressure Sensor 10V 16V 0kPa 200kPa C344B
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 01.04.2023
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Pressure Sensor
- Supply Voltage Min.
- 10 V
- Supply Voltage Max.
- 16 V
- Measuring Range Min.
- 0 kPa
- Measuring Range Max.
- 200 kPa
- Manufacturer Package
- C344B
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature, min. (TA)
- -40 °C
- Operating Temperature, max. (TA)
- 125 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 125 °C
Electrical Properties
- Supply Voltage Min.
- 10 V
- Supply Voltage Max.
- 16 V
- Measuring Range Min.
- 0 kPa
- Measuring Range Max.
- 200 kPa
Conformity
- REACH Notice
- REACh Art. 33: contains Lead CAS# 7439-92-1
Documents
PCN_0084279_EN.pdf
