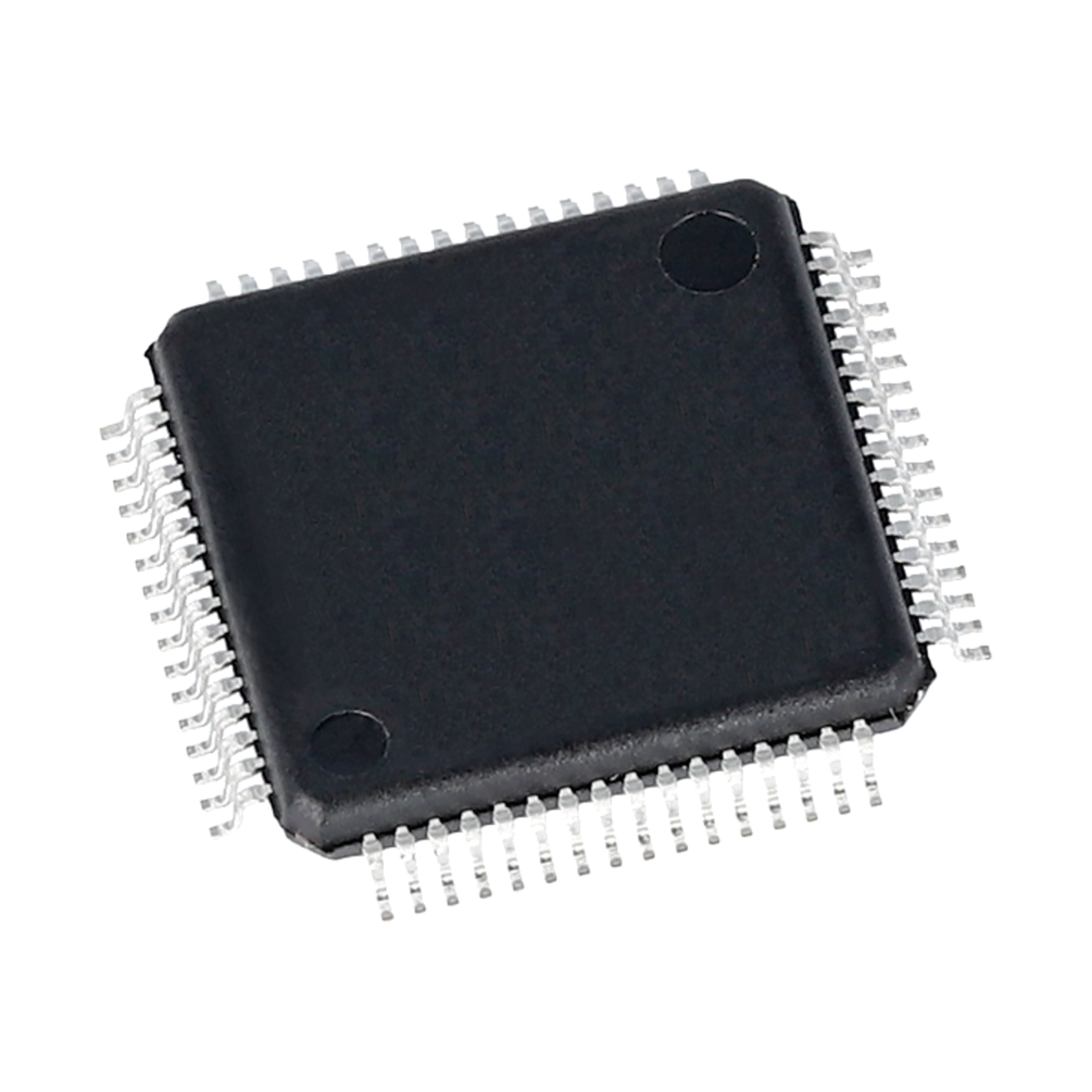

MKL15Z128VLH4
NXP 32-Bit Microcontroller 128KB 54I/O 48MHz 16KB ARM Cortex M0+ LQFP-64
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
160 Pcs.
160 Pcs.
Planned delivery time
Ø 40 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 160 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 160 or multiple of 160)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- 32-Bit Microcontroller
- Supply Voltage Min.
- 1.71 V
- Supply Voltage Max.
- 3.6 V
- CPU clock frequency Max.
- 48 MHz
- CPU Core
- ARM Cortex M0+
- Program Memory Size
- 128 KB
- Memory Size
- 16 KB
- EEPROM
- 0 Byte
- Number of I/O Pins
- 54 I/O
- Manufacturer Package
- LQFP-64
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Electrical properties
- CPU Core
- ARM Cortex M0+
- CPU clock frequency Max.
- 48 MHz
- Databus Width
- 32 bit Bit
- Supply Voltage Min.
- 1.71 V
- Supply Voltage Max.
- 3.6 V
- Real-Time Clock
- Number of ADC Channels
- 20
- ADC Resolution
- 16 bit Bit
- Program Memory Size
- 128 KB
- Memory Size
- 16 KB
- Number of I/O Pins
- 54 I/O
- EEPROM
- 0 Byte
