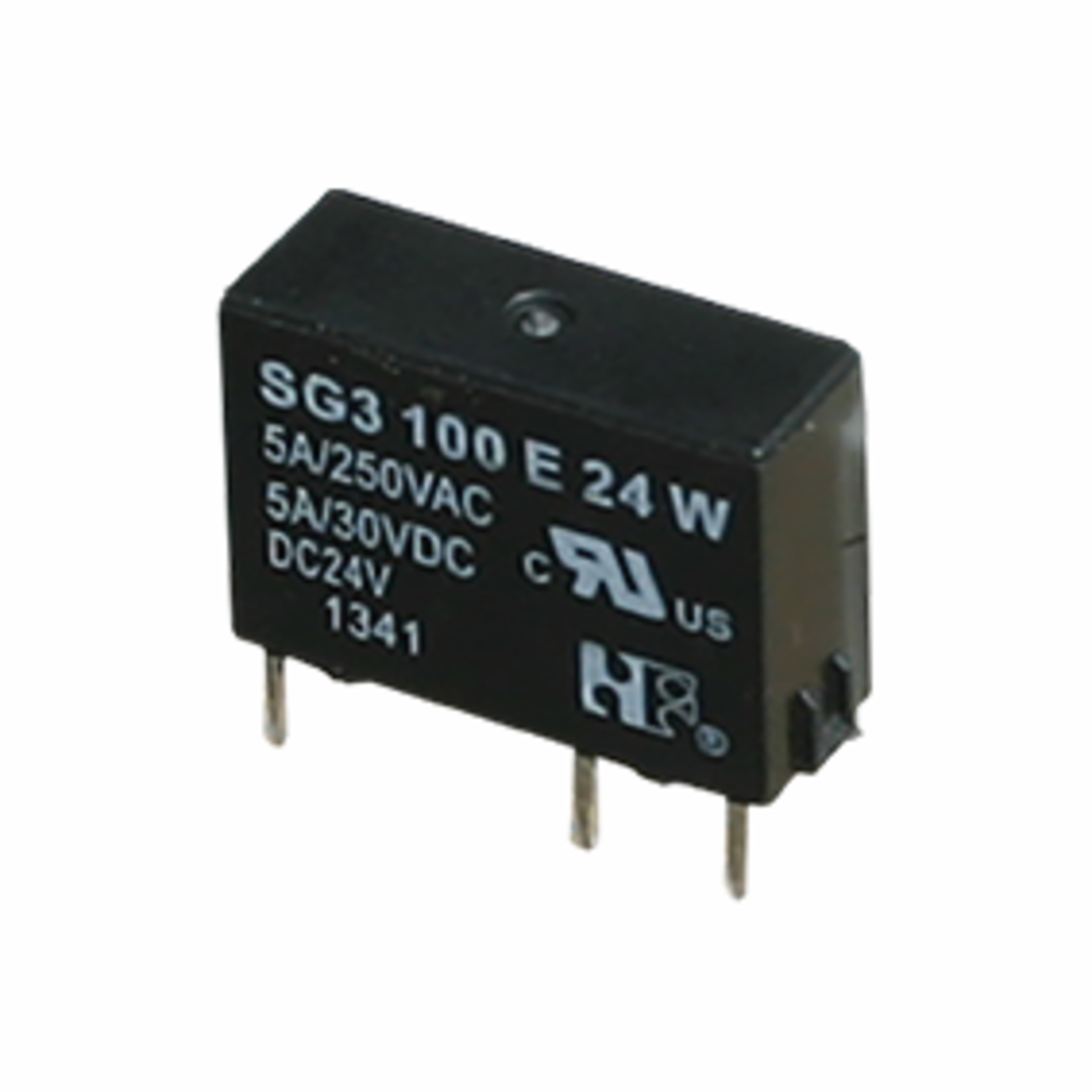

SG3100E12W
NF PC relay SG3 THT SPST-NO 5A 12VDC 720Ohm 17,5mmx6,5mmx12,5mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
190 Pcs. in stock
Planned delivery time
Ø 25 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 800 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable sockets and accessories. - Series
- SG3
- contacts
- SPST-NO
- Contact: Switching Current (min/typ/max)
- 5 A
- Coil: Nominal Voltage DC
- 12 V DC
- Coil resistance
- 720 Ohm
- RoHS-Conform
Specifications
Open all

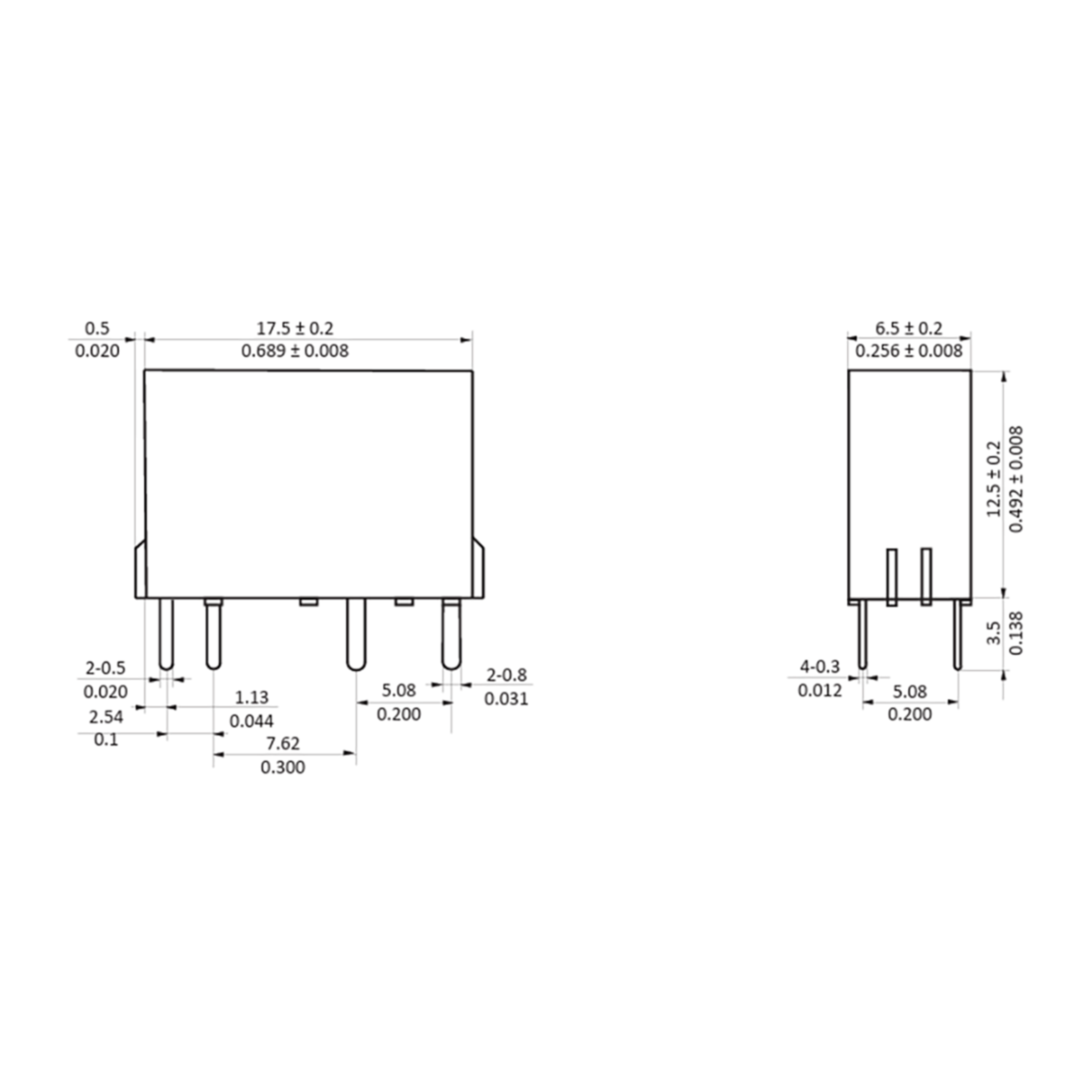

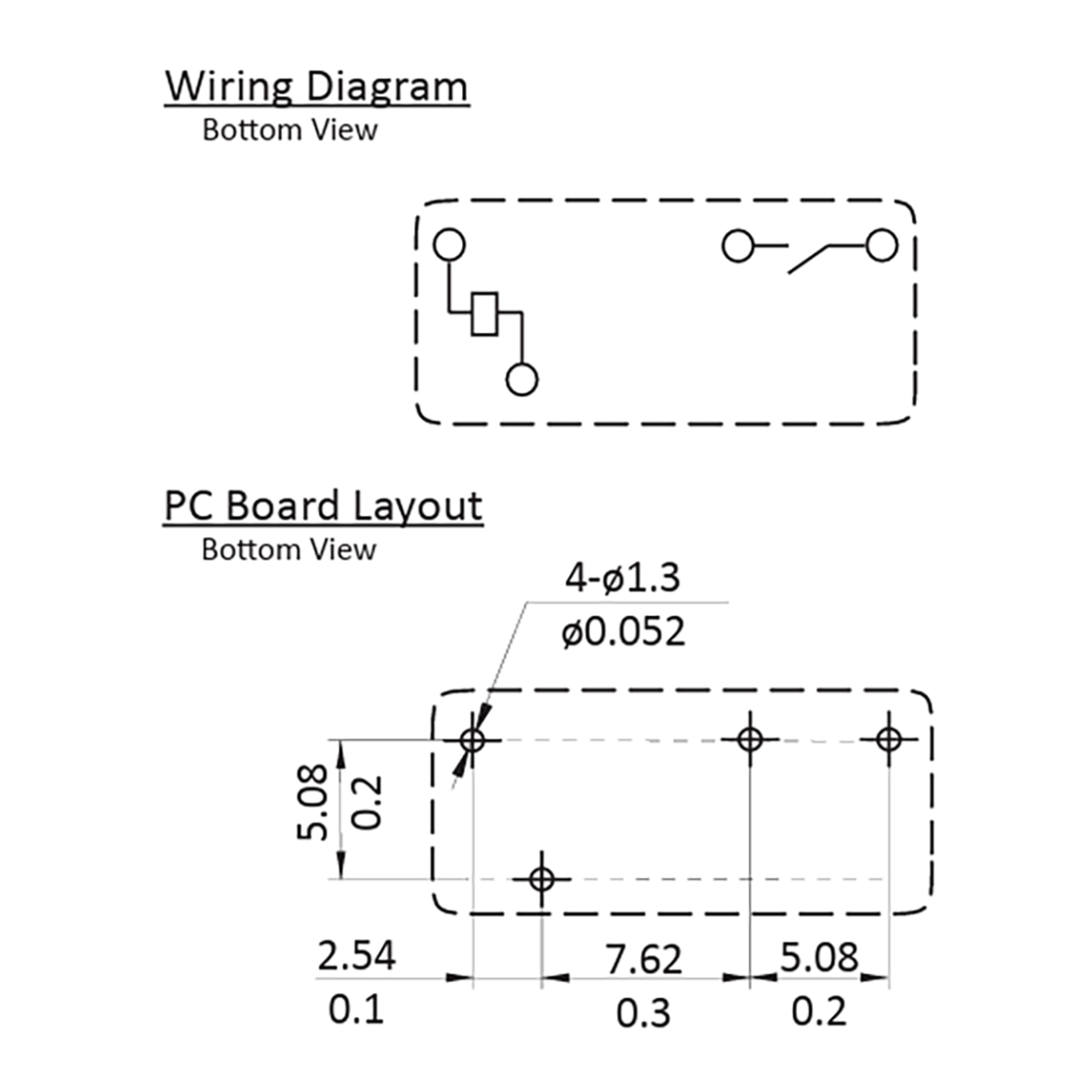

Dimensions and Weights
