S7100C5W
NF Power relay S7 THT SPST-NO 10A 5VDC 113Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1.000 Pcs.
1.000 Pcs.
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1000 or multiple of 1000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- S7
- Rated voltage DC
- 5 V DC
- Switching current
- 10 A
- contacts
- SPST-NO
- Coil resistance
- 113 Ohm

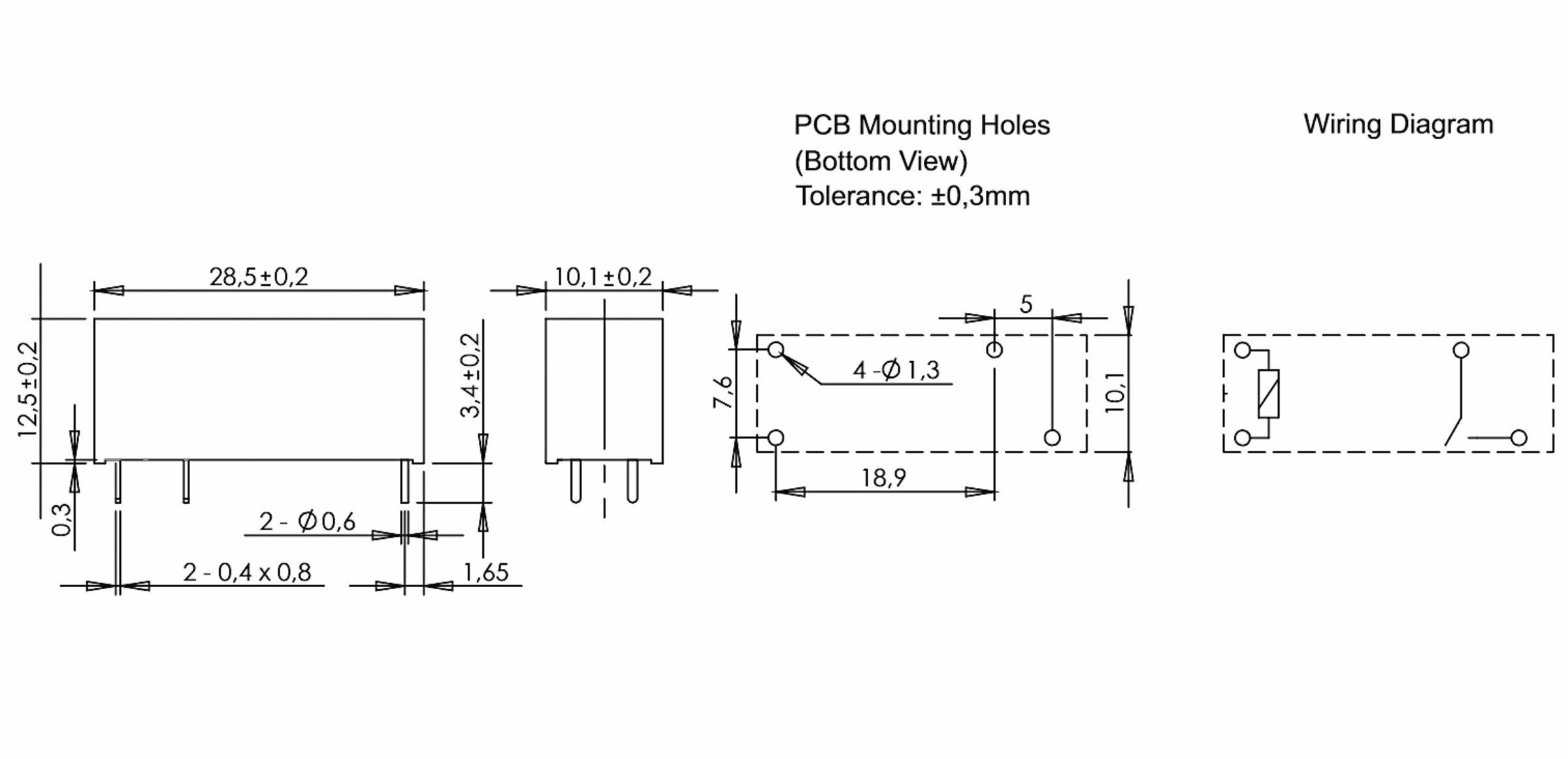

- Dimension: Length
- 28.5 mm
- Dimension: Width
- 10.1 mm
- Dimension: Height
- 12.5 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 28.5 mm
- Dimension: Width
- 10.1 mm
- Dimension: Height
- 12.5 mm
- Weight
- 8 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 5 V DC
- Coil design
- monostable
- Switching voltage, max. AC
- 440 V AC
- Switching voltage, max. DC
- 125 V DC
- Response voltage
- 3.5 V
- Operating voltage, max.
- 5 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 5,000 V AC
- Creepage distance
- 8 mm
- Switching current
- 10 A
- Rated power
- 220 mW
- Coil resistance
- 113 Ohm
- Contact resistance
- 100 mOhm
- Response time
- 10 ms
- Drop-out time
- 5 ms
- Mechanical service life
- 10^7 Operations
- Service life, electrical
- 10^5 Operations
- Vibration resistance
- 1,65 mm DA
- Impact resistance, functional
- 98,1 m/s²
Safety/Certifications
- Approvals
- VDE
- cULus
- Standards
- IEC60335-1 Ed. 5 (optional)
- Protection class RT
- RTIII
