NF8-100E24
NF PC relay NF8 THT SPST-NO 10A 24VDC 1.600Ohm 19,5mmx15,6mmx15,3mm RTII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
329 Pcs. in stock
Planned delivery time
Ø 25 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1700 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 17 or multiple of 17)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable sockets and accessories. - Series
- NF8
- contacts
- SPST-NO
- Contact: Switching Current (min/typ/max)
- 10 A
- Coil: Nominal Voltage DC
- 24 V DC
- Coil resistance
- 1,600 Ohm
- Protection class RT
- RTII
- RoHS-Conform
Specifications
Open all

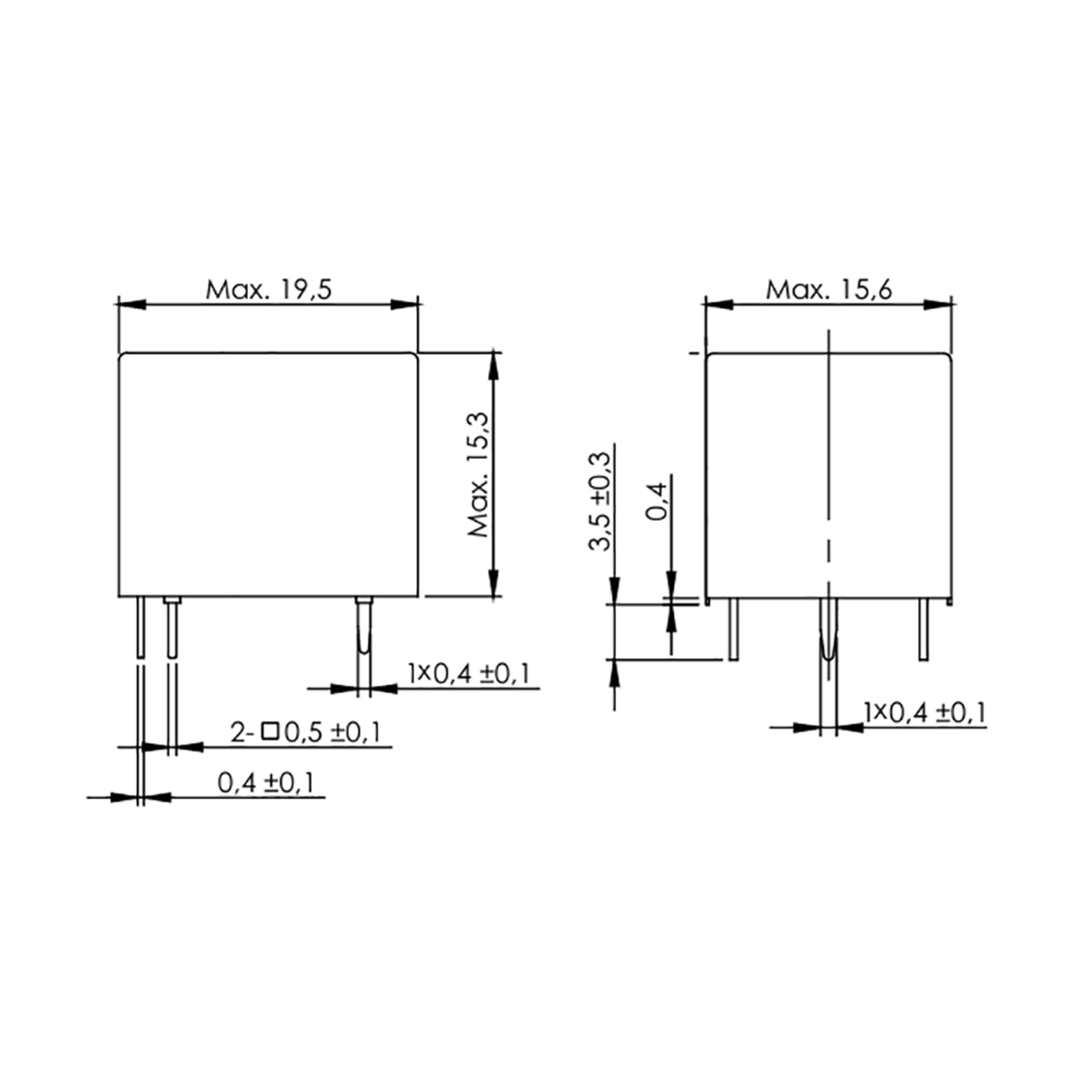

Dimensions and Weights
- Dimension: Length
- 19.5 mm
- Dimension: Width
- 15.6 mm
- Dimension: Height
- 15.3 mm
- Weight
- 9.4 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 10 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Switching Voltage, max. DC
- 110 V DC
- Contact resistance
- 100 mOhm
- Creepage distance
- 1.8 mm
- Coil design
- monostable
- Coil resistance
- 1,600 Ohm
- Inductor power
- 360 mW
- Coil: Nominal Voltage DC
- 24 V DC
- Coil: Operating Voltage, max.
- 40.8 V
- Coil: Pick-up voltage
- 18 V
- Coil: Drop-out Voltage
- 2.4 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 750 V AC
- Response time
- 10 ms
- Drop-out time
- 5 ms
- Mechanical service life
- 10 x 10^6 operations
- Service life, electrical
- 100,000 operations
Safety/Certifications
- Approvals
- CQC
- VDE
- cULus
- Standards
- IEC60335-1, IEC60079-15:22.4
- Protection class RT
- RTII
