NF6T-100E12
NF Power relay NF6 THT SPST-NO 12A 12VDC 400Ohm 19,5mmx15,6mmx15,3mm RTII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
442 Pcs. in stock
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1700 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- NF6
- Type
- Power relay
- Cell size
- contacts
- SPST-NO
- Switching current
- 12 A
- Rated voltage DC
- 12 V DC
- Coil resistance
- 400 Ohm
- Protection class RT
- RTII
- Dimension: Length
- 19.5 mm
- Dimension: Width
- 15.6 mm
- Dimension: Height
- 15.3 mm
- RoHS-Conform
Specifications
Open all

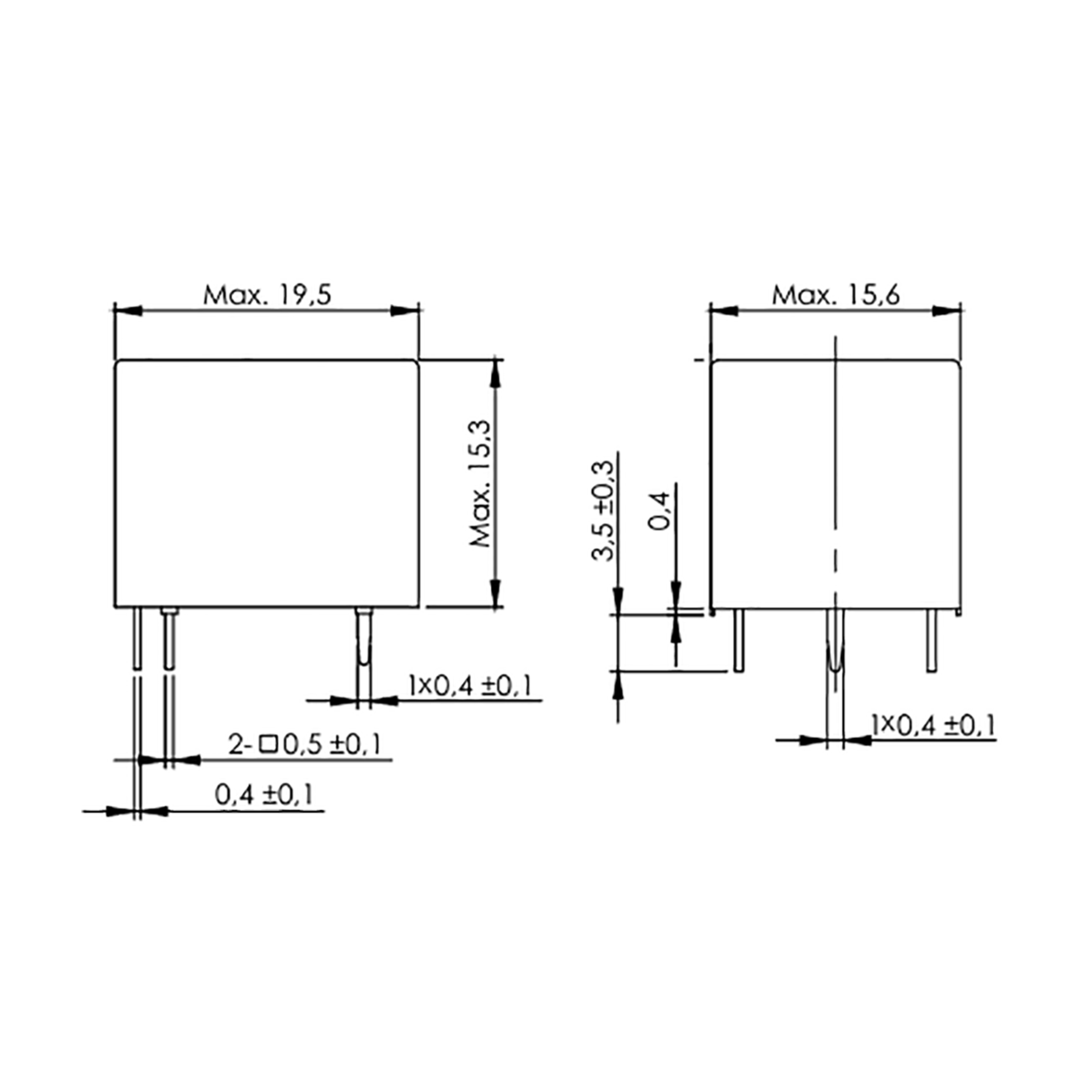

Dimensions and Weights
- Dimension: Length
- 19.5 mm
- Dimension: Width
- 15.6 mm
- Dimension: Height
- 15.3 mm
- Weight
- 9.4 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated voltage DC
- 12 V DC
- Coil design
- Switching voltage, max. AC
- 400 V AC
- Switching voltage, max. DC
- 110 V DC
- Response voltage
- 9 V
- Operating voltage, max.
- 20.4 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 750 V AC
- Creepage distance
- 1.5 mm
- Switching current
- 12 A
- Rated power
- 360 mW
- Coil resistance
- 400 Ohm
- Contact resistance
- 100 mOhm
- Response time
- 10 ms
- Drop-out time
- 5 ms
- Vibration resistance
- 1,5 mm DA
Safety/Certifications
- Approvals
- CQC
- VDE
- cULus
- Protection class RT
- RTII
