NF120-001E24S
NF Power relay NF120 THT SPDT 40A 24VDC 360Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
200 Pcs. in stock
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 800 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Cell size
- Series
- NF120
- Rated voltage DC
- 24 V DC
- Switching current
- 40 A

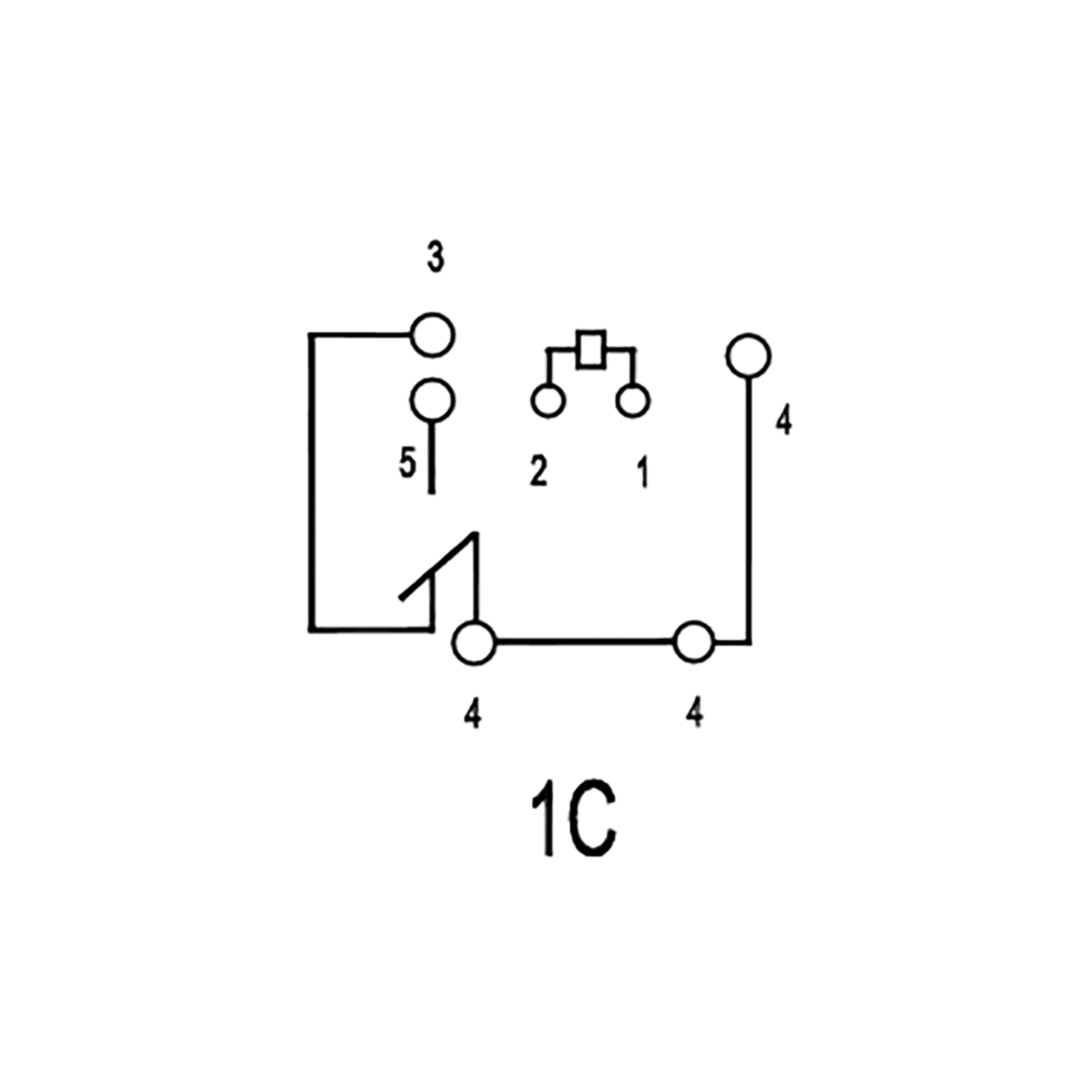

- contacts
- SPDT
- Coil resistance
- 360 Ohm
- Dimension: Length
- 26.8 mm
- Dimension: Width
- 21.5 mm
- Dimension: Height
- 22.3 mm
- RoHS-Conform
Specifications
Open all

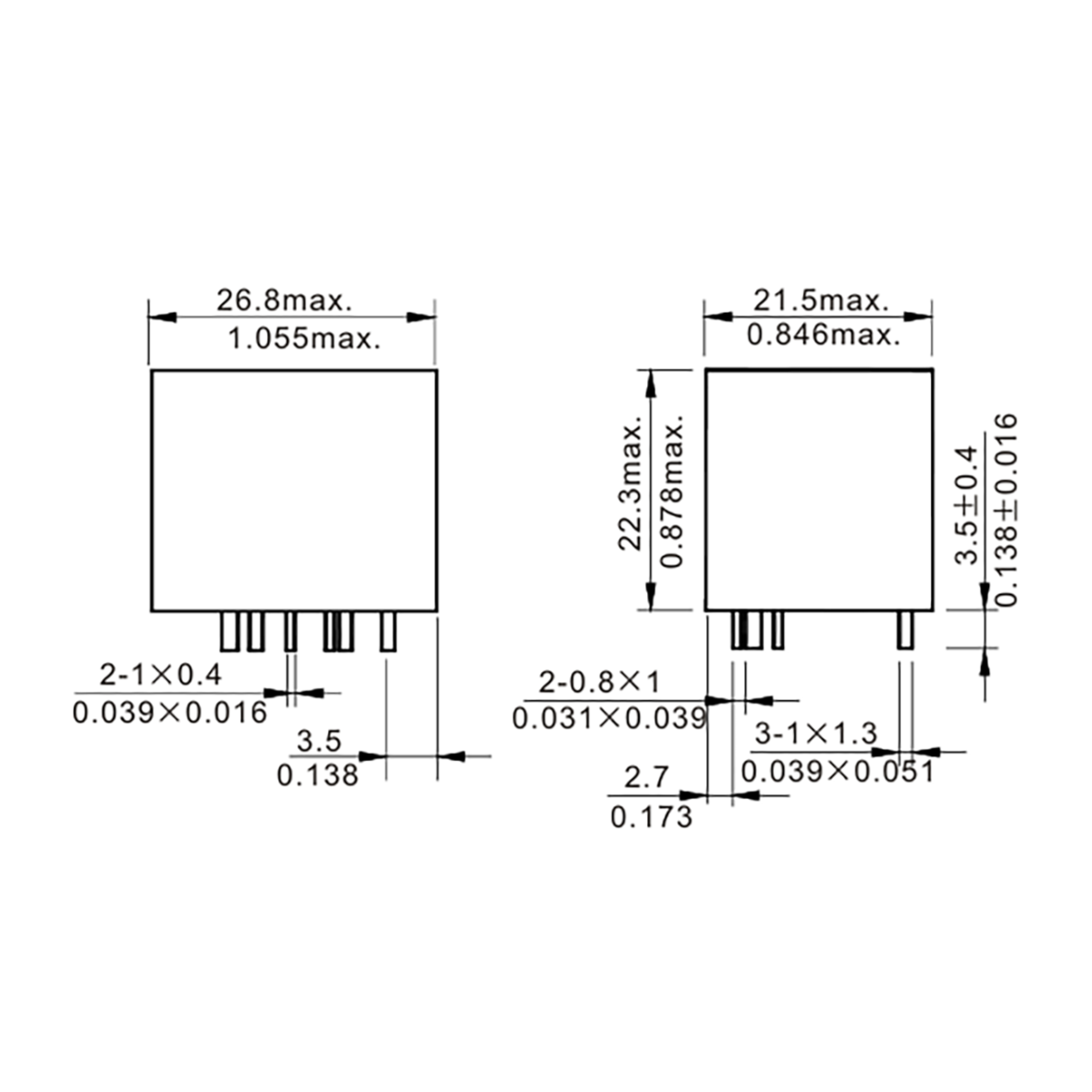

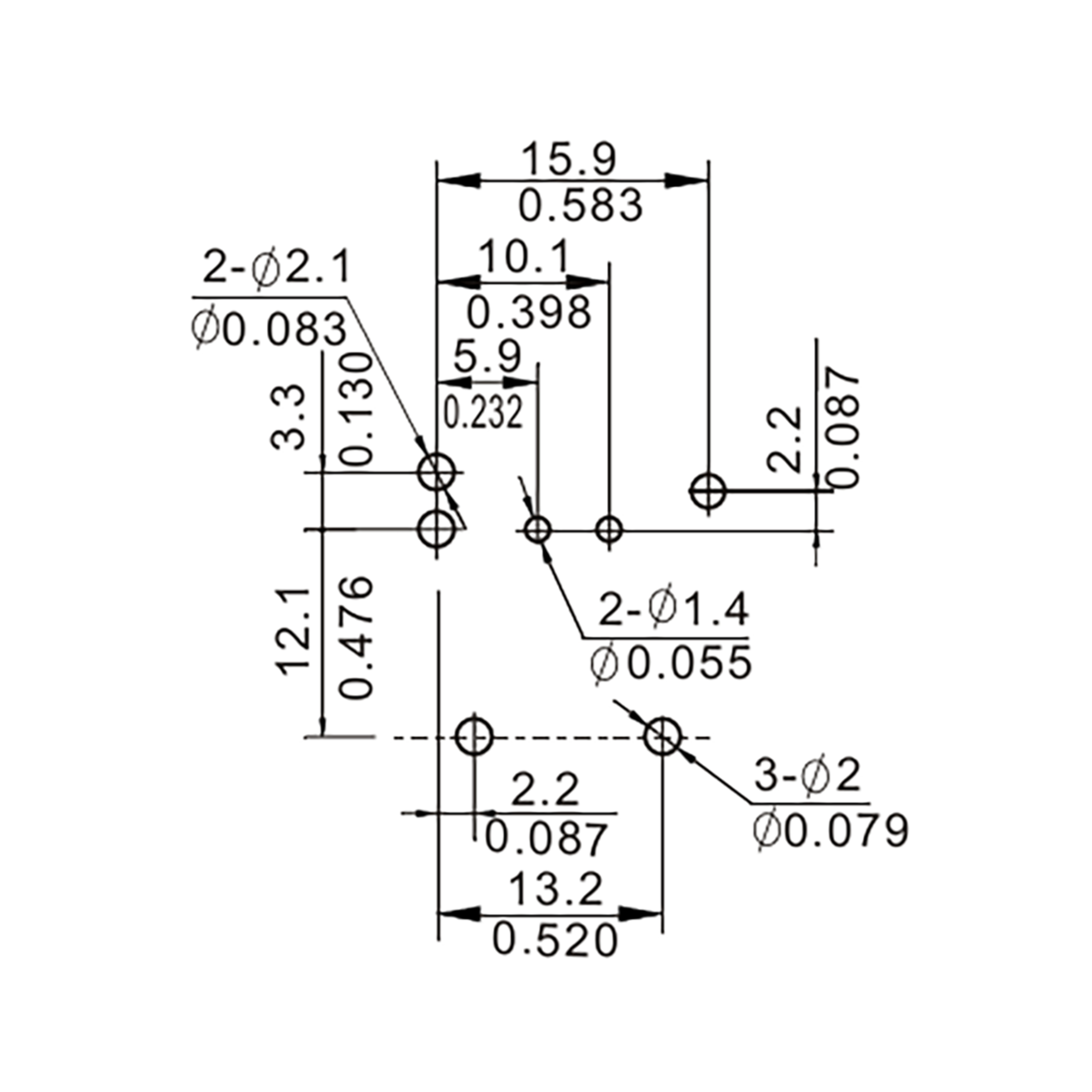

Dimensions and weights
- Dimension: Length
- 26.8 mm
- Dimension: Width
- 21.5 mm
- Dimension: Height
- 22.3 mm
- Weight
- 21 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
Technical features
- Rated voltage DC
- 24 V DC
- Switching voltage, max. AC
- 380 V AC
- Switching voltage, max. DC
- 75 V DC
- Response voltage
- 16.8 V
- Operating voltage, max.
- 31.2 V
- Test voltage contact/contact
- 500 V AC
- Test voltage open contacts
- 750 V AC
- Switching current
- 40 A
- Switching capacity (VA)
- 2,400 VA
- Switching capacity (W)
- 630 W
- Coil resistance
- 360 Ohm
- Contact resistance
- 30 mOhm
- Response time
- 5 ms
- Drop-out time
- 3 ms
- Vibration resistance
- 1,27 mm DA
