NF120-001E12S
NF PC relay NF120 THT SPDT 40A 12VDC 90Ohm 26,8mmx21,5mmx22,3mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 25 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 800 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable sockets and accessories. - Series
- NF120

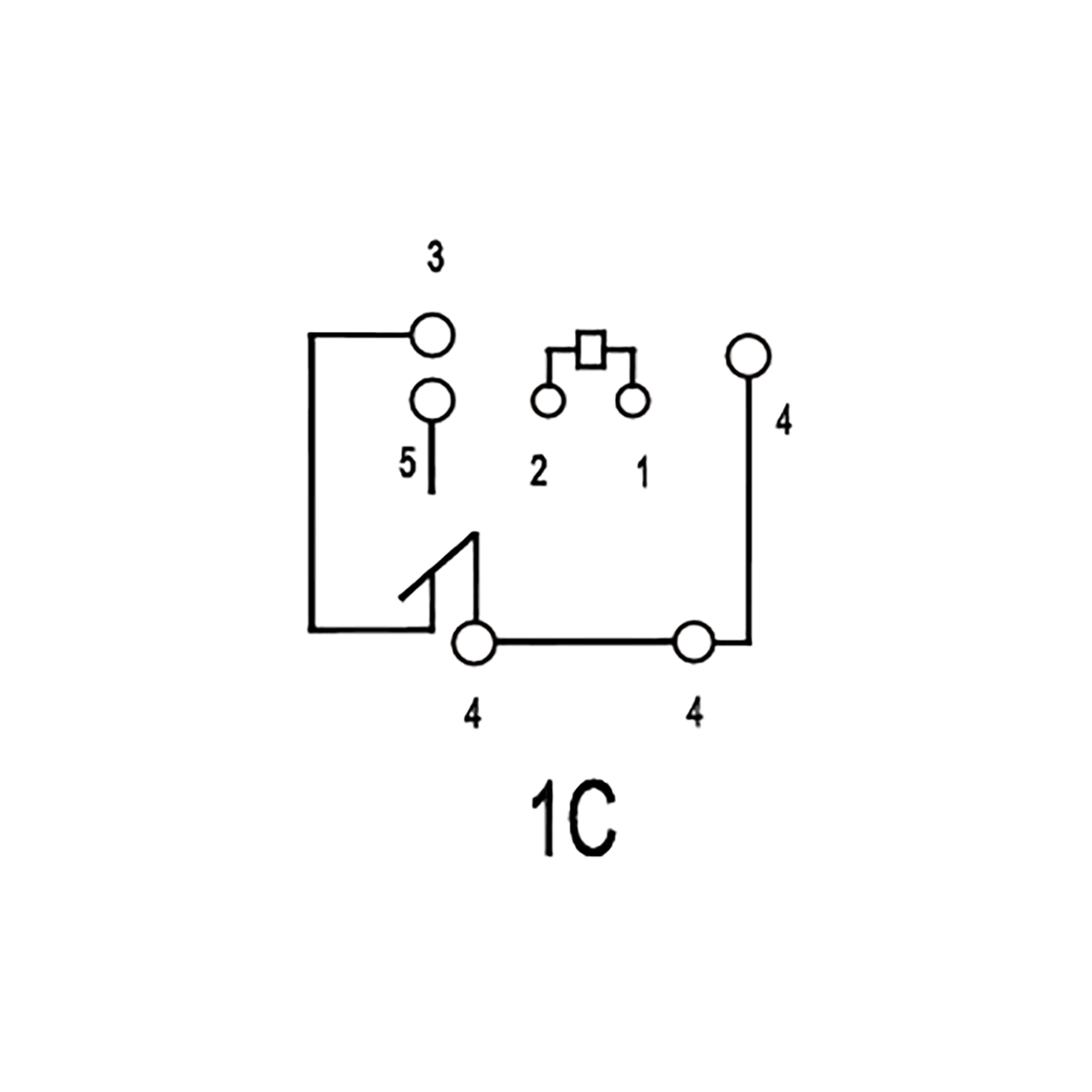

- contacts
- SPDT
- Contact: Switching Current (min/typ/max)
- 40 A
- Coil: Nominal Voltage DC
- 12 V DC
- Coil resistance
- 90 Ohm
- RoHS-Conform
Specifications
Open all

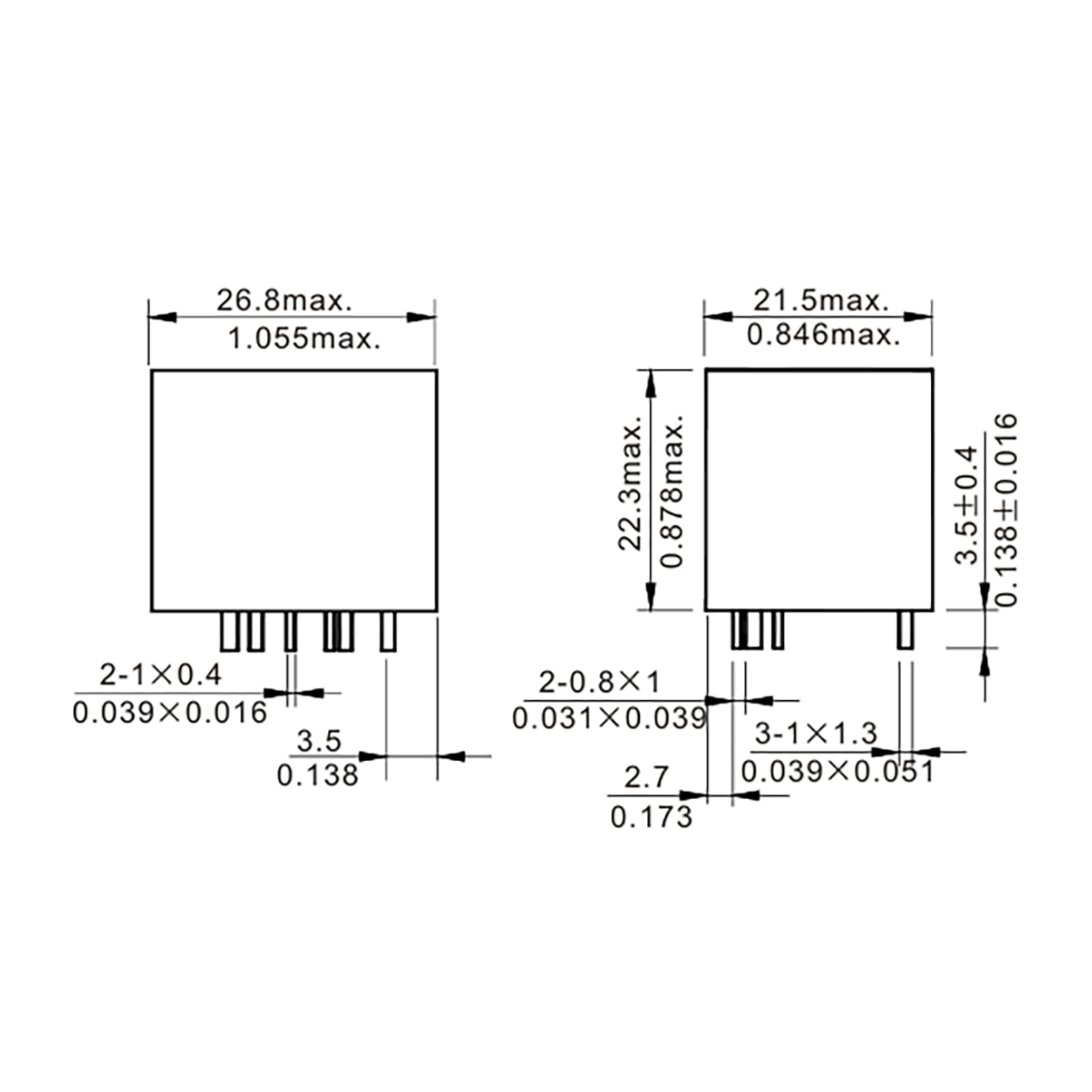

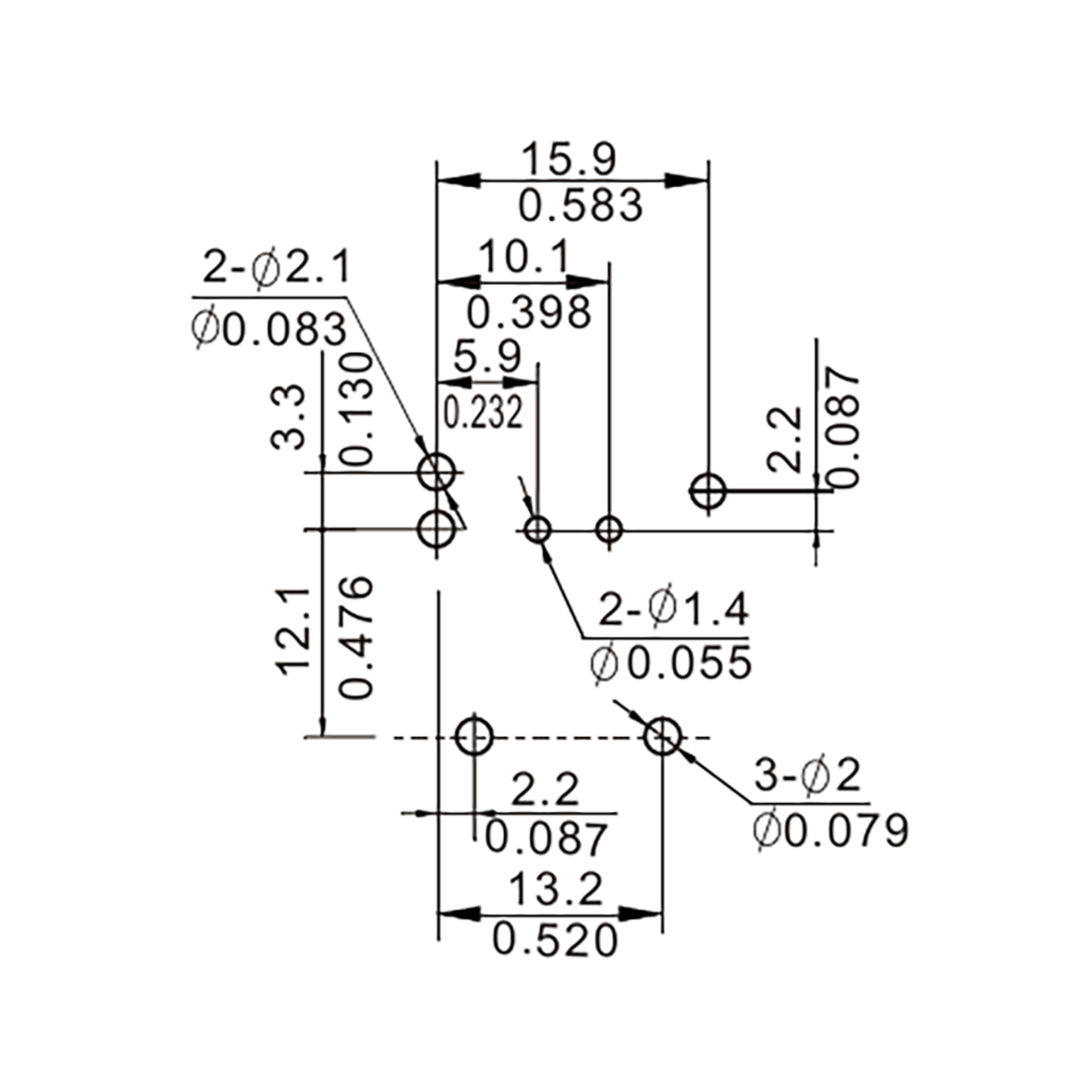

Dimensions and Weights
- Dimension: Length
- 26.8 mm
- Dimension: Width
- 21.5 mm
- Dimension: Height
- 22.3 mm
- Weight
- 21 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 40 A
- Contact: Switching Voltage, max. AC
- 380 V AC
- Contact: Switching Voltage, max. DC
- 75 V DC
- Contact: Switching Capacity (VA)
- 2,400 VA
- Contact: Switching Load (W)
- 630 W
- Contact resistance
- 30 mOhm
- Creepage distance
- 11 mm
- Coil design
- monostable
- Coil resistance
- 90 Ohm
- Inductor power
- 1,600 mW
- Coil: Nominal Voltage DC
- 12 V DC
- Coil: Operating Voltage, max.
- 15.6 V
- Coil: Pick-up voltage
- 8.4 V
- Coil: Drop-out Voltage
- 1.2 V
- Test voltage contact/contact
- 500 V AC
- Test voltage open contacts
- 750 V AC
- Response time
- 5 ms
- Drop-out time
- 3 ms
- Mechanical service life
- 10 x 10^6 operations
- Service life, electrical
- 100,000 operations
- Vibration resistance
- 1,27 mm DA
Safety/Certifications
- Standards
- IEC 60255-5, IEC 61810-7
