74060

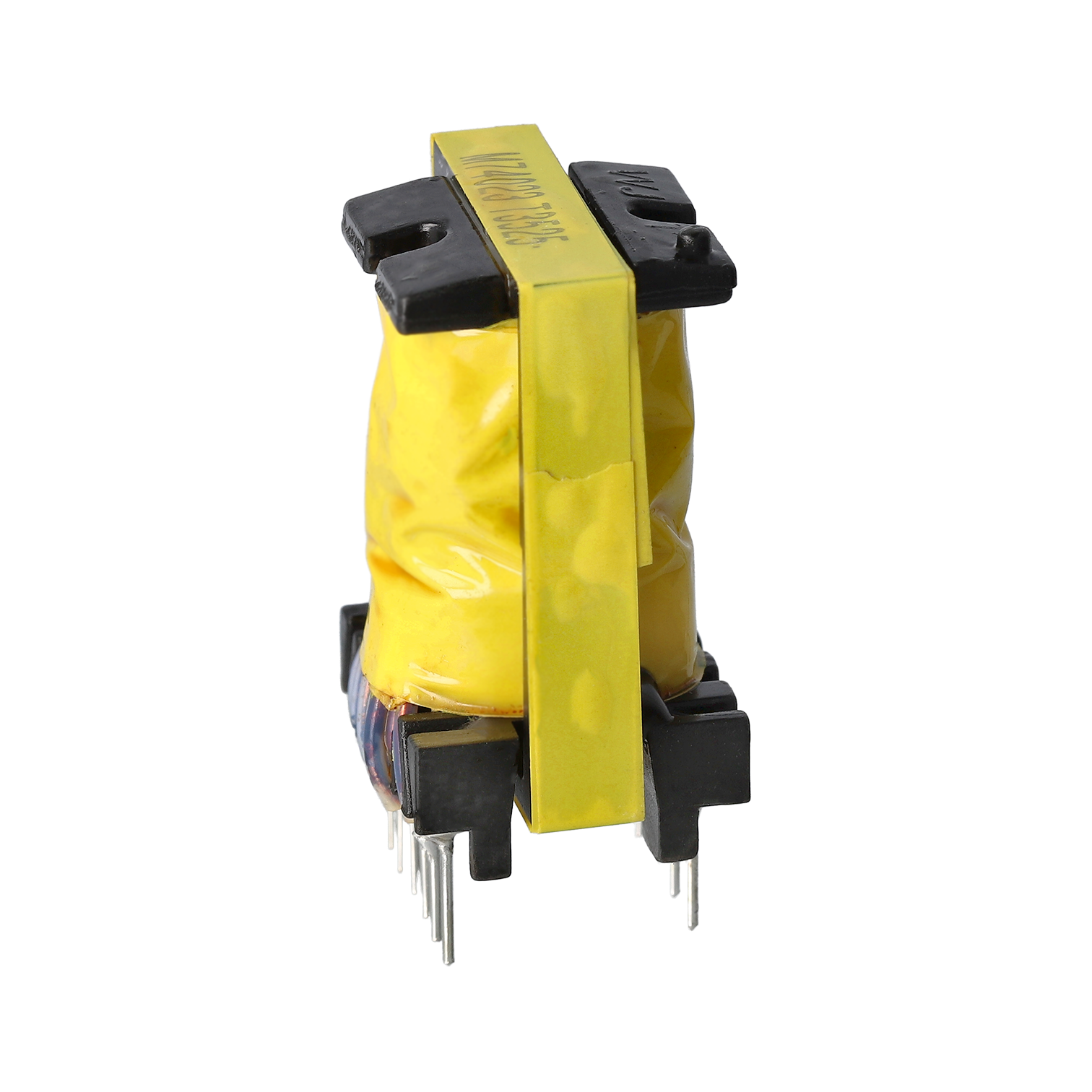

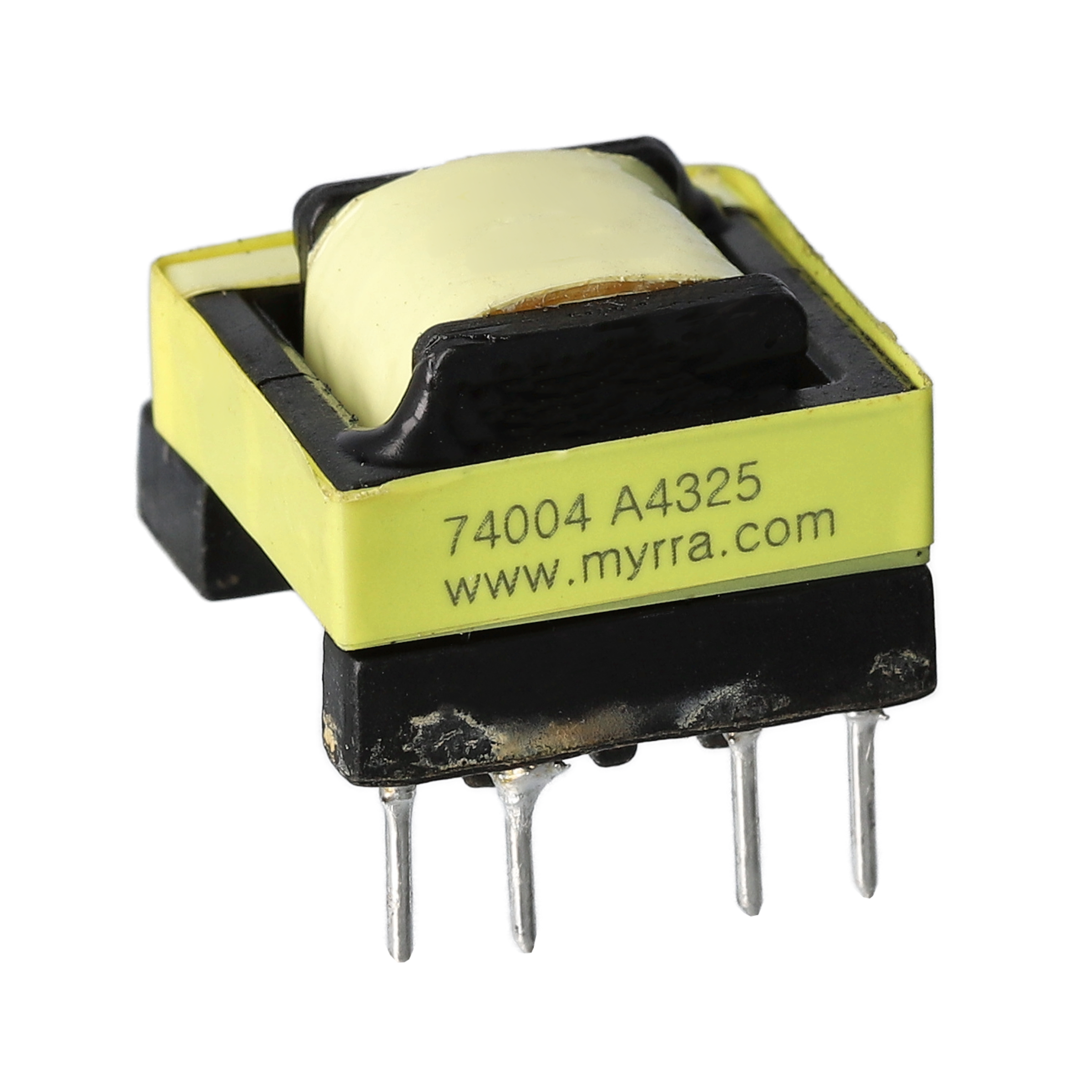

Myrra Flyback transformer 74_ 36:4:2:5:2:5 265V 2x5V/2x12V 4mA
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
15 Pcs. in stock
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 90 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- 74_
- Transmission ratio
- 36:4:2:5:2:5
- Input voltage range, min.
- 85 V
- Input voltage range, max.
- 265 V
- Secondary Voltage
- 2x5V/2x12V
- RoHS-Conform
Specifications
Open all
Electrical features
- Performance
- 140 W
Technical Features
- Input voltage range, min.
- 85 V
- Input voltage range, max.
- 265 V
- Secondary Voltage
- 2x5V/2x12V
- Test voltage W1 against W2 and W3
- 4,000 V
- Secondary Current
- 4 mA
- Open circuit inductance
- 0.44 mH
