44701

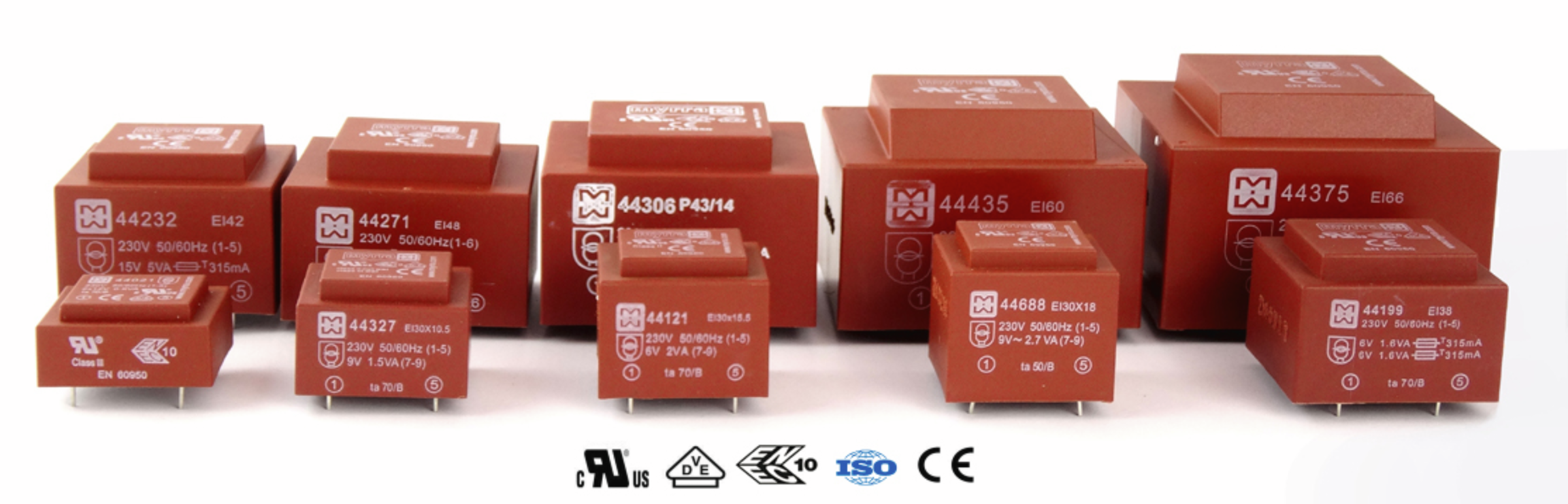

Myrra Print transformer 447_ EI30 2,8VA 230V 18V 156mA absolutely short circuit proof
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Next Stock Receipt
Week 28/2026
73 Pcs.
73 Pcs.
Planned delivery time
Ø 17 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- 447_
- Core
- EI30
- Performance
- 2.8 VA
- Primary Voltage
- 230 V
- Secondary Voltage
- 18 V
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 32.5 mm
- Dimension: Width
- 27.5 mm
- Dimension: Height
- 30 mm
- Weight
- 108 g
Technical Features
- Number of inputs
- 1
- Primary Voltage
- 230 V
- Number of outputs
- 1
- Secondary Voltage
- 18 V
- Secondary Current
- 156 mA
- Open circuit voltage
- 30,9 V
- Test voltage
- 4 kV
- Performance
- 2.8 VA
- Temperature Resistance Class
- T 70/B
Safety/Certifications
- Approvals
- ENEC10
- UL
- VDE
- cCSA
- Standards
- EN 60950, EN 61558-2-6, EN 61558-2-4, UL 5085
Documents
44701-B data sheet.pdf
