43112

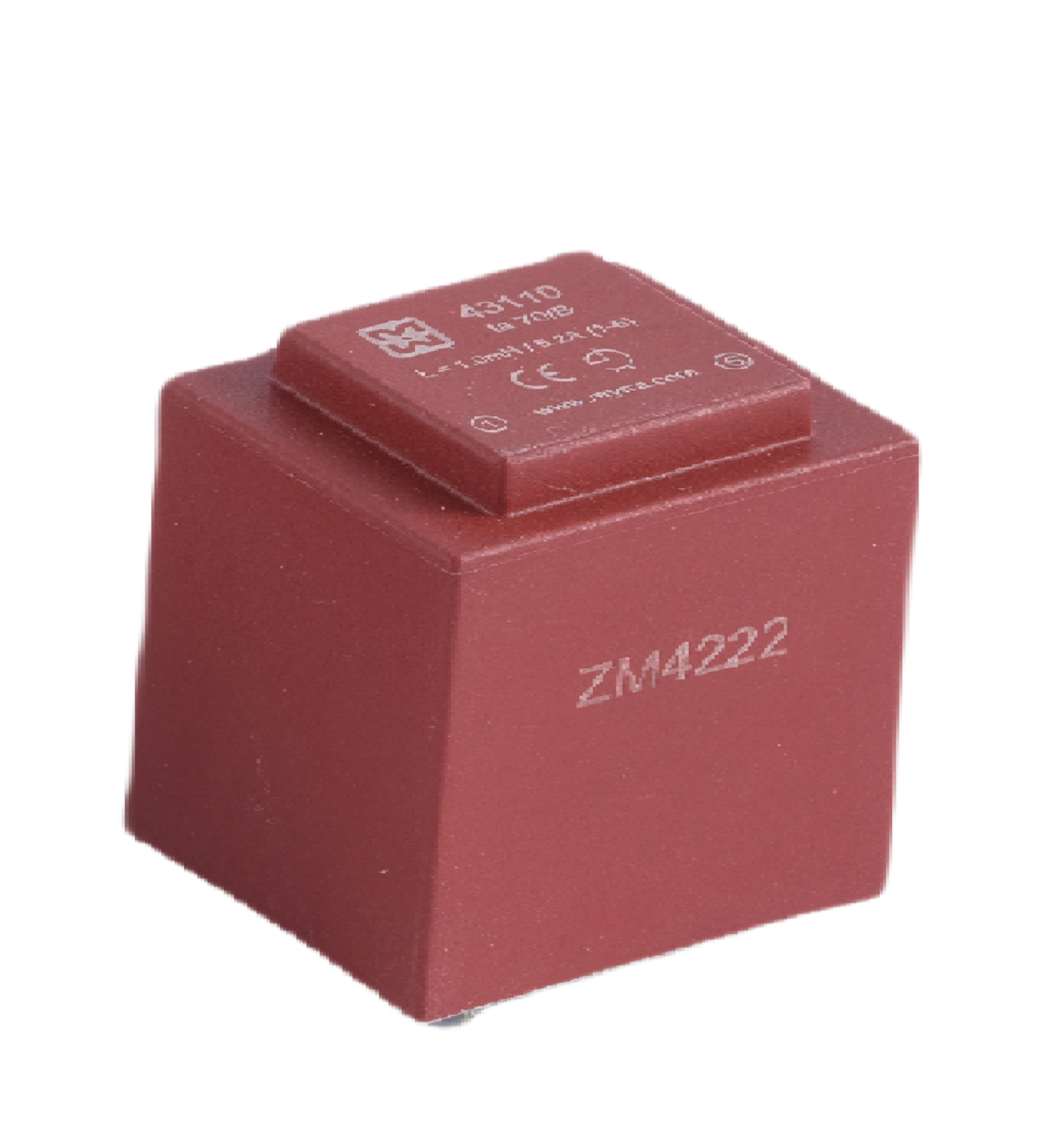

Myrra Inductors suppression chokes 431_ 3,6A 2mH EI30 moulded
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Next Stock Receipt
Week 02/2025
75 Pcs.
75 Pcs.
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 75 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Kind
- suppression chokes
- Inductance
- 2 mH
- Rated current
- 3.6 A
- Core
- EI30
- Dimension: Length
- 32.6 mm
- Dimension: Width
- 27.5 mm
- Dimension: Height
- 34.1 mm
- Structure
- moulded
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 32.6 mm
- Dimension: Width
- 27.5 mm
- Dimension: Height
- 34.1 mm
- Wire diameter
- 0.8 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 120 °C
- Climate category
- ta 70°C
Technical features
- Inductance
- 2 mH
- Rated current
- 3.6 A
- Sättigungsstrom
- 5.1 A
- Structure
- moulded
- Temperature resistance class
- T 70/B
Safety/Certifications
- Approvals
- UL
- Standards
- E113497-B
