Results (41)
Not discontinued
In stock
RoHS compliant
Datasheet
New
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Assembly Type | Manufacturer Package | Lighting Colour | Luminous Intensity Max. (colour1/colour2/colour3) | Viewing Angle (colour1/colour2/colour3) | (Uf) Forward Voltage (1/2/3) | (If) Forward Current (colour1/colour2/colour3) | Peak Emission Wavelength (colour1/colour2/colour3) | Dominant Wavelength Max. (1/2/3) | (Pd) Power Dissipation (colour1/colour2/colour3) | (Ur) Reverse Voltage (1/2/3) | Lens Colour | Lens Tranparency | Lens Shape | Packaging | Operating Temperature Min. | Operating Temperature Max. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
01 | Manufacturers Part No. 1259-7SURSYGW/S530A3(EL1259-7SURSYGW) Everlight THT LED red, green diffuse Dome 80mcd/32mcd/ 60°/60°/ 2V/2V/
3mm | Customer Part No. Customer Project No. | 6.450 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 50 or mul. of 50) | LED | Everlight | THT | 3mm | red, green | 80 mcd / 32 mcd / | 60 ° / 60 ° / | 2 V / 2 V / | 20 mA / 20 mA / mA | 632 nm / 575 nm / | 624 nm / 573 nm / | 60 mW / 60 mW / | 5 V / 5 V / V | white | diffuse | Dome | Boxed | -40.0 °C | 85.0 °C | ||||||
02 | Manufacturers Part No. 1259-7UYSYGW/S530-A3(EL1259-7UYSYGW) Everlight THT LED yellow, green diffuse Dome 125mcd/80mcd/ 40°/40°/ 2V/2V/
3mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 50 or mul. of 50) | LED | Everlight | THT | 3mm | yellow, green | 125 mcd / 80 mcd / | 40 ° / 40 ° / | 2 V / 2 V / | 20 mA / 20 mA / mA | 591 nm / 575 nm / | 589 nm / 573 nm / | 60 mW / 60 mW / | 5 V / 5 V / V | white | diffuse | Dome | Boxed | -40.0 °C | 85.0 °C | ||||||

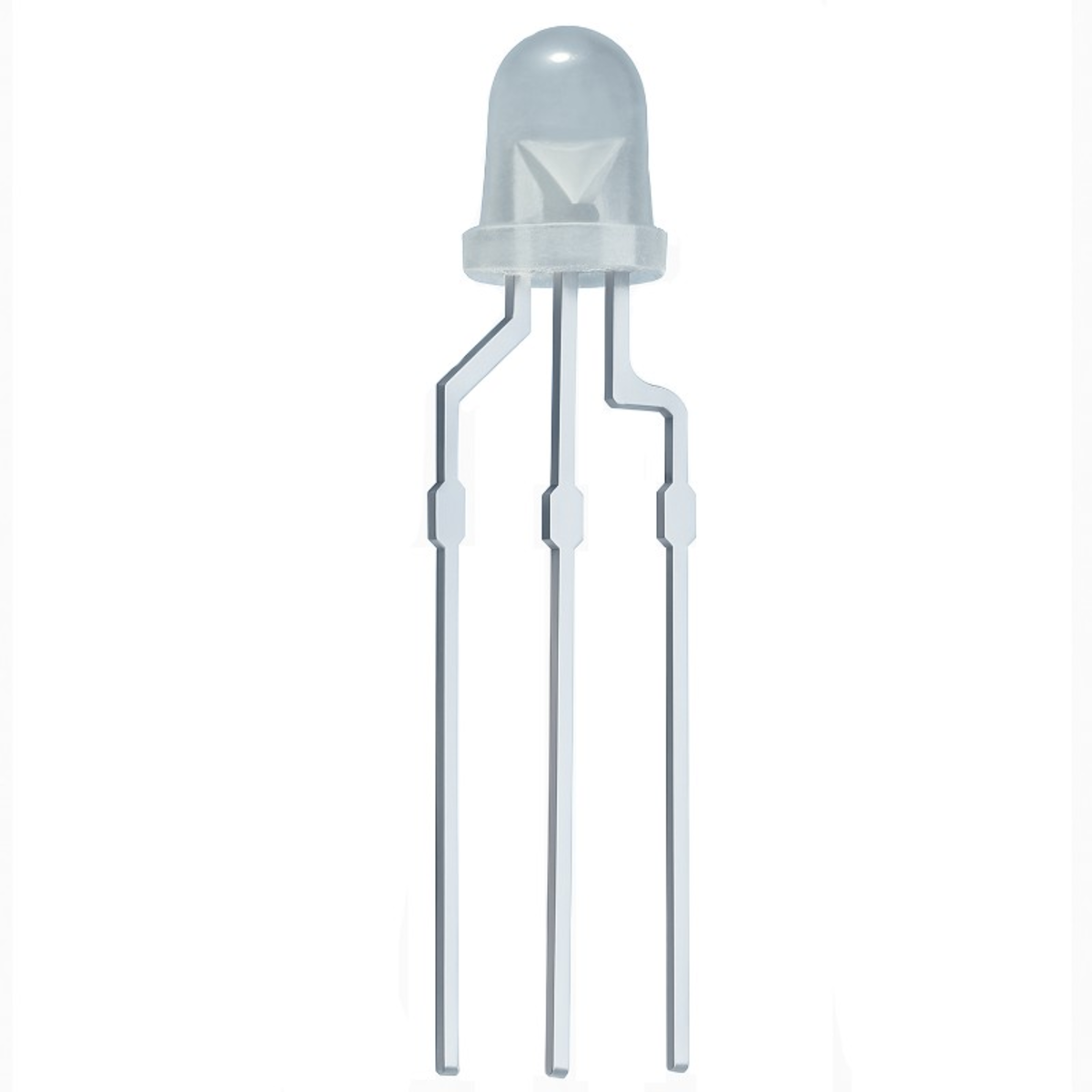

03 | Manufacturers Part No. 209SURSYGW/S530-A3(EL209SURSYGW) Everlight THT LED red, green diffuse Dome 80mcd/40mcd/ 80°/80°/ 2V/2V/
3mm | Customer Part No. Customer Project No. | 3.050 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 50 or mul. of 50) | LED | Everlight | THT | 3mm | red, green | 80 mcd / 40 mcd / | 80 ° / 80 ° / | 2 V / 2 V / | 20 mA / 20 mA / mA | 632 nm / 575 nm / | 624 nm / 573 nm / | 60 mW / 60 mW / | 5 V / 5 V / V | white | diffuse | Dome | Boxed | -40.0 °C | 85.0 °C | ||||||
04 | Manufacturers Part No. 339-1SURSYGW/S530-A2(EL339-1SURSYGW) Everlight THT LED red, green diffuse Dome 50mcd/32mcd/ 70°/70°/ 2V/2V/
5mm | Customer Part No. Customer Project No. | 12.500 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 25 or mul. of 25) | LED | Everlight | THT | 5mm | red, green | 50 mcd / 32 mcd / | 70 ° / 70 ° / | 2 V / 2 V / | 20 mA / 20 mA / mA | 632 nm / 575 nm / | 624 nm / 573 nm / | 60 mW / 60 mW / | 5 V / 5 V / V | white | diffuse | Dome | Boxed | -40.0 °C | 85.0 °C | ||||||
05 | Manufacturers Part No. LTL30EHJ(LTL30EHJ) Lite-On THT LED orange, green diffuse Dome 40mcd/29mcd/ 30°/30°/ 2V/2,1V/
5mm | Customer Part No. Customer Project No. | 8.300 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 50 or mul. of 50) | LED | Lite-On | THT | 5mm | orange, green | 40 mcd / 29 mcd / | 30 ° / 30 ° / | 2 V / 2,1 V / | 20 mA / 20 mA / mA | 621 nm / 569 nm / | 630 nm / 565 nm / | 100 mW / 100 mW / | 5 V / 5 V / V | white | diffuse | Dome | Boxed | -55.0 °C | 100.0 °C | ||||||

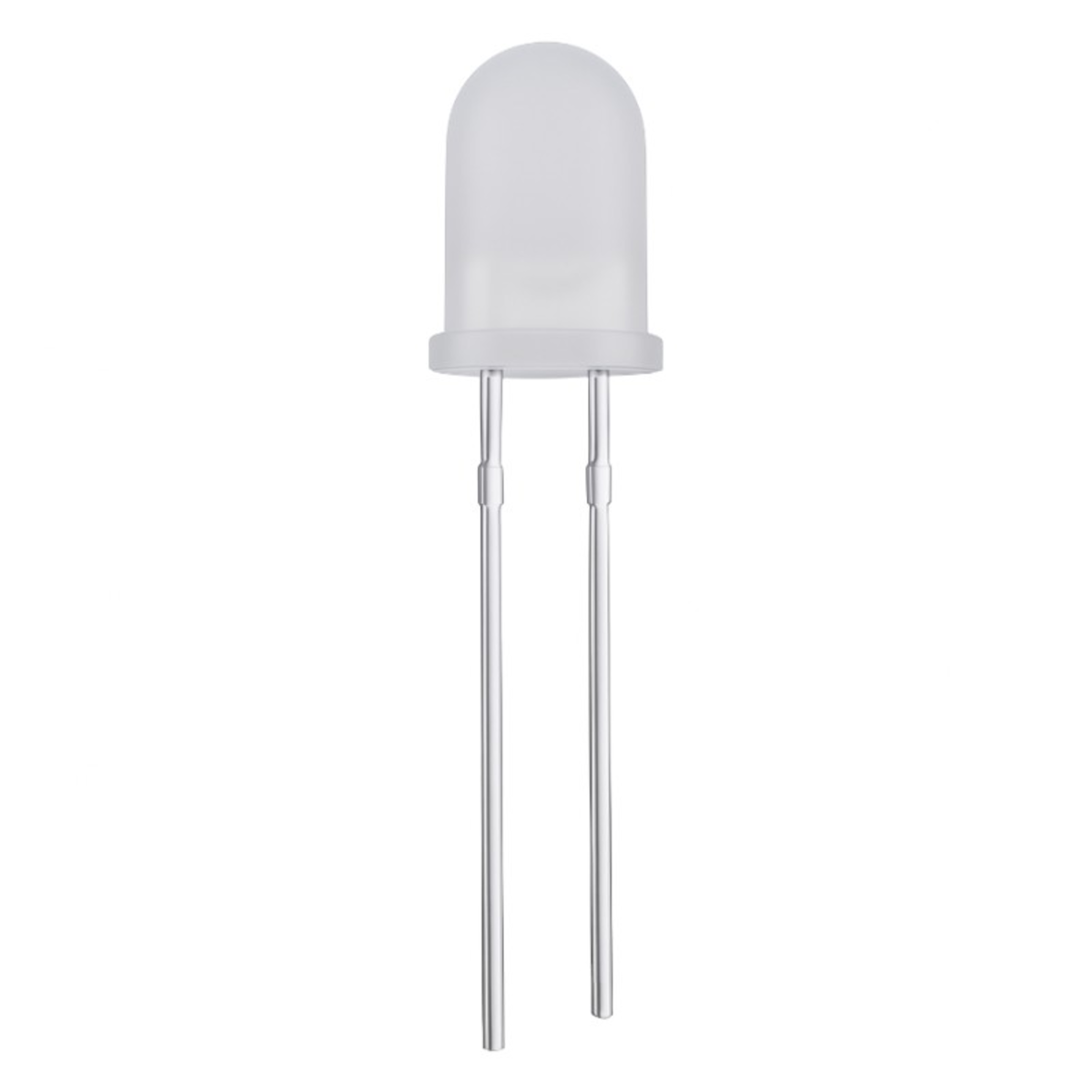

06 | Manufacturers Part No. 336SURSYGW/S530-A2(EL336SURSYGW) Everlight THT LED red, green diffuse Dome 50mcd/32mcd/ 90°/90°/ 2V/2V/
5mm | Customer Part No. Customer Project No. | 4.225 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 25 or mul. of 25) | LED | Everlight | THT | 5mm | red, green | 50 mcd / 32 mcd / | 90 ° / 90 ° / | 2 V / 2 V / | 20 mA / 20 mA / mA | 632 nm / 575 nm / | 624 nm / 573 nm / | 60 mW / 60 mW / | 5 V / 5 V / V | white | diffuse | Dome | Boxed | -40.0 °C | 85.0 °C | ||||||

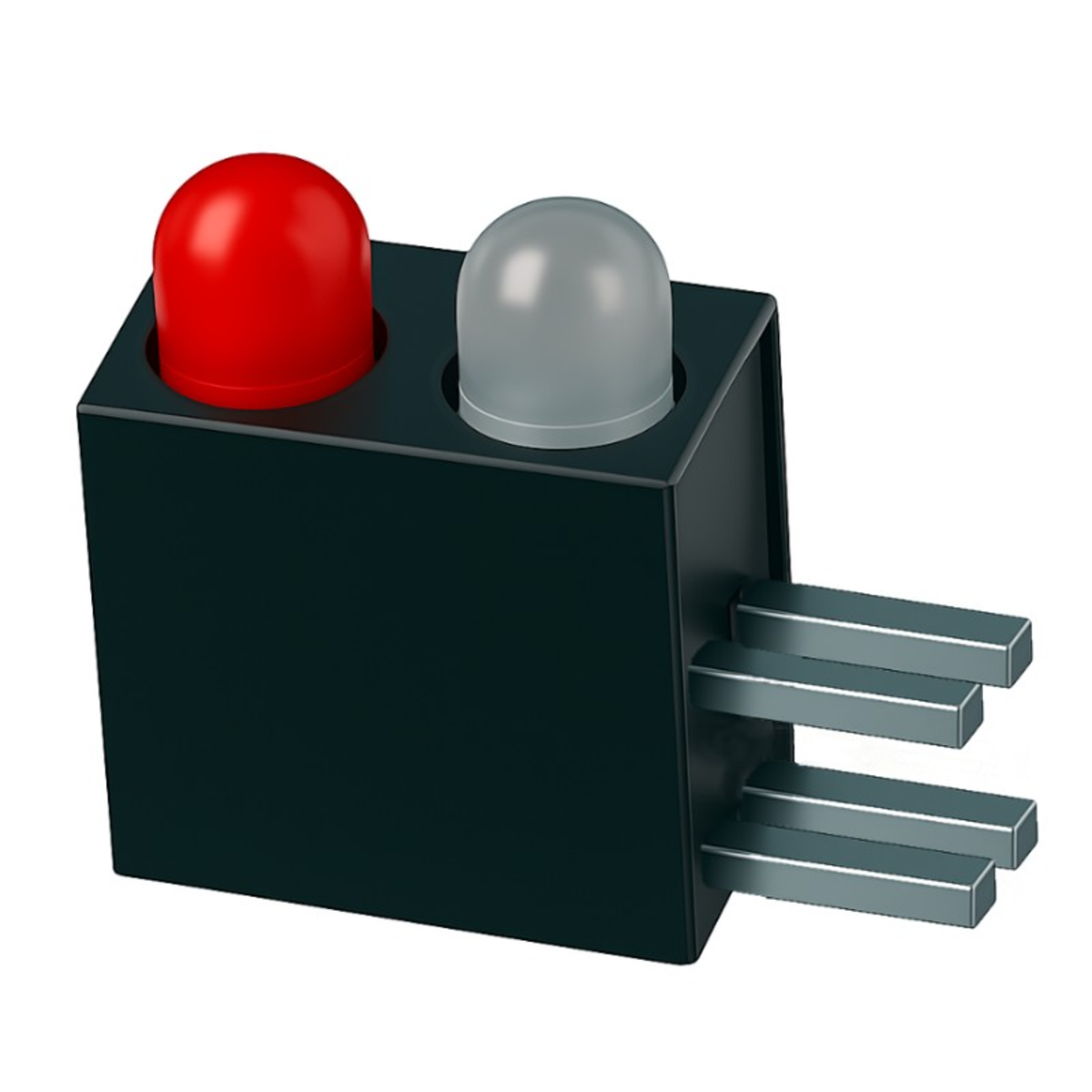

07 | Manufacturers Part No. A694B/SURSYGW/S530A3(ELA694B/SURSYGW) Everlight THT LED Array red, green diffuse 80mcd/80mcd/ 60°/60°/ 2V/2V/ | Customer Part No. Customer Project No. | 4.750 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 25 or mul. of 25) | LED Array | Everlight | THT | red, green | 80 mcd / 80 mcd / | 60 ° / 60 ° / | 2 V / 2 V / | 20 mA / 20 mA / mA | 632 nm / 575 nm / | 624 nm / 573 nm / | 60 mW / 60 mW / | 5 V / 5 V / V | diffuse | Boxed | -40.0 °C | 85.0 °C | |||||||||

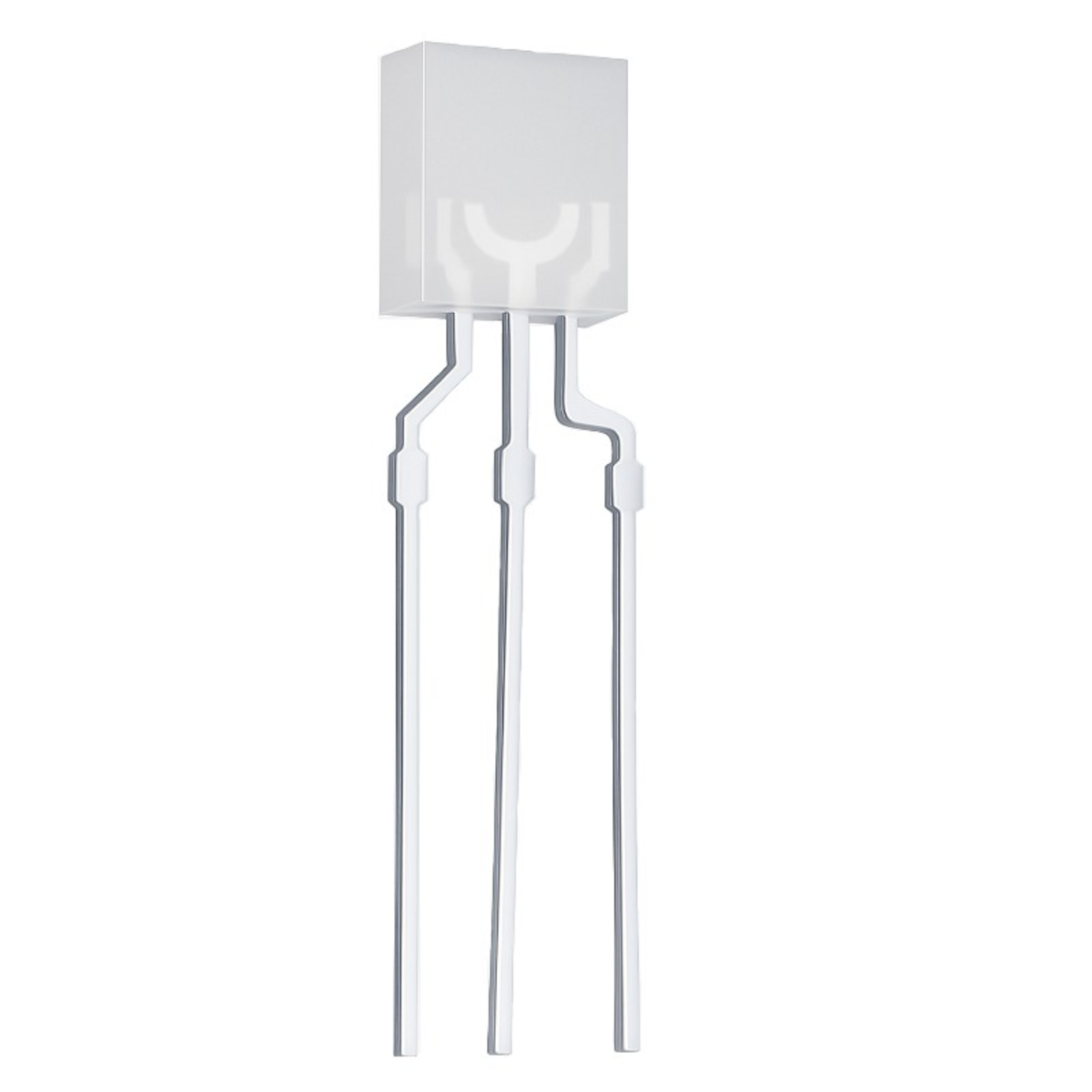

08 | Manufacturers Part No. 519-1SURSYGW/S530-A3(EL519-1SURSYGW) Everlight THT LED red, green diffuse Dome 12,5mcd/5mcd/ 180°/180°/ 2V/2V/
2x5mm | Customer Part No. Customer Project No. | 500 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Everlight | THT | 2x5mm | red, green | 12,5 mcd / 5 mcd / | 180 ° / 180 ° / | 2 V / 2 V / | 20 mA / 20 mA / mA | 632 nm / 575 nm / | 624 nm / 573 nm / | 60 mW / 60 mW / | 5 V / 5 V / V | white | diffuse | Dome | Boxed | -40.0 °C | 85.0 °C | ||||||

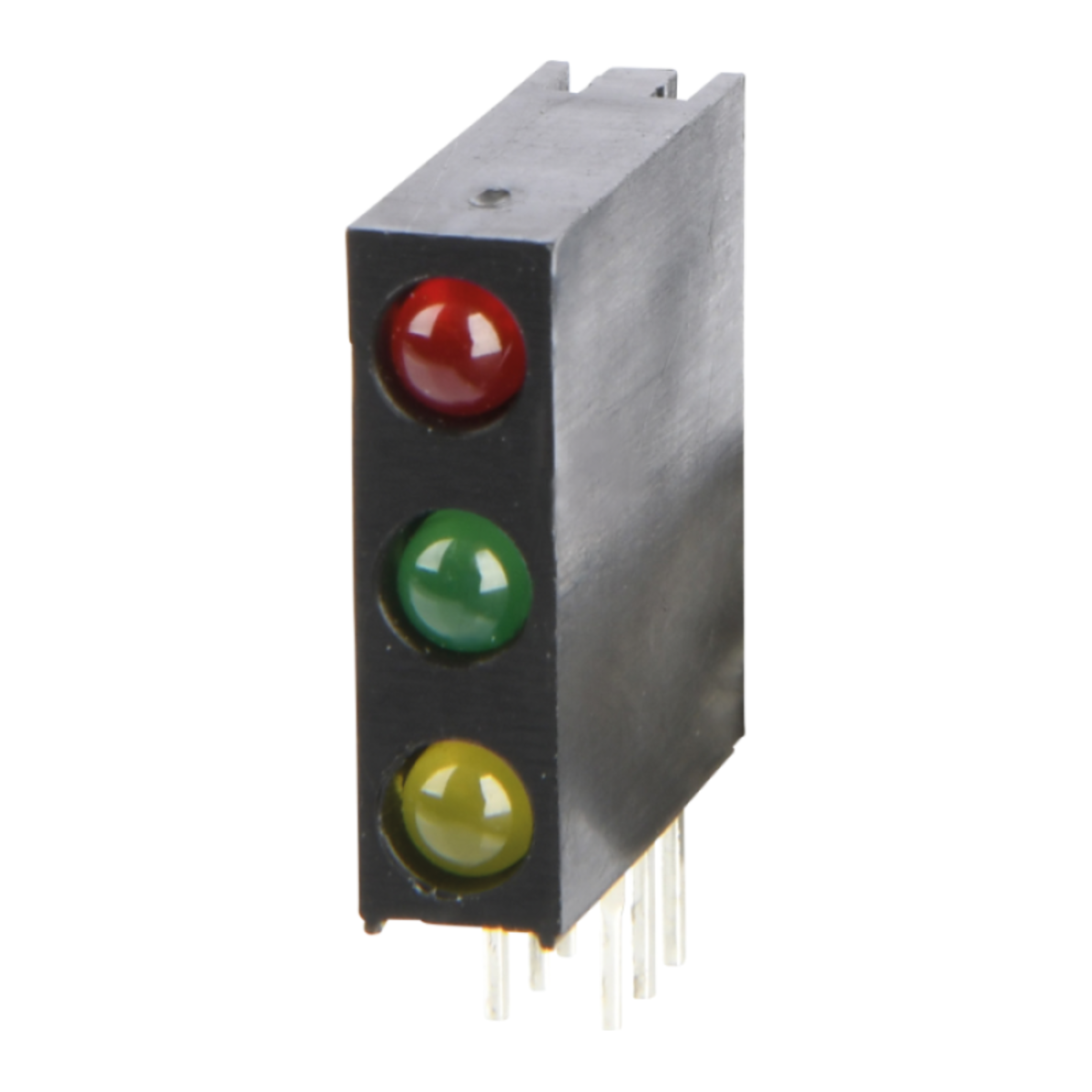

09 | Manufacturers Part No. A764B/SDRSYGUY/S53-3(ELA764B/SDRSYGUY) Everlight THT LED Array red, green,yellow diffuse 80mcd/50mcd/80mcd 60°/60°/60° 2V/2V/2V | Customer Part No. Customer Project No. | 1.340 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 20 or mul. of 20) | LED Array | Everlight | THT | red, green,yellow | 80 mcd / 50 mcd / 80 mcd | 60 ° / 60 ° / 60 ° | 2 V / 2 V / 2 V | 20 mA / 20 mA / 20 mA mA | 650 nm / 575 nm / 591 nm | 639 nm / 573 nm / 589 nm | 60 mW / 60 mW / 60 mW | 5 V / 5 V / 5 V V | diffuse | Boxed | -40.0 °C | 85.0 °C | |||||||||
10 | Manufacturers Part No. LTST-S326KGJRKT(LTST-S326KGJRKT) Lite-On SMD/SMT LED red, green clear 112mcd/112mcd/ 130°/130°/ 2,4V/2,4V/ | Customer Part No. Customer Project No. | 14.400 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | SMD/SMT | red, green | 112 mcd / 112 mcd / | 130 ° / 130 ° / | 2,4 V / 2,4 V / | 20 mA / 20 mA / mA | 639 nm / 574 nm / | 631 nm / 571 nm / | 75 mW / 75 mW / | 5 V / 5 V / V | colorless | clear | Reel | -30.0 °C | 85.0 °C | ||||||||
11 | Manufacturers Part No. LTST-E683RGBW(LTST-E683RGBW) Lite-On SMD/SMT LED red, green, blue (RGB) diffuse round 224mcd/900mcd/355mcd 120°/120°/120° 2,4V/3,8V/3,8V PLCC | Customer Part No. Customer Project No. | 10.000 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | SMD/SMT | PLCC | red, green, blue (RGB) | 224 mcd / 900 mcd / 355 mcd | 120 ° / 120 ° / 120 ° | 2,4 V / 3,8 V / 3,8 V | 20 mA / 20 mA / 20 mA mA | 639 nm / 518 nm / 468 nm | 631 nm / 525 nm / 470 nm | 72 mW / 80 mW / 80 mW | 5 V / 5 V / 5 V V | colorless | diffuse | round | Reel | -40.0 °C | 85.0 °C | ||||||
12 | Manufacturers Part No. LTST-G683RGBW(LTST-G683RGBW) Lite-On SMD/SMT LED red, green, blue (RGB) diffuse round 244mcd/710mcd/355mcd 120°/120°/120° 2,4V/3,8V/3,8V PLCC | Customer Part No. Customer Project No. | 5.900 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | SMD/SMT | PLCC | red, green, blue (RGB) | 244 mcd / 710 mcd / 355 mcd | 120 ° / 120 ° / 120 ° | 2,4 V / 3,8 V / 3,8 V | 30 mA / 20 mA / 20 mA mA | 639 nm / 518 nm / 465 nm | 624 nm / 520 nm / 465 nm | 72 mW / 80 mW / 80 mW | 5 V / 5 V / 5 V V | diffuse | round | Reel | -40.0 °C | 85.0 °C | |||||||
13 | Manufacturers Part No. LTST-G683GEBW(LTST-G683GEBW) Lite-On SMD/SMT LED red, green, blue (RGB) diffuse round 900mcd/2.240mcd/355mcd 120°/120°/120° 2,4V/3,8V/3,8V PLCC | Customer Part No. Customer Project No. | 6.900 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | SMD/SMT | PLCC | red, green, blue (RGB) | 900 mcd / 2.240 mcd / 355 mcd | 120 ° / 120 ° / 120 ° | 2,4 V / 3,8 V / 3,8 V | 30 mA / 20 mA / 20 mA mA | 630 nm / 518 nm / 465 nm | 617 nm / 520 nm / 465 nm | 72 mW / 80 mW / 80 mW | 5 V / 5 V / 5 V V | diffuse | round | Reel | -40.0 °C | 85.0 °C | |||||||
14 | Manufacturers Part No. LTST-C195KGJSKT(LTST-C195KGJSKT) Lite-On SMD/SMT LED yellow, green clear rectangular 75mcd/35mcd/ 130°/130°/ 2V/2V/ 606 | Customer Part No. Customer Project No. | 6.100 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | SMD/SMT | 606 | yellow, green | 75 mcd / 35 mcd / | 130 ° / 130 ° / | 2 V / 2 V / | 20 mA / 20 mA / mA | 591 nm / 574 nm / | 589 nm / 571 nm / | 75 mW / 75 mW / | 5 V / 5 V / V | colorless | clear | rectangular | Reel | -30.0 °C | 85.0 °C | ||||||
15 | Manufacturers Part No. 1259-7SDRSYGW/S530A3(EL1259-7SDRSYGW) Everlight THT LED red, green diffuse Dome 32mcd/50mcd/ 50°/50°/ 2V/2V/
3mm | Customer Part No. Customer Project No. | 2.800 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 50 or mul. of 50) | LED | Everlight | THT | 3mm | red, green | 32 mcd / 50 mcd / | 50 ° / 50 ° / | 2 V / 2 V / | 20 mA / 20 mA / mA | 650 nm / 575 nm / | 639 nm / 573 nm / | 60 mW / 60 mW / | 5 V / 5 V / V | white | diffuse | Dome | Boxed | -40.0 °C | 85.0 °C | ||||||
16 | Manufacturers Part No. LTST-C235KGKRKT(LTST-C235KGKRKT) Lite-On SMD/SMT LED red, green clear rectangular 45mcd/35mcd/ 130°/130°/ 2V/2V/ 1210 | Customer Part No. Customer Project No. | 16.400 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | SMD/SMT | 1210 | red, green | 45 mcd / 35 mcd / | 130 ° / 130 ° / | 2 V / 2 V / | 20 mA / 20 mA / mA | 639 nm / 574 nm / | 631 nm / 571 nm / | 75 mW / 75 mW / | 5 V / 5 V / V | colorless | clear | rectangular | Reel | -30.0 °C | 85.0 °C | ||||||
17 | Manufacturers Part No. LTST-G563EGBW(LTST-G563EGBW) Lite-On SMD/SMT LED red, green, blue (RGB) diffuse round 1.120mcd/2.800mcd/560mcd 120°/120°/120° 2,6V/3,8V/3,8V PLCC | Customer Part No. Customer Project No. | 12.100 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | SMD/SMT | PLCC | red, green, blue (RGB) | 1.120 mcd / 2.800 mcd / 560 mcd | 120 ° / 120 ° / 120 ° | 2,6 V / 3,8 V / 3,8 V | 20 mA / 20 mA / 20 mA mA | 630 nm / 518 nm / 468 nm | 617 nm / 520 nm / 465 nm | 130 mW / 114 mW / 114 mW | 5 V / 5 V / 5 V V | colorless | diffuse | round | Reel | -40.0 °C | 85.0 °C | ||||||
18 | Manufacturers Part No. LTST-E683FGBW(LTST-E683FGBW) Lite-On SMD/SMT LED orange, green, blue (OGB) diffuse round 355mcd/900mcd/355mcd 120°/120°/120° 1,8V/2,8V/2,8V PLCC | Customer Part No. Customer Project No. | 6.000 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | SMD/SMT | PLCC | orange, green, blue (OGB) | 355 mcd / 900 mcd / 355 mcd | 120 ° / 120 ° / 120 ° | 1,8 V / 2,8 V / 2,8 V | 20 mA / 20 mA / 20 mA mA | 611 nm / 518 nm / 468 nm | 605 nm / 525 nm / 470 nm | 72 mW / 80 mW / 80 mW | 5 V / 5 V / 5 V V | colorless | diffuse | round | Reel | -40.0 °C | 85.0 °C | ||||||
19 | Manufacturers Part No. LTST-G683ESBW(LTST-G683ESBW) Lite-On SMD/SMT LED red, yellow, blue (RYB) diffuse round 900mcd/900mcd/355mcd 120°/120°/120° 2,4V/2,4V/3,8V PLCC | Customer Part No. Customer Project No. | 5.900 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | SMD/SMT | PLCC | red, yellow, blue (RYB) | 900 mcd / 900 mcd / 355 mcd | 120 ° / 120 ° / 120 ° | 2,4 V / 2,4 V / 3,8 V | 30 mA / 30 mA / 20 mA mA | 632 nm / 591 nm / 468 nm | 617 nm / 584,5 nm / 465 nm | 72 mW / 72 mW / 80 mW | 5 V / 5 V / 5 V V | diffuse | round | Reel | -40.0 °C | 85.0 °C | |||||||
20 | Manufacturers Part No. LTST-G563ZEGBW(LTST-G563ZEGBW) Lite-On SMD/SMT LED red, green, blue (RGB) clear round 1.000mcd/2.200mcd/480mcd 120°/120°/120° 2,4V/3,4V/3,4V PLCC | Customer Part No. Customer Project No. | 13.000 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 100 or mul. of 100) | LED | Lite-On | SMD/SMT | PLCC | red, green, blue (RGB) | 1.000 mcd / 2.200 mcd / 480 mcd | 120 ° / 120 ° / 120 ° | 2,4 V / 3,4 V / 3,4 V | 20 mA / 20 mA / 20 mA mA | 630 nm / 523 nm / 458 nm | 628 nm / 530 nm / 470 nm | 75 mW / 105 mW / 105 mW | / / V | colorless | clear | round | Reel | -40.0 °C | 85.0 °C | ||||||
21 | Manufacturers Part No. 204SURSYGW/S530-A3(EL204SURSYGW) Everlight THT LED red, green diffuse Dome 32mcd/20mcd/ 60°/60°/
3mm | Customer Part No. Customer Project No. | 14.450 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 50 or mul. of 50) | LED | Everlight | THT | 3mm | red, green | 32 mcd / 20 mcd / | 60 ° / 60 ° / | 632 nm / 575 nm / | 624 nm / 573 nm / | 60 mW / 60 mW / | 5 V / 5 V / V | white | diffuse | Dome | Boxed | -40.0 °C | 85.0 °C | ||||||||
22 | Manufacturers Part No. 67-23SDRSUGSUBC/TR8(EL67-23SDRSUGSUB) Everlight SMD/SMT LED red, green, blue (RGB) clear 57mcd/216mcd/112mcd // 2V/3,5V/3,5V PLCC | Customer Part No. Customer Project No. | 210 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 10 or mul. of 10) | LED | Everlight | SMD/SMT | PLCC | red, green, blue (RGB) | 57 mcd / 216 mcd / 112 mcd | / / | 2 V / 3,5 V / 3,5 V | 20 mA / 20 mA / 20 mA mA | 650 nm / 518 nm / 468 nm | 639 nm / 525 nm / 470 nm | 130 mW / 130 mW / 130 mW | 5 V / 5 V / 5 V V | colorless | clear | Reel | -40.0 °C | 85.0 °C | |||||||

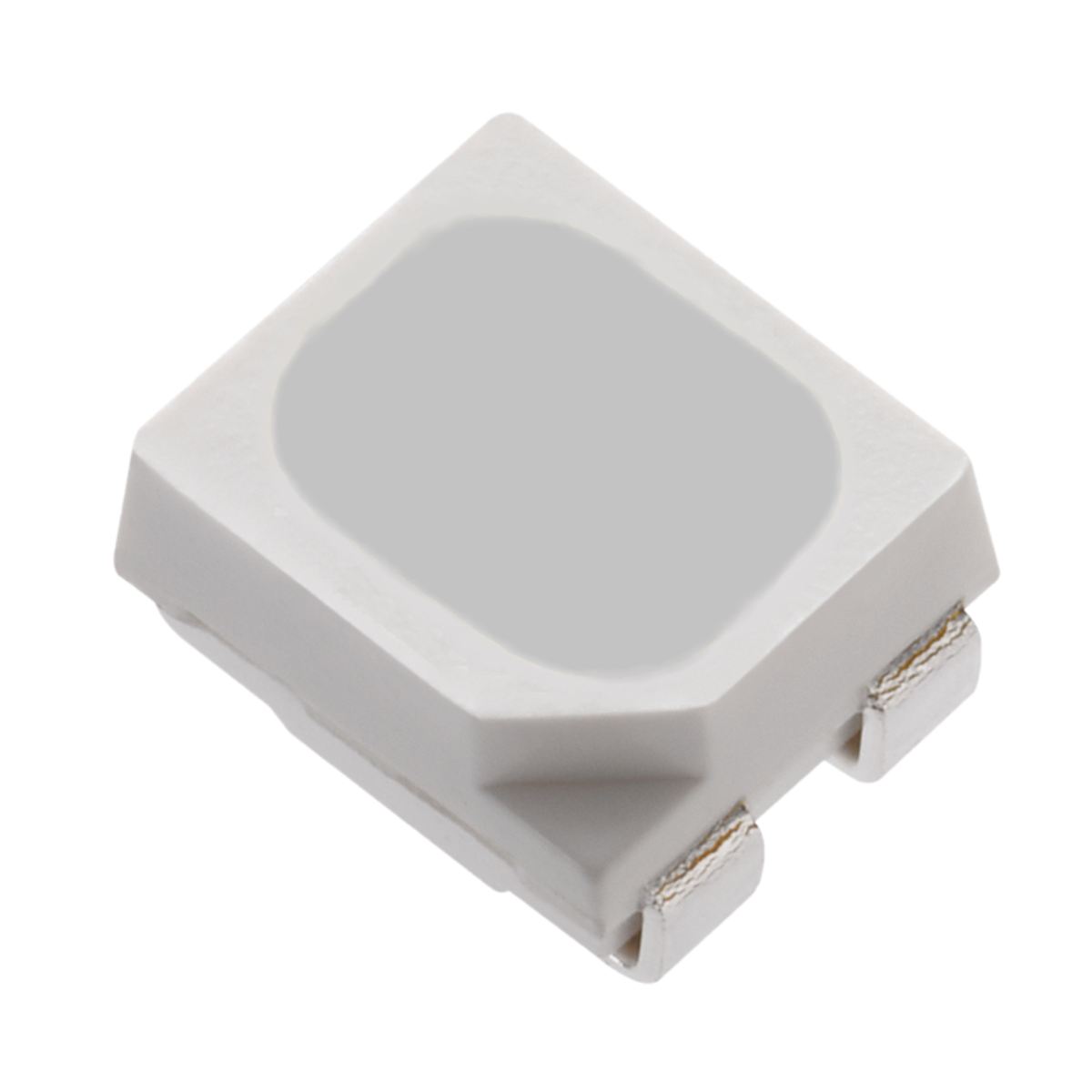

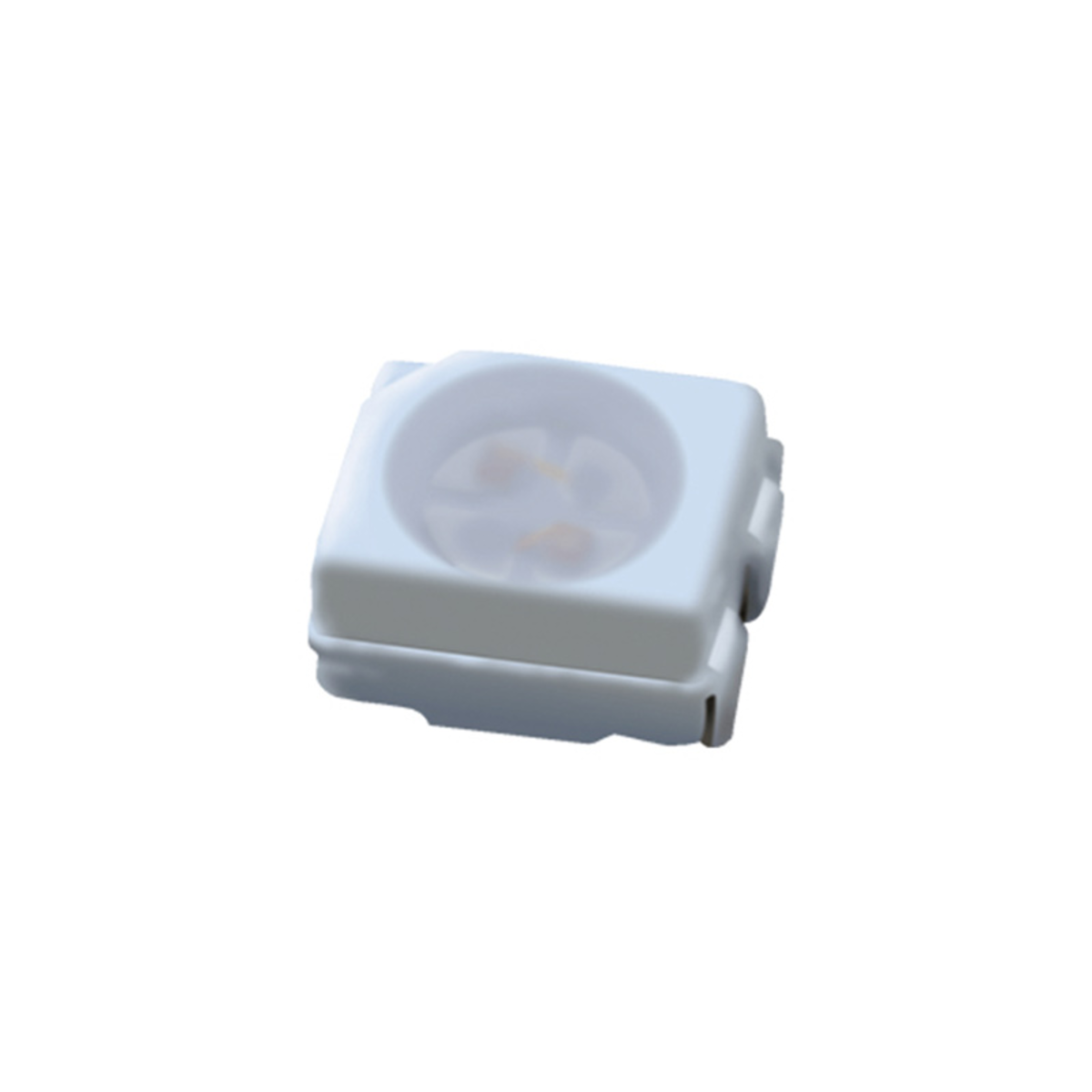

23 | Manufacturers Part No. 67-22/R6Y2C-B31/2T(EL67-22R6Y2CB31/2T) Everlight SMD/SMT LED red, yellow clear 285mcd/285mcd/ 120°/120°/ 2,35V/2,35V/ PLCC | Customer Part No. Customer Project No. | 2.000 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 50 or mul. of 50) | LED | Everlight | SMD/SMT | PLCC | red, yellow | 285 mcd / 285 mcd / | 120 ° / 120 ° / | 2,35 V / 2,35 V / | 20 mA / 20 mA / mA | 632 nm / 591 nm / | 631 nm / 594 nm / | 60 mW / 60 mW / | 5 V / 5 V / V | colorless | clear | Reel | -40.0 °C | 85.0 °C | |||||||

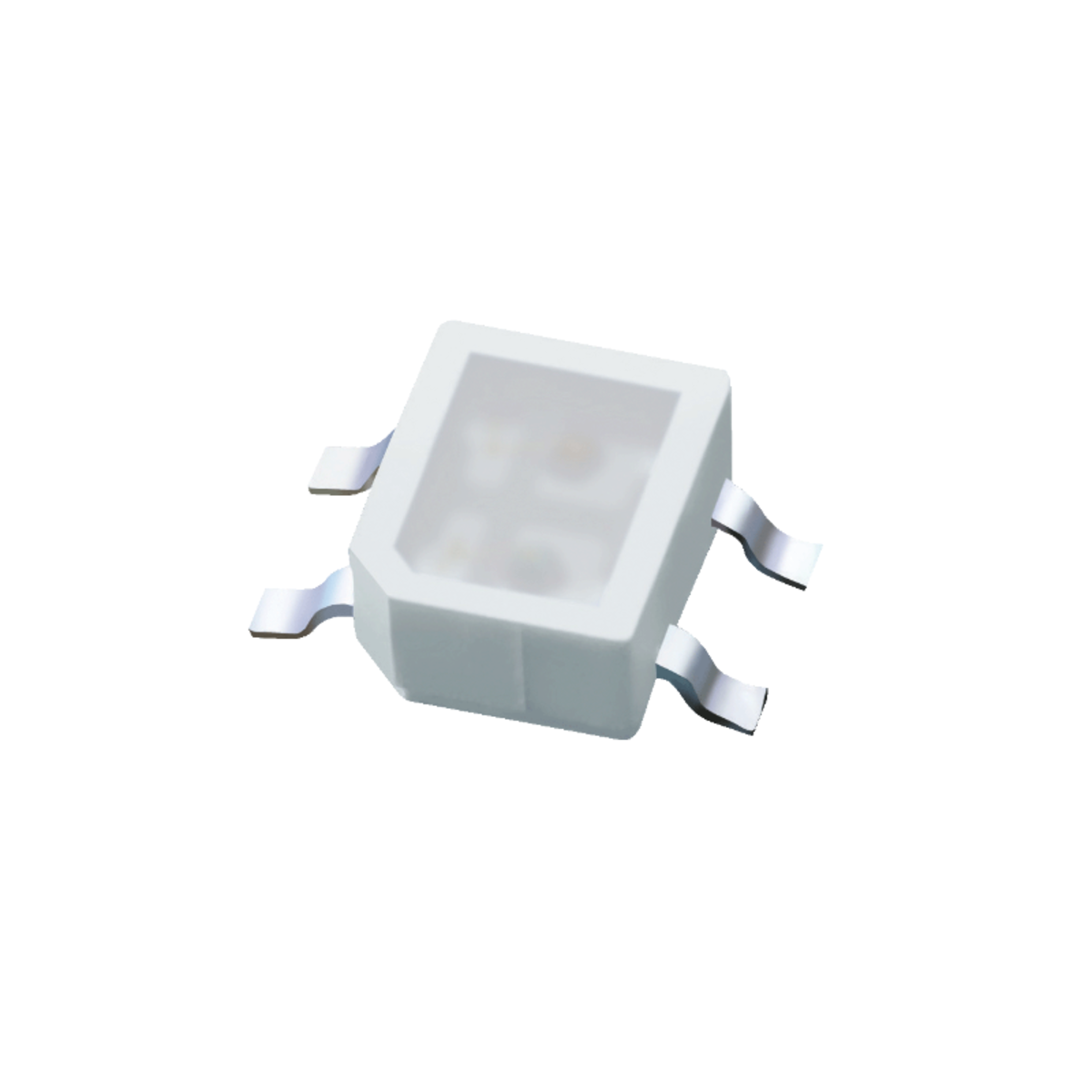

24 | Manufacturers Part No. 93-22SURSYGC/S530-A3(EL93-22SURSYGC) Everlight SMD/SMT LED red, green clear 41mcd/17mcd/ 130°/130°/ 2V/2V/ | Customer Part No. Customer Project No. | 1.100 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 50 or mul. of 50) | LED | Everlight | SMD/SMT | red, green | 41 mcd / 17 mcd / | 130 ° / 130 ° / | 2 V / 2 V / | 20 mA / 20 mA / mA | 632 nm / 575 nm / | 624 nm / 573 nm / | 60 mW / 60 mW / | 5 V / 5 V / V | colorless | clear | Reel | -40.0 °C | 85.0 °C | ||||||||
25 | Manufacturers Part No. LTST-C19FD1WT(LTST-C19FD1WT) Lite-On SMD/SMT LED orange, green, blue (OGB) diffuse rectangular 180mcd/180mcd/450mcd 130°/130°/130° 3,5V/2V/3,5V | Customer Part No. Customer Project No. | 2.950 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 50 or mul. of 50) | LED | Lite-On | SMD/SMT | orange, green, blue (OGB) | 180 mcd / 180 mcd / 450 mcd | 130 ° / 130 ° / 130 ° | 3,5 V / 2 V / 3,5 V | 20 mA / 20 mA / 20 mA mA | 611 nm / 468 nm / 520 nm | 605 nm / 470 nm / 525 nm | 75 mW / 80 mW / 80 mW | 3,5 V / 3,5 V / 3,5 V V | white | diffuse | rectangular | Reel | -20.0 °C | 80.0 °C |
