NS-15

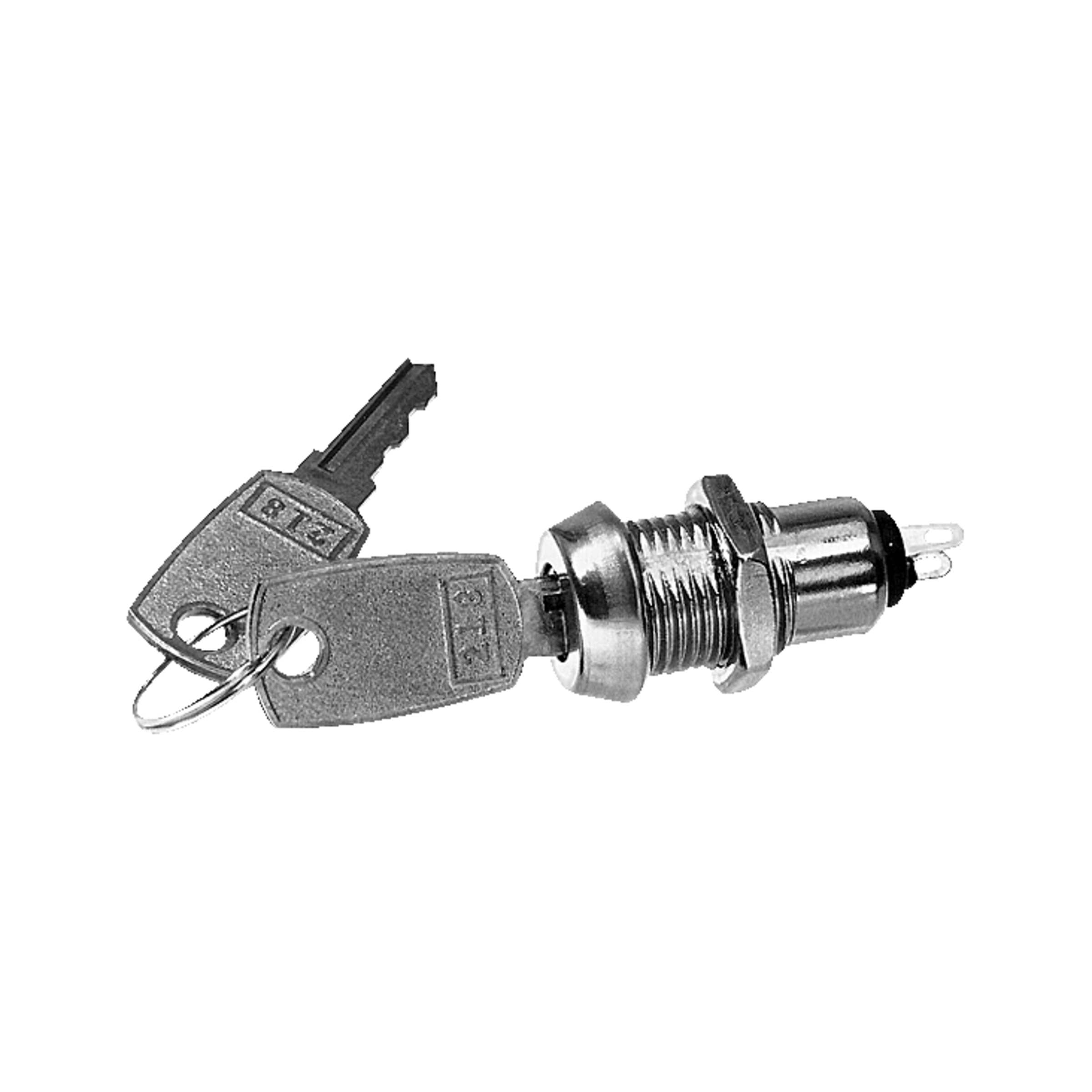

Monacor NS Key switch 1xE-0 15mm 2A 1 Pol(e)
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 14.03.2023
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Key switch
- Series
- NS
- Body colour
- silver
- Type of actuator
- Key
- Function
- 1xE-0
- Actuator colour
- silver
- Diameter
- 15 mm
- Number of poles
- 1
- illumination
- unlit
- Operating voltage AC
- 120 V AC
- Switching current, max.
- 2 A
- RoHS-Conform
Specifications
Open all

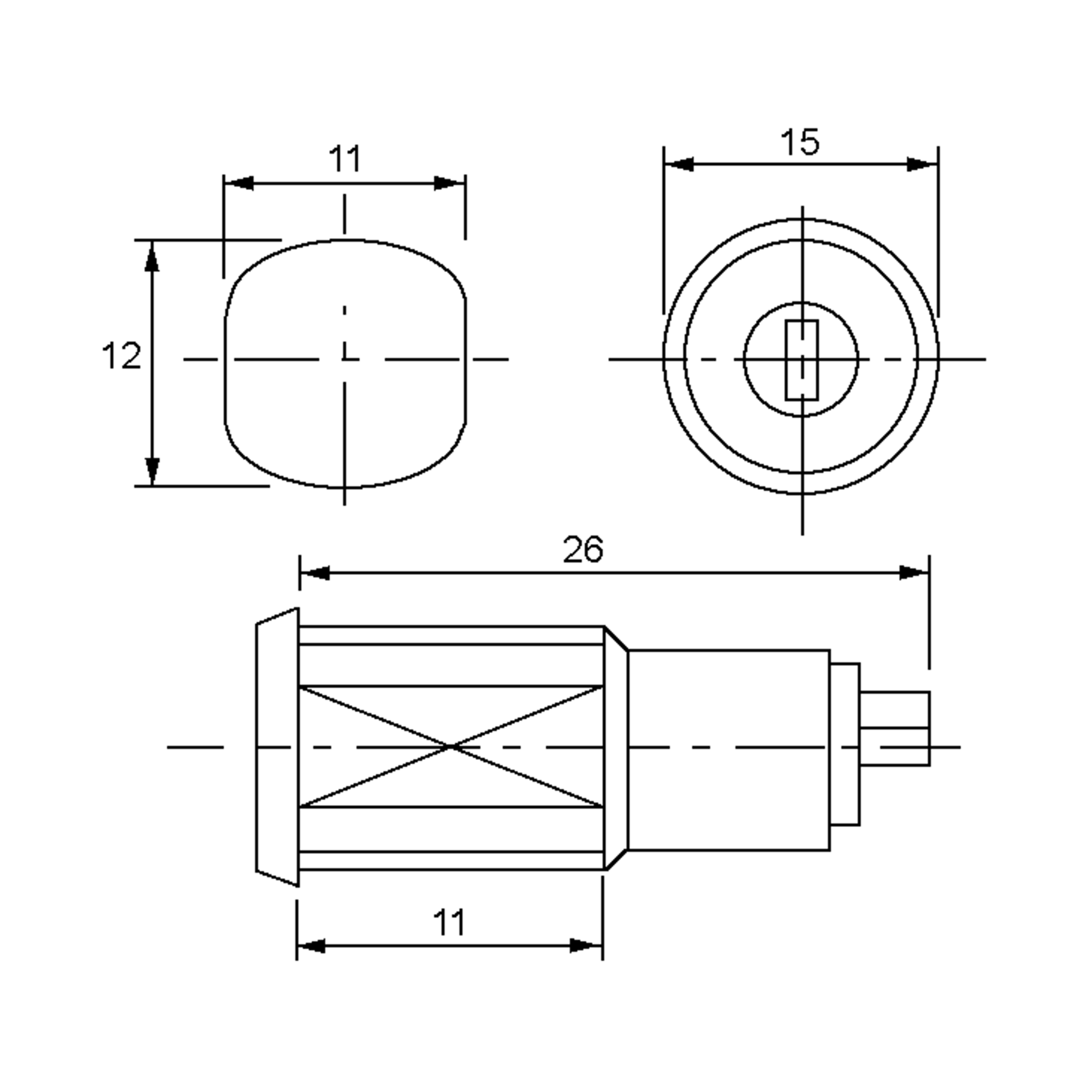

Dimensions and weights
- Dimension: Length
- 26 mm
- Diameter
- 15 mm
Technical features
- Operating voltage AC
- 120 V AC
- Switching current, max.
- 2 A
Mechanical properties
- Number of poles
- 1
