B4MASK48N1G21000

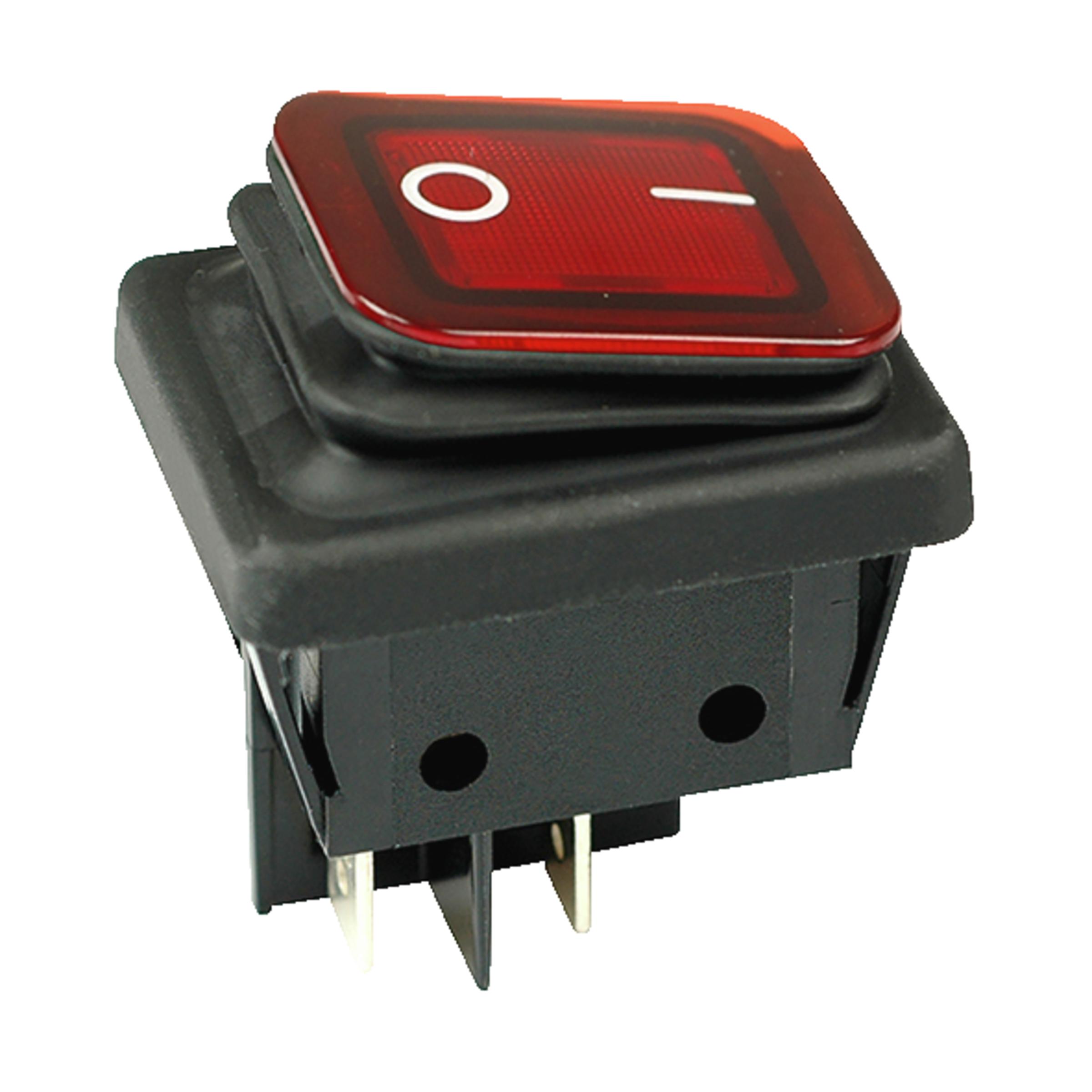

Molveno Rocker Switches B4MASK 2x0-E black I/O 22x30mm 250VAC 16A Surface area illuminated red

Manufacturer Part No.
B4MASK48N1G21000
Schukat Part No.
B448MASK-RT
Manufacturer
Molveno
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1.360 Pcs. in stock

Next Stock Receipt
Week 05/2025
320 Pcs.
Planned delivery time
Ø 13 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 640 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Rocker Switches
Series
B4MASK
Body colour
black
contacts
2xNO
Type of actuator
Rocker
Function
2x0-E
Imprint
I/O
Actuator colour
red
illumination
illuminated
Operating voltage AC
250 V AC
Switching current, max.
16 A
Panel cut out
22x30mm
Operating temperature range, max.
120 °C
Approvals
CE
ENEC
cULus
Flammability
UL94V2
Protection class
IP65
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Molveno
Series
  • B4MASK
Product group
  • E2130 Molveno Rocker Switches 22x30mm IP65
Type
  • Rocker Switches
contacts
  • 2xNO
Function
  • 2x0-E
Body colour
  • black
Type of actuator
  • Rocker
Actuator colour
  • red
Imprint
  • I/O
illumination
  • illuminated
Type of lighting
  • Surface area
Lighting Colour
  • red
Features

  • - For 22x30mm panel cut-outs
    - 2-pole design
    - With connector 6,3x0,8mm
    - Protection class IP65

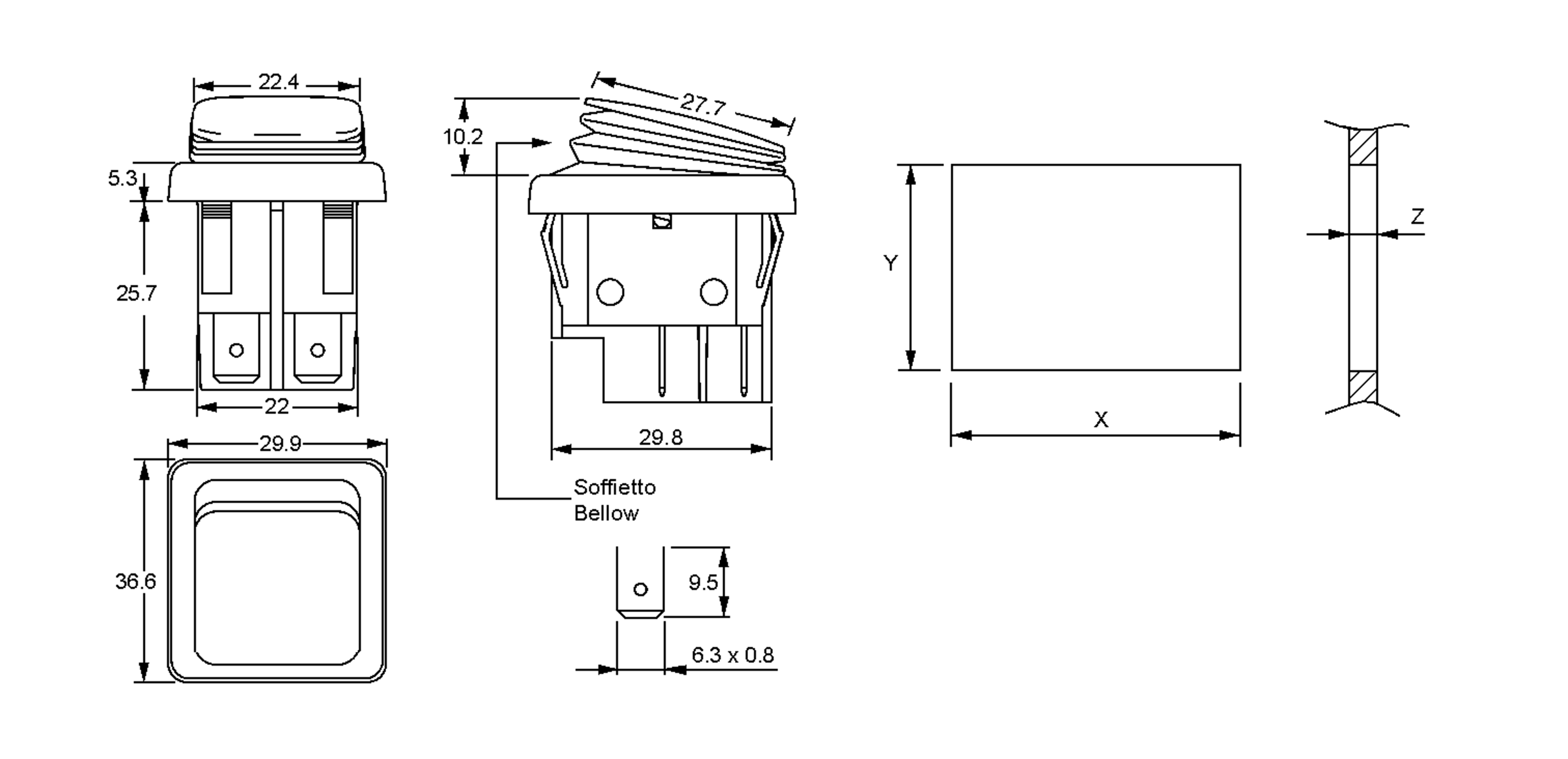

Dimensions and weights

Dimension: Length
  • 36.6 mm
Dimension: Width
  • 29.9 mm
Dimension: Height
  • 31 mm
Panel cut out
  • 22x30mm

Operating conditions

Operating temperature range, max.
  • 120 °C

Technical features

Operating voltage AC
  • 250 V AC
Switching current, max.
  • 16 A
Switching current with inductive load, max.
  • 8 A

Safety/Certifications

Approvals
  • CE
  • ENEC
  • cULus
Flammability
  • UL94V2
Protection class
  • IP65
