A11131121000

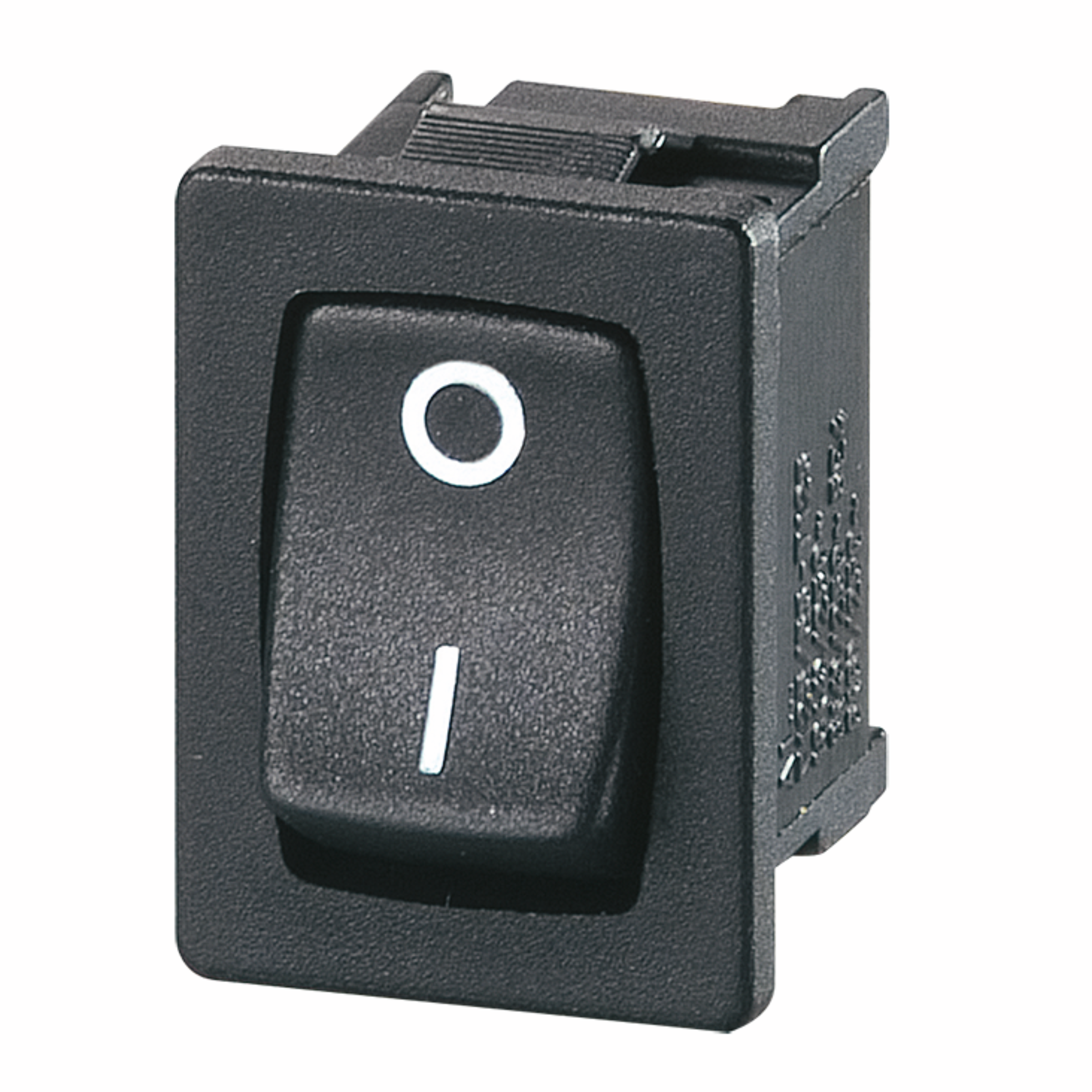

Molveno Rocker Switches A1 1x0-E black I/O 13x19mm 250VAC 10A unlit
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.280 Pcs. in stock
Planned delivery time
Ø 13 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Rocker Switches
- Series
- A1
- Body colour
- black
- contacts
- 1xNO
- Type of actuator
- Rocker
- Function
- 1x0-E
- Imprint
- I/O
- Actuator colour
- black
- Number of poles
- 1
- illumination
- unlit
- Operating voltage AC
- 250 V AC
- Switching current, max.
- 10 A
- Panel cut out
- 13x19mm
- Operating temperature range, max.
- 125 °C
- Approvals
- CE
ENEC
cULus - Flammability
- UL94V2
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 21 mm
- Dimension: Width
- 15 mm
- Dimension: Height
- 13.7 mm
- Panel cut out
- 13x19mm
Operating conditions
- Operating temperature range, max.
- 125 °C
Technical features
- Operating voltage AC
- 250 V AC
- Mechanical service life
- 50 x 10^3 Betätigungen
- Switching current, max.
- 10 A
- Switching current with inductive load, max.
- 6 A
Mechanical properties
- Connection
- Push-in connector
- Number of poles
- 1
Safety/Certifications
- Approvals
- CE
- ENEC
- cULus
- Flammability
- UL94V2
