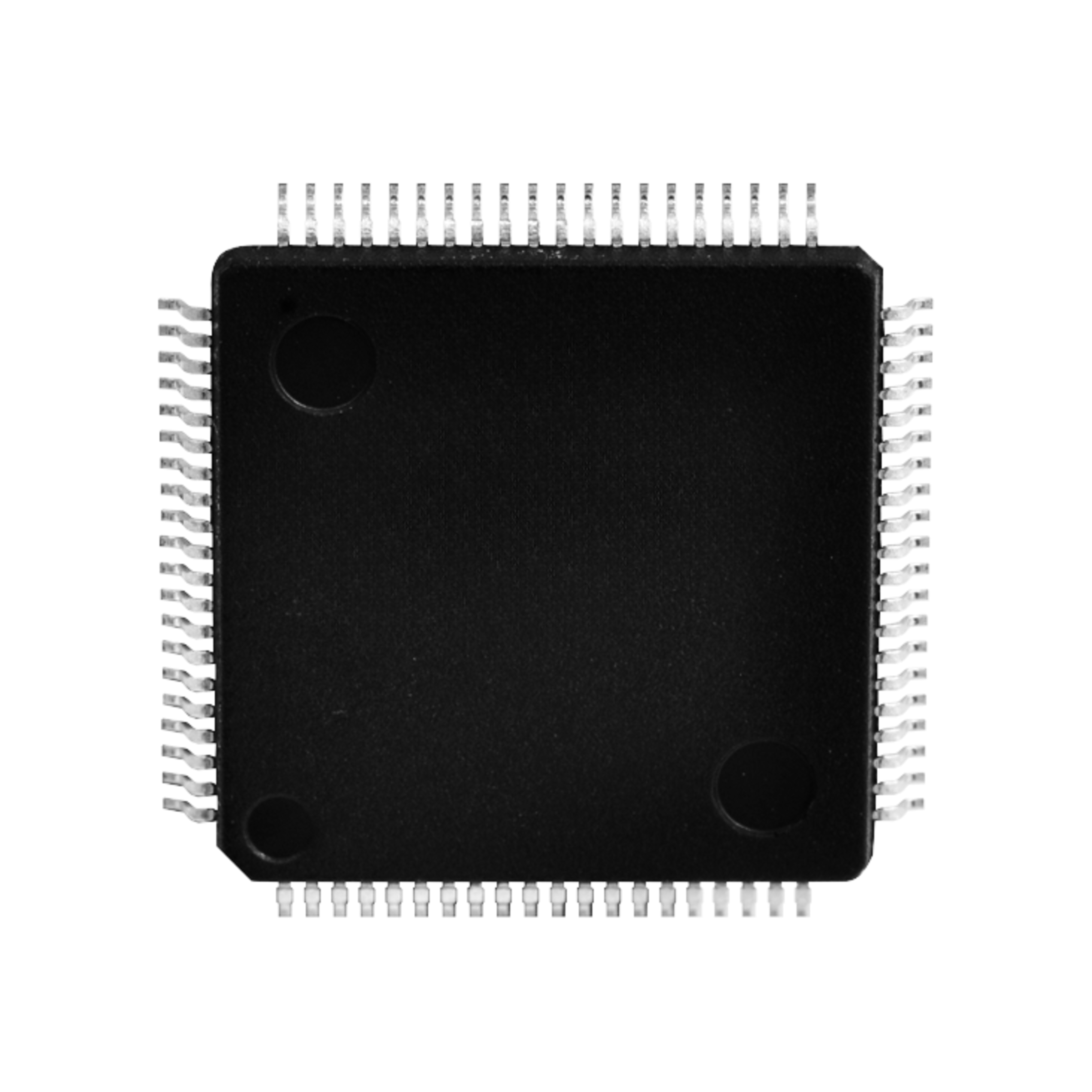

DSPIC30F6013A-30I/PF
Microchip Digital Signal Controller (DSC) 16bit 120MHz 132KB 6KB TQFP-80
Manufacturer Part No.
DSPIC30F6013A-30I/PF
Schukat Part No.
PIC30F6013A-30I/PF
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
75 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 90 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Digital Signal Controller (DSC)
- Supply Voltage Min.
- 2.5 V
- Supply Voltage Max.
- 5.5 V
- Databus Width
- 16 bit Bit
- CPU clock frequency Max.
- 120 MHz
- Program Memory Size
- 132 KB
- Memory Size
- 6 KB
- Manufacturer Package
- TQFP-80
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Storage Temperature Min.
- -65 °C
- Storage Temperature Max.
- 150 °C
Electrical properties
- CPU clock frequency Max.
- 120 MHz
- Databus Width
- 16 bit Bit
- Supply Voltage Min.
- 2.5 V
- Supply Voltage Max.
- 5.5 V
- Program Memory Size
- 132 KB
- Memory Size
- 6 KB
- EEPROM
- 2,048 Byte
