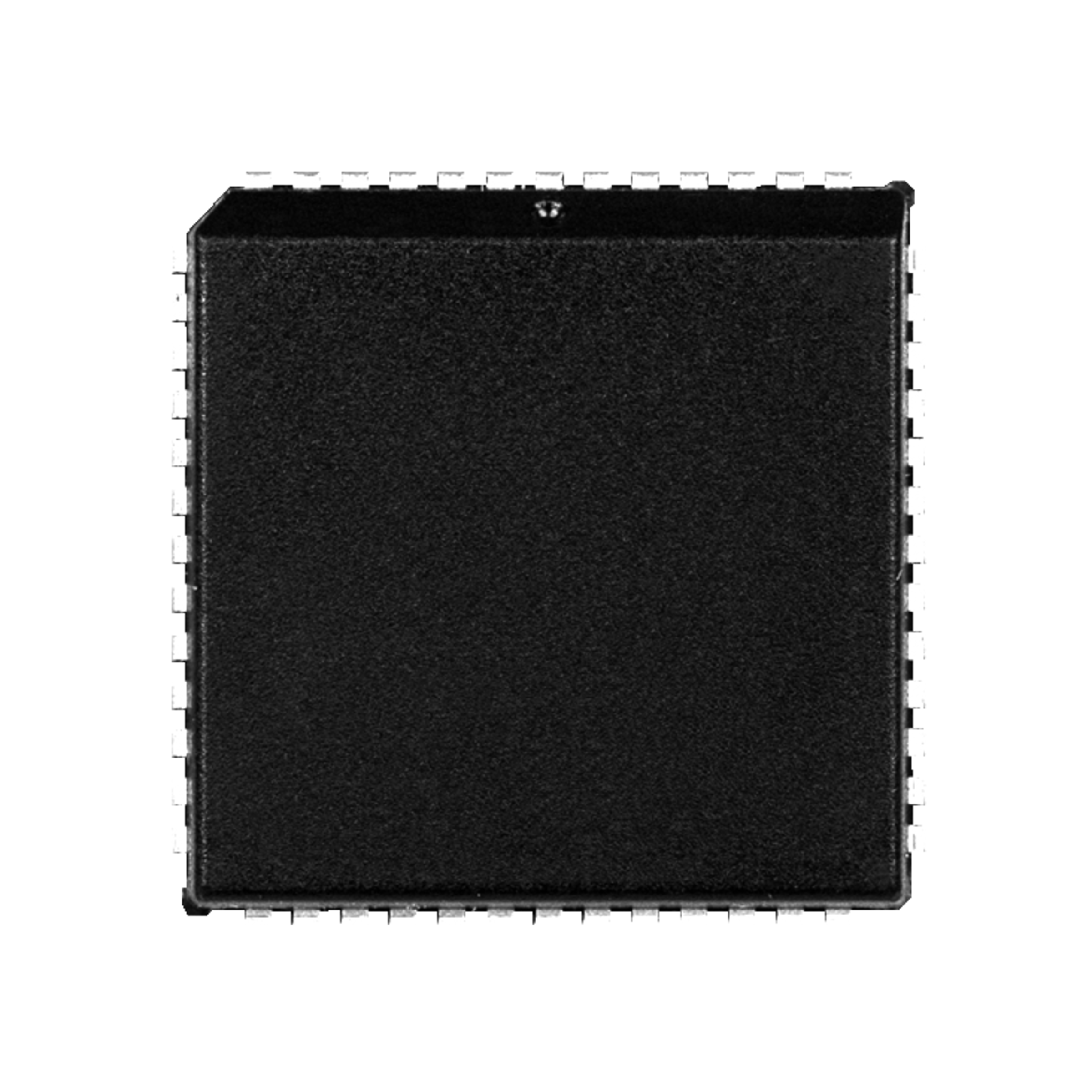

AT89C5131A-S3SUM
Microchip 8-Bit Microcontroller 32KB 34I/O 48MHz 1KB 80C51 PLCC-52
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 25.02.2025
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle 23 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- 8-Bit Microcontroller
- Supply Voltage Min.
- 2.7 V
- Supply Voltage Max.
- 5.5 V
- CPU clock frequency Max.
- 48 MHz
- CPU Core
- 80C51
- Program Memory Size
- 32 KB
- Memory Size
- 1 KB
- EEPROM
- 1,000 Byte
- Number of I/O Pins
- 34 I/O
- Manufacturer Package
- PLCC-52
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature, min. (TA)
- -40 °C
- Operating Temperature, max. (TA)
- 85 °C
- Storage Temperature Min.
- -65 °C
- Storage Temperature Max.
- 150 °C
Electrical Properties
- CPU Core
- 80C51
- CPU clock frequency Max.
- 48 MHz
- Databus Width
- 8 bit Bit
- Supply Voltage Min.
- 2.7 V
- Supply Voltage Max.
- 5.5 V
- Real-Time Clock
- ADC Resolution
- No ADC
- Program Memory Size
- 32 KB
- Memory Size
- 1 KB
- Number of I/O Pins
- 34 I/O
- EEPROM
- 1,000 Byte
