OV-7604-C7 ±20 PPM TA QC

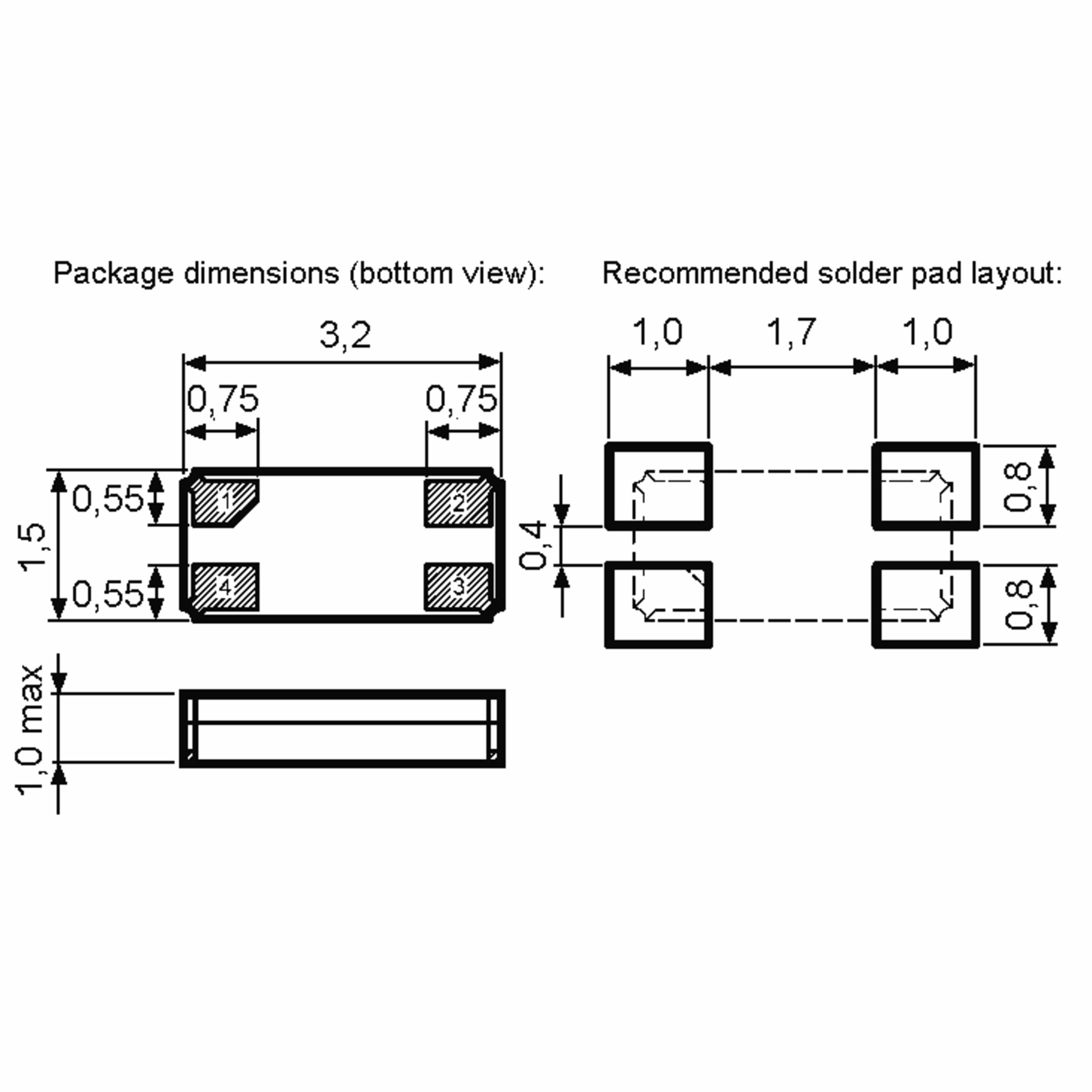

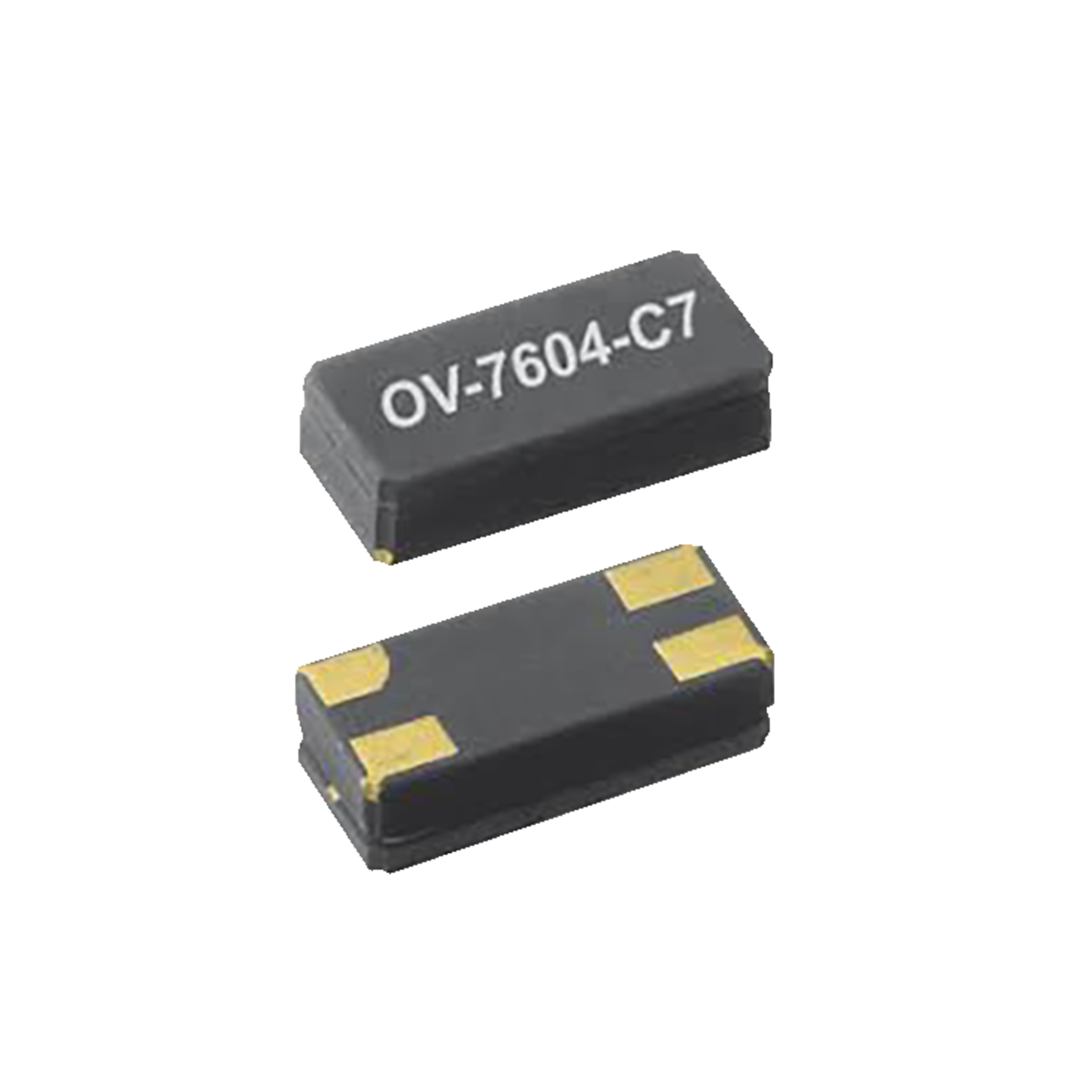

Micro Crystal SMD quartz oscillator OV-7604-C7 Ceramic case CMOS/XTAL 32,768kHz ±20ppm 3,5mm x 1,5mm x 1mm
Manufacturer Part No.
OV-7604-C7 ±20 PPM TA QC
Schukat Part No.
OV-7604-C7
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
4.550 Pcs. in stock
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 3000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- SMD quartz oscillator
- Series
- OV-7604-C7
- Package/Case
- Ceramic case
- Frequency
- 32,768 kHz
- Frequency tolerance
- ±20 ppm
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 125 °C
Technical features
- Frequency
- 32,768 kHz
- Frequency tolerance
- ±20 ppm
- Operating voltage (V)
- 1.2 V
- Ageing, max.
- ±3 ppm
- Symmetry at 50% VDD, min.
- 40 %
- Symmetry at 50% VDD, max.
- 60 %
Documents
OV-7604-C7_App-Manual.pdf
OV-7604-C7_App-Manual.pdf
