OM-7604-C7 ±20 PPM TA QC

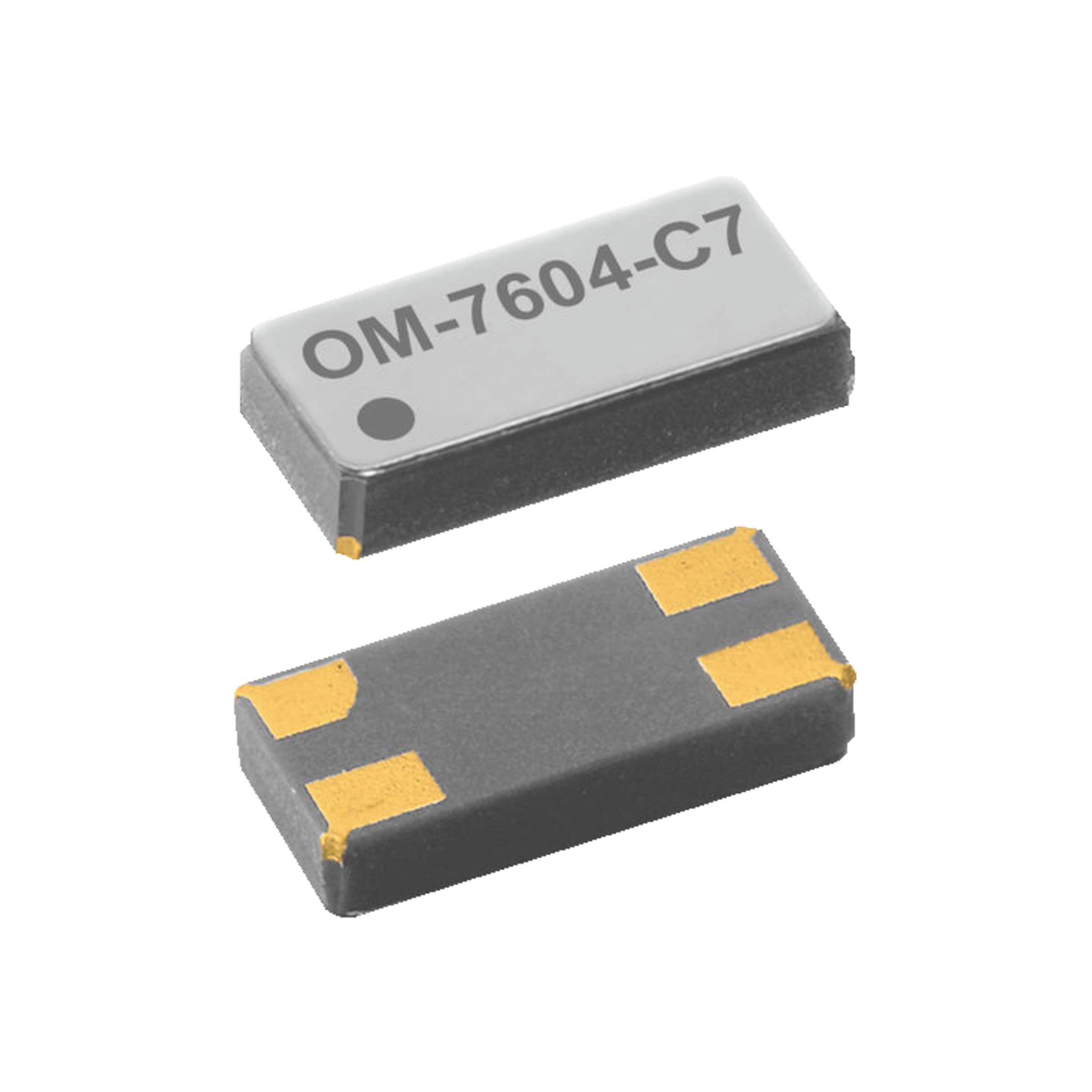

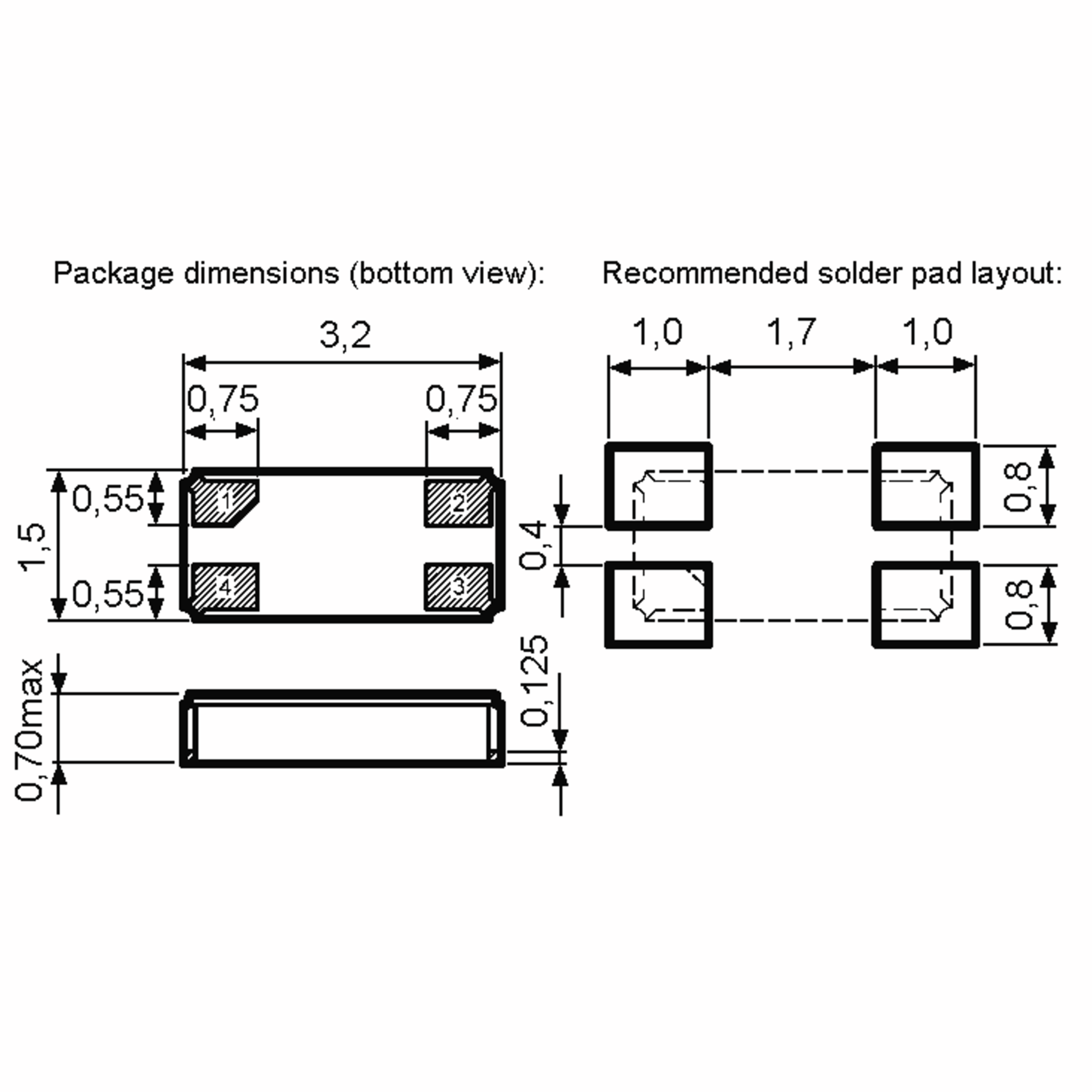

Micro Crystal SMD quartz oscillator OM-7604-C7 Ceramic case CMOS/XTAL 32,768kHz ±20ppm 3,2mm x 1,5mm x 0,7mm
Manufacturer Part No.
OM-7604-C7 ±20 PPM TA QC
Schukat Part No.
OM-7604-C7
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
10 Pcs.
10 Pcs.
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- SMD quartz oscillator
- Series
- OM-7604-C7
- Package/Case
- Ceramic case
- Frequency
- 32,768 kHz
- Frequency tolerance
- ±20 ppm
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 125 °C
Technical features
- Frequency
- 32,768 kHz
- Frequency tolerance
- ±20 ppm
- Operating voltage (V)
- 1.2 V
- Ageing, max.
- ±3 ppm
- Symmetry at 50% VDD, min.
- 40 %
- Symmetry at 50% VDD, max.
- 60 %
Documents
OM-7604-C7_App-Manual.pdf
OM-7604-C7_App-Manual.pdf
