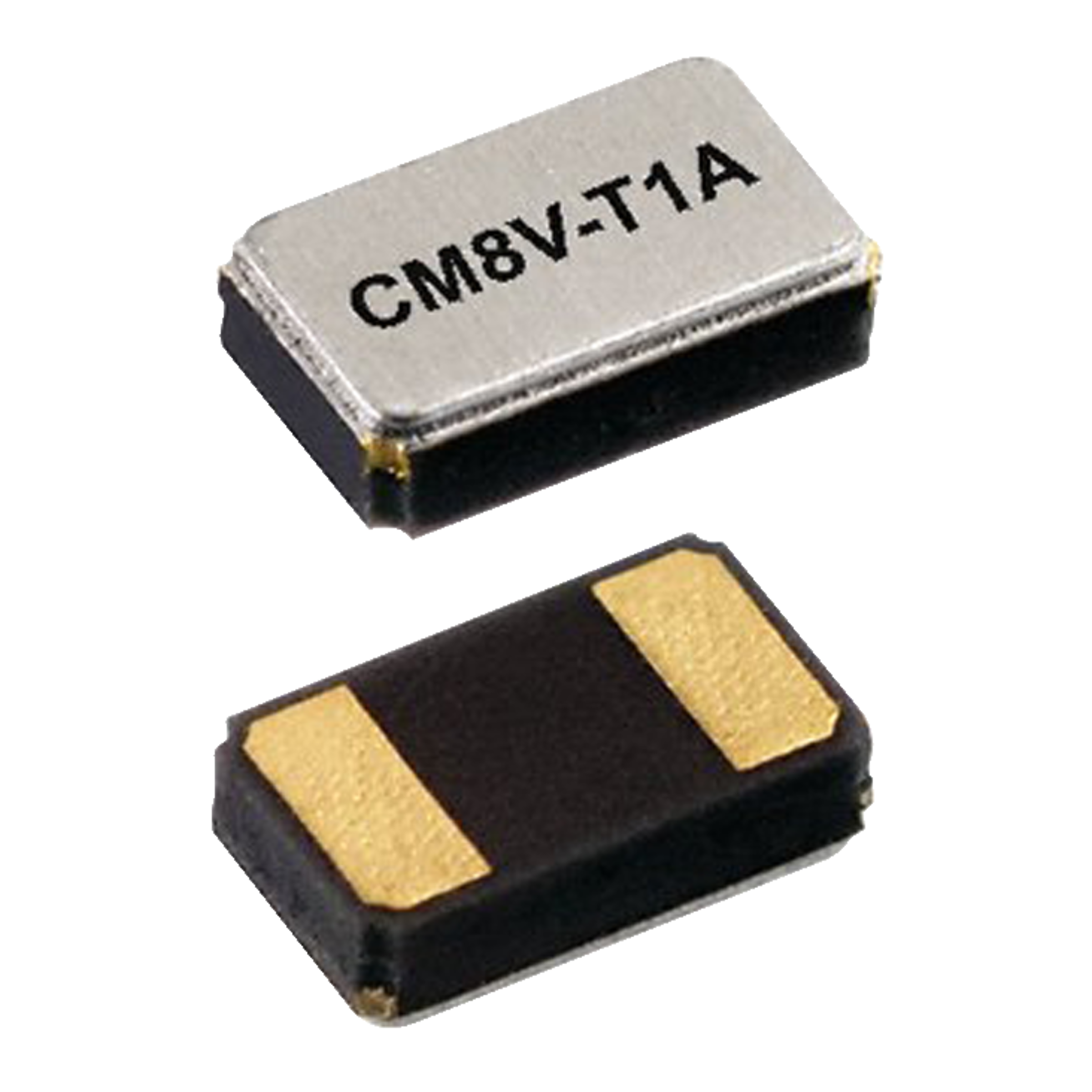

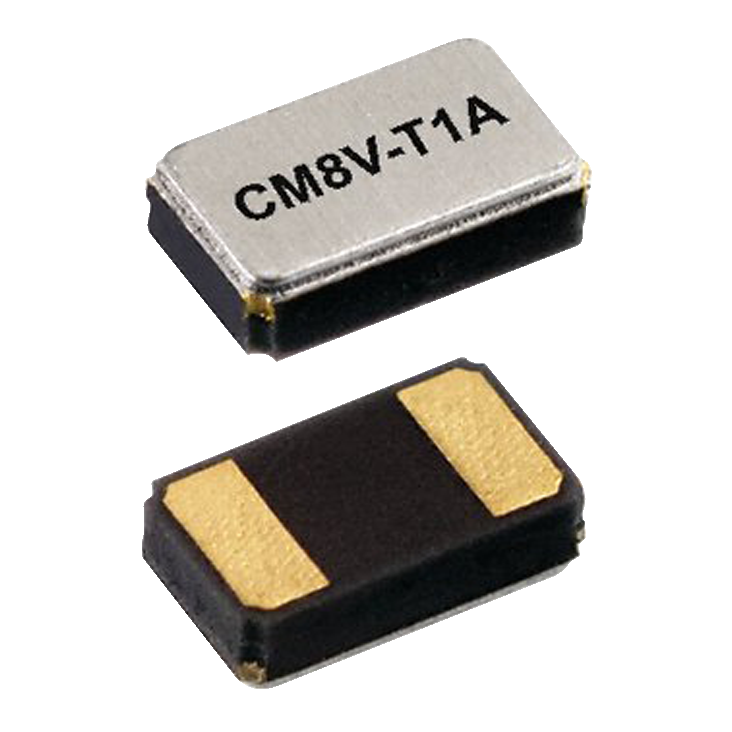

CM8V-T1A 32.768-9-20-TAQC
Micro Crystal SMD Tuning Fork Quartz Crystal CM8V-T1A Ceramic case 0,032768MHz ±20ppm 2mm x 1,2mm x 0,6mm 9pF
Manufacturer Part No.
CM8V-T1A 32.768-9-20-TAQC
Schukat Part No.
CM8V-32-9-2-TAQC
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
100 Pcs.
100 Pcs.
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- CM8V-T1A
- Package/Case
- Ceramic case
- Frequency
- 0.033 MHz
- Frequency tolerance
- ±20 ppm
- Load capacity
- 9 pF
- Ageing, max.
- ±3 ppm/Jahr
- Load, max.
- 0,5 µW
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 2 mm
- Dimension: Width
- 1.2 mm
- Dimension: Height
- 0.6 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Minimum Storage Temperature
- -55 °C
- Maximum Storage Temperature
- 125 °C
Technical features
- Frequency
- 0.033 MHz
- Frequency tolerance
- ±20 ppm
- Load capacity
- 9 pF
- Load, max.
- 0,5 µW
- Ageing, max.
- ±3 ppm/Jahr
