MODULED XTRA 9950-B

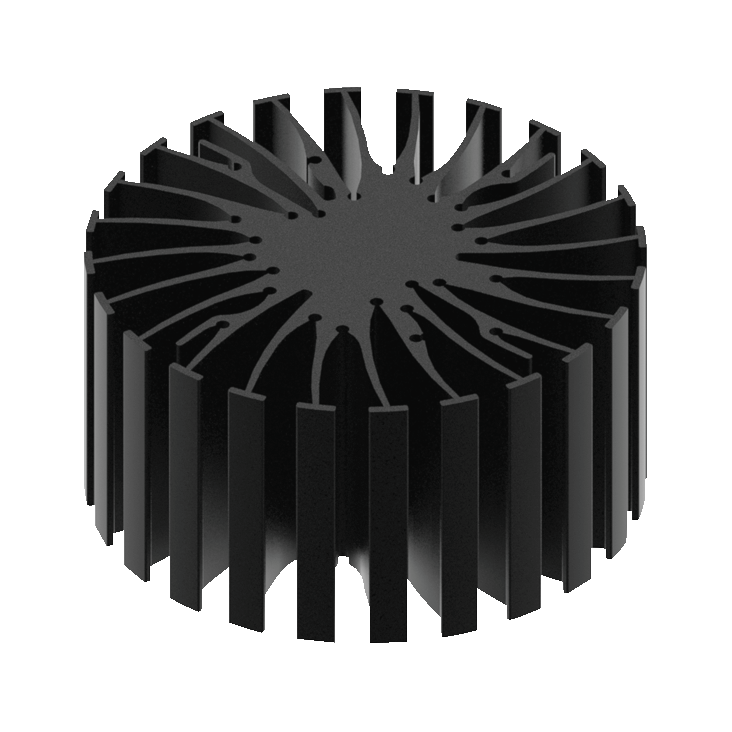

MechaTronix LED heatsinks ModuLED Xtra Aluminum anodized black 99 mm
Manufacturer Part No.
MODULED XTRA 9950-B
Schukat Part No.
MODULEDXTRA9950-B
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Planned delivery time
Ø 11 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 18 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- LED heatsinks
- Series
- ModuLED Xtra
- Colour
- black
- Dimension: Height
- 50 mm
- Diameter
- 99 mm
- Thermal resistance
- 1.34 K/W
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Height
- 50 mm
- Diameter
- 99 mm
- Weight
- 398 g
Technical features
- Thermal resistance
- 1.34 K/W
