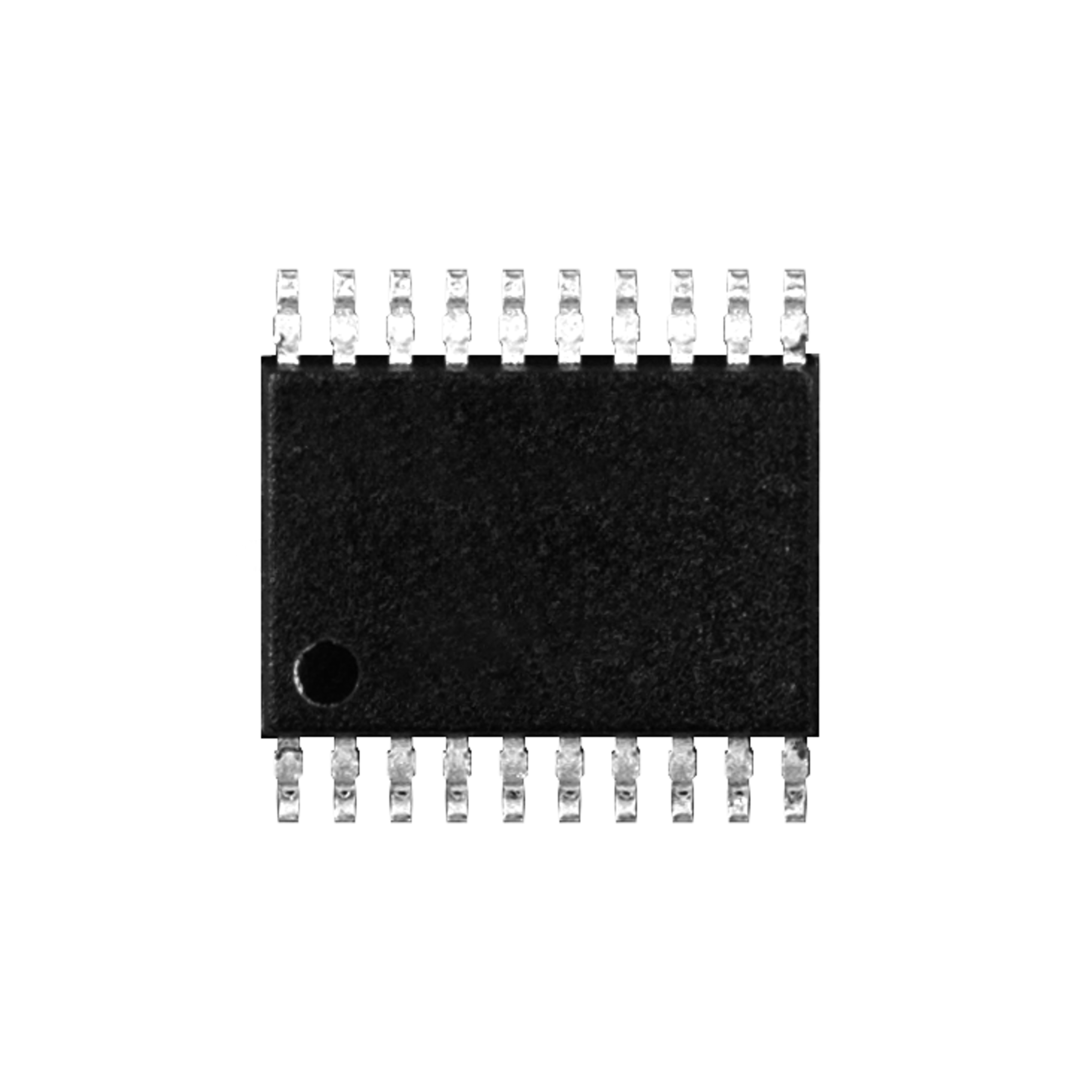

MAX3002EUP+
Maxim Integrated SMD/SMT Logic Level Translator TSSOP-20
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 15.04.2025
Item currently not available
Data Sheet
ECAD Model
Prices
Manufacturer bundle 74 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 740 or multiple of 74)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Logic Level Translator
- Manufacturer Package
- TSSOP-20
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature, min. (TA)
- -40 °C
- Operating Temperature, max. (TA)
- 85 °C
- Storage Temperature Min.
- -65 °C
- Storage Temperature Max.
- 150 °C
Electrical Properties
- Supply Voltage VL min.
- 1.2 V
- Supply Voltage VL max.
- 5.5 V
- Supply Voltage VCC min.
- 1.65 V
- Supply Voltage VCC max.
- 5.5 V
- Output Type
- 3-State, Non-Inverted
- Delay Time Max.
- 15 ns
