MAX15062CATA+T

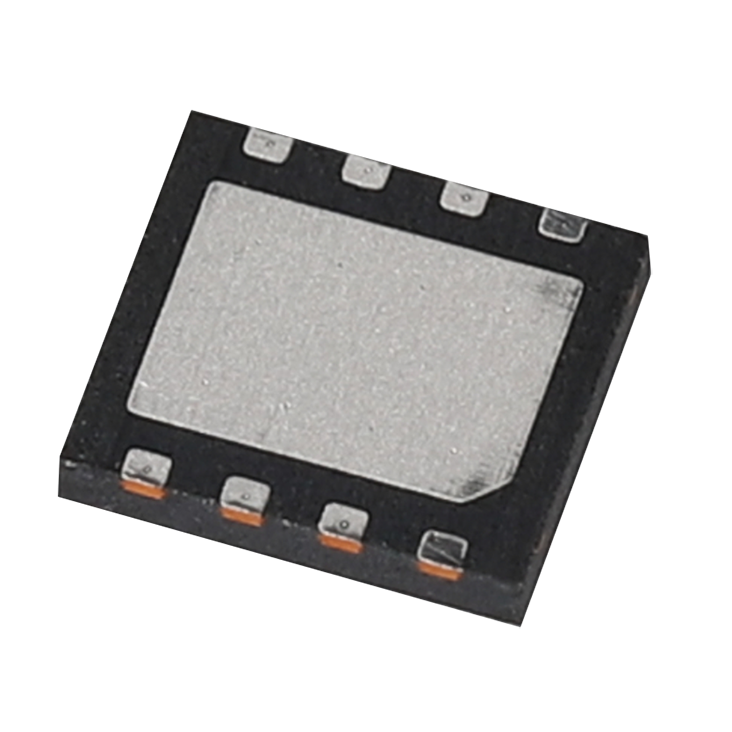

Maxim Integrated Step-Down Switching Regulator 300 mA 60 V TDFN-8
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.250 Pcs. in stock
Planned delivery time
Ø 50 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Step-Down Switching Regulator
- Supply Voltage Min.
- 4.5 V
- Supply Voltage Max.
- 60 V
- Output Voltage Min./Fixed
- 0.9 V
- Output Voltage Max.
- 53.4 V
- Output current
- 300 mA
300 mA - Number of Channels
- 1
- Type
- Buck
- Switching frequency
- 500 kHz
- Manufacturer Package
- TDFN-8
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
- Storage Temperature Min.
- -65 °C
- Storage Temperature Max.
- 150 °C
Electrical properties
- Number of Channels
- 1
- Type
- Buck
- Supply Voltage Min.
- 4.5 V
- Output Current 1
- 300 mA
- Supply Voltage Max.
- 60 V
- Output current
- 300 mA
- 300 mA
- Switching frequency
- 500 kHz
- Output Voltage Min./Fixed
- 0.9 V
- Output Voltage Max.
- 53.4 V
- Output Type
- adjustable
