Magnets

(82 Results)

Filtering by Categories

Filter results

Show Selected	Part No.	Indiv. Part No.	Manufacturer	Availability	Quantity	Series	Type	Manufacturer	Housing	Material	Rated Voltage	Rated current	Rated power	Holding force	Holding force	Remanence	Dimension: Length	Dimension: Width	Dimension: Height

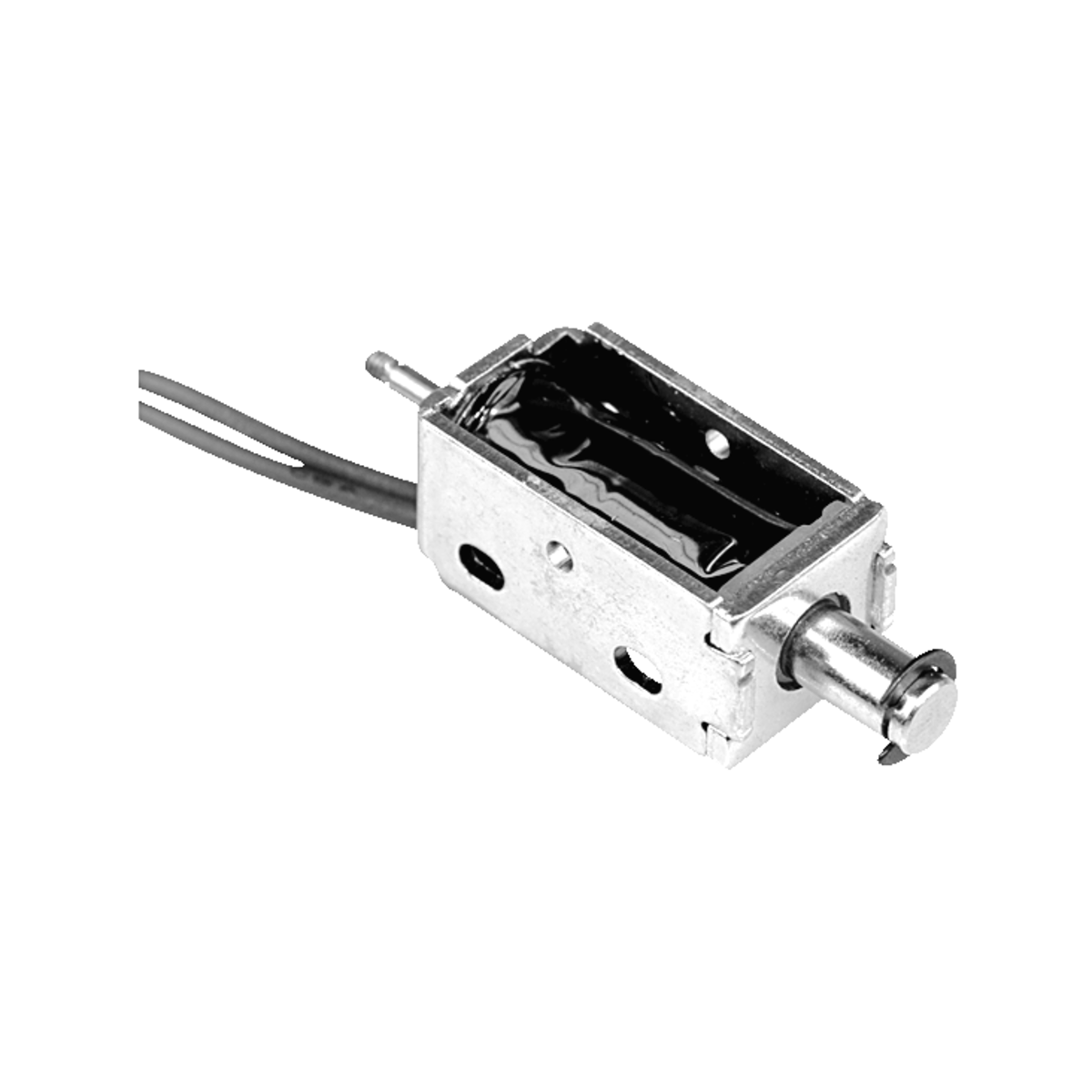

51	Manufacturers Part No. ITS-LS-1110-B-D-12VDC (ITS-LS1110BD-12) Electromagnet Frame magnet with stranded wire 12 V	Customer Part No. Customer Project No.	Red Magnetics	28 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 1 or mul. of 1)	ITS-LS	Pressure solenoid	Red Magnetics	Frame magnet with stranded wire		12.0 V	19.0 mA	1.1 W	0.12 kg	0.12 kg		21.3 mm	10.0 mm	11.0 mm
52	Manufacturers Part No. ITS-PE-5029-24-VDC-VA (ITS-PE-5029-24-VA) Electromagnet Pot magnet with stranded wire 24 V	Customer Part No. Customer Project No.	Red Magnetics	0 Pcs. Planned Delivery Time Ø 21 Weeks Available on order	(at least 25 or mul. of 25)	ITS-PE	Permanent holding solenoid	Red Magnetics	Pot magnet with stranded wire		24.0 V	1630.0 mA	39.0 W	500.0 N	500.0 N				29.0 mm
53	Manufacturers Part No. MM1040 (MM1040) Standex Electronics Permanent magnet AlNiCo Round bar magnet Ø10,0mm 40,0mm	Customer Part No. Customer Project No.	Standex Electronics	85 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 5 or mul. of 5)	MM	Permanent magnet	Standex Electronics	Round bar magnet	AlNiCo							40.0 mm
54	Manufacturers Part No. MM4 (MM4) Standex Electronics Permanent magnet AlNiCo magnet in housing with holes 23,0mmx13,9mmx5,9mm	Customer Part No. Customer Project No.	Standex Electronics	530 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 10 or mul. of 10)	MM	Permanent magnet	Standex Electronics	magnet in housing	AlNiCo							23.0 mm	13.9 mm	5.9 mm
55	Manufacturers Part No. MM520 (MM520) Standex Electronics Permanent magnet AlNiCo Round bar magnet • Magnetic values according to DIN IEC 60404-8-1 • Magnetization direction: axial • Magnetic moment (including 5% tolerance), typ.: 32.4 x 10^-6 Vs*cm Ø5,0mm 20,0mm	Customer Part No. Customer Project No.	Standex Electronics	90 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 10 or mul. of 10)	MM	Permanent magnet	Standex Electronics	Round bar magnet	AlNiCo						1240.0 mT	20.0 mm
56	Manufacturers Part No. MM522 (MM522) Standex Electronics Permanent magnet AlNiCo Round bar magnet • Magnetic values according to DIN IEC 60404-8-1 • Magnetization direction: axial • Magnetic moment, typ.: 38 x 10^-6 Vs*cm Ø5,5mm 22,0mm	Customer Part No. Customer Project No.	Standex Electronics	400 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 10 or mul. of 10)	MM	Permanent magnet	Standex Electronics	Round bar magnet	AlNiCo						1240.0 mT	22.0 mm
57	Manufacturers Part No. MMS1052 (MMS1052) Standex Electronics Permanent magnet NdFeB block magnet 10,0mmx5,0mmx1,9mm	Customer Part No. Customer Project No.	Standex Electronics	3.206 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 10 or mul. of 10)	MMS	Permanent magnet	Standex Electronics	block magnet	NdFeB						1240.0 mT	10.0 mm	5.0 mm	1.9 mm
58	Manufacturers Part No. MMS25 (MMS25) Standex Electronics Permanent magnet NdFeB Round bar magnet Ø2,0mm 5,0mm	Customer Part No. Customer Project No.	Standex Electronics	40 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 10 or mul. of 10)	MMS	Permanent magnet	Standex Electronics	Round bar magnet	NdFeB						1370.0 mT	5.0 mm
59	Manufacturers Part No. MMS28 (MMS28) Standex Electronics Permanent magnet NdFeB Round bar magnet Ø2,0mm 8,0mm	Customer Part No. Customer Project No.	Standex Electronics	90 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 10 or mul. of 10)	MMS	Permanent magnet	Standex Electronics	Round bar magnet	NdFeB						1240.0 mT	8.0 mm
60	Manufacturers Part No. MMS42 (MMS42) Standex Electronics Permanent magnet NdFeB Round bar magnet Ø4,0mm 2,0mm	Customer Part No. Customer Project No.	Standex Electronics	100 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 10 or mul. of 10)	MMS	Permanent magnet	Standex Electronics	Round bar magnet	NdFeB						1210.0 mT	2.0 mm
61	Manufacturers Part No. ITS-LS-1110-B-Z-12VDC (ITS-LS1110BZ-12) Electromagnet Frame magnet with stranded wire 12 V	Customer Part No. Customer Project No.	Red Magnetics	23 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 1 or mul. of 1)	ITS-LS	Pull solenoid	Red Magnetics	Frame magnet with stranded wire		12.0 V	19.0 mA	1.1 W	0.12 kg	0.12 kg		21.3 mm	10.0 mm	11.0 mm
62	Manufacturers Part No. ITS-LS-2924B-D-12VDC (ITS-LS2924BD-12) Electromagnet Frame magnet with stranded wire 12 V	Customer Part No. Customer Project No.	Red Magnetics	0 Pcs. Next Stock Receipt Week 19/2026 (50 Pcs.) Available (from stock)	(at least 1 or mul. of 1)	ITS-LS	Pressure solenoid	Red Magnetics	Frame magnet with stranded wire		12.0 V	375.0 mA	4.5 W	1.1 kg	1.1 kg		40.0 mm	24.0 mm	29.0 mm
63	Manufacturers Part No. ITS-LS-2924B-Z-12VDC (ITS-LS2924BZ-12) Electromagnet Frame magnet with stranded wire 12 V	Customer Part No. Customer Project No.	Red Magnetics	7 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 1 or mul. of 1)	ITS-LS	Pull solenoid	Red Magnetics	Frame magnet with stranded wire		12.0 V	375.0 mA	4.5 W	1.1 kg	1.1 kg		40.0 mm	24.0 mm	29.0 mm
64	Manufacturers Part No. ITS-LS-2924B-Z-24VDC (ITS-LS2924BZ-24) Electromagnet Frame magnet with stranded wire 24 V	Customer Part No. Customer Project No.	Red Magnetics	41 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 1 or mul. of 1)	ITS-LS	Pull solenoid	Red Magnetics	Frame magnet with stranded wire		24.0 V	187.0 mA	4.5 W	1.1 kg	1.1 kg		40.0 mm	24.0 mm	29.0 mm
65	Manufacturers Part No. ITS-LS-3830B-D-12VDC (ITS-LS3830BD-12) Electromagnet Frame magnet with stranded wire 12 V	Customer Part No. Customer Project No.	Red Magnetics	42 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 1 or mul. of 1)	ITS-LS	Pressure solenoid	Red Magnetics	Frame magnet with stranded wire		12.0 V	666.0 mA	8.0 W	5.6 kg	5.6 kg		64.0 mm	30.0 mm	38.0 mm
66	Manufacturers Part No. ITS-LS-3830B-D-24VDC (ITS-LS3830BD-24) Electromagnet Frame magnet with stranded wire 24 V	Customer Part No. Customer Project No.	Red Magnetics	37 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 1 or mul. of 1)	ITS-LS	Pressure solenoid	Red Magnetics	Frame magnet with stranded wire		24.0 V	333.0 mA	8.0 W	5.6 kg	5.6 kg		64.0 mm	30.0 mm	38.0 mm
67	Manufacturers Part No. ITS-LS-3830B-Z-12VDC (ITS-LS3830BZ-12) Electromagnet Frame magnet with stranded wire 12 V	Customer Part No. Customer Project No.	Red Magnetics	30 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 1 or mul. of 1)	ITS-LS	Pull solenoid	Red Magnetics	Frame magnet with stranded wire		12.0 V	666.0 mA	8.0 W	5.6 kg	5.6 kg		64.0 mm	30.0 mm	38.0 mm
68	Manufacturers Part No. ITS-LS-3830B-Z-24VDC (ITS-LS3830BZ-24) Electromagnet Frame magnet with stranded wire 24 V	Customer Part No. Customer Project No.	Red Magnetics	6 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 1 or mul. of 1)	ITS-LS	Pull solenoid	Red Magnetics	Frame magnet with stranded wire		24.0 V	333.0 mA	8.0 W	5.6 kg	5.6 kg		64.0 mm	30.0 mm	38.0 mm
69	Manufacturers Part No. ITS-LS-4035-Z-24VDC (ITS-LS4035Z-24) Electromagnet Frame magnet with stranded wire 24 V	Customer Part No. Customer Project No.	Red Magnetics	33 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 1 or mul. of 1)	ITS-LS	Pull solenoid	Red Magnetics	Frame magnet with stranded wire		24.0 V	529.0 mA	12.7 W	1.2 kg	1.2 kg		85.0 mm	35.0 mm	40.0 mm
70	Manufacturers Part No. ITS-LS 5852-D-12VDC (ITS-LS5852D-12) Electromagnet Frame magnet with stranded wire 12 V	Customer Part No. Customer Project No.	Red Magnetics	0 Pcs. Planned Delivery Time Ø 21 Weeks Available on order	(at least 1 or mul. of 1)	ITS-LS	Pressure solenoid	Red Magnetics	Frame magnet with stranded wire		12.0 V	1333.0 mA	16.0 W	4.2 kg	4.2 kg		84.0 mm	52.0 mm	58.0 mm

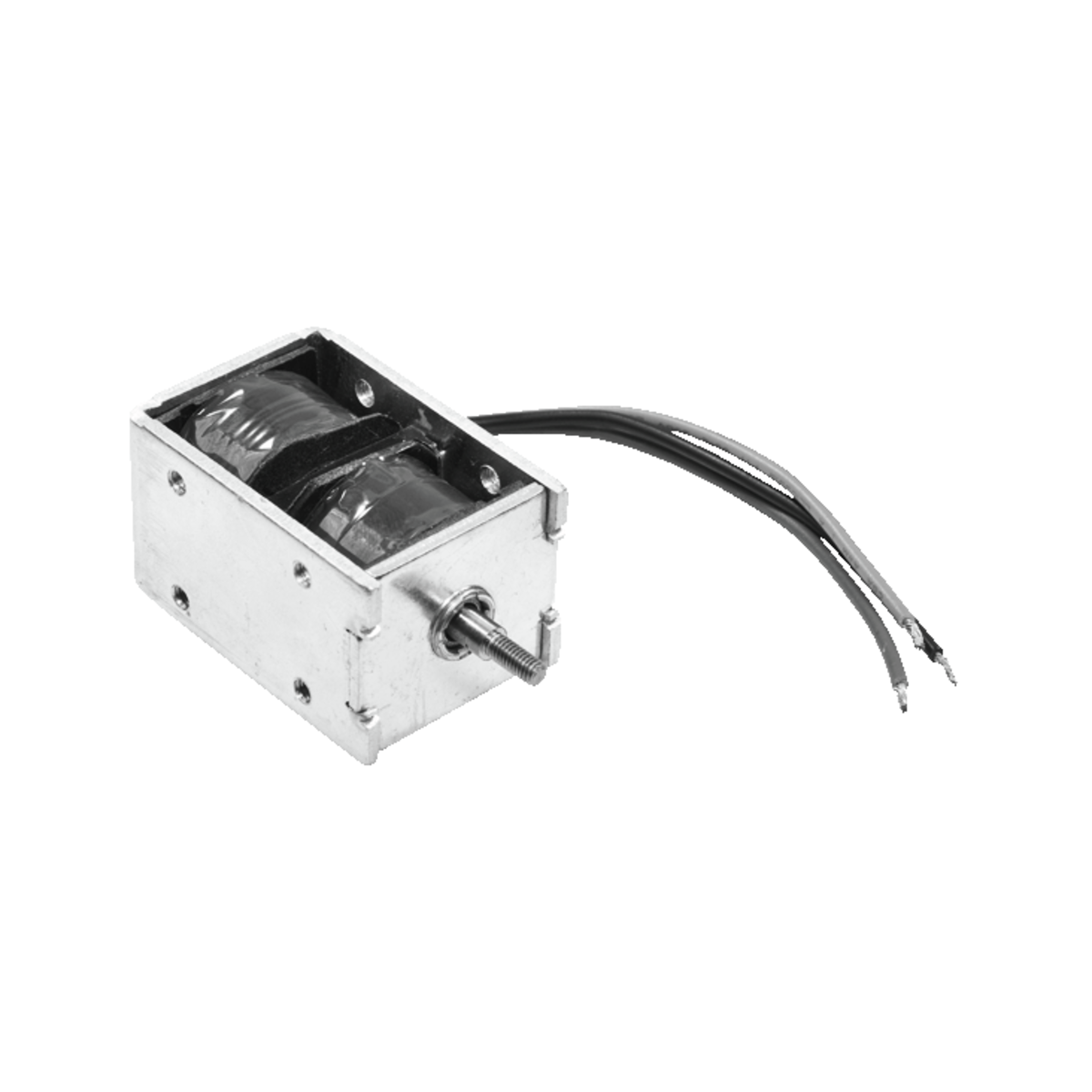

71	Manufacturers Part No. ITS-LX-2723-24VDC (ITS-LX-2723-24) Electromagnet Frame magnet with stranded wire 24 V	Customer Part No. Customer Project No.	Red Magnetics	0 Pcs. Planned Delivery Time Ø 21 Weeks Available on order	(at least 1 or mul. of 1)	ITS-LX	Solenoid bistable	Red Magnetics	Frame magnet with stranded wire		24.0 V	1250.0 mA	30.0 W	5.0 N	5.0 N		40.0 mm	23.0 mm	26.0 mm

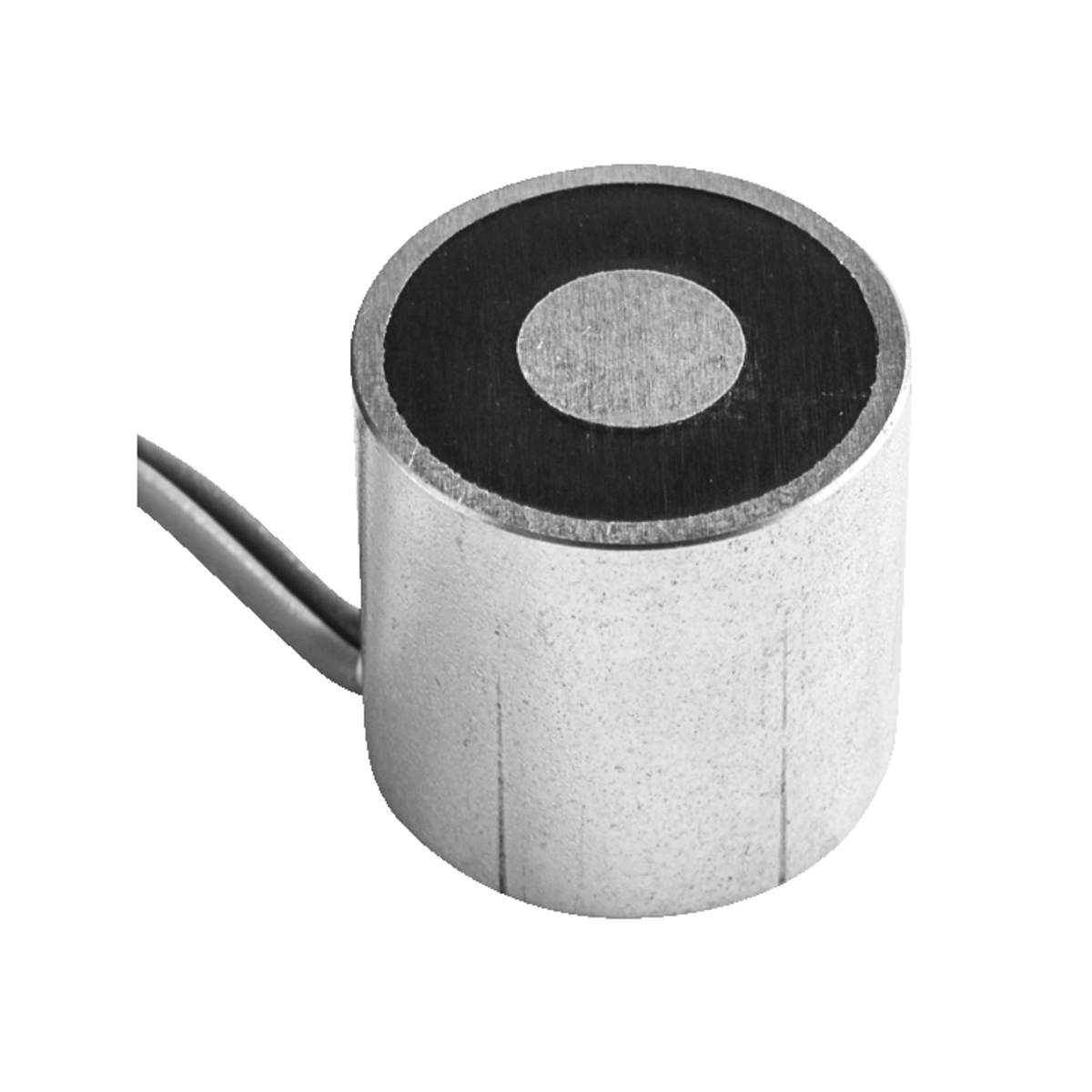

72	Manufacturers Part No. ITS-PE1212-12VDC (ITS-PE1212-12) Electromagnet Pot magnet with stranded wire 12 V	Customer Part No. Customer Project No.	Red Magnetics	2 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 1 or mul. of 1)	ITS-PE	Permanent holding solenoid	Red Magnetics	Pot magnet with stranded wire		12.0 V	150.0 mA	6.0 W	15.0 N	15.0 N				12.0 mm
73	Manufacturers Part No. ITS-PE7045-12VDC (ITS-PE7045-12) Electromagnet Pot magnet with stranded wire 12 V	Customer Part No. Customer Project No.	Red Magnetics	29 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 1 or mul. of 1)	ITS-PE	Permanent holding solenoid	Red Magnetics	Pot magnet with stranded wire		12.0 V	1250.0 mA	15.0 W	720.0 N	720.0 N				45.0 mm

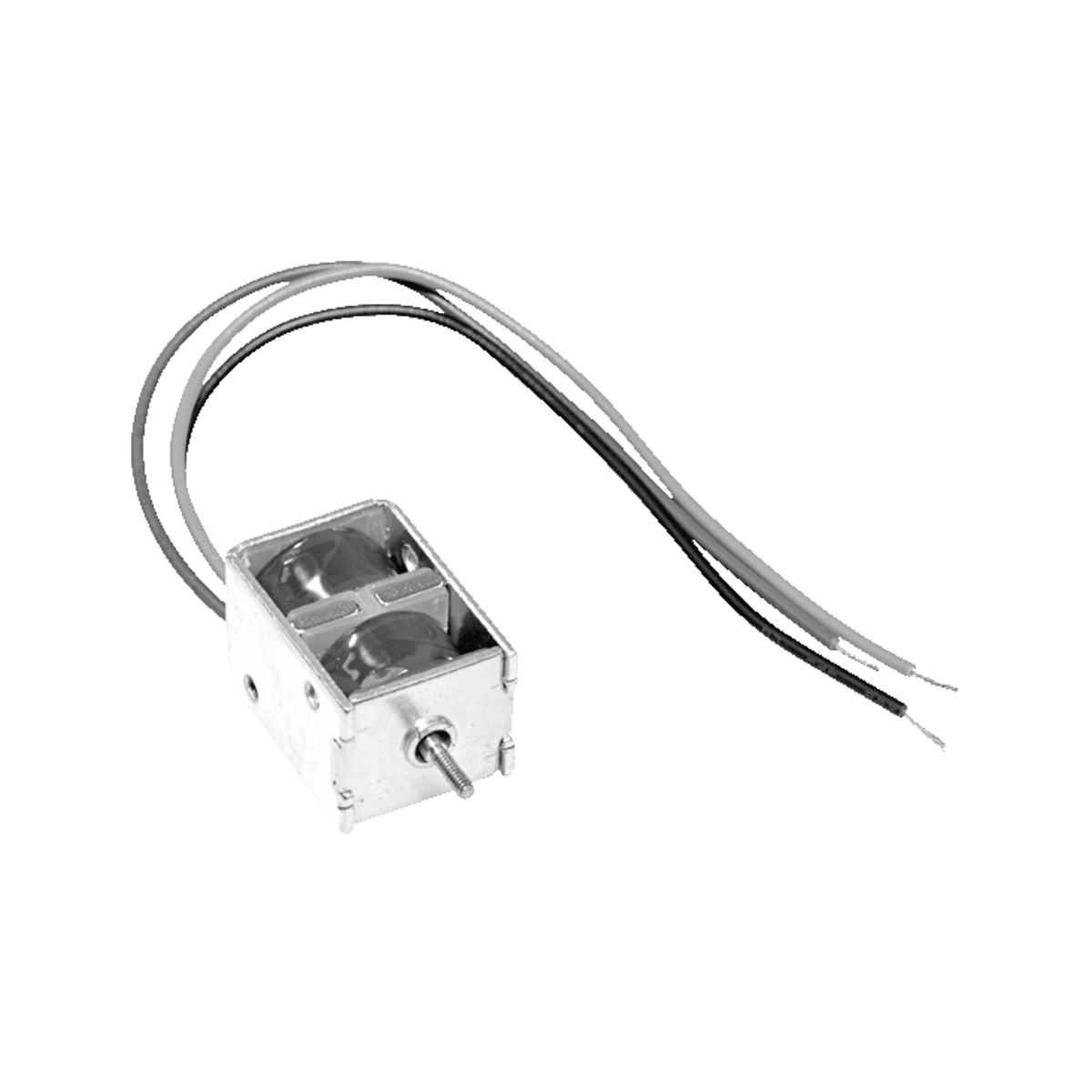

74	Manufacturers Part No. ITS-LX-1513-12VDC (ITS-LX-1513-12) Electromagnet Frame magnet with stranded wire 12 V	Customer Part No. Customer Project No.	Red Magnetics	34 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock)	(at least 1 or mul. of 1)	ITS-LX	Solenoid bistable	Red Magnetics	Frame magnet with stranded wire		12.0 V	2000.0 mA	24.0 W	6.0 N	6.0 N		21.0 mm	13.0 mm	15.0 mm
75	Manufacturers Part No. ITS-PE3529-12VDC (ITS-PE3529-12) Electromagnet Pot magnet with stranded wire 12 V	Customer Part No. Customer Project No.	Red Magnetics	10 Pcs. Next Stock Receipt Week 34/2026 (50 Pcs.) Available (from stock)	(at least 1 or mul. of 1)	ITS-PE	Permanent holding solenoid	Red Magnetics	Pot magnet with stranded wire		12.0 V	2330.0 mA	28.0 W	300.0 N	300.0 N				29.0 mm

‹ 1 2 3 4 ›
