Filtering by Categories
Filter articles
Type
Type
Manufacturer
Manufacturer
Series
Series
Housing
Housing
Material
Material
Rated Voltage
Rated Voltage
Rated current
Rated current
Rated power
Rated power
Holding force
Holding force
Holding force
Holding force
Remanence
Remanence
Dimension: Length
Dimension: Length
Dimension: Width
Dimension: Width
Dimension: Height
Dimension: Height
Results (82)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Housing | Material | Rated Voltage | Rated current | Rated power | Holding force | Holding force | Remanence | Dimension: Length | Dimension: Width | Dimension: Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
26 |  | Manufacturers Part No. ITS-PE1515-12VDC(ITS-PE1515-12) Electromagnet Pot magnet with stranded wire 12 V | Customer Part No. Customer Project No. | 38 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 1 or mul. of 1) | Permanent holding solenoid | Red Magnetics | Pot magnet with stranded wire | 12.0 V | 166.6 mA | 3.6 W | 25.0 N | 25.0 N | 15.0 mm | |||||||||
27 | | Manufacturers Part No. ITS-PE1010-24VDC(ITS-PE1010-24) Electromagnet Pot magnet with stranded wire 24 V | Customer Part No. Customer Project No. | 20 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 1 or mul. of 1) | Permanent holding solenoid | Red Magnetics | Pot magnet with stranded wire | 24.0 V | 62.5 mA | 3.0 W | 3.0 N | 3.0 N | 10.0 mm | |||||||||
28 | | Manufacturers Part No. ITS-LS 5852-D-24VDC(ITS-LS5852D-24) Electromagnet Frame magnet with stranded wire 24 V | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 21 Weeks Available on order | (at least 50 or mul. of 50) | Pressure solenoid | Red Magnetics | Frame magnet with stranded wire | 24.0 V | 666.0 mA | 16.0 W | 4.2 kg | 4.2 kg | 84.0 mm | 52.0 mm | 58.0 mm | |||||||

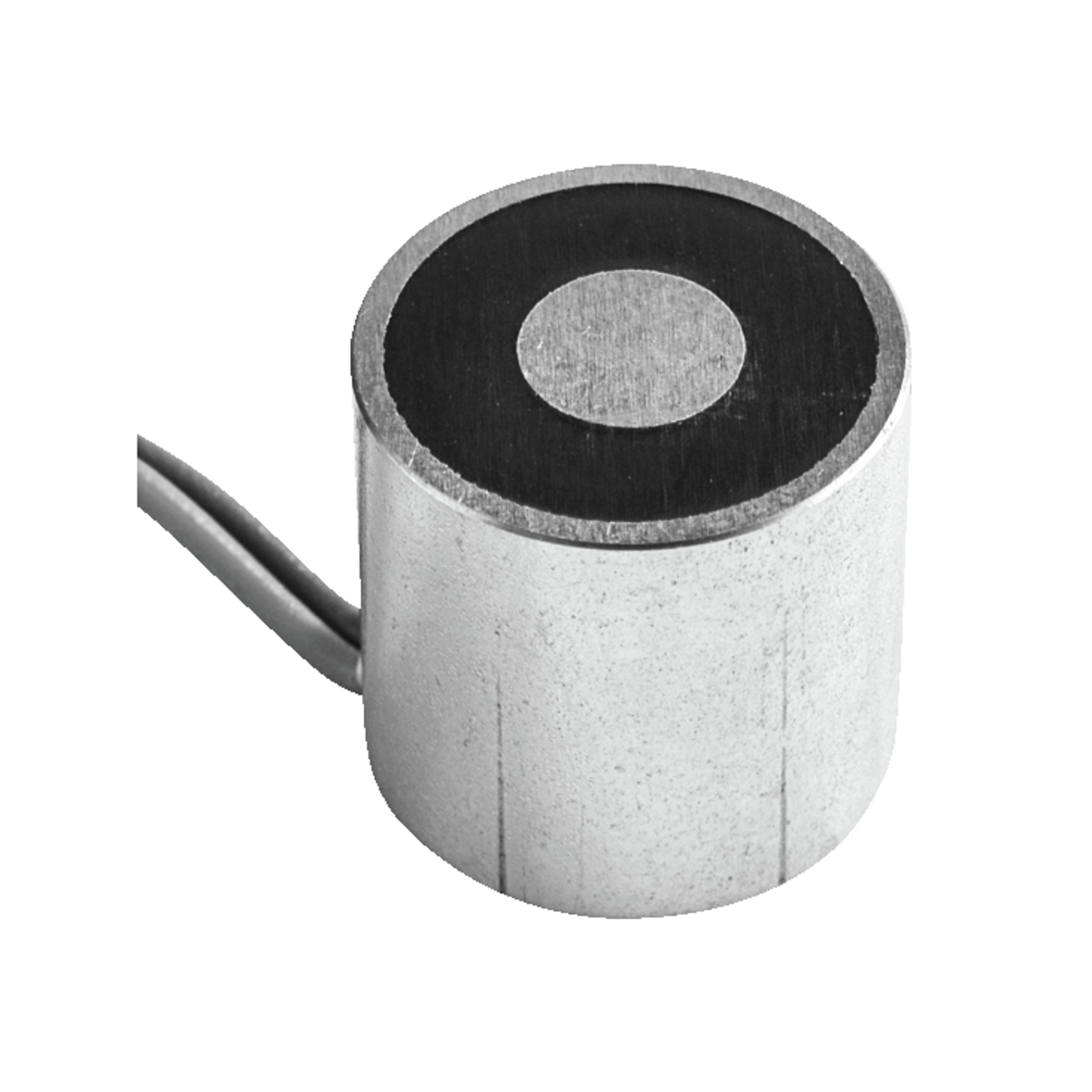

29 | | Manufacturers Part No. ITS-PE8245-24VDC(ITS-PE8245-24) Electromagnet Pot magnet with stranded wire 24 V | Customer Part No. Customer Project No. | 29 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 1 or mul. of 1) | Permanent holding solenoid | Red Magnetics | Pot magnet with stranded wire | 24.0 V | 2500.0 mA | 60.0 W | 1900.0 N | 1900.0 N | 45.0 mm | |||||||||

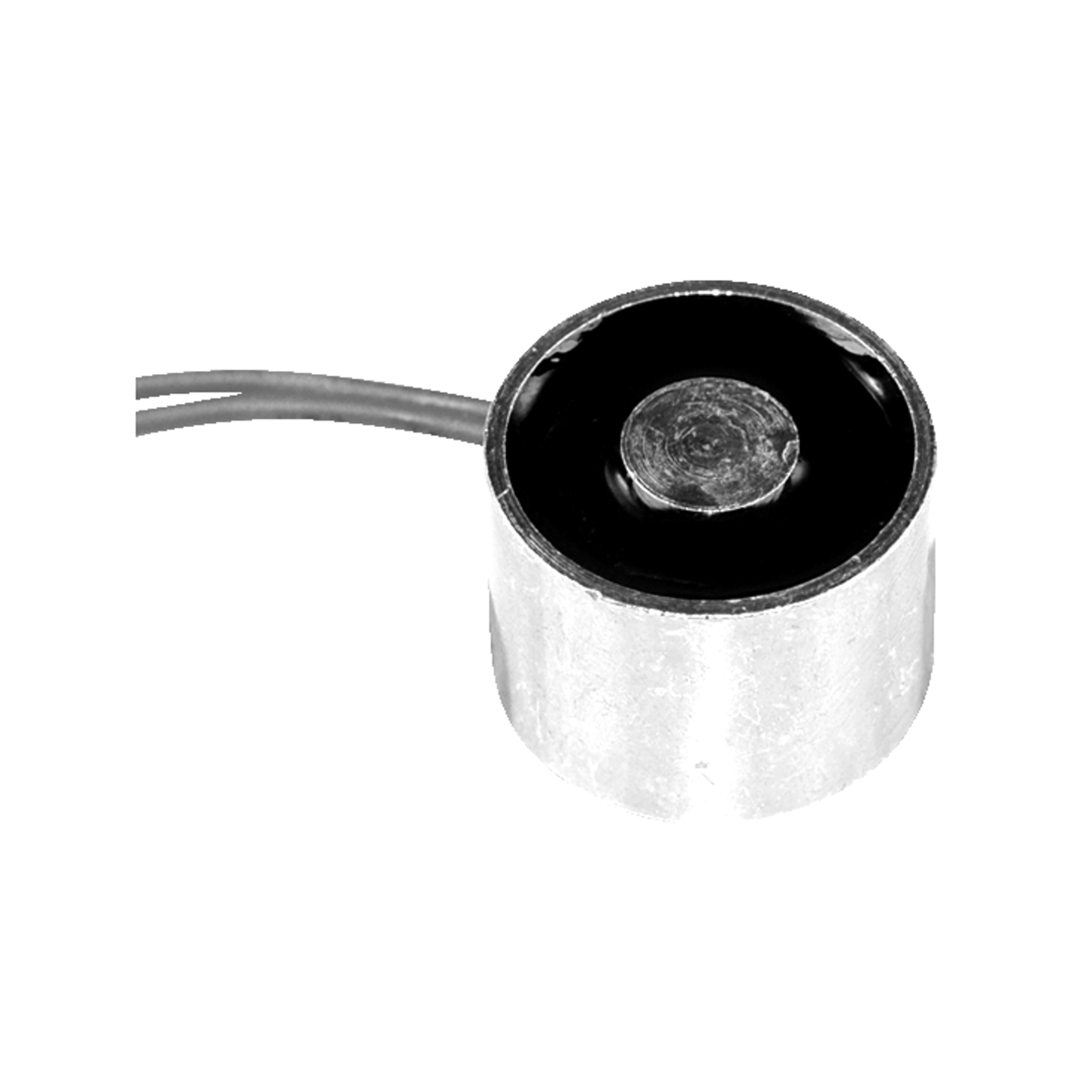

30 | | Manufacturers Part No. ITS-MSM-3222-12-VDC-VA(ITS-MSM-3222-12-VA) Electromagnet Pot magnet with stranded wire 12 V | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 21 Weeks Available on order | (at least 1 or mul. of 1) | Holding solenoid | Red Magnetics | Pot magnet with stranded wire | 12.0 V | 300.0 mA | 3.6 W | 240.0 N | 240.0 N | 22.0 mm | |||||||||

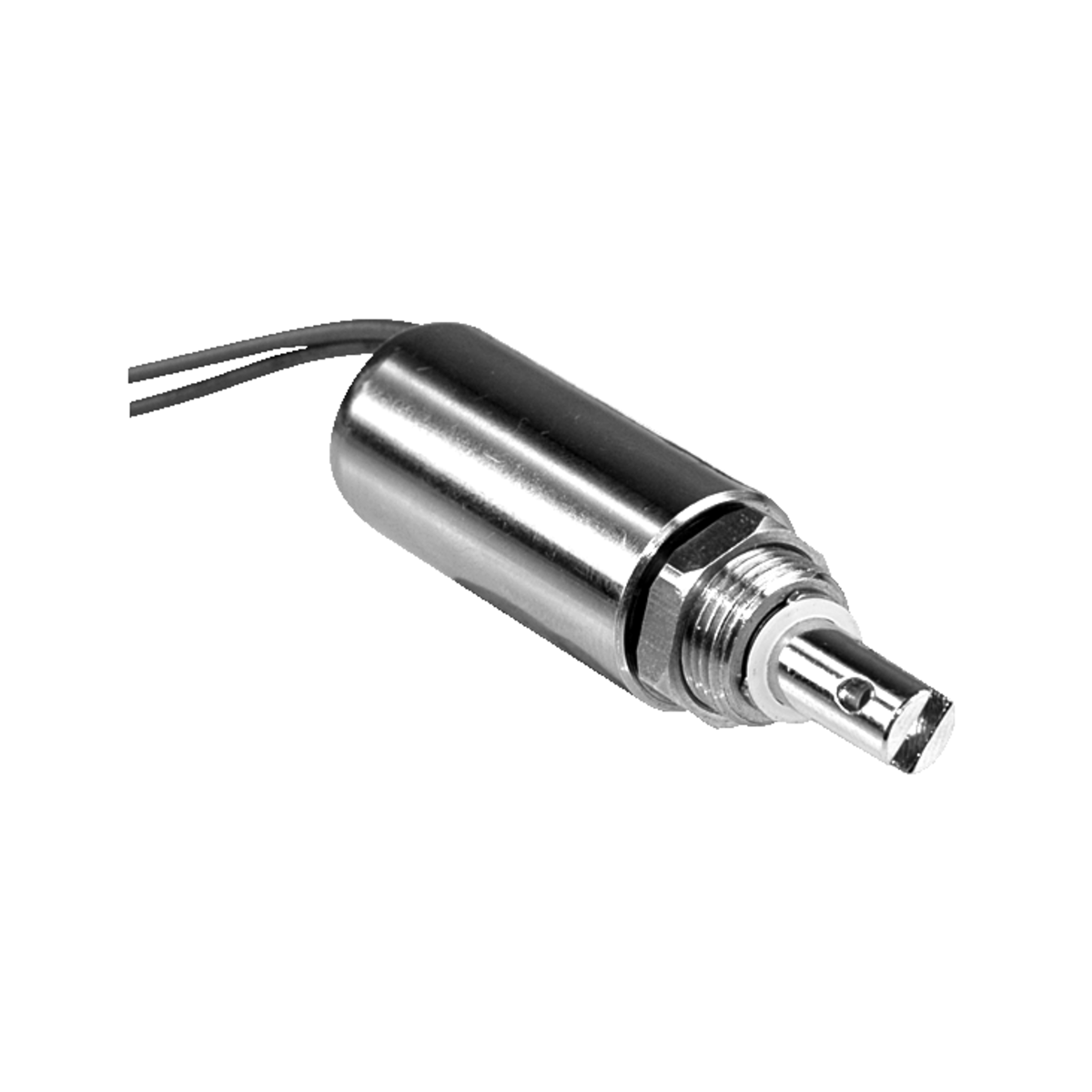

31 | | Manufacturers Part No. ITS-LZ-1335-Z-24VDC(ITS-LZ1335Z-24) Electromagnet Cylinder magnet with stranded wire 24 V | Customer Part No. Customer Project No. | 30 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 1 or mul. of 1) | Pull solenoid | Red Magnetics | Cylinder magnet with stranded wire | 24.0 V | 167.0 mA | 4.0 W | 0.25 kg | 0.25 kg | 35.0 mm | |||||||||
32 | | Manufacturers Part No. ITS-LZ-2560-Z-12VDC(ITS-LZ2560Z-12) Electromagnet Cylinder magnet with stranded wire 12 V | Customer Part No. Customer Project No. | 50 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 1 or mul. of 1) | Pull solenoid | Red Magnetics | Cylinder magnet with stranded wire | 12.0 V | 833.0 mA | 10.0 W | 2.2 kg | 2.2 kg | 60.0 mm | |||||||||
33 | | Manufacturers Part No. M05(MM05) Standex Electronics Permanent magnet AlNiCo magnet in housing with holes 23,0mmx13,9mmx5,9mm | Customer Part No. Customer Project No. | 50 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 10 or mul. of 10) | Permanent magnet | Standex Electronics | magnet in housing | AlNiCo | 23.0 mm | 13.9 mm | 5.9 mm | |||||||||||
34 | | Manufacturers Part No. ITS-LZ-1335-Z-12VDC(ITS-LZ1335Z-12) Electromagnet Cylinder magnet with stranded wire 12 V | Customer Part No. Customer Project No. | 44 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 1 or mul. of 1) | Pull solenoid | Red Magnetics | Cylinder magnet with stranded wire | 12.0 V | 333.0 mA | 4.0 W | 0.25 kg | 0.25 kg | 35.0 mm | |||||||||
35 | | Manufacturers Part No. ITS-LZ-1949-D-12VDC(ITS-LZ1949D-12) Electromagnet Cylinder magnet with stranded wire 12 V | Customer Part No. Customer Project No. | 28 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 1 or mul. of 1) | Pressure solenoid | Red Magnetics | Cylinder magnet with stranded wire | 12.0 V | 583.0 mA | 7.0 W | 1.1 kg | 1.1 kg | 49.0 mm | |||||||||
36 | | Manufacturers Part No. ITS-LZ-1949-D-24VDC(ITS-LZ1949D-24) Electromagnet Cylinder magnet with stranded wire 24 V | Customer Part No. Customer Project No. | 73 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 1 or mul. of 1) | Pressure solenoid | Red Magnetics | Cylinder magnet with stranded wire | 24.0 V | 292.0 mA | 7.0 W | 1.1 kg | 1.1 kg | 49.0 mm | |||||||||
37 | | Manufacturers Part No. ITS-LZ-1949-Z-12VDC(ITS-LZ1949Z-12) Electromagnet Cylinder magnet with stranded wire 12 V | Customer Part No. Customer Project No. | 39 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 1 or mul. of 1) | Pull solenoid | Red Magnetics | Cylinder magnet with stranded wire | 12.0 V | 583.0 mA | 7.0 W | 1.1 kg | 1.1 kg | 49.0 mm | |||||||||
38 | | Manufacturers Part No. TS-LZ-1949-Z-24VDC(ITS-LZ1949Z-24) Electromagnet Cylinder magnet with stranded wire 24 V | Customer Part No. Customer Project No. | 39 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 1 or mul. of 1) | Pull solenoid | Red Magnetics | Cylinder magnet with stranded wire | 24.0 V | 292.0 mA | 7.0 W | 1.1 kg | 1.1 kg | 49.0 mm | |||||||||
39 | | Manufacturers Part No. ITS-LZ-2560-D-12VDC(ITS-LZ2560D-12) Electromagnet Cylinder magnet with stranded wire 12 V | Customer Part No. Customer Project No. | 51 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 1 or mul. of 1) | Pressure solenoid | Red Magnetics | Cylinder magnet with stranded wire | 12.0 V | 833.0 mA | 10.0 W | 2.2 kg | 2.2 kg | 60.0 mm | |||||||||
40 | | Manufacturers Part No. ITS-LZ-2560-Z-24VDC(ITS-LZ2560Z-24) Electromagnet Cylinder magnet with stranded wire 24 V | Customer Part No. Customer Project No. | 59 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 1 or mul. of 1) | Pull solenoid | Red Magnetics | Cylinder magnet with stranded wire | 24.0 V | 417.0 mA | 10.0 W | 2.2 kg | 2.2 kg | 60.0 mm | |||||||||
41 | | Manufacturers Part No. ITS-LZ-3869-D-12VDC(ITS-LZ3869D-12) Electromagnet Cylinder magnet with stranded wire 12 V | Customer Part No. Customer Project No. | 36 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 1 or mul. of 1) | Pressure solenoid | Red Magnetics | Cylinder magnet with stranded wire | 12.0 V | 1400.0 mA | 16.8 W | 4.2 kg | 4.2 kg | 69.0 mm | |||||||||
42 | | Manufacturers Part No. ITS-LZ-3869-D-24VDC(ITS-LZ3869D-24) Electromagnet Cylinder magnet with stranded wire 24 V | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 1 or mul. of 1) | Pressure solenoid | Red Magnetics | Cylinder magnet with stranded wire | 24.0 V | 700.0 mA | 16.8 W | 4.2 kg | 4.2 kg | 69.0 mm | |||||||||
43 | | Manufacturers Part No. ITS-LZ-3869-Z-12VDC(ITS-LZ3869Z-12) Electromagnet Cylinder magnet with stranded wire 12 V | Customer Part No. Customer Project No. | 9 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 1 or mul. of 1) | Pull solenoid | Red Magnetics | Cylinder magnet with stranded wire | 12.0 V | 1400.0 mA | 16.8 W | 4.2 kg | 4.2 kg | 69.0 mm | |||||||||
44 | | Manufacturers Part No. ITS-LZ-3869-Z-24VDC(ITS-LZ3869Z-24) Electromagnet Cylinder magnet with stranded wire 24 V | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 1 or mul. of 1) | Pull solenoid | Red Magnetics | Cylinder magnet with stranded wire | 24.0 V | 700.0 mA | 16.8 W | 4.2 kg | 4.2 kg | 69.0 mm | |||||||||
45 | | Manufacturers Part No. MM419(MM419) Standex Electronics Permanent magnet AlNiCo Round bar magnet Ø4,0mm 19,0mm | Customer Part No. Customer Project No. | 160 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 10 or mul. of 10) | Permanent magnet | Standex Electronics | Round bar magnet | AlNiCo | 19.0 mm | |||||||||||||

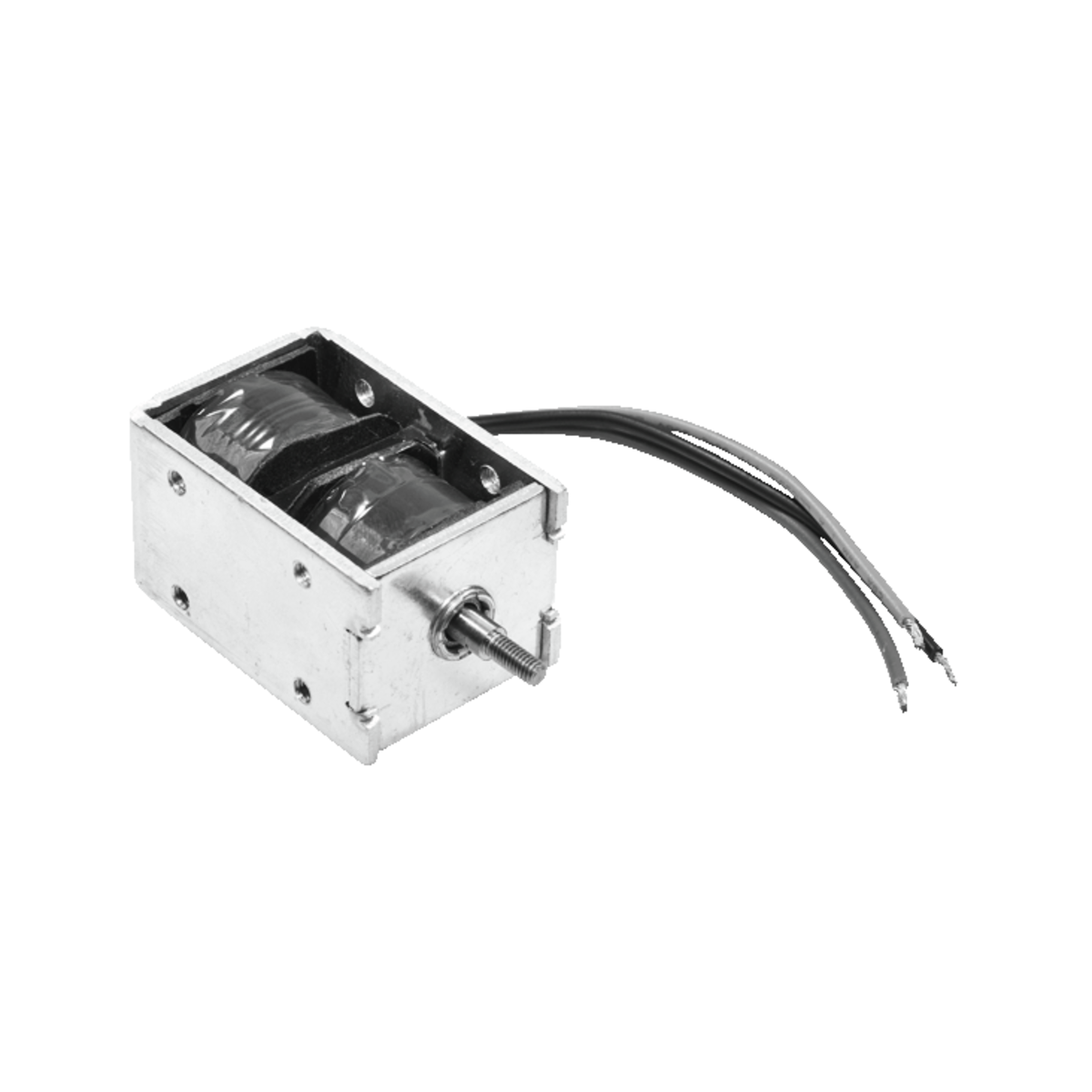

46 | | Manufacturers Part No. ITS-LX-2723-12VDC(ITS-LX-2723-12) Electromagnet Frame magnet with stranded wire 12 V | Customer Part No. Customer Project No. | 5 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 1 or mul. of 1) | Solenoid bistable | Red Magnetics | Frame magnet with stranded wire | 12.0 V | 2500.0 mA | 30.0 W | 5.0 N | 5.0 N | 40.0 mm | 23.0 mm | 26.0 mm | |||||||
47 | | Manufacturers Part No. ITS-LS-2924B-D-24VDC(ITS-LS2924BD-24) Electromagnet Frame magnet with stranded wire 24 V | Customer Part No. Customer Project No. | 63 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 1 or mul. of 1) | Pressure solenoid | Red Magnetics | Frame magnet with stranded wire | 24.0 V | 187.0 mA | 4.5 W | 1.1 kg | 1.1 kg | 40.0 mm | 24.0 mm | 29.0 mm | |||||||
48 | | Manufacturers Part No. ITS-PE1212-24VDC(ITS-PE1212-24) Electromagnet Pot magnet with stranded wire 24 V | Customer Part No. Customer Project No. | 34 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 1 or mul. of 1) | Permanent holding solenoid | Red Magnetics | Pot magnet with stranded wire | 24.0 V | 75.0 mA | 6.0 W | 15.0 N | 15.0 N | 12.0 mm | |||||||||
49 | | Manufacturers Part No. ITS-LS-4035-D-24VDC(ITS-LS4035D-24) Electromagnet Frame magnet with stranded wire 24 V | Customer Part No. Customer Project No. | 3 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 1 or mul. of 1) | Pressure solenoid | Red Magnetics | Frame magnet with stranded wire | 24.0 V | 529.0 mA | 12.7 W | 1.2 kg | 1.2 kg | 85.0 mm | 35.0 mm | 40.0 mm | |||||||
50 | | Manufacturers Part No. ITS-PE3529-24VDC(ITS-PE3529-24) Electromagnet Pot magnet with stranded wire 24 V | Customer Part No. Customer Project No. | 23 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 1 or mul. of 1) | Permanent holding solenoid | Red Magnetics | Pot magnet with stranded wire | 24.0 V | 1160.0 mA | 28.0 W | 300.0 N | 300.0 N | 29.0 mm |
