370.000

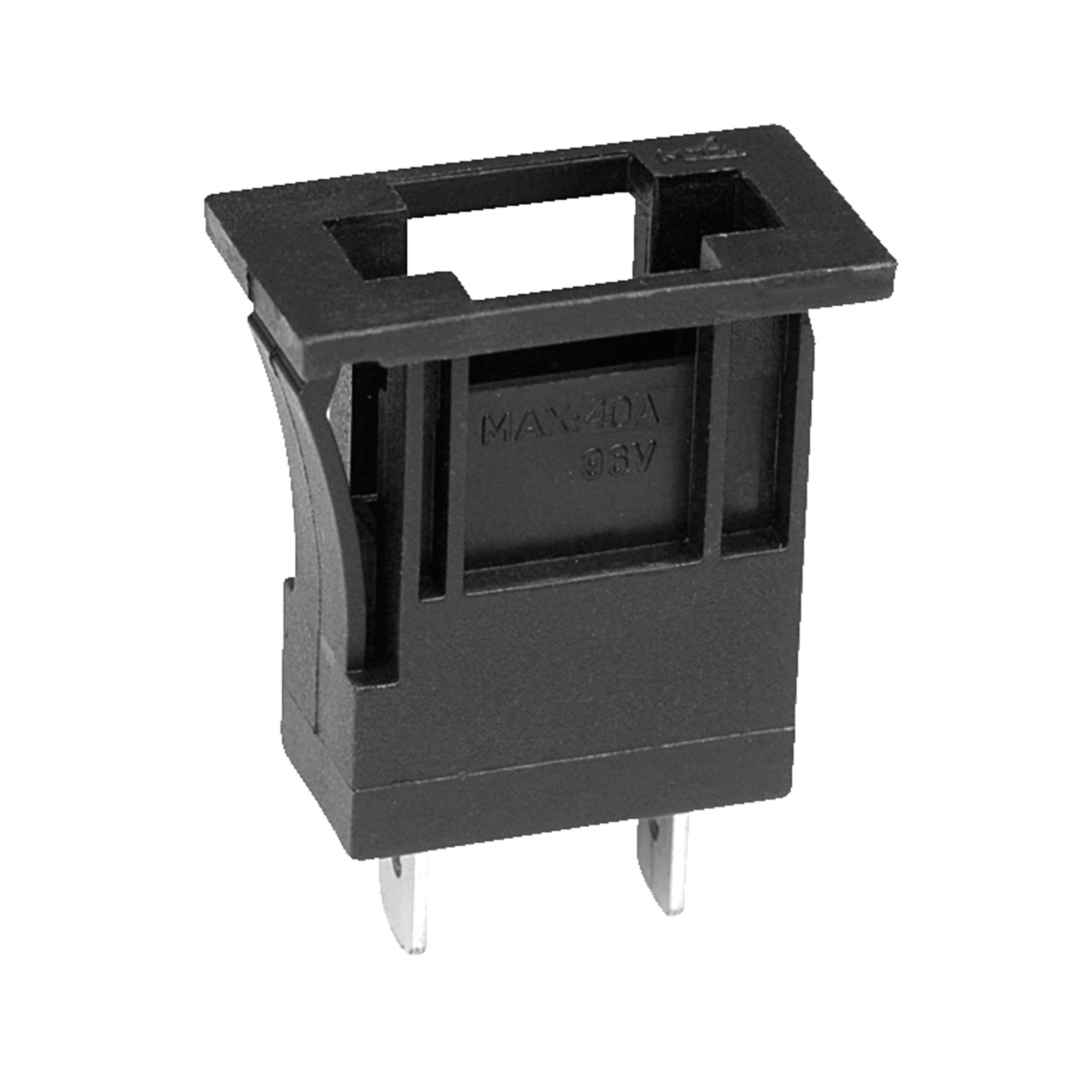

MTA Automotive fuse holder 32VDC for automotive fuses series F1500 normOTO and series UNIVAL 20A IP20
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.300 Pcs. in stock
Next Stock Receipt
Week 23/2026
100 Pcs.
100 Pcs.
Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable device fuses and automotive fuses. - Type
- Automotive fuse holder
- Series
- UNIVAL
- Housing
- open
- Insulation class
- IP20
- Applications
- for automotive fuses series F1500 normOTO and series UNIVAL
- Rated voltage V DC
- 32 V DC
- Rated current
- 20 A
- RoHS-Conform
Specifications
Open all

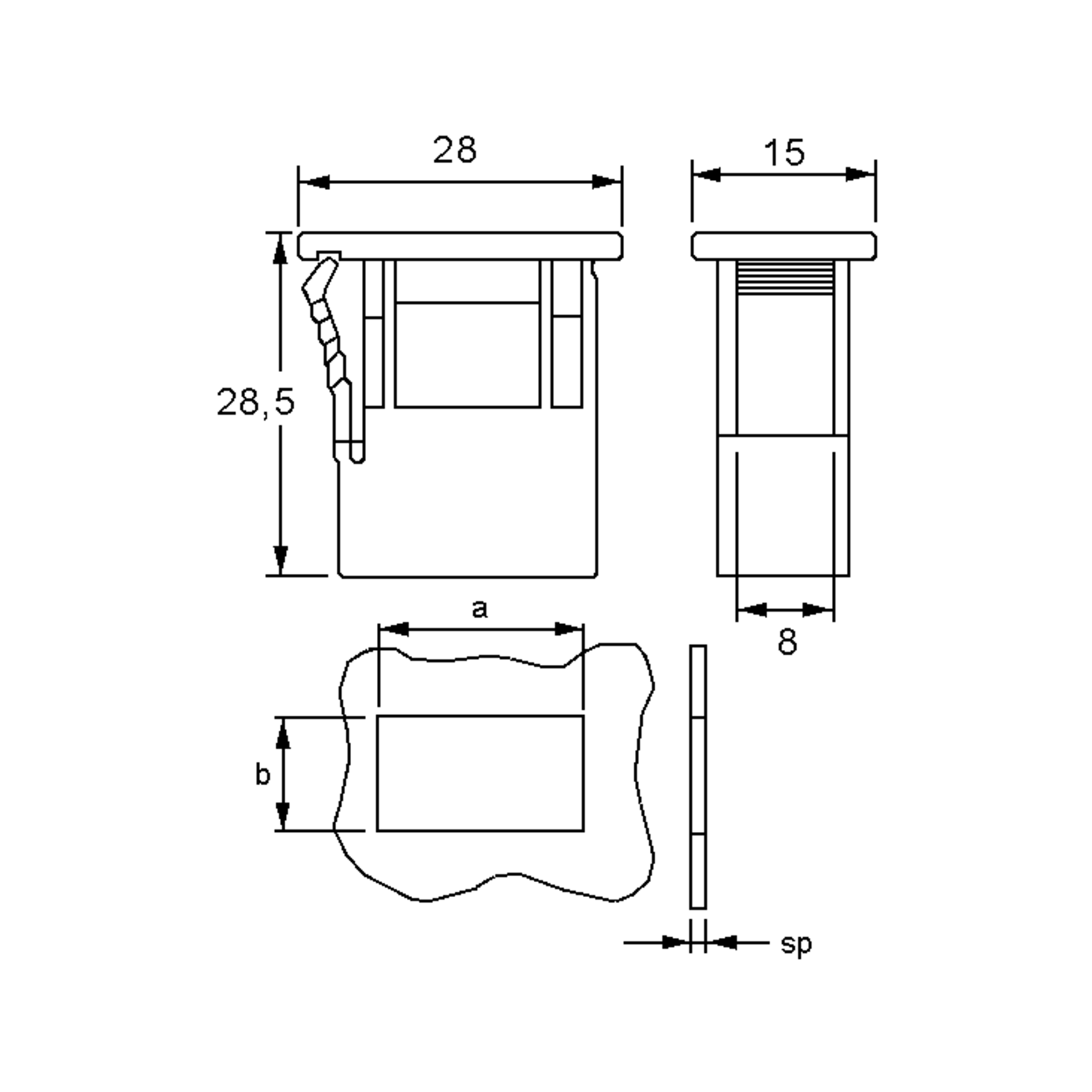

Dimensions and Weights
- Dimension: Length
- 28 mm
- Dimension: Width
- 18 mm
- Diameter
- 28.5 mm
- Board Strength min.
- 0.8 mm
- Board Strength max.
- 2 mm
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 100 °C
Technical Features
- Rated current
- 20 A
- Rated voltage V DC
- 32 V DC
Safety/Certifications
- Insulation class
- IP20
