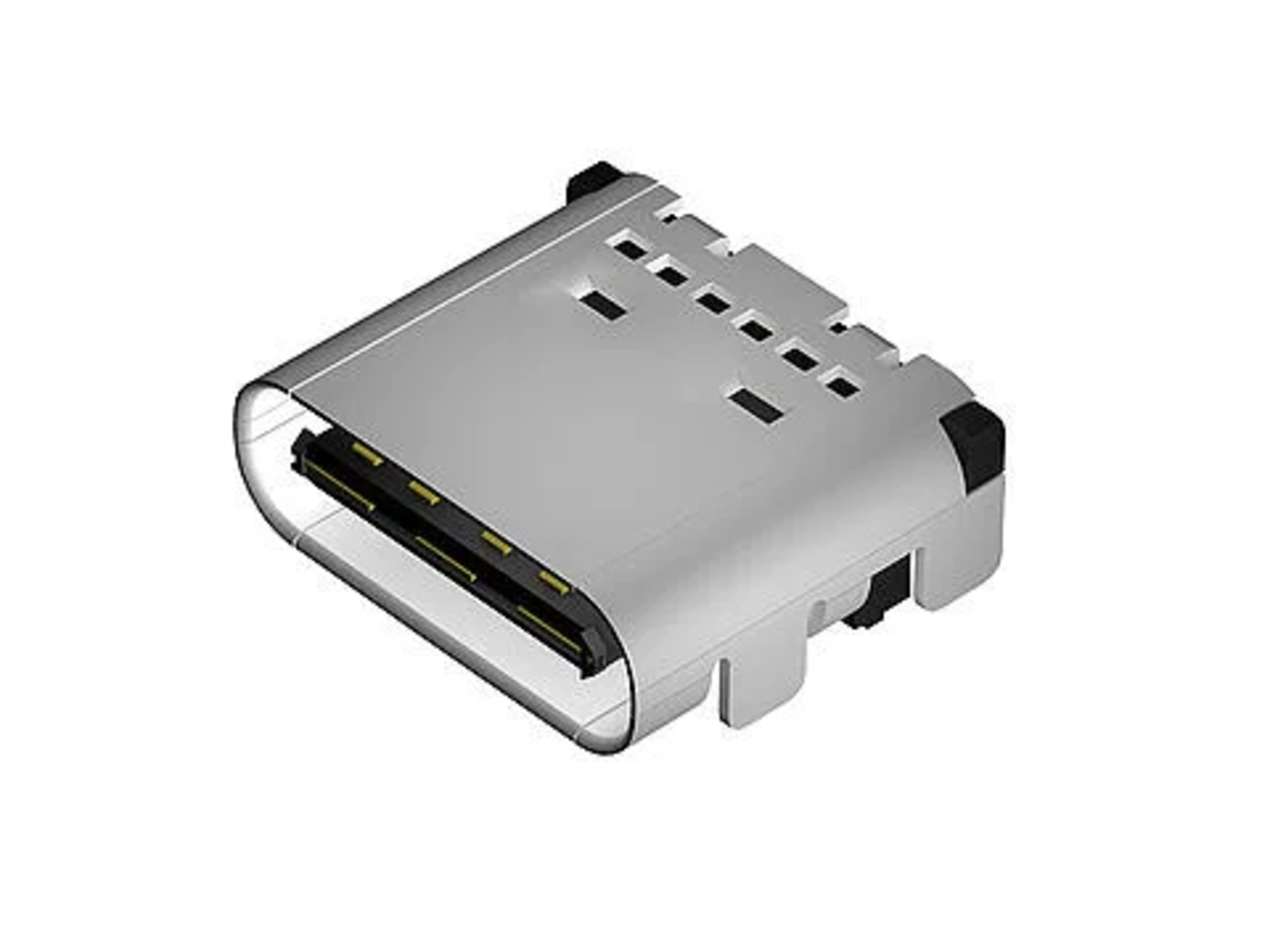

719-3-S-KR0
MPE Garry 24pol.
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
5.400 Pcs.
5.400 Pcs.
Planned delivery time
Ø 26 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 900 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5400 or multiple of 5400)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- 719
- Number of poles
- 24
- Dimension: Length
- 8.94 mm
- Rated current
- 3 A
- Dimension: Width
- 8.1 mm
- Dimension: Height
- 3.16 mm
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 85 °C
- RoHS-Conform
Specifications
Open all

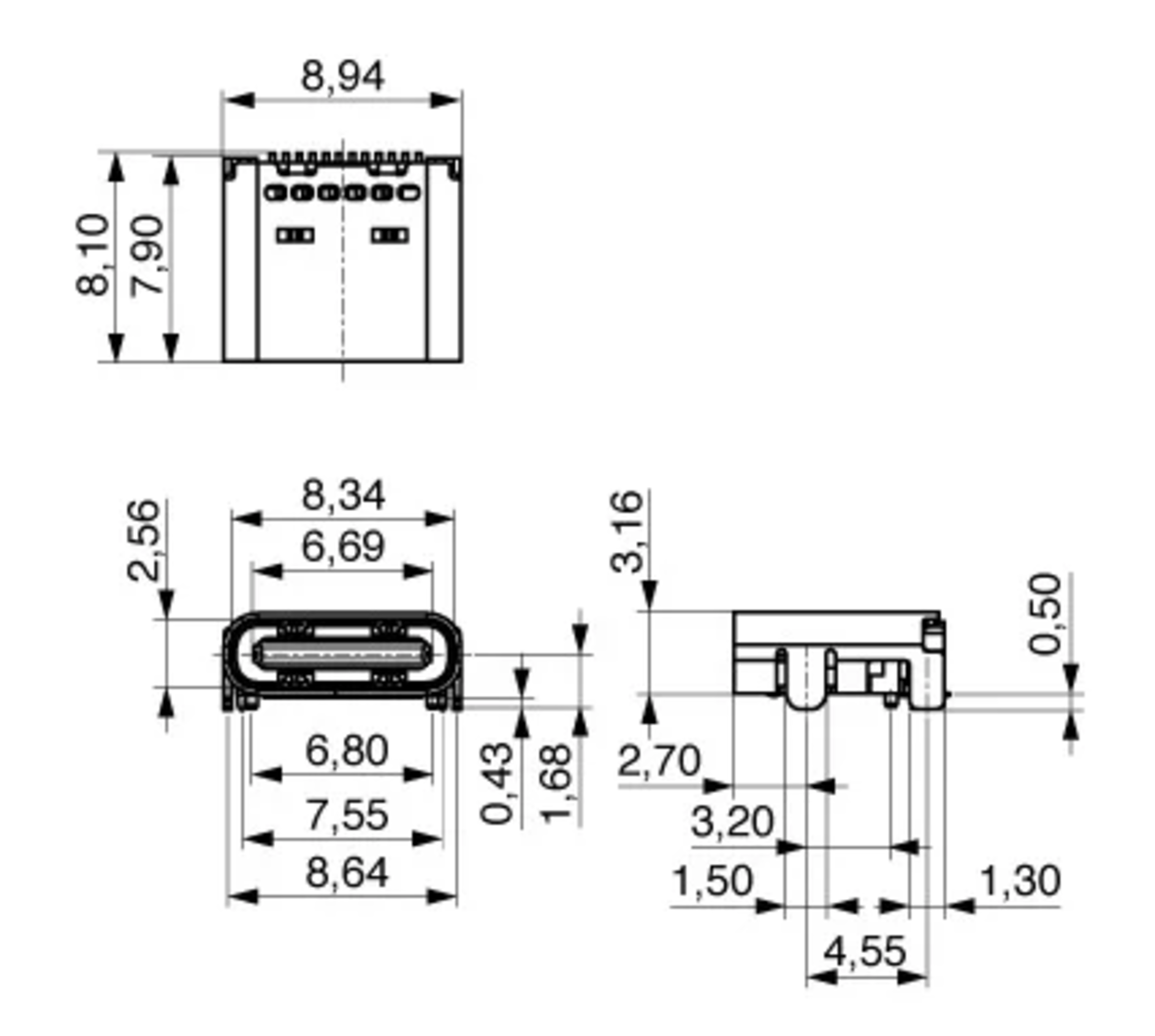

Dimensions and weights
- Dimension: Length
- 8.94 mm
- Dimension: Width
- 8.1 mm
- Dimension: Height
- 3.16 mm
- Height (incl. pins)
- 3.66 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated current
- 3 A
- Breakdown voltage
- 100 V RMS / min.
- Solderability
- 260 °C / 10 s °C / s
- Performance
- USB 3.1
- Insulation resistance
- 100 mOhm
Mechanical features
- Durability
- 10,000
- Insertion force per contact, max.
- 20 N
- Insertion force per contact, min.
- 5 N
- Pulling force per contact, min.
- 8 N
- Pulling force per contact, max.
- 20 N
- Insulating body
- Hochtemp. TP (UL94V-0)
- Kontaktbeschichtung Eingang
- vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
