712-4-S-BS0
Binder MPE Plug 712-4 PCB Plug rectangular 90° Solder 7,3mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 13.07.2023
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Plug
- Type
- Plug
- Connector Contact
- Solder
- Series
- 712-4
- Housing
- rectangular
- Design
- PCB
- Insulating body
- High Temperature Thermoplast (TP)
- Contact Type
- Micro USB
- Class of Inflammability
- UL 94 V-0
- Locking
- no
- Alignment
- 90°
- Operating Temperature Max.
- 80 °C
- Rated voltage DC
- 30 V DC
- Operating Temperature Min.
- -30 °C
- RoHS-Conform
Specifications
Open all

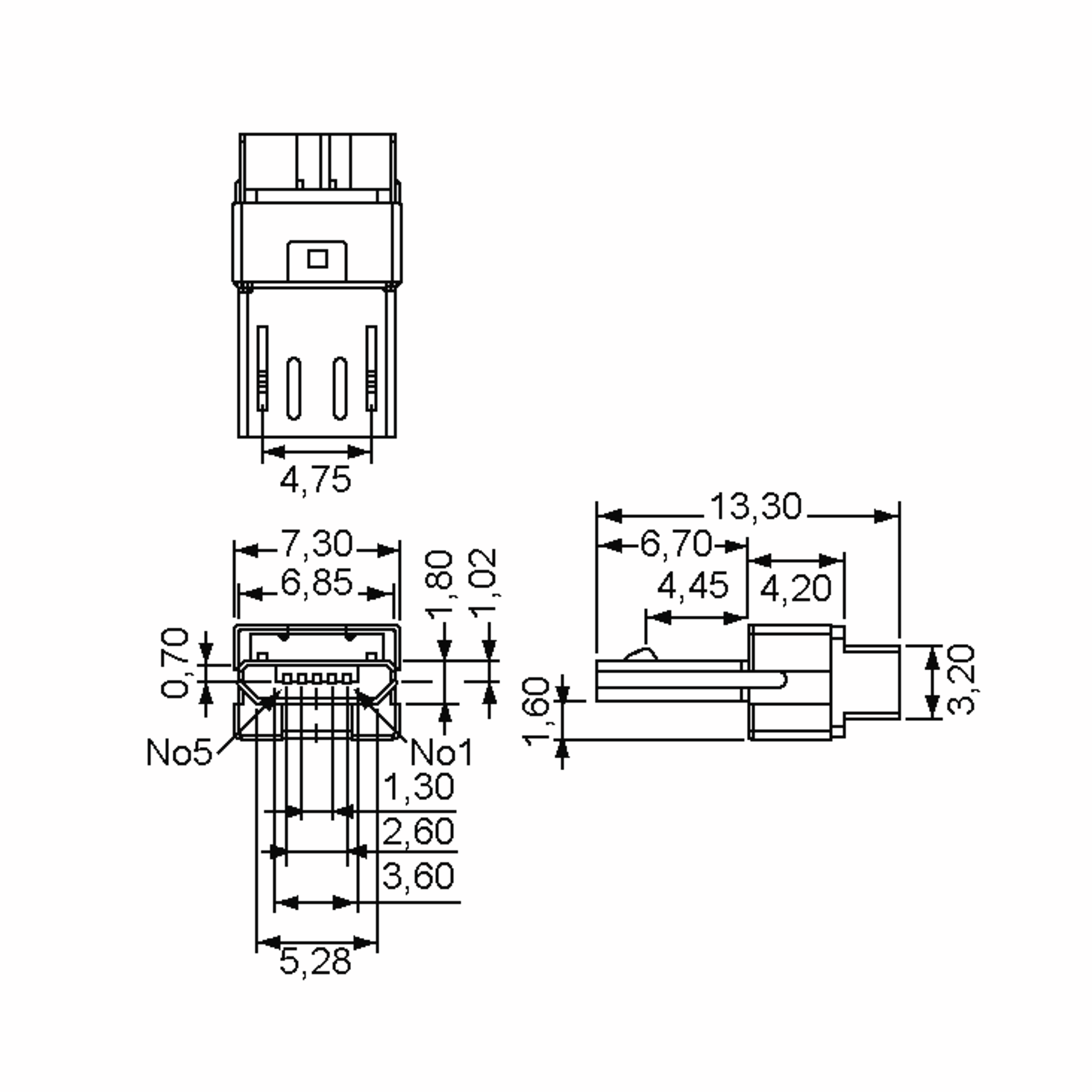

Dimensions and Weights
- Dimension: Length
- 7.3 mm
- Dimension: Width
- 13.3 mm
Operating conditions
- Operating Temperature Min.
- -30 °C
- Operating Temperature Max.
- 80 °C
Technical Features
- Rated voltage DC
- 30 V DC
- Breakdown voltage
- 100 V RMS / min.
- Solderability
- 260 °C / 10 s °C / s
Mechanical Features
- Durability
- 10,000
- Insulating body
- High Temperature Thermoplast (TP)
- Contact Surface Input
- vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
