13 Pcs. in stock
Planned delivery time
Ø 27 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
Package/Case
DIN Rail
Output Power
960 W
Output voltage
24 V
Output current
40.000 A
Efficiency
95 %
RoHS-Conform
Specifications
Close all
General
Manufacturer
MEAN WELL
Series
XTR-960
Product group
L3361
Application
ITE
Industry
MSR/Laboratory
Package/Case
DIN Rail
Dimension: Width
96 mm
Dimension: Height
125.2 mm
Dimension: Depth
132 mm
Weight
1,800 g
Label
TÜV
Manufacturer's warranty (years)
5
Product description

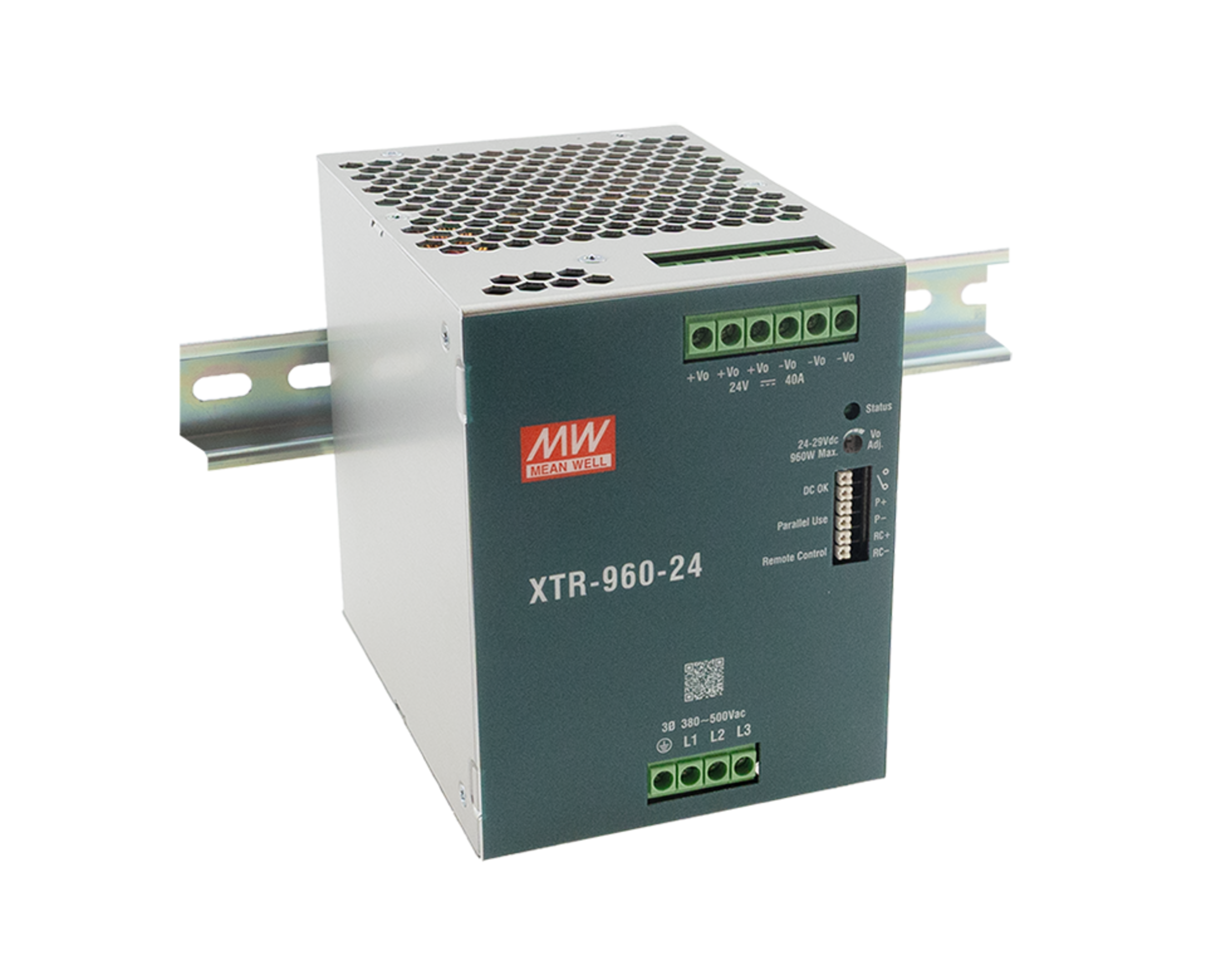

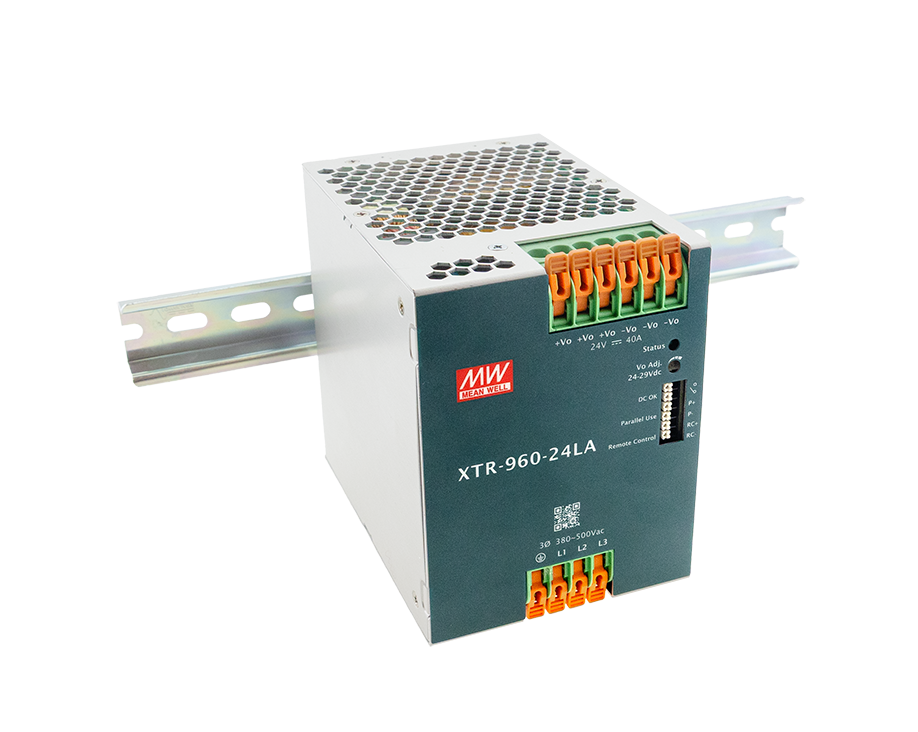

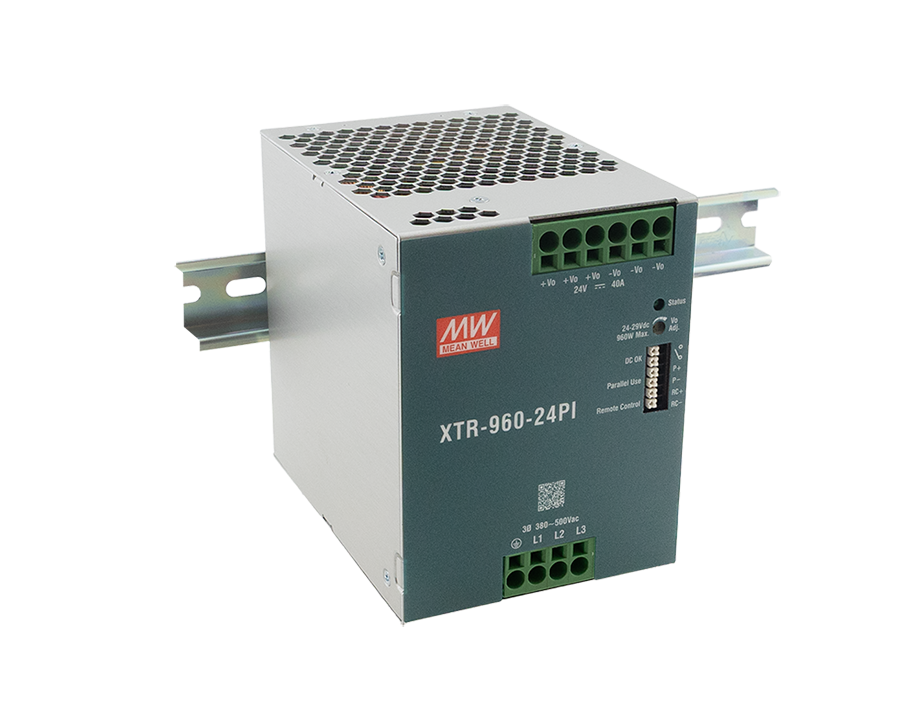

The XTR-960 series is an ultra slim and highly reliable industrial 960W AC/DC DIN rail power supply with 3-phase 320-600Vac input. Key features of this series include a slim 96mm housing that saves installation space in the end system, a maximum efficiency of 96% and a low standby power consumption of <3.1W through remote control for energy saving and carbon reduction. It offers constant current output with up to 200% peak power; fanless design, ultra-wide operating temperature range of -40 to +85C (up to +60°C at full load), OVCIII compliance, parallel function capability up to 3840W, ultra-low inrush current of <10A, built-in remote control, DC OK and ORing FET, internal PCB coating provides basic moisture and dust protection, and it has multiple terminal blocks to choose from. With comprehensive protection features, full safety certifications and a 5-year warranty, the XTR-960 series is a compact, powerful and highly reliable DIN rail power supply.
